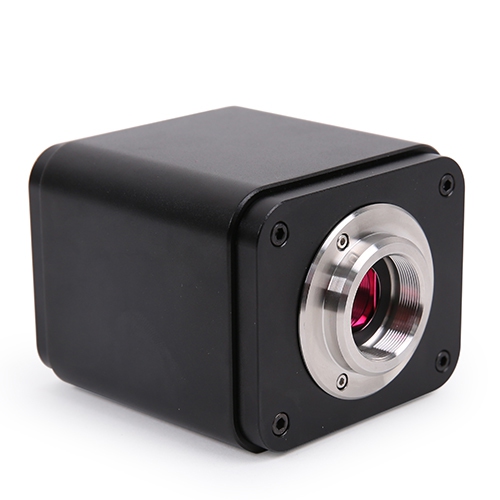

X5CAM4K8MMA HDMI/NETWORK/USB Multi-Output C-Mount CMOS HDMI Camera

For Purchase / Trial / OEM / ODM, Please Contact Us

Introduction

X5CAM4K8MMA HDMI/NETWORK/USB Multi-Output C-Mount CMOS HDMI Camera

The X5CAM4K8MMA camera is a high-resolution, high-sensitivity monochrome camera capable of receiving infrared light up to 1000nm. Its main features are as follows:

Sony Starvis 2 backside-illuminated CMOS sensor
Synchronous output via HDMI/NETWORK/USB multi-interfaces (4K)
Adaptive switching between 4K and 1080P HDMI output
4K 60fps low-latency HDMI output, with an average latency of 40ms
Captures video or images to SD card/USB flash drive, with local preview and playback support
Supports RAW format image capture and display
Supports automatic upload of captured photos to a server via network
Includes a USB audio control module for real-time voice command control (photo, video, freeze)
Brand-new browsing interface offering rich file operation functions, image-to-image comparison, and real-time video comparison, as well as multi-image depth-of-field synthesis
Powerful ISP functions with significant sharpening and 3D denoising effects
Provides real-time video depth-of-field synthesis
Offers real-time stitching for higher quality images through on-the-fly processing
Provides default ISP parameter switching for convenient secondary adjustments and optimization
Embedded XCamView software offering comprehensive image processing and measurement functions, including auto edge detection and auto measurement
ToupView/ToupLite software for more convenient desktop operation
iOS/Android mobile applications available for free download from the app store

Related Models

Order Code

Sensor & Size(mm)

Pixel(μm)

Sensitivity

Dark Signal

Sensor Output

(FPS/Resolution)

Binning

Exposure(ms)

X5CAM4K8MMA

Sony IMX678(M)
1/1.8"(7.68x4.32)

2.0x2.0

2174 with 1/30s
0.15mv with 1/30s

60@3840*2160

1x1

0.019~1000

Output Parameters for Different Interfaces of the X5CAM4K8MMA Series Cameras are Shown in the Table Below

Camera Model	Video Saving(FPS/Resolution)	HDMI2.0(FPS/Resolution)	USB3.0(FPS/Resolution)	NETWORK(FPS/Resolution)
X5CAM4K8MMA	60@38402160 60@19201080 60@1280*720	60@38402160 60@19201080	30@38402160 45@26881512 60@1920*1080	30@38402160 60@19201080 60@1280*720

Detailed Specifications

X5CAM4K8MMA Series HDMI Camera Interface Panel Diagram

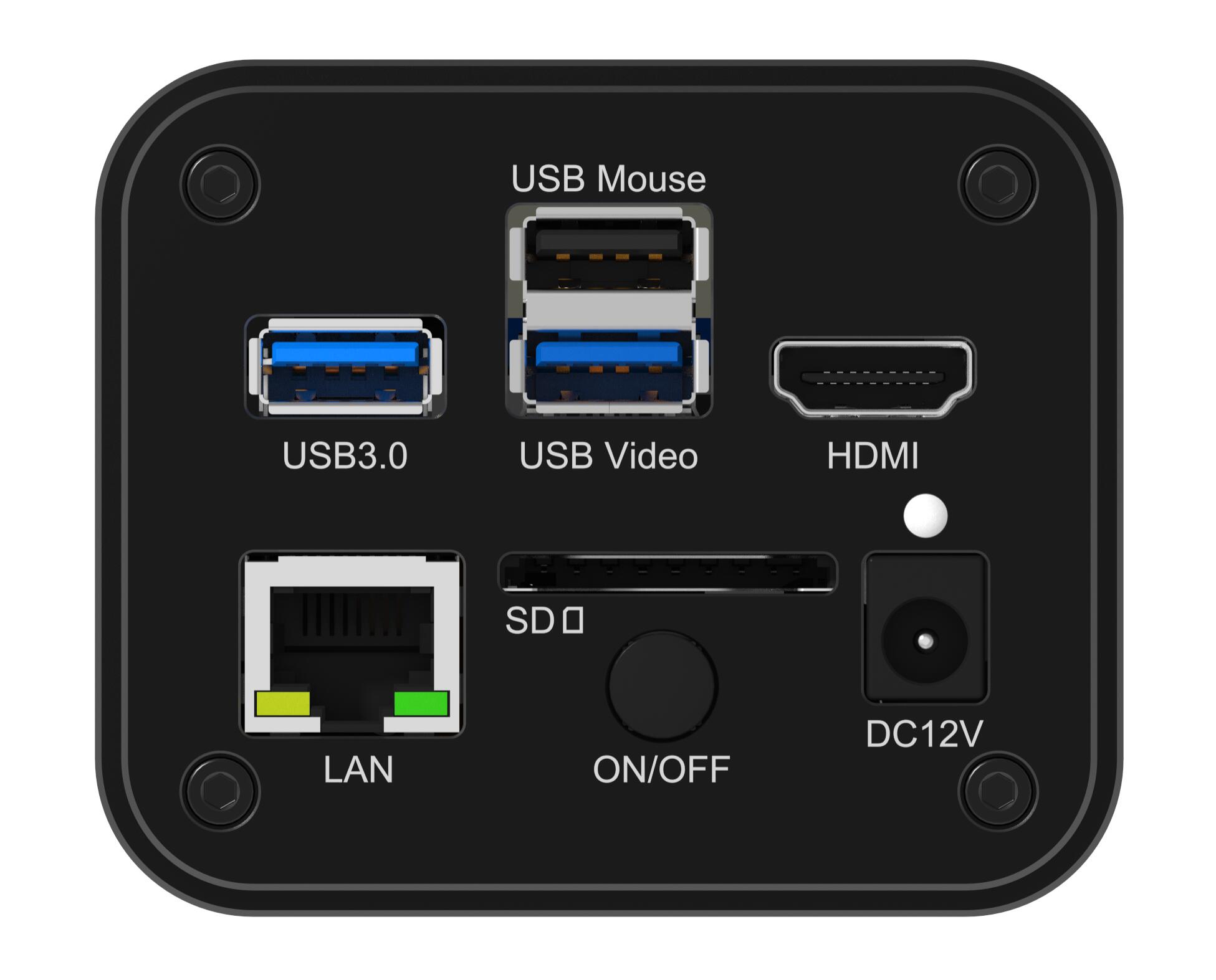

X5CAM4K8MMA Series Camera Rear Panel Interface Diagram (Cube & Flat)

Interface or Button	Function Description
USB Mouse	Connect USB mouse for easy operation with embedded XCamView software Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations
USB3.0	Connect USB flash drive to save pictures and videos Connect 5G WiFi module to transfer video wirelessly in real time Connect USB microphone to record audio and video Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations
USB Video	Connect PC or other host device to realize video image transmission
HDMI	Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors
LAN	LAN port to connect router and switch to transfer video
SD	SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving
ON/OFF	Power switch
LED	LED status indicator
DC12V	Power adapter connection (12V/1A)
Video Output Interface	Function Description
HDMI Interface	Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P
LAN Interface	Support real time resolution switching(4K/1080P/720P) H264 encoded video DHCP configuration or manual configuration Unicast/multicast configuration
WiFi Interface	Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode
USB Video Interface	Connecting USB Video port of PC for video transfer H264/MJPEG format video
Other Function	Function Description
Video Saving	Video format：8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate: 60fps
Image Capture	8M (3840*2160) JPEG/TIFF/RAW image in SD card or USB flash drive (Default SD card priority, priority can be modified in settings)
Measurement Saving	Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode
ISP	Exposure(Automatic / Manual Exposure) / Gain， Sharpening, 3D Denoise, Gamma Adjustment, Contrast Adjustment, Brightness Adjustment, 50HZ/60HZ Anti-flicker Function
Image Operation	Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, EDF, Stitch, Cross Line, Overlay, PIP , Browser(including Picture Browsing , Video Playback , Video Compare , Picture Compare , EDF , Stitch , Image Processing), Measurement Function
Embedded RTC(Optional)	To support accurate time on board
Restore Factory Settings	Restore camera parameters to its factory status
Multiple Language Support	English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese
Software Environment under Network/USB Video Output
White Balance	Auto White Balance
Color Technique	Ultra-Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture or Movie
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 4GB or More
	Ethernet Port: RJ45 Ethernet Port
	Display:19” or Larger
	CD-ROM
Operating Environment
Operating Temperature (in Centidegree)	-10°~ 50°
Storage Temperature (in Centidegree )	-20°~ 60°
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/1A Adapter

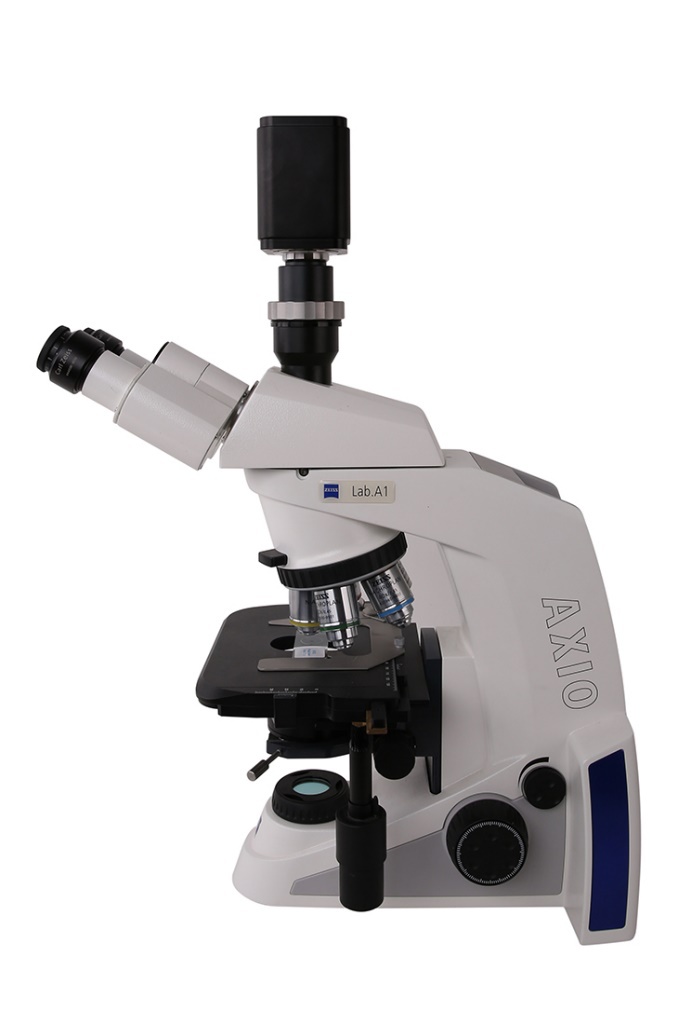

Applications

Human Skin and Hair Follicle Section

Paramecium WM

Gastric Tissue / Stomach Section

X5CAM4K8MMA Series HDMI Camera Dimensions

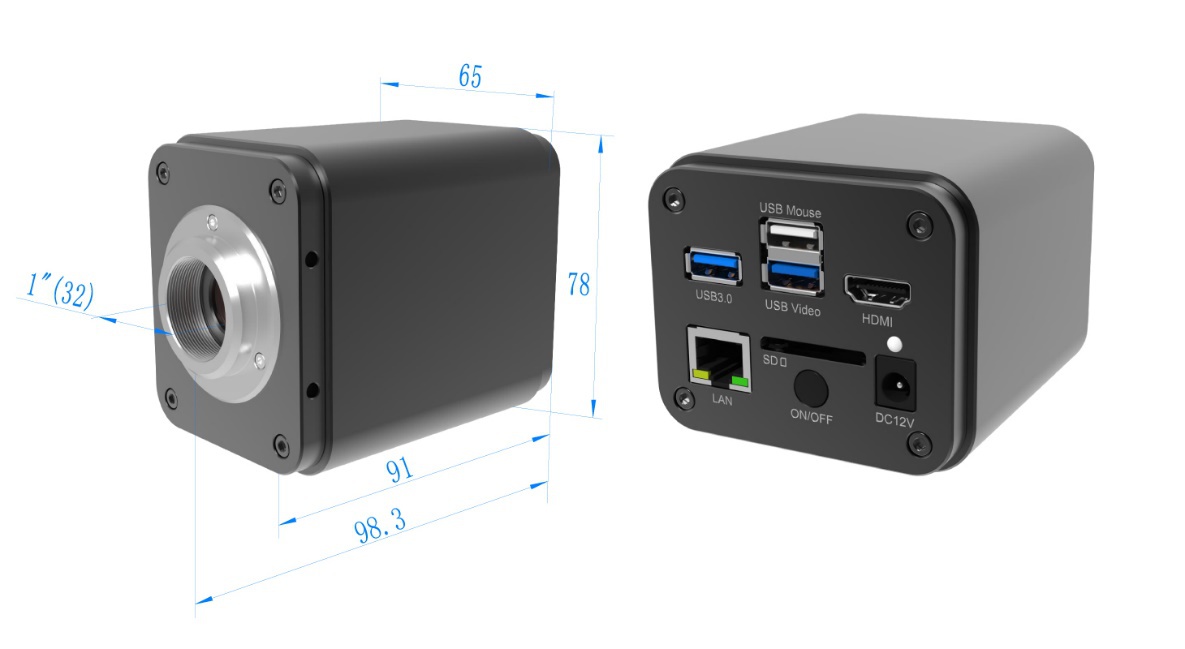

X5CAM4K8MMA Series HDMI Camera Dimension Diagram

Packing List

OCAM Series HDMI Camera Packaging Diagram

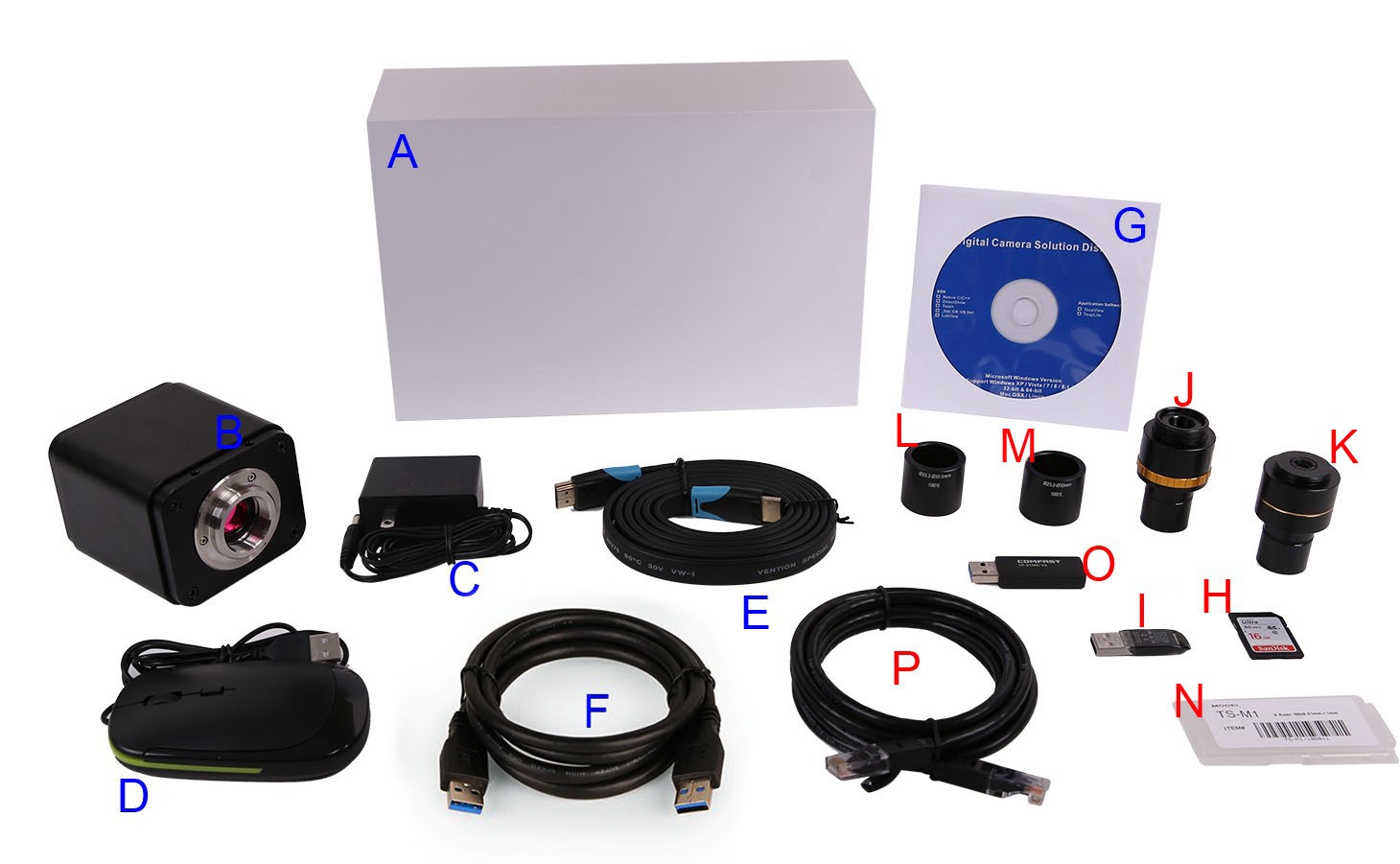

Standard Packing List
A	Camera packaging box dimensions: L:18.4cm, W:17.0cm, H:9.0cm (1pc, 1.7 kg per box)
B	One X5CAM4K8MMA Camera
C	Power Adapter: Input: AC 100~240V, 50Hz/60Hz Output: DC 12V 1A	US Standard: Model: POWER-U-12V1A (MSA-C1000IC12.0-12H-US) EU Standard: Model: POWER-E-12V1A (MSA-C10001C12.0-12H-DE)
D	USB Mouse
E	HDMI 2.0 Cable
Optional Accessories
F	USB Flash Drive
G	Adjustable Eyepiece Adapter		23.2mm Eyepiece to C-Mount Adapter (Select one based on your camera and microscope)	108001/AMA037 108002/AMA050 108003/AMA075
H	Fixed Eyepiece Adapter		23.2mm Eyepiece to C-Mount Adapter (Select one based on your camera and microscope)	108005/FMA037 108006/FMA050 108007/FMA075
H	Note: For options G and H, please first confirm your camera model (C-mount, microscope camera, or telescope camera). Our engineers will help you select the appropriate adapter based on your application.
I	108015 (23.2mm to 30.0mm ring) / Adapter for a 30mm diameter eyepiece
J	108016 (23.2mm to 30.5mm ring) / Adapter for a 30.5mm diameter eyepiece
K	Micrometer	106011/TS-M1 (X = 0.01mm/100Div.) 106012/TS-M2 (X, Y = 0.01mm/100Div.) 106013/TS-M7 (X = 0.01mm/100Div., 0.10mm/100Div.)
L	USB WiFi Adapter (In WiFi mode, a USB WiFi adapter is required to operate the camera; different models may vary in appearance)
M	Ethernet Cable
