O5CAM4K Series HDMI Camera

For Purchase / Trial / OEM / ODM, Please Contact Us

Contact Us Download Materials
ToupTek

Introduction

O5CAM4K Series HDMI Camera

The O5CAM4K series HDMI Camera can capture video and images directly from stereomicroscopes or biological microscopes without the need for a computer. Its main features are as follows:

  • Sony Starvis 2 backside-illuminated CMOS sensor
  • 4K/1080P HDMI output with automatic resolution switching
  • Supports 4K 60fps low-latency HDMI output with an average latency of 40ms
  • Supports saving captured video or images to a USB flash drive, with local preview and playback
  • Supports RAW image capture and display
  • Supports USB audio control module for real-time voice commands to capture photos, record video, and freeze the image
  • Supports barcode scanner image capture
  • Features a brand-new browsing interface that provides extensive file operation capabilities, including image-to-image comparison, real-time video to image comparison, multi-image depth of field synthesis, and multi-image stitching.
  • Powerful ISP functions including dark area enhancement, sharpening, and 3D denoising
  • Provides real-time video depth of field synthesis and real-time video WDR output functions
  • Offers real-time stitching to produce higher quality images through on-the-fly processing
  • Provides default ISP parameter switching for biological and stereomicroscopes to facilitate secondary adjustments and optimization
  • Includes built-in XCamView software with comprehensive image processing and measurement functions, supporting auto edge detection and automatic measurement features

Related Models

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity
Dark Signal

FPS/Resolution

Binning

Exposure(ms)

O5CAM4K8MPA

Sony IMX678(C)
1/1.8"(7.68x4.32)

2.0x2.0

3541mv with 1/30s
0.15mv with 1/30s

60@3840*2160(HDMI)

1x1

0.019~1000

Detailed Specifications

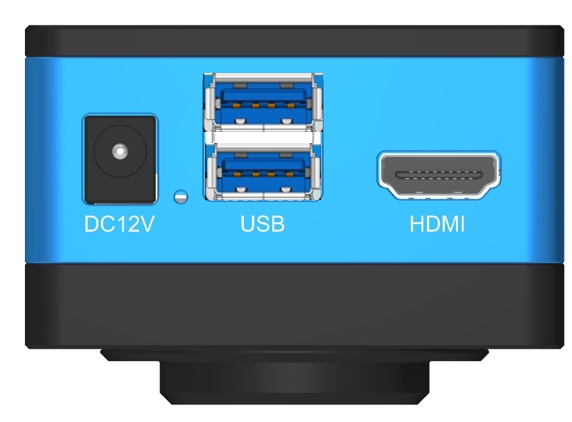

O5CAM4K Series HDMI Camera Interface Panel Diagram
O5CAM4K Series HDMI Camera Interface Panel Diagram

Interface or Button

Function Description

DC12V

Power adapter connector (12V/1A)

LED

LED status indicator

USB3.0(2)

Connect USB mouse for easy operation with embedded XCamView software
Connect USB flash drive to save pictures and videos
Connect USB microphone to record audio and video
Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations

HDMI

Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P

Other Function

Function Description

Video Record

Video format：8M (3840*2160) H264/H265 encoded MP4 file
Video saving frame rate: 60fps in Low Delay Mode
30fps in WDR Mode

Image Capture

8M (3840*2160) JPEG/TIFF/RAW image in USB flash drive

Measurement Saving

Measurement information saved in different layer with image content in layered mode.
Measurement information is saved together with image content in burn in mode

ISP

Exposure (Automatic / Manual Exposure) / White Balance, Sharpness, 3D Denoising, Saturation Adjustment, Gamma Adjustment, Contrast Adjustment, Brightness Adjustment, Dark Enhance, Color to Gray, 50HZ/60HZ Anti-flicker Function

Image Operation

Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, EDF, Stitch, Cross Line, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, EDF, Stitch, Image Processing), Measurement Function

Embedded RTC(Optional)

To support accurate time on board

Restore Factory Settings

Restore camera parameters to its factory status

Multiple Language Support

English / Simplified Chinese

Operating Environment

Operating Temperature (in Centidegree)

-10°~ 50°

Storage Temperature (in Centidegree)

-20°~ 60°

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter

Application Examples

O5CAM4K Application Example
Fibrous Connective Tissue - Sec
O5CAM4K Application Example
Paramecium WM
O5CAM4K Application Example
Circuit Board
O5CAM4K Application Example
Sunflower L.S

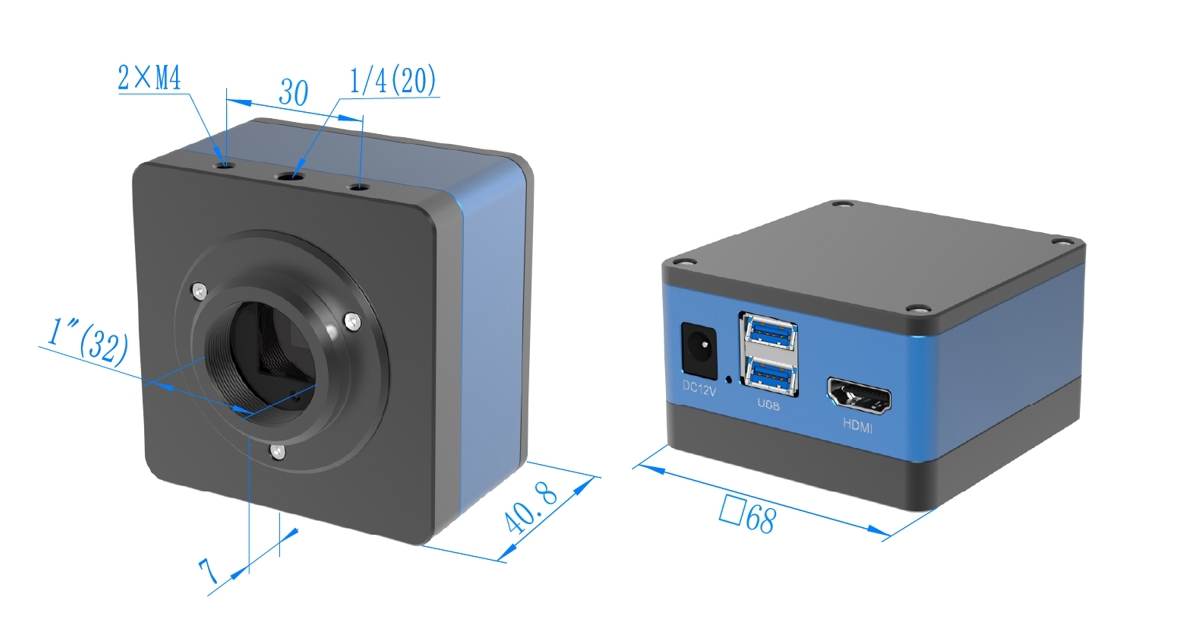

O5CAM4K Series HDMI Camera Dimensions

O5CAM4K Series HDMI Camera Dimension Diagram
O5CAM4K Series HDMI Camera Dimensions

Packing List

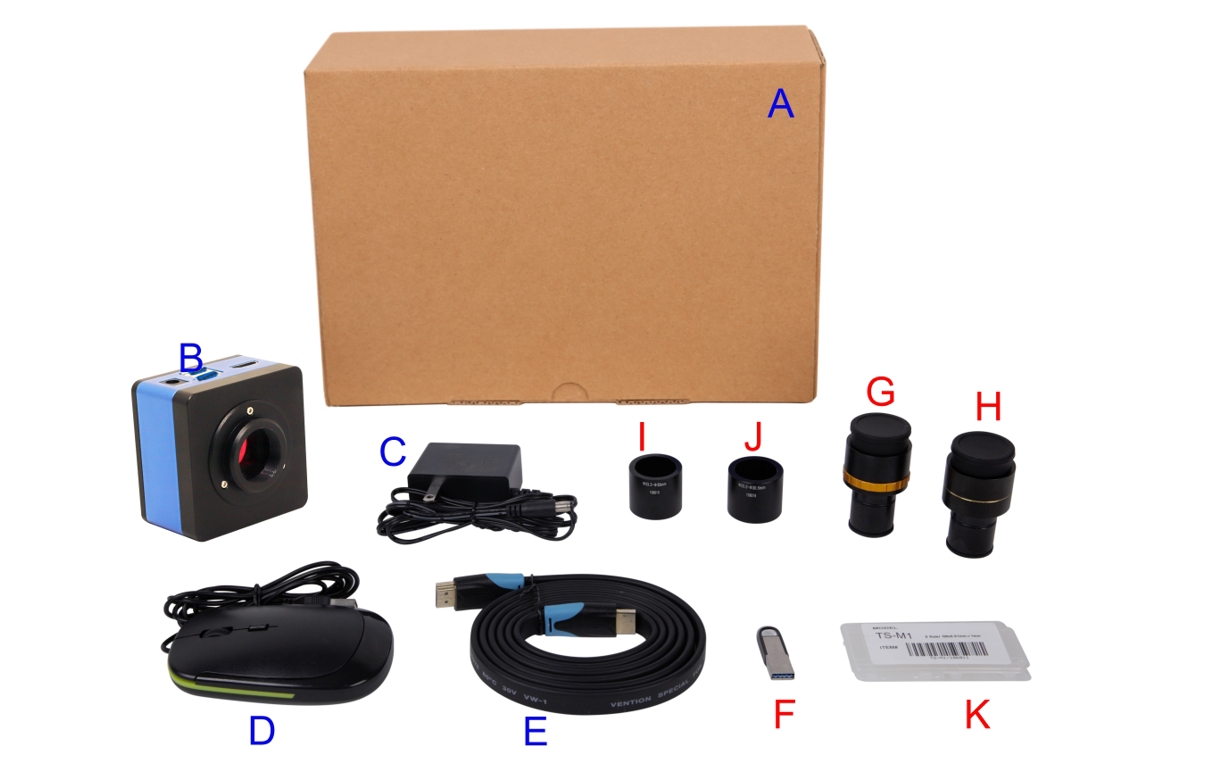

OCAM Camera Packaging Diagram
OCAM Series HDMI Camera Packaging Diagram

Standard Packing List

A

Camera packaging box dimensions: L:18.4cm, W:17.4cm, H:8.1cm

B

One OCAM Series HDMI Camera (choose one of the two available styles; please specify)

C

Power Adapter: Input: AC 100~240V, 50Hz/60Hz; Output: DC 12V 1A
US Standard: Model: POWER-U-12V1A (MSA-C1000IC12.0-12W-US)
EU Standard: Model: POWER-E-12V1A (MSA-C10001C12.0-12W-DE)

D

USB Mouse

E

HDMI 2.0 Cable

Optional Accessories

F

USB Flash Drive

G

Adjustable Eyepiece Adapter

23.2mm Eyepiece to C-Mount Adapter
(Choose one based on your camera and microscope)

108001/AMA037
108002/AMA050
108003/AMA075

H

Fixed Eyepiece Adapter

23.2mm Eyepiece to C-Mount Adapter
(Choose one based on your camera and microscope)

108005/FMA037
108006/FMA050
108007/FMA075

Note: For options G and H, please first confirm your camera model (C-mount, microscope camera, or telescope camera). Our engineers will help you select the appropriate adapter based on your application.

I

108015 (23.2mm to 30.0mm ring) / Adapter for a 30mm diameter eyepiece

J

108016 (23.2mm to 30.5mm ring) / Adapter for a 30.5mm diameter eyepiece

K

Micrometer

106011/TS-M1 (X = 0.01mm/100Div.)
106012/TS-M2 (X, Y = 0.01mm/100Div.)
106013/TS-M7 (X = 0.01mm/100Div., 0.10mm/100Div.)
