AFDM is the abbreviation of Auto-focus Digital Microscope. Different products in the AFDM series can be formed with different part to satisfy the applicatuon requirement. AFDM is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope with a large field of view by ToupTek Photonics. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light.
AFM101 comes with H1080PA HDMI camera, EMZO-20XA lens and DRL-5076A-NPC light source(Optional); The Camera use an embedded ARM core, allowing the Camera to be connected directly to the HDMI monitor. The Camera has XFCAMView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the Camera and perform various operations through a USB mouse. The images and videos captured by AFDM101 can be saved on an SD card for on-site analysis and follow-up research.
AFDM101 can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
The AFM101 comes with H1080PA HDMI camera, EMZO-20XA lens and DRL-5076A-NPC light source(Optional);
- 5 groups 16 elements EMZO with 0.028~0.56X, 20 zoom ratio, supports auto and manual focus;
- 195mmstandard working distance with 150~195mm depth of field;
- At standard working distance, the large field of view 200mm*112.5mm at low magnification, helping users to quickly locate the target object, the small field of view 10mm*5.6mm at higher magnification, helping users to observe microscopically.
- Sony 1/2.8” 1080P CMOS with high signal-to-noise ratio;
- Connect to HDMI monitor with 1080P@60FPSvideo format;
- SD card storage supports 1080P pictures and video streams(asf format);
- Built-in mouse control software XFCAMView,all functions can be realized with USB mouse;
- Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel;
- Multi-language support;
- Head suction LED ring light, the brightness can be directly controlled by XFCAMView;
- With the adapter bracket of 76mm diameter, a electric controlled continuous zoom AFDM can be built.
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G SensitivityDark Signal |
FPS/Resolution |
Binning |
Exposure(ms) |
|
H1080PA |
Sony IMX462LQR-C 1/2.8"(5.57x3.13) |
2.9x2.9 |
921/0.15mv with 1/30s |
60/1920*1080 (HDMI) |
1x1 |
0.06~918 |
|
H4KPA |
Sony IMX415LQR-C 1/2.8"(5.57x3.13) |
1.45x1.45 |
300/0.13mv with 1/30s |
30@3840*2160(HDMI) 30@3840*2160(NW) 30@3840*2160(USB) |
1x1 |
0.04~1000 |
|
Interface & Button Functions |
|
|---|---|
|
USB Mouse |
USB mouse for XFCAMView control |
|
USB2.0 |
USB keyboard or other USB control device |
|
HDMI |
HDMI output |
|
ON/OFF |
Power on/off switch |
|
LED |
Power LED indicator |
|
SD |
SD card slot |
|
DC12V3A |
DC12V3A power input |
|
Software Funcitons |
|
|
UI Operation |
With USB mouse to operate on the embedded XFCAMView |
|
Image Capture |
JPEG format with 2M Resolution in SD card |
|
Video Record |
ASF format 1080P 30fps in SD card |
|
Camera Control Panel |
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising control |
|
Measurement Toolbar |
Including Calibration, Measurement, and measurement parameter Export functions |
|
Synthesis Control Toolbar |
Including software Zoom, Flip, Freeze, Crosshair, LED Control, Auto-focus, Comparison, Browser , Setting, Version Check function |
|
Auto Focus Control Panel |
Including Zoom, Auto Focus, One Push, Manual Focus, Reset, and other functions |
|
Operating Environment |
|
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Dimension |
|
|
Length x Width x Height |
80mm x 80mm x 122mm |
|
Shipping Weight |
0.75kg |
AFDM Lens Module Datasheet
|
Order Code |
Working Distance(mm) |
Zoom Range |
MTF(lp/mm) |
Distortion |
FOV@1X(mm) |
FOV@20X(mm) |
|
EMZO-20XA |
150~195 |
0.028X~0.56X |
160 |
0.5% |
200x112.5 |
10x5.6 |
1X and 20x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equations are 1x = 0.028/0.028; 20X=0.56/0.028;
AFDM Light Module
|
Order Code |
LED |
Power |
Inner Dia.(mm) |
Out Dia.(mm) |
|
|
|
DRL-5076A-NPC |
8 CREE xpes |
3V/3A |
50 |
76 |
|
|
DRL: LED direct ring light with adjustable brightness; NPC: No power cable
Instance
PCB circuit board
Observation of tea leaves
Spare parts inspection
Coin (coaxial lighting source)
Camera interface and appearance dimensions
Packing Information of AFDM101 Series
|
Standard Packing List |
||
|---|---|---|
|
A |
Gift box: L:220cm W:220cm H:110cm (1pcs, 2.0kg/box) |
|
|
B |
AFDM101 |
|
|
C |
USB Mouse |
|
|
D |
HDMI Cable |
|
|
E |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A |
American Standard: Model: HKA03612030-7K : UL/CE/FCC(With American Standard AC Power Cable) European Standard: Model: HKA03612030-7K : UL/CE/FCC(With European Standard AC Power Cable) EMI Standard: FCC Part 15 Subpart B EMS Standard: EN61000-4-2,3,4,5,6 |
|
Optional Accessory |
||
|
F |
LED Ring Light(DRL-5076A-NPC) |
|
|
G |
SD card(16G) |
|

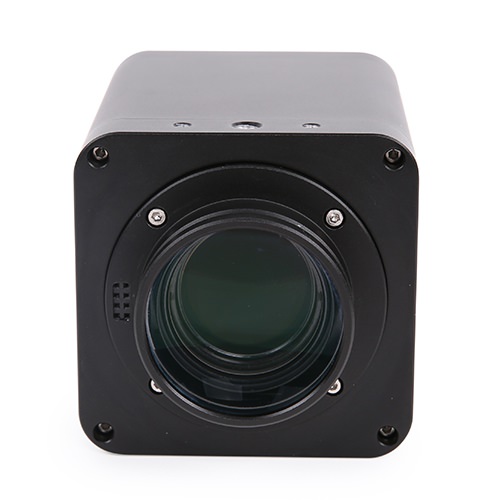

AFDM’s Front and Back View & AFDM’s Side and Front(with LED light) View
