sMAX series Camera adopts GSENSE with big pixel size or full-frame CMOS sensor as the image-picking device and USB3.0 /Camera Link is used as the transfer interface to increase the frame rate.
With the two-stage peltier cooling sensor chip to -40°C below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
sMAX series comes with advanced video & image processing application ToupView/ToupLite; Providing Windows/Linux/ OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The sMAX series can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
- Standard Camera with GSENSE CMOS sensors;
- Big pixels or full-frame sensor size;
- Two-stage TE-cooling with controllable electric fan;
- Sensor chip cooling up to 40°C below ambient temperature;
- Working temperature can be regulated to specified temperature in 5 minutes;
- Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
- IR-CUT/AR coated window (Optional);
- USB3.0 /GigE 5Gbit/s or 1000Mb/s interface ensuring high speed data transmission;
- Up to 1h long time exposure;
- Embedded up to 16bit hardware ISP module;
- Including 2-D denoising and sharpening;
- Ultra-Fine color engine with perfect color reproduction capability;
- Support the capture of video and image in software / hardware trigger mode;
- With advanced video & image processing application ToupView/ToupLite;
- Support both video and trigger modes;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain control API;
|
Other Specification |
|
|---|---|
|
Spectral Range |
200-1000nm(The spectral response range of each model is different. Please refer to the product manual of each model for detailed parameters) |
|
Protect Windows |
IR CUT (AR protection glass is optional) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-Fine Color Engine/NA for Monochromatic Sensor |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture and Movie (Free running mode or trigger mode) |
|
Cooling System* |
Two-stage TE-cooling System -40 °C below Camera Body Temperature |
|
IO Interface |
One optocoupler isolation input, one optocoupler isolation output, two direct connection GPIO |
|
Operating Environment |
|
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
External Power Adapter for Camera and Cooling System, DC19V, 4A |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
USB Port: USB3.0 High-speed Port CL Port: PCIE Slot |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|
The sMAX series can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
Instance
Red Fluorescent Image
Green Fluorescent Image
Blue Fluorescent Image
Fused Fluorescent Image

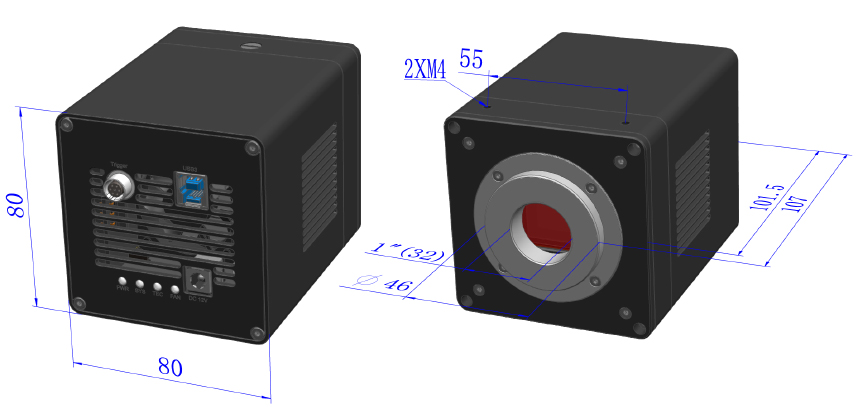

sMAX Camera Dimensions
Packing Information of sMAX Series Camera(USB3.0)
|
Standard Package |
|||
|---|---|---|---|
|
A |
Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo(TBD) |
||
|
B |
3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm(TBD) |
||
|
C |
One sMAX series camera(C-mount) |
||
|
D |
Drying tube and desiccant |
||
|
E |
Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A |
||
|
F |
High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m |
||
|
G |
IO cable |
||
|
H |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory（Not shown in the Photo） |
|||
|
I |
Adjustable lens adapter |
C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 108004/AMA100 |
|
J |
Fixed lens adapter |
C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 108008/FMA100 |
|
Note: For I and J optional items, please specify your Camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope Camera adapter for your application; |
|||
|
K |
108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube |
||
|
L |
108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
M |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
Packing Information for sMAX Series Camera(Camera Link)
| Standard Packing information | |
|---|---|
| A | 3-A equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box) |
| B | sMax Camera Link interface camera |
| C | 2 CameraLink cables |
| D | 12V/3A 6 PIN air plug power adapter |
| E | Power cord. National standard, American standard, European standard, British standard power cord ( D1, D2, D3, D4 ) for choosing |
| F | One external trigger control cable |
Order Code
Sensor & Size(mm)
Pixel(μm)
G Sensitivity
Dark Signal
FPS/Resolution
ADC
Binning
Exposure
sMAX04BM
4.2M/GSENSE2020BSI
(M,UV,RS)
1.2”(13.31x13.31)
6.5 x 6.5
1.1x108 (e-/((W/m2).s))
Peak QE 94% @550nm
0.21(e-/s/pix) @-20C
65.58dB/34.83dB
74@2048 x2048(11-bit ADC)
74@1024 x1024(11-bit ADC)
8 Bit / HDR 16 Bit
1x1
2x2
0.012ms~1h
sMAX04BM-CL100
4.2M/GSENSE2020BSI
(M,UV,RS)
1.2”(13.31x13.31)
6.5 x 6.5
1.1x108 (e-/((W/m2).s))
Peak QE 94% @550nm
0.21(e-/s/pix) @-20C
100@2048 x2048(11-bit ADC)
100@1024 x1024(11-bit ADC)
8 Bit / HDR 16 Bit
1x1
2x2
0.012ms~1h
