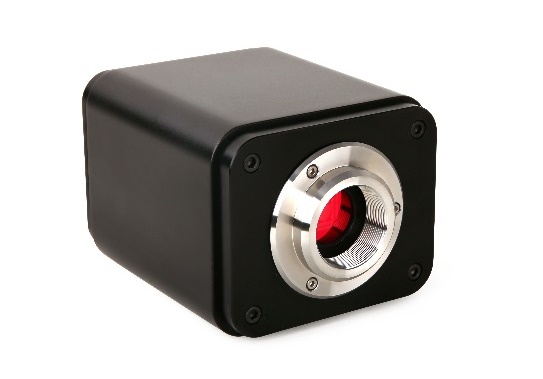

XCAM4K Series HDMI/NETWORK /USB Multi-outputs C-mount CMOS Camera

XCAM4K

The XCAM4K series Camera is the next-generation live-view imaging-system with 4K resolution(Video) at 60 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

The Camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (LAN) for image-capture and video-recording.

Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.

The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

The HDMI 4K series Camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.

  • Sony Exmor CMOS sensor
  • 4K HDMI/LAN/WLAN/USB multiple video outputs
  • 4K/1080P auto switching according to the display resolution
  • SD card/USB flash disk for the captured image and video storage
  • Embedded XCAMView for the control of the camera
  • With strong ISP and other related processing functions
  • ToupView/ToupLite software for PC
  • iOS/Android applications for smart phones or tablets
  • Windows/Linux/macOS/Android multiple platforms SDK;

Related models

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure(ms)

XCAM4K8MPA

4K/Sony IMX334(C)

1/1.8"(7.68x4.32)

2.0x2.0

505mv with 1/30s

0.13mv with 1/30s

60@3840*2160(HDMI)

30@3840*2160(NETWORK)

30@3840*2160(USB)

1x1

0.04~2000

XCAM4K8MPB

Sony IMX485(C)

1/1.2"(11.14x6.26)

2.9x2.9

2188mv with 1/30s

0.39mv with 1/30s

60@3840*2160(HDMI)

30@3840*2160(NETWORK)

30@3840*2160(USB)

1x1

0.04~2000

XCAM4K16MPA

Sony IMX183(C)

1/1.06"(13.06x7.34)

2.4x2.4

461mv with 1/30s

0.21mv with 1/30s

30@3840*2160(HDMI)

30@3840*2160(NETWORK)

15@5440*3060(USB)

1x1

0.04~2000

specification

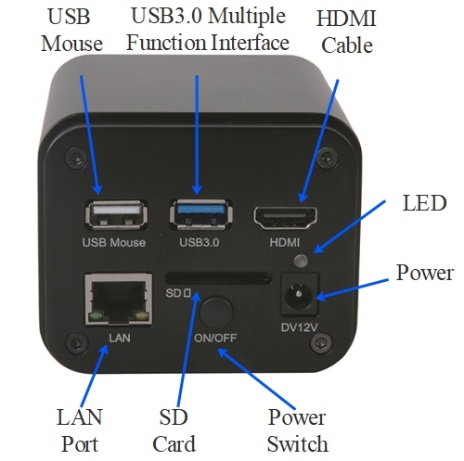

Interface or Button

Function Description

USB Mouse

Connect USB mouse for easy operation with embedded XCamView software.

USB3.0

Connect USB flash drive to save pictures and videos (Host Mode).

Connect 5G WiFi module to transfer video wirelessly in real time(AP/STA, Host Mode);

Connect computer with USB connection to transfer video in real time(Device Mode);

HDMI

Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors.,

LAN

LAN port to connect router and switch to transfer video.

SD

Comply with SDIO3.0 standard and SD card could be inserted for video and images saving.

ON/OFF

Power switch.

LED

LED status indicator.

DC12V

Power adapter connection (12V/1A).

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI2.0 standard;

60fps@4K or 60fps@1080P(XCAM4K8MPA, XCAM4K8MPB);

30fps@4K or 60fps@1080P(XCAM4K16MPA);

LAN Interface

30ps@4K resolution, support real time resolution switching;

H264/H265 encoded video;

Bandwidth adjustment in real time;

DHCP configuration or manual configuration;

Unicast/multicast configuration;

WiFi Interface

Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode (Host Mode);

USB3.0 Slot

Connecting USB3.0 port of PC for video transfer (Device Mode); MJPEG format video;

Other Function

Function Description

Video Saving

Video format:8M(3840*2160) H264 encoded MP4 file;

Video saving frame rate:50~260fps(XCAM4K8MPA, XCAM4K8MPB) (related with SD card and video resolution);

                                          26~30fps(XCAM4K16MPA) (related with SD card and video resolution);

Image Capture

8M (3840*2160, XCAM4K8MPA, XCAM4K8MPB) JPEG/TIFF image in SD card or USB flash drive;

16M (3840*2160, XCAM4K16MPA) JPEG/TIFF image in SD card or USB flash drive.

Measurement Saving

Measurement information saved in different layer with image content;

Measurement information is saved together with image content in burn in mode.

ISP Function

Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function

Image Operation

Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, PIP (Picture in Picture), Compare(Comparison between real time video and images in SD card or USB flash drive ),  Embedded Files Browser, Video Playback, Measurement Function

Embedded RTC(Optional)

To support accurate time on board

Restore Factory Settings

Restore Camera parameters to its factory status

Multiple Language Support

English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian

Software Environment under NEWWORK/WiFi/USB Video Output

White Balance

Auto White Balance

Color Technique

Ultra-Fine Color Engine

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System

Still Picture or Movie

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 4GB or More

Ethernet Port: RJ45 Ethernet Port

Displayer:19” or Larger

CD-ROM

Operating Environment

Operating Temperature (in Centidegree)

-10°~ 50°

Storage Temperature (in Centidegree)

-20°~ 60°

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter

Instance

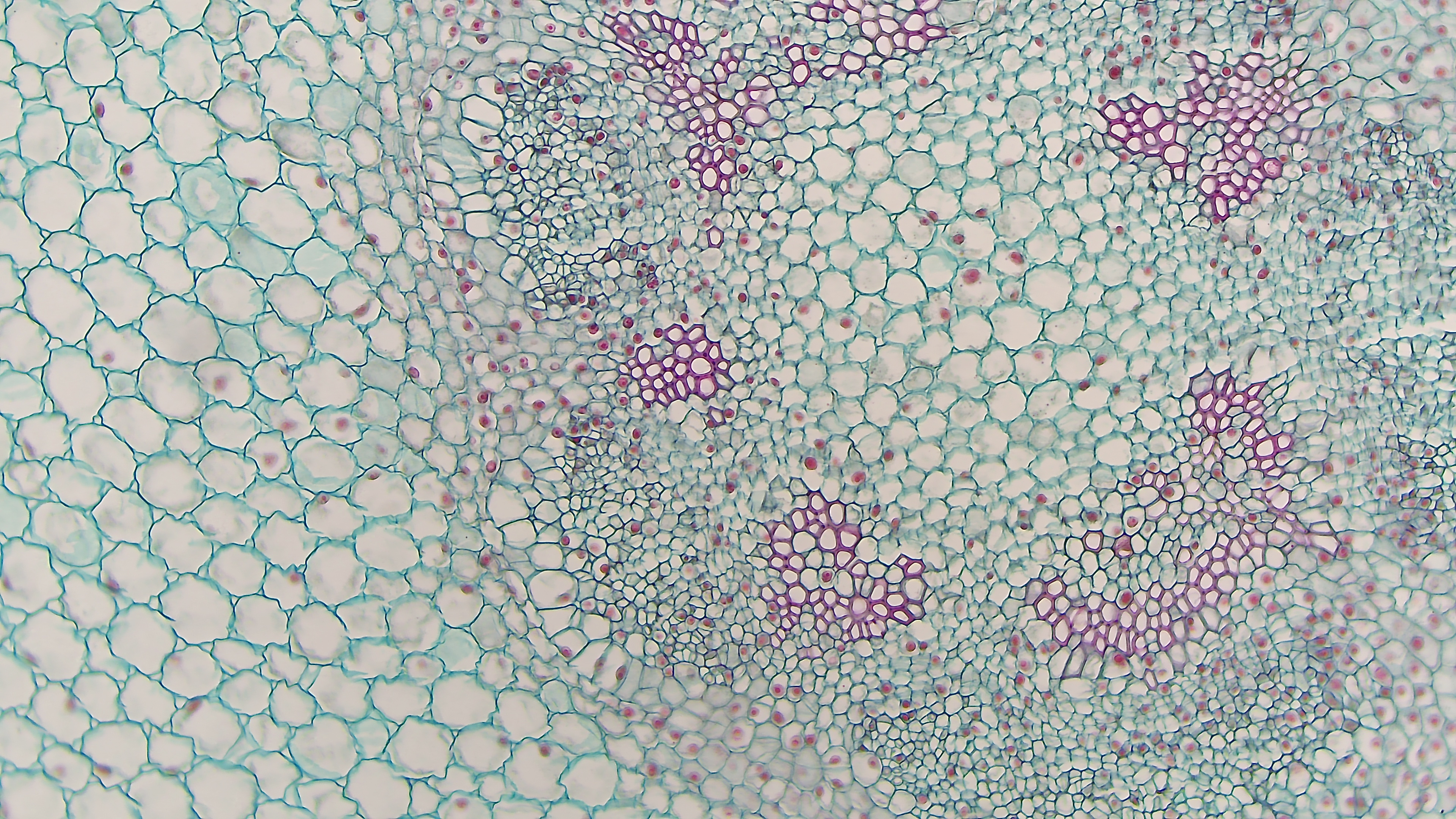

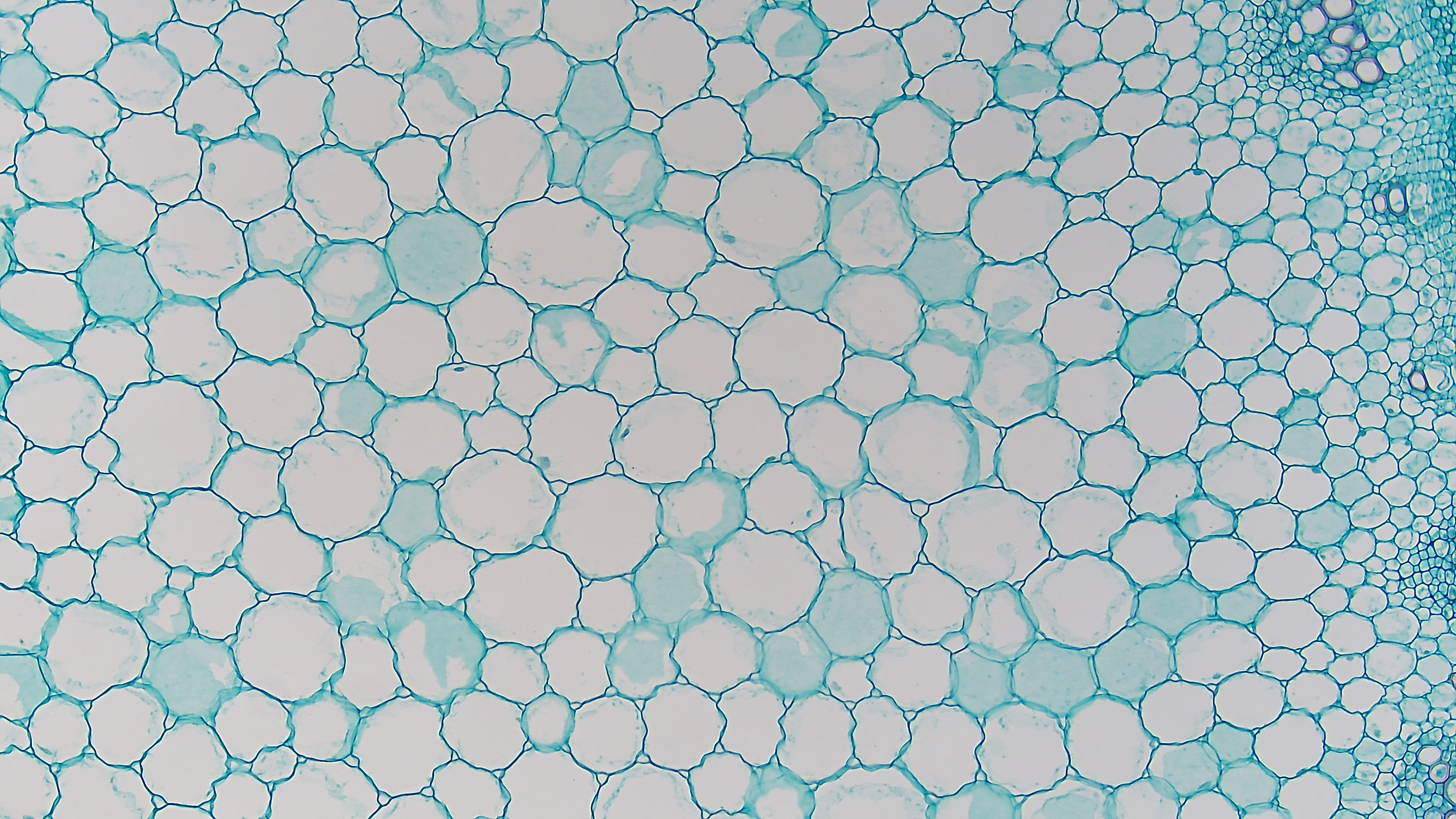

XCAM4K Application Instance
Alfalfa Stem
XCAM4K Application Instance
Broad Bean Root
XCAM4K Application Instance
Capsella Older Embryo

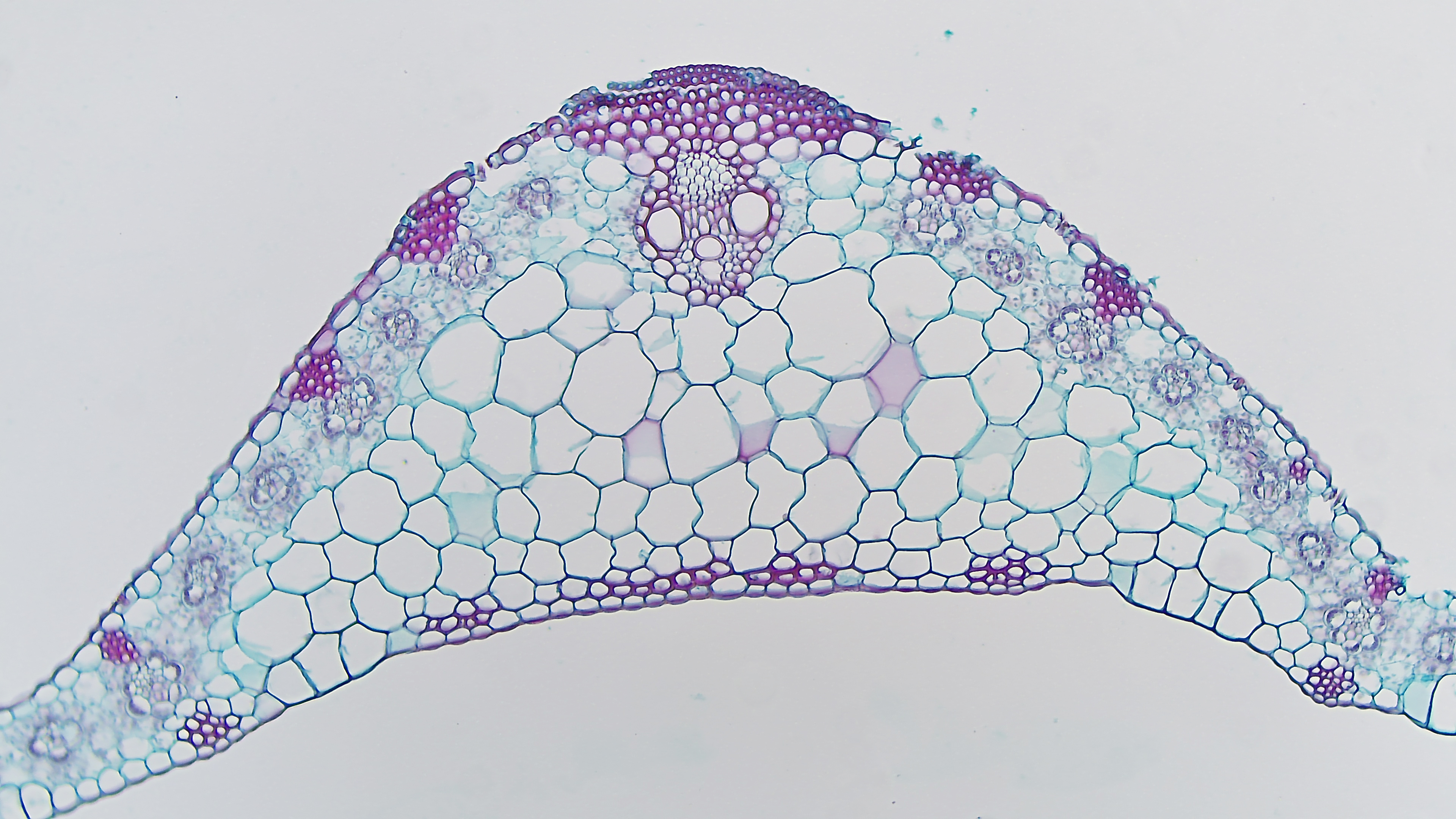

XCAM4K Application Instance
Corn Leaf

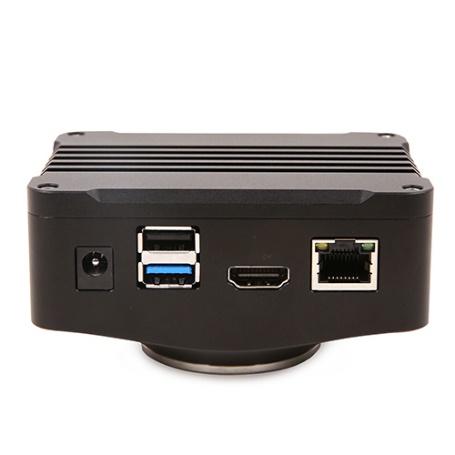

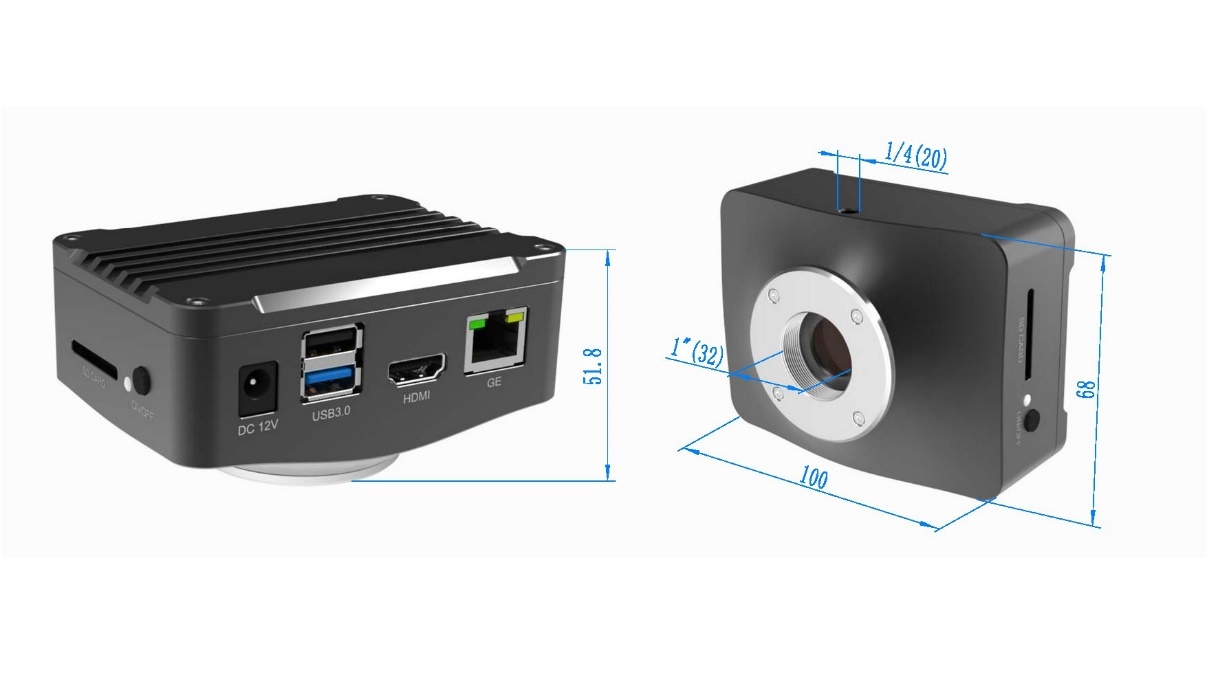

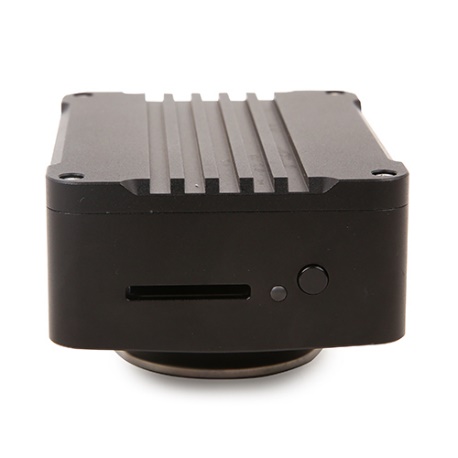

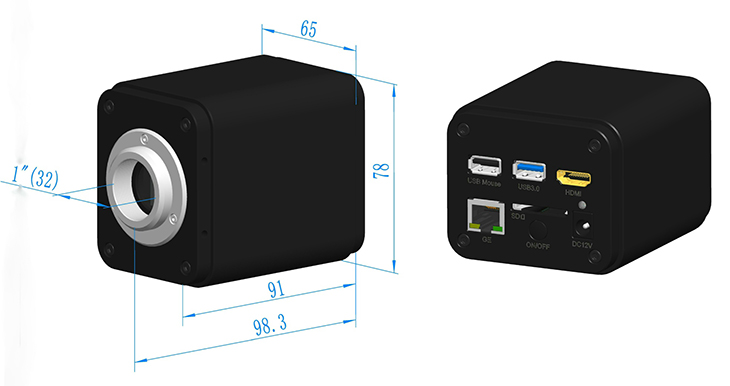

Camera interface and appearance dimensions

XCAM4K
XCAM4K
XCAM4K
XCAM4K
XCAM4K

Packing List

XCAM4K
XCAM4K

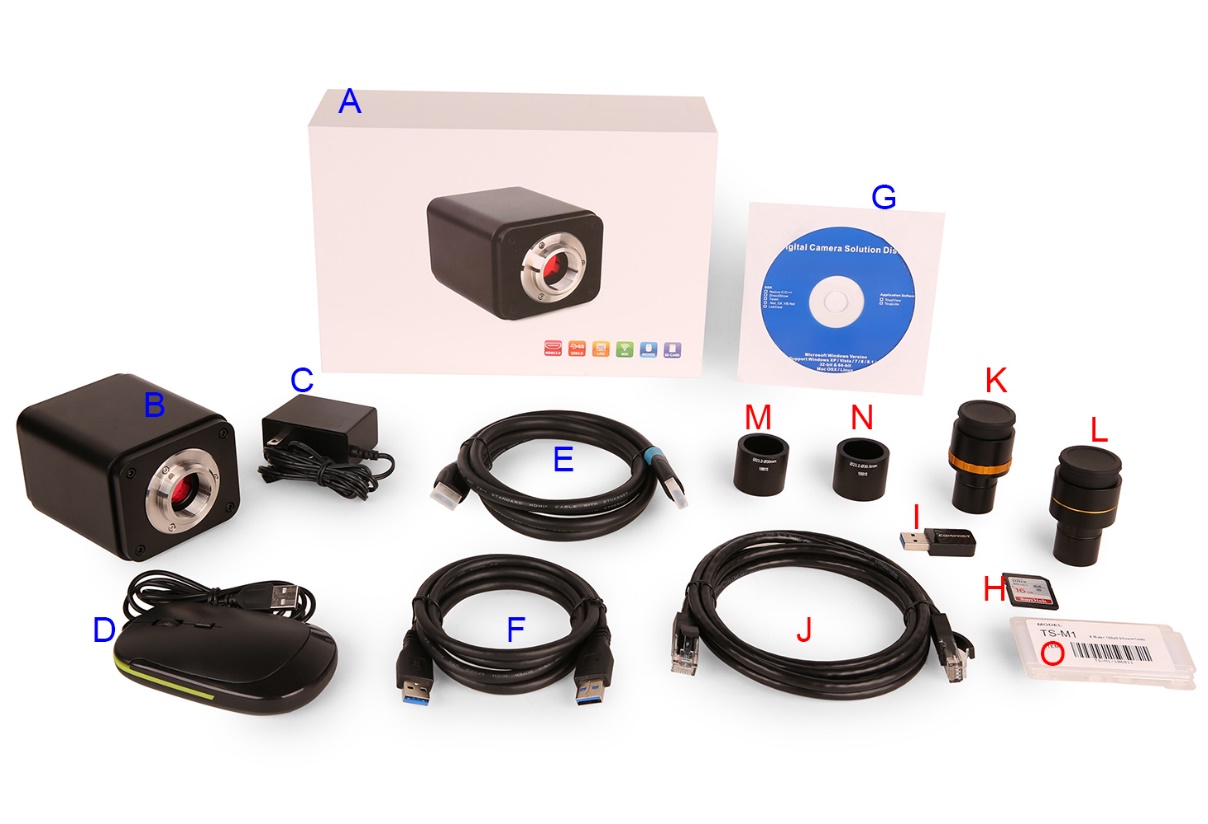

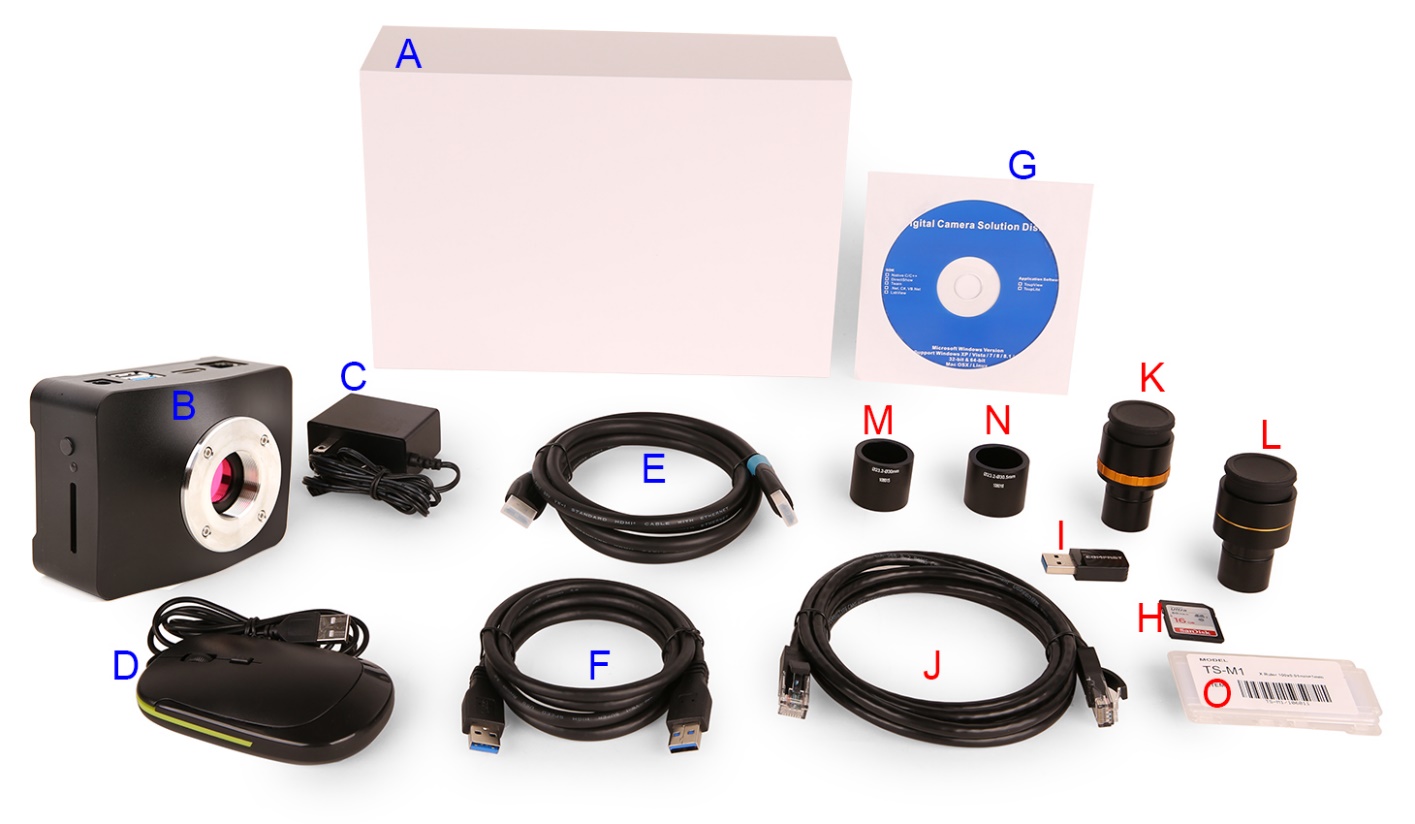

XCAM4K Series Camera Packing Information(Cubic and Flat Shape)

Standard Packing List

A

Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.57Kg/ box)

B

XCAM4K series camera(Square or flatened)

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard: EN55022, EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard: EN61000-4-2,3,4,5,6,8,11, EN61204-3, Class A Light Industry Standard

D

USB Mouse

E

HDMI 2.0 Cable(Support 3840x2160, 60FPS)

F

High-speed USB3.0 A male to A male gold-plated connectors cable /2.0m

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

SD Card (16G or above; Speed: Class 10)

I

USB WiFi adapter

J

Ethernet cable

K

Adjustable lens adapter

C-Mount to Dia.23.2mm eyepiece tube

(Please choose 1 of them for your microscope)

108001/AMA037

108002/AMA050

108003/AMA075

L

Fixed lens adapter

C-Mount to Dia.23.2mm eyepiece tube

(Please choose 1 of them for your microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Note: For K and L optional items, please specify your Camera type (C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your applications;

M

108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube

N

108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube

O

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
