The cameras mentioned in this manual are imaging capture devices which use USB3.0 to transmit uncompressed images in real time. They support image acquisition and parameter setting (such as working mode, image parameter adjustment etc.) through client-side user-friendly software. The chip sizes of the IUCXXX-AFU-EF series of cameras are primarily APS or full-frame, and the cameras support control of Canon lenses via the EF mount for autofocus.
The basic characteristics of the IUCXXX-AFU-EF series camera:
- Sony Exmor back-illuminated CMOS sensor; Some cameras also use GPixel series sensors and domestic sensors.
- USB 3.0data transmission interface compatible with USB2.0 protocol;
- Provides advanced video and image processing application software ToupView, compatible with Windows/Linux/OSX multi-platform SDK, support native C/C++, C#/VB.Net, DirectShow, Twain API;
- Compliant with CE, FCC requirements.
- Supports external triggering, software and capture modes;
- Supports ROI, flip, bit-depth switching and other features;
- Supports EF/EF-S mount lens control and autofocus;
- Supports firmware worksite upgrading;
|
Model Parameter |
IUC26000KMA-AFU-EF |
|---|---|
|
26.0M pixels 1.8” (APS-C) CMOS USB3.0 industrial camera |
|
|
Camera |
|
|
Sensor model |
Sony IMX571BLR-J |
|
Pixel size |
3.76 µm x 3.76 µm |
|
Sensor size |
1.8’’ (APS-C) |
|
Frame rate |
14fps@6224 x 4168(16bit), 37fps@3104 x 2084, 110fps@2064 x 1388 |
|
Dynamic range |
86.8dB |
|
Signal-to-Noise ratio |
47.1dB |
|
Sensitivity |
870.9mv |
|
Dark current |
0.07mv |
|
Gain range |
1x-50x |
|
Exposure time |
150us-15sec |
|
Shutter |
Rolling shutter |
|
Binning |
Hardware 2x2，3x3；Software 2x2，3x3，4x4 |
|
Data interface |
USB3.0 (USB3.1 GEN1) |
|
Digital I/O |
One optical-coupling isolated input, one optical-coupling isolated output, two non-isolated input and output |
|
Data Format |
8bit / 16bit |
|
General Specifications |
|
|
Power supply |
12V Power adapter |
|
Power consumption |
<5.0W |
|
Temperature |
Working temperayure-10~50℃, storage temperature-30~70℃ |
|
Humidity |
20%-80%, no condensation |
|
Size |
88mmx88mmx21.2mm |
|
Weight |
540g |
|
Lens mount |
M42 Interface |
|
Software |
ToupView/ SDK |
|
Platform and architecture |
Win32/WinRT/Linux/macOS/Android；X86/X64/armhf/armel/arm64 |
|
Certification |
CE, FCC |
Camera Lens Adaptation
IUCXXX-AFU-EF series cameras can be used with EF-mount lenses. When the lens is correctly mounted, you can read the lens focal length, aperture, focus, and other information, and you can control the lens aperture and focus electrically.
Verify that the adapted EF-mount lens models and functions are as follows:
|
Lens |
Closest Focusing Distance |
Aperture Control |
Focus Control |
Fixed Distance Focusing |
|---|---|---|---|---|
|
Canon EF-S 10-18mm f/4.5-5.6 IS STM |
About 0.22m |
Support |
Support |
/ |
|
Canon EF-S 18-55mm f/3.5-5.6 IS STM |
About 0.25m |
Support |
Support |
Support |
|
Canon EF-S 18-55mm f/4-5.6 IS STM |
About 0.25m |
Support |
Support |
/ |
|
Canon EF-S 15-85mm f/3.5-5.6 IS USM |
About 0.35m |
Support |
Support |
/ |
|
Canon EF-S 18-135mm f/3.5-5.6 IS USM |
About 0.39m |
Support |
Support |
Support |
|
Canon EF-S 18-200mm f/3.5-5.6 IS |
About 0.45m |
Support |
Support |
/ |
|
Canon EF 24mm f/1.4L II USM |
About 0.25m |
Support |
Support |
/ |
|
Canon EF 24mm f/2.8 IS USM |
About 0.2m |
Support |
Support |
/ |
|
Canon EF 35mm f/1.4L II USM |
About 0.28m |
Support |
Support |
/ |
|
Canon EF 50mm f/1.2L USM |
About 0.45m |
Support |
Support |
Support |
|
Canon EF 50mm f/1.4 USM |
About 0.45m |
Support |
Support |
/ |
|
Canon EF 85mm f/1.2L II USM |
About 0.95m |
Support |
Support |
/ |
|
Canon EF 16-35mm f/2.8L III USM |
About 0.28m |
Support |
Support |
/ |
|
Canon EF 16-35mm f/4L IS USM |
About 0.28m |
Support |
Support |
/ |
|
Canon EF 24-70mm f/2.8L II USM |
About 0.38m
|
Support |
Support |
/ |
|
Canon EF 24-70mm f/4L IS USM |
About 0.38m
|
Support |
Support |
/ |
|
Canon EF 24-105mm f/4L IS USM |
About 0.45m |
Support |
Support |
/ |
|
Canon EF 100-400mm f/4.5-5.6L IS II USM |
About 0.98m |
Support |
Support |
/ |
|
Sigma 150-600mm f/5-6.3 DG OS HSM|S |
About 2.6m |
Support |
Support |
/ |
Note: This camera theoretically supports any EF mount lens, but not all lenses have been tested. Use of lenses from manufacturers other than Canon may be uncontrollable or incompatible. If you need other lenses, please point out the model number of the desired lens, we will do a good job of testing for you.
Canon EF lenses currently supported by the IUCXXX-AFU-EF camera
IUCXXX-AFU-EF camera with Canon EF lenses
IUCXXX-AFU-EF camera, Canon EF lenses with TPS-600 fine focus bracket
IUCXXX-AFU-EF camera, Canon EF lenses with TPS-600 fine focus bracket
Product illustration of machine vision cameras with EF lenses
IUC26000KMA-AFU-EF spectral response curve

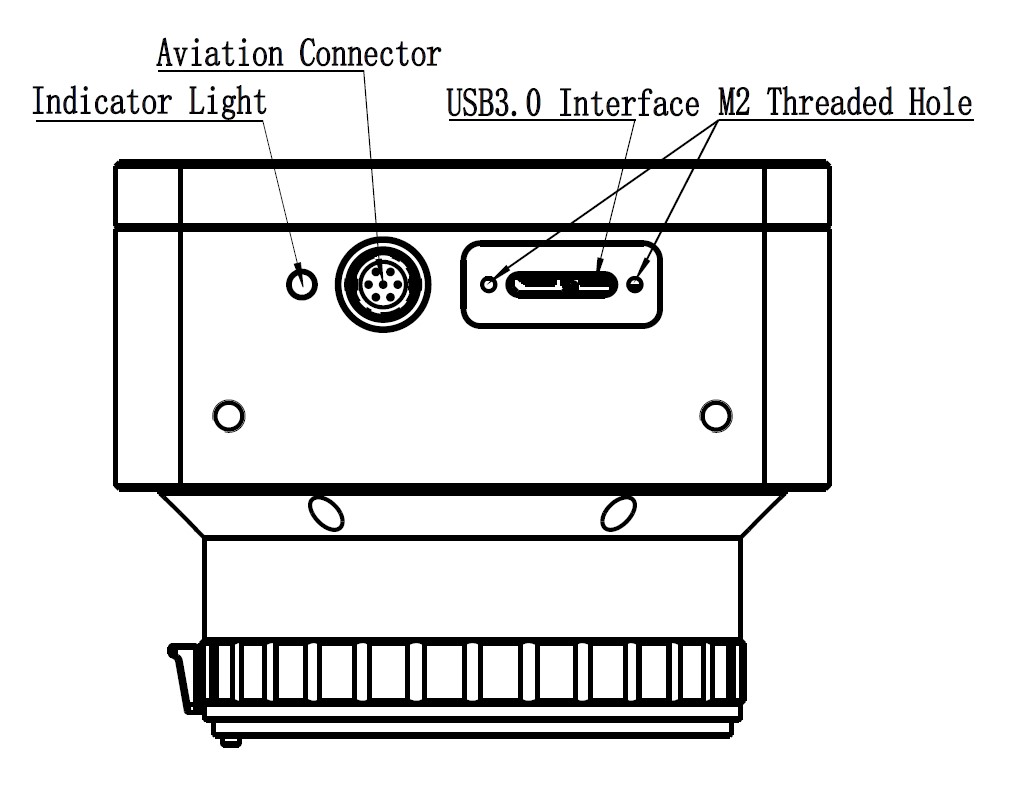

IUCXXX-AFU-EF Series Camera Interface
Definition of IUCXXX-AFU-EF power supply and IO interface
|
Color |
Pin |
Signal |
Signal description |
|---|---|---|---|---|
|
White |
1 |
GND |
Direct-coupled signal ground |
|
|
Red |
2 |
12V |
5VDC power input or output |
|
|
Blue |
3 |
OPTO_GND |
Opto-isolated signal ground |
|
|
Yellow |
4 |
DIR_GPIO0 |
Direct-coupled General Purpose I/O (Software configurable input/output) (line2) |
|
|
Black |
5 |
DIR_GPIO1 |
Direct-coupled General Purpose I/O (Software configurable input/output) (line3) |
|
|
Green |
6 |
OPTO_IN |
Opto-isolated input signal (line0) |
|
|
Pink |
7 |
OPTO_OUT |
Opto-isolated output signal (line1) |
Dimensions of IUCXXX-AFU-EF camera housing (mm)
Dimensions of IUCXXX-AFU-EF circuit board (mm)
|
Order number |
Accessories name |
Quantity |
Instruction |
|---|---|---|---|
|
1 |
Camera |
1 |
Camera referred in this manual |
|
2 |
I/O cable |
1 |
7 Pin cable or extended cable |
|
3 |
USB3.0 cable |
1 |
Suitable length of Micro USB3.0 cable |
|
4 |
Power (IUC) |
1 |
Power adapter for IUC series |
|
5 |
Lens (optional) |
1 |
C-mount lens |
Model Number
Image Sensor
Pixel Size(μm)
G Sensitivity/Dark Signal
FPS/Resolution
Binning
Exposure Time
IUC26000KMA-AFU-EF
26.0M/IMX571BLR(M, RS)
1.8“ (23.48x15.67, APS-C)
3.76x3.76
870.9mv with 1/30s
0.07mv with 1/30s
14fps@6224×4168(16bit)
37fps@3104×2084
110fps@2064×1388
1x1
2x2
3x3
150us~15s
IUC26000KPA-AFU-EF
26.0M/IMX571BQR(C, RS)
1.8“ (23.48x15.67, APS-C)
3.76x3.76
484.5mv with 1/30s
0.07mv with 1/30s
14fps@6224×4168(16bit)
37fps@3104×2084
110fps@2064×1388
1x1
2x2
3x3
150us~15s
IUC60000KMA-AFU-EF
60.0M/IMX455ALK (M, RS)
2.7“ (35.96x23.99, Full Frame)
3.76x3.76
870.9mv with 1/30s
0.04mv with 1/30s
6.1fps@9568×6380(16bit)
24.6fps@4784×3190
55.8fps@3184×2124
191.0fps@1040×706
1x1
2x2
3x3
9x9
150us~15s
IUC60000KPA-AFU-EF
60.0M/IMX455AQK (C, RS)
2.7“ (35.96x23.99, Full Frame)
3.76x3.76
484.5mv with 1/30s
0.07mv with 1/30s
6.1fps@9568×6380(16bit)
24.6fps@4784×3190
55.8fps@3184×2124
191.0fps@1040×706
1x1
2x2
3x3
9x9
150us~15s
