The ToupTek portable PUM Series USB microscope is an easy to use, high power scope. With continuous powers from 10x to 280x, it's ideal for viewing stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. With the higher power magnifications, you can even view traditional microscope slides under transmitted illumination.

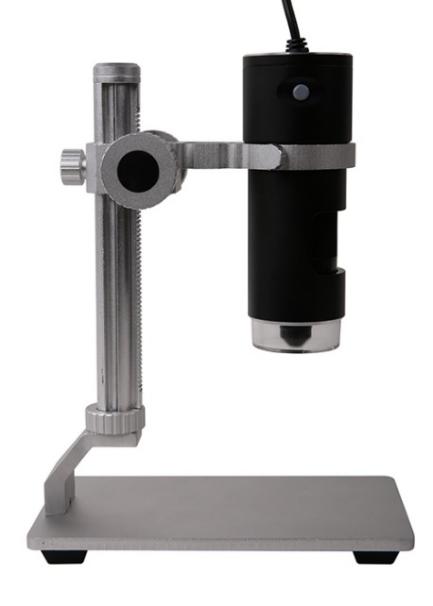

Best of all, you can capture your discoveries using the built-in 2.0MP camera. Press the shutter to save images and high-resolution video directly to your PC. The LED illuminator ensures your specimens are clear and bright. An included metal stand allows for steady shots and comes in handy when viewing at higher powers, minimizing shaking and keeping your specimen in sharp focus.
For teens and adults alike, the ToupTek portable USB microscope is a fun, educational tool. It's well suited for hobbyists, quality control inspectors, medical professionals, and scientific researchers.
The basic characteristics of PUM are:
- USB powered handheld digital microscope with continuous10x to 280x magnification;
- Object distance-controlled zoom property;
- Single object distance, single magnification;
- Linear rotation magnification relationship;
- Object distance from 110 to 10 mm corresponding to 10x to 280x magnification;
- 5G high grade optical glass with multi-layer anti-reflection coating;
- Built-in 2MP(1920x1080) digital Camera for capturing images and videos;
- 8LED ring illuminator with adjustable illumination;
- Use the included Windows software to capture images and videos of your discoveries. Measure your specimens with built-in measurement tool;
- Computer requirements: CD/DVD drive and USB 2.0 port. UVC plug-and-play with Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit), OSx(Mac OS X) and Linux.
|
Hardware Function |
|
|---|---|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Operating Environment |
|
|
Operating Temperature (in Centidegree) |
-10~ 50 |
|
Storage Temperature (in Centidegree) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
USB Port: USB2.0 High-speed Port |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|
|
HH153 Optical Specification for PUM |
|
|---|---|
|
Optical Lens |
5G High Grade Optical Glass with Multi-layer Anti-reflection Coating |
|
Optical Magnification |
0.1x~3.3x(33x) |
|
Working Distance |
10mm~110mm |
|
Illumination |
8 LEDs Illumination |
|
Stand |
M-SD-HM5 with Φ41mm Holding Ring |
Instance
Black Textile
Face Mask Fabric
IPhone Pixels
Alfalfa Stem(CS)
| Standard Camera Packing List | |
|---|---|
| A | Carton: L:45cm W:45cm H:48cm( 20pcs, 17Kg/ carton), not shown in the photo |
| B | Gift box: L:22cm W:22cm H: 9cm (0.8Kg/box) |
| C | PUM Series Portable USB Microscope |
| D | CD (Driver & utilities software, Γ12cm) |
Order Code
Optcial Lens
Sensor
Size(mm)
Sensitivity
Dark Signal
FPS/Resolution
Binning
Exposure
PUM01300KPA
HH153
1.3M/IMX307(C)
1/2.8“(4.41x2.48)
2.9 x2.9
1300mv with 1/30s
0.15mv with 1/30s
38@1520x856
38@760x428
1x1
1x1
0.1-2000 ms
PUM02000KPA
HH153
2.0M/IMX290(C)
1/2.8“(5.56x3.13)
2.9 x2.9
1300mv with 1/30s
0.15mv with 1/30s
17@1920x1080
1x1
0.105ms~15s
PUM02100KPA
HH153
2.1M/IMX307(C)
1/2.8“(5.56x3.13)
2.9 x2.9
1300mv with 1/30s
0.15mv with 1/30s
38@1920x1080
38@960x540
1x1
1x1
0.1-2000 ms
PUM05100KPA
HH153
5.1M/IMX335(C)
1/2.8“ (5.18x3.89)
2.0x2.0
505mv with 1/30s
0.13mv with 1/30s
26@2592x1944
26@1280x960
26@640x480
1x1
1x1
1x1
0.1-2000 ms
PUM05100KPA-P
HH153
5.1M/IMX335(C)
1/2.8“ (5.18x3.89)
2.0x2.0
505mv with 1/30s
0.13mv with 1/30s
26@2592x1944
26@1280x960
26@640x480
1x1
1x1
1x1
0.1-2000 ms
PUM08300KPA
HH153
8.3M/IMX415(C)
1/2.8" (5.57x3.13)
1.45x1.45
300mv with 1/30s
0.13mv with 1/30s
30@3840x2160
30@1920x1080
30@1280x720
30@960x540
1x1
1x1
1x1
1x1
0.1~2000ms
PUM08300KPA-P
HH153
8.3M/IMX415(C)
1/2.8" (5.57x3.13)
1.45x1.45
300mv with 1/30s
0.13mv with 1/30s
30@3840x2160
30@1920x1080
30@1280x720
30@960x540
1x1
1x1
1x1
1x1
0.1~2000ms
