SWIR1302KMB-E0417-U200 Short-Wave Infrared (SWIR) Cameras
Product Introduction
The SWIR1302KMB-E0417-U200 is a 1.3 MP cooled SWIR industrial camera built around a China-made 1280 × 1024 InGaAs CMOS sensor. Covering the 400–1700 nm spectral range, it delivers 200 fps at full resolution with a 14-bit ADC and 512 MByte onboard memory for stable high-throughput acquisition. Combined with 40 °C-below-ambient TEC cooling, a USB3 interface, and an M42 lens mount, it is well suited for spectroscopy, laser inspection, semiconductor inspection, and scientific imaging.
Key Features
- 400–1700 nm spectral response
- 1.3 MP resolution with 1280 × 1024 pixels
- 1.5" target size with 15 µm × 15 µm large pixels
- 200 fps @ 1280 × 1024 full-resolution acquisition
- Quantum efficiency ≥70% @ 1.55 µm
- 14-bit ADC
- 40 °C below ambient cooling
- USB3 interface
- M42 lens mount
- 512 MByte memory buffer
- Mono 8 / Mono 14 / Packet12 output formats
- Complete SDK development kit / ToupView
Product Details
| Specifications | |
| Model | SWIR1302KMB-E0417-U200 |
| Sensor | China-made 1280 × 1024 sensor |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 1.3 MP (1280 × 1024) |
| Sensor Size | 1.5" |
| Sensor Diagonal | 1.5" |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 400–1700 nm |
| Performance Parameters | |
| Frame Rate | 200 fps @ 1280 × 1024 |
| Bit Depth | 14-bit |
| Dynamic Range | 70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG) (for reference only) |
| Sensitivity | TBD |
| Sensor Type | InGaAs CMOS image sensor |
| ADC | 14-bit |
| Memory | 512 MByte |
| Quantum Efficiency | ≥70% @ 1.55 µm |
| Conversion Gain | 1 µV/e- (LG), 16 µV/e- (MG), 53.3 µV/e- (HG) |
| Readout Noise | 586.82 e- (LG), 35.05 e- (MG), 68.44 e- (HG) (for reference only) |
| Full Well Capacity | 1.9 Me- (LG), 118.75 Ke- (MG), 33.75 Ke- (HG) |
| Maximum SNR | 62.98 dB (LG), 49.43 dB (MG), 42.34 dB (HG) (for reference only) |
| Exposure Time Range | 16 µs ~ 1 s |
| Data Format | Mono 8 / Mono 14 / Packet12 |
| Cooling Capacity | 40 °C below ambient temperature |
| Power Consumption | TBD |
| Software | Complete SDK development kit / ToupView |
| Interface Parameters | |
| GPIO | 1 optocoupler-isolated input, 1 optocoupler-isolated output, 2 non-isolated I/O ports |
| Lens Mount | M42 |
| Data Interface | USB3 |
| Power Supply | DC 12 V power supply |
| Physical Parameters | |
| Dimensions | 68 mm × 68 mm × 89.8 mm |
| Weight | 485 g |
| Environmental Parameters | |
| Operating Temperature | Working temperature: -30 °C to 60 °C |
| Operating Humidity | 20% to 80%, non-condensing |
| Storage Temperature | Storage temperature: -40 °C to 85 °C |
| Storage Humidity | 20% to 80%, non-condensing |
| Additional Parameters | |
| Operating System Support | TBD |
| Certification | TBD |
Product Overview
SWIR1302KMB-E0417-U200 is a high-performance Short-Wave Infrared (SWIR) industrial camera based on the China-made 1280 × 1024 sensor InGaAs CMOS image sensor, featuring the following characteristics:
- Broad spectral response: covers the visible band through SWIR with a response range of 400–1700 nm.
- High-resolution imaging: delivers 1.3 MP (1280 × 1024) pixels with 15 µm × 15 µm pixel size, supporting frame rates up to 200 fps @ 1280 × 1024 while outputting 14-bit.
- Global Shutter imaging: utilises Global Shutter operation to capture demanding scenes with dependable temporal performance.
- Thermoelectric cooling: the integrated TEC system provides 40 °C below ambient temperature for improved stability in low-light and long-duration acquisition.
- Flexible integration: offers USB3 connectivity, works with M42 optics, and supports trigger I/O for system-level integration.
- Compact design: compact dimensions (68 mm × 68 mm × 89.8 mm) with a weight of approximately 485 g simplify system integration.
- Software ecosystem: supports Complete SDK development kit / ToupView with TBD compatibility.
Performance
Frame Rate
Up to 200 fps @ 1280 × 1024
Resolution
1.3 MP (1280 × 1024)
Dynamic Range
70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG) (for reference only)
Product Summary
The SWIR1302KMB-E0417-U200 camera is an ideal choice for industrial and scientific research users. Its exceptional imaging performance, stable temperature control system, and flexible integration capabilities can meet the demands of various complex application environments.
SWIR1302KMB-E0417-U200 Product Manual
PDF format, includes detailed technical parameters and dimensional structures
SDK Development Package
Supports Windows, Linux, macOS, and other platforms
3D Model Files
STEP format for mechanical design integration

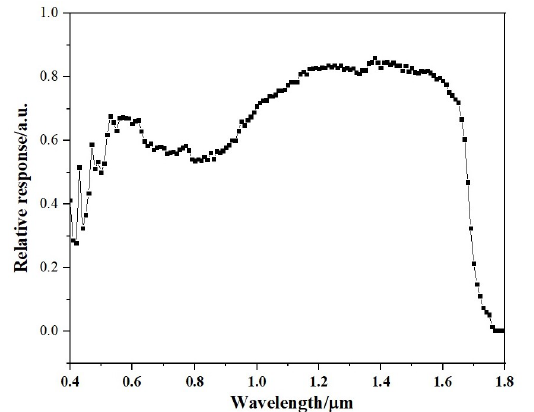

Quantum Efficiency Curve #
400–2500 nm SenSWIR full-band typical quantum efficiency response
Package Contents #
Package list for model SWIR1302KMB-E0417-U200 (USB3 Cooled)
- A Outer box (not shown): carton size L: 28.2 cm W: 25.2 cm H: 16.7 cm
- B 3-A instrument safety case: L: 28.0 cm W: 23.0 cm H: 15.5 cm (1 pcs, ≈2.8 kg/box)
- C 400–2500 series USB3 cooled camera (C-mount, deep TEC cooling)
- D 12 V / 3 A power adapter + matching power cable (CN/US/EU/UK)
- E USB3.0 A-to-B high-speed cable (1.5 m)
- F External trigger / IO control cable ×1
Product Dimensions #
Dimensions for model SWIR1302KMB-E0417-U200 (USB3 interface)
