XCAMLITE4K_MINI Series
Product Introduction

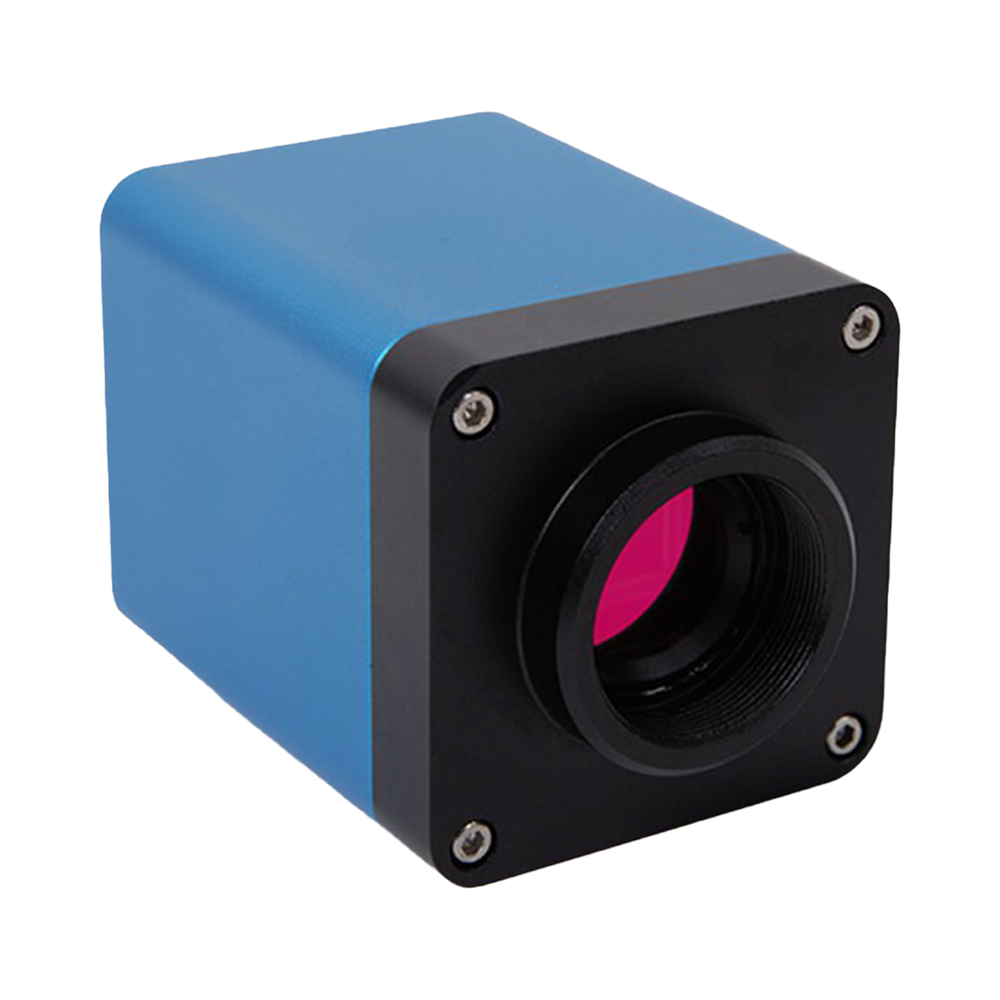

XCAMLITE4K_MINI series HDMI camera is a multi-output CMOS camera with HDMI/USB interface, achieving 30 frames per second at 4K resolution.
XCAMLITE4K_MINI series HDMI cameras adopt standard C-mount interface for maximum compatibility with various microscope systems. When used with HDMI displays or TVs, it can record videos. When connected to computer USB interface, it can transmit video to computer in real-time for image capture and video recording.
Hardware 3D noise reduction, sharpness and local tone mapping algorithms significantly improve the image and video quality of XCAMLITE4K_MINI series cameras.
The included Windows software ToupView/ToupLite provides image processing and measurement functions, as well as advanced composite functions such as image stitching and focus stacking. The software features magnification calibration at multiple magnifications for precise size measurement at different magnifications. For Mac and Linux systems, simplified software is available for capturing video, still images, and simple image processing.
Product Features
- Sony Starvis 2 back-illuminated CMOS sensor
- 4K HDMI/Wi-Fi/USB multi-interface output
- 4K/1080P HDMI output adaptive switching
- USB flash drive saves captured images or videos with local preview and playback support
- Supports USB voice control module for real-time voice command control of camera shooting, recording, freezing and other operations
- Built-in XCamView software provides rich image processing and measurement functions, supports automatic edge detection and automatic measurement functions
- Powerful ISP functionality with significant sharpening and 3D noise reduction effects, more precise ROI white balance
- ToupView/ToupLite software for more convenient computer operation
- Compact size, easy to integrate
Product Details
XCAMLITE4K8MPB-MINI Specifications
| Key Parameters | |
| Product Model | XCAMLITE4K8MPB-MINI |
| Product Series | 4K/HDMI/USB multi-output C-mount CMOS camera |
| Sensor Parameters | |
| Sensor Model | Sony IMX485(C) |
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 12.8 mm |
| Pixel Size | 2.9 μm × 2.9 μm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Performance Parameters | |
| Frame Rate | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 |
| Output Interfaces | HDMI1.4 , USB2.0 |
| Lens Mount | C-mount |
| Storage Support | USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| Physical Parameters | |
| Power Supply | DC 12 V/1A |
| Dimensions | Compact design |
| Weight | Lightweight design |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ +50 °C |
| Other Information | |
| OS Support | Windows, Linux, macOS |
| Certification | CE, FCC, RoHS |
Product Overview
XCAMLITE4K8MPB-MINI is a Compact size, integrated HDMI and USB output, compatible with USB drive/SD card local storage, supports various image enhancement and measurement functions, suitable for teaching and portable use. designed for high-definition real-time imaging, featuring the following core characteristics:
- Plug-and-Play Design: Direct HDMI HD video output without a computer, connect to a display for immediate microscopy observation and recording
- USB Voice Control Module: Supports voice commands for real-time camera control, enabling hands-free capture, recording, and freeze operations
- Barcode Scanner Capture: Supports barcode scanner-triggered capture, ideal for batch sample recording and traceability management
- Smart Measurement Functions: Built-in XCamView software supports automatic edge detection, automatic parallel line distance measurement, automatic rectangle measurement, and other smart measurement features
- Local Storage and Comparison: Supports USB storage with local preview and playback, plus image comparison and video comparison functions for convenient sample analysis
- Powerful ISP Processing: Provides dark field enhancement, sharpening, and 3D noise reduction functions to significantly improve image quality
- Quick Scene Switching: Supports quick switching between biological microscope and stereo microscope default effects, adapting to multiple usage scenarios
Core Performance Indicators
4K
Video Resolution
60 fps
Maximum Frame Rate
Multi-Interface
HDMI/USB Output
8MP (3840×2160)
Sensor Resolution
Advanced Features
Voice Control
Voice control via USB audio module for improved operational convenience
Barcode Capture
Supports barcode scanner-triggered capture for batch sample management
Smart Measurement
Automatic edge detection and measurement functions for improved efficiency and accuracy
ISP Optimization
Powerful image processing capabilities to optimize image quality
Recommendation
XCAMLITE4K8MPB-MINI stands out with its plug-and-play design philosophy, diverse control methods, and powerful image processing capabilities, making it particularly suitable for microscopy scenarios requiring high-definition real-time display. The addition of voice control and barcode capture functions significantly improves operational efficiency, making it an ideal choice for educational demonstrations, industrial inspection, and scientific research recording.
Application Scenarios
Stereo microscope imaging
Stereo microscope imaging
Biological microscope imaging
Biological microscope imaging
Industrial inspection
Industrial inspection
Teaching and research
Teaching and research
Application Case Display
Cardamine young embryo section

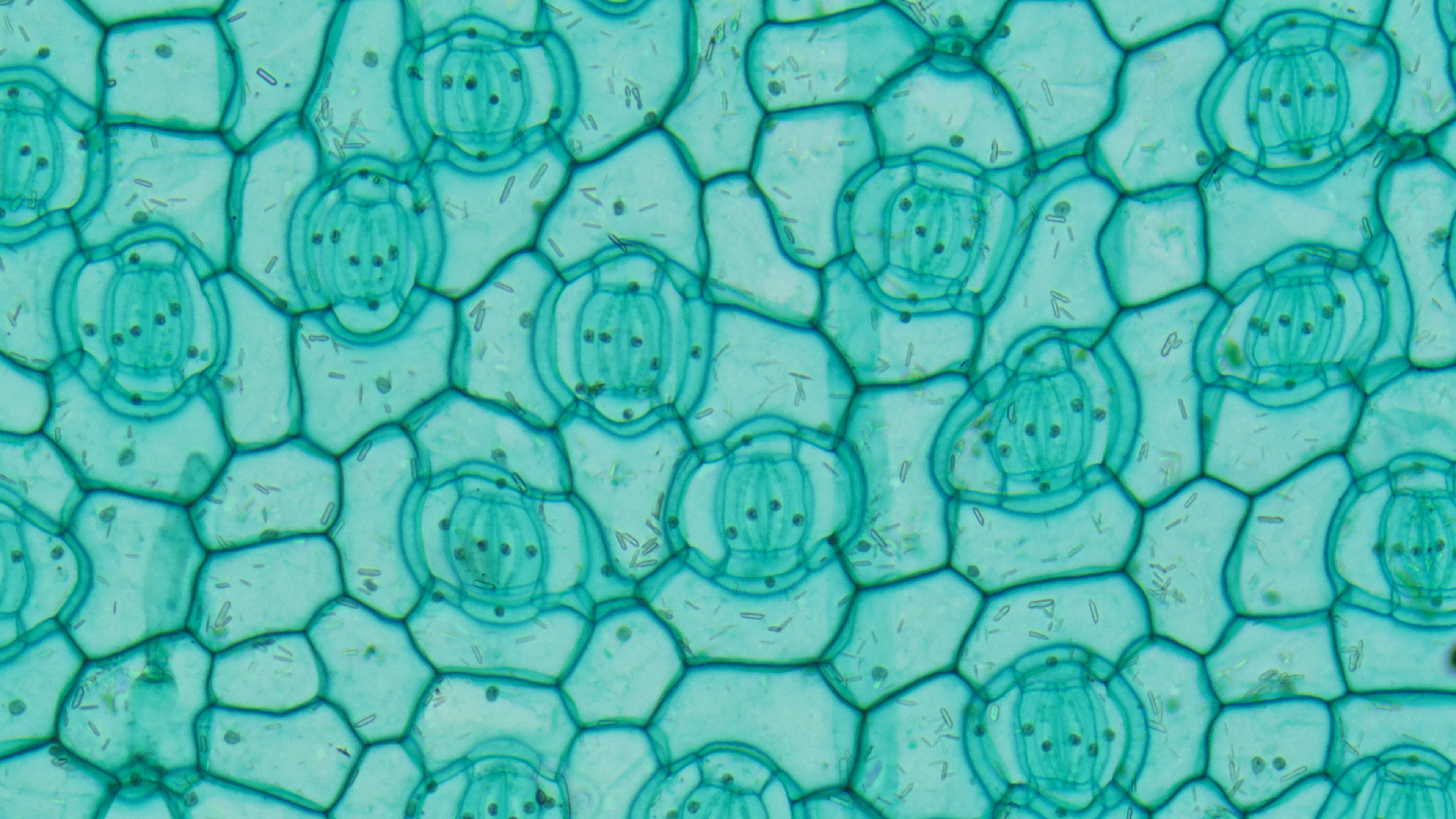

Commelina leaf epidermis

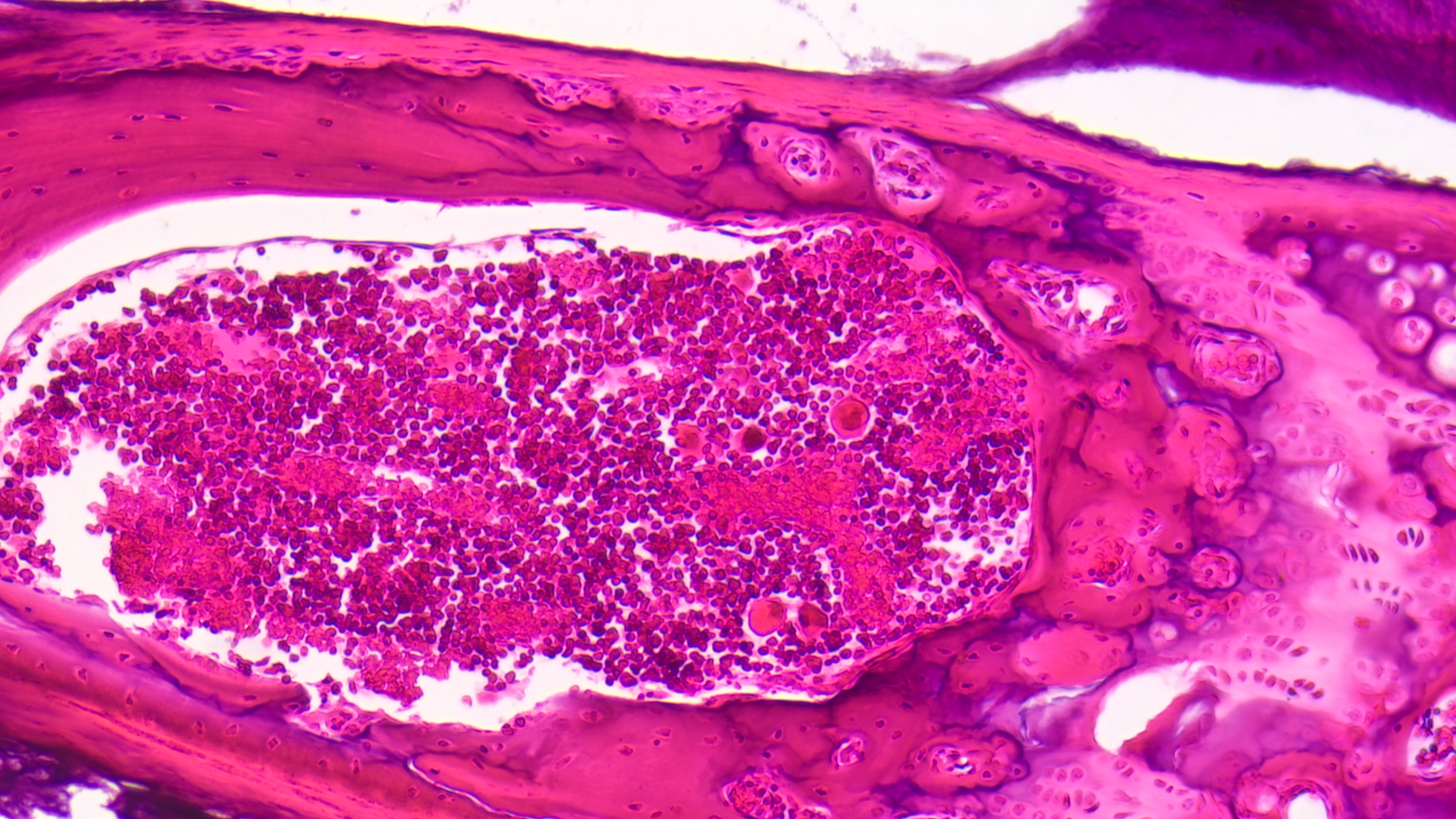

Fibrous connective tissue section

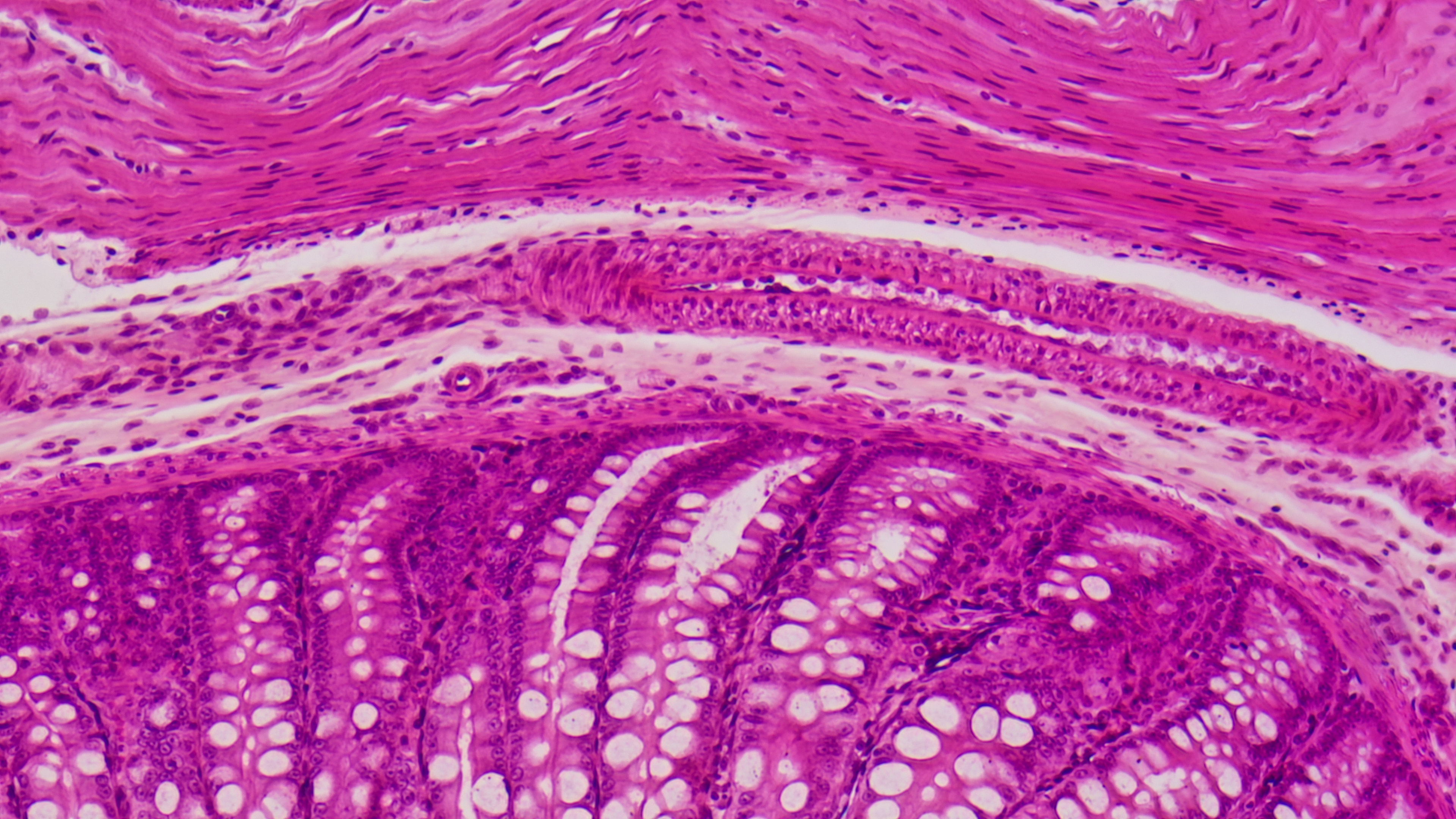

Large intestine section
Selection Guide
- 4K HD Requirements: Choose XCAMLITE4K_MINI4K8MPA or XCAMLITE4K_MINI4K8MPB, supporting 3840×2160 resolution
- High Frame Rate Requirements: Choose XCAMLITE4K_MINI1080P series, supporting 60 fps high-speed imaging
- Large Sensor Requirements: Choose IMX678 sensor models, 1/1.8" large sensor
- Economic Choice: Choose IMX415 or IMX462 sensor models, high cost-performance ratio
XCAMLITE4K8MPB-MINI Product Manual
PDF format, includes detailed technical specifications, dimension drawings and application guide
Software Download
XCamView / ToupView / ToupLite professional imaging software
3D Model Files
STEP format for system integration design
XCAMTOP4K_MINI Multi-Interface Camera | Packing List #

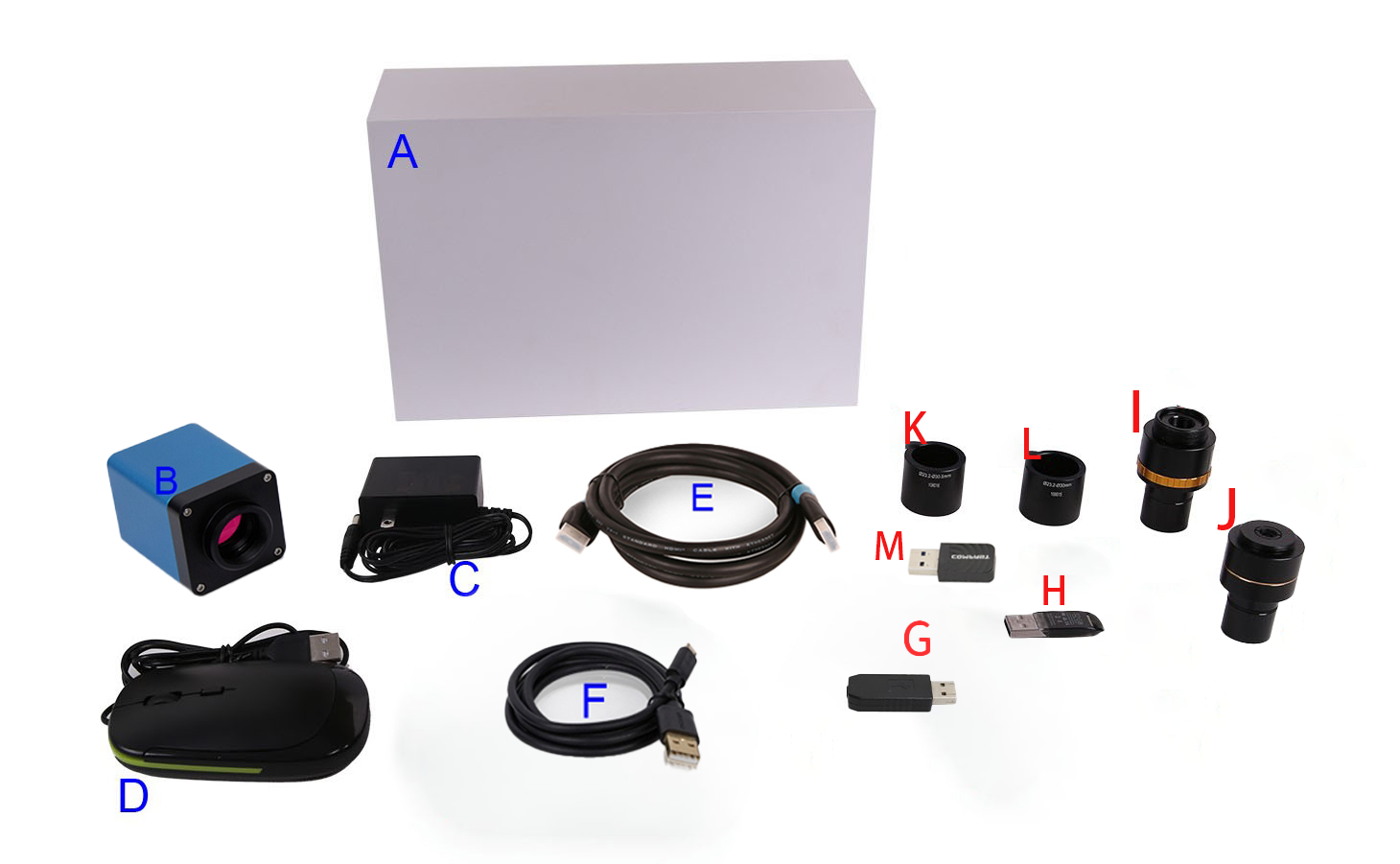

Standard Items in the Box
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B XCAMTOP4K_MINI camera ×1
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
- G Driver and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K 30 mm eyepiece conversion ring 108015
- L 30.5 mm eyepiece conversion ring 108016
- M Micrometer 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)

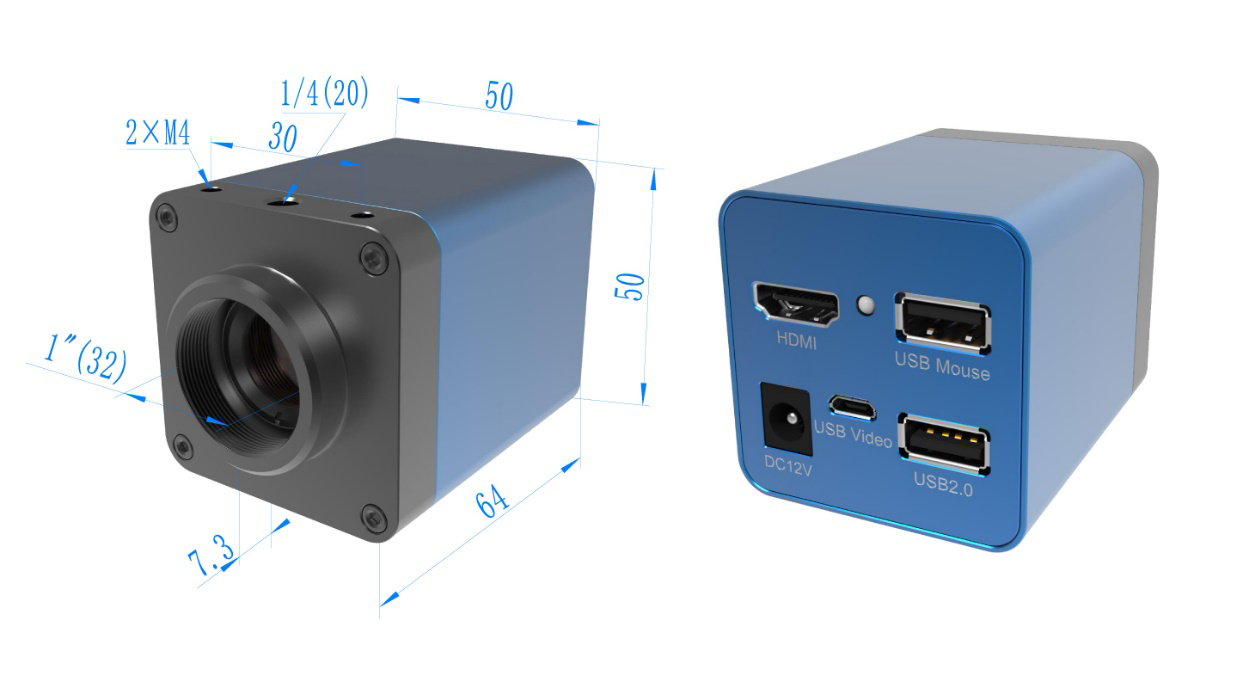

XCAMTOP4K_MINI Multi-Interface Camera | Dimensions #

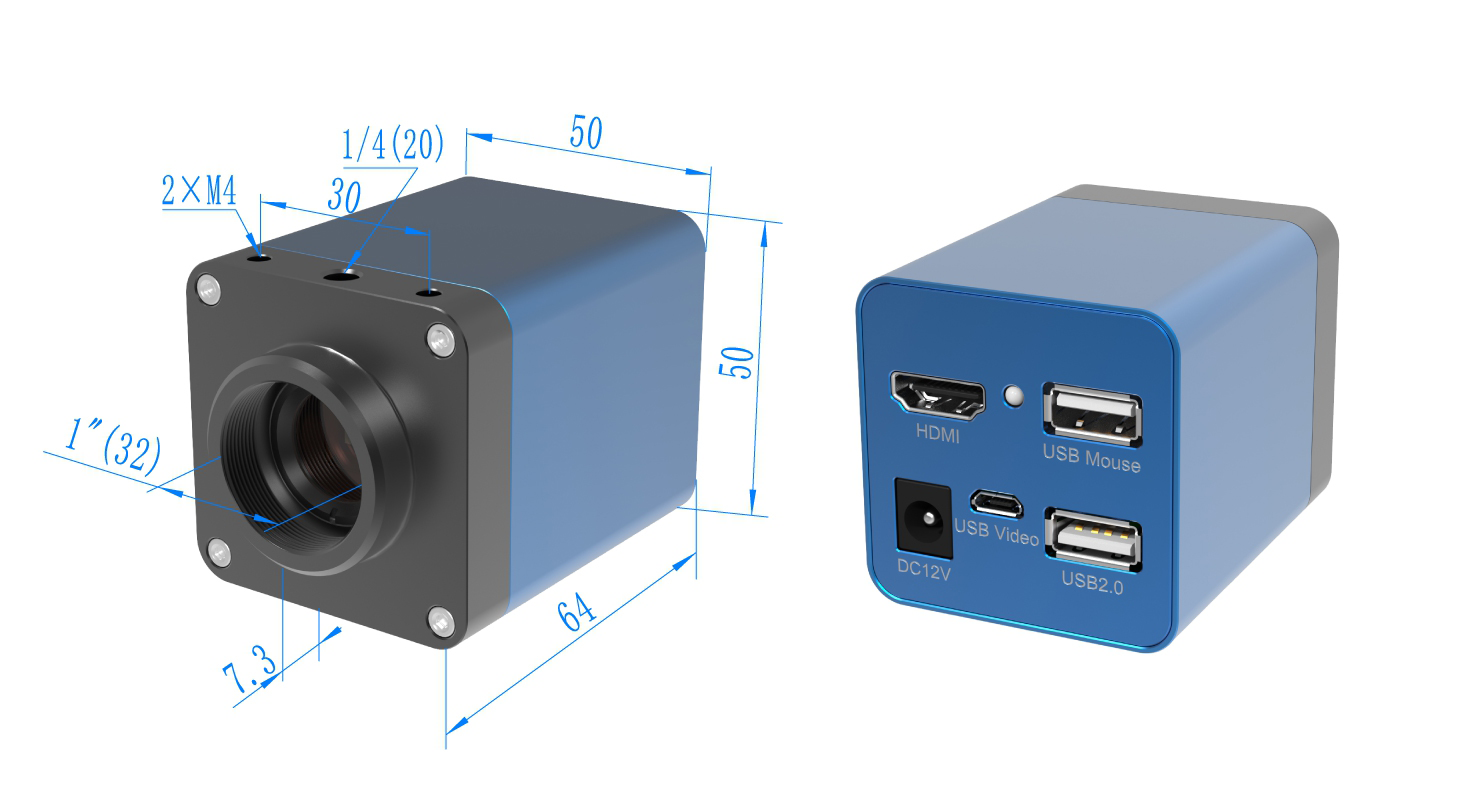

Chassis dimensions and operating conditions
Refer to the MINI edition dimension drawing
Confirm the mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The XCAMTOP4K_MINI packs a compact 4K imaging platform into a C-mount form factor, delivering HDMI and USB outputs for microscope integration where space is at a premium.
It outputs 4K @ 30 fps over HDMI and 4K @ 20 fps over USB, integrates the XCamView interface for computer-free control, and supports portable setups that need local storage and quick deployment.
Technical Highlights
- Compact chassis with dual outputs: HDMI 4K/1080p adaptive output plus USB video—4K @ 30 fps (HDMI) and 4K @ 20 fps (USB)—with a C-mount for easy integration.
- 4K imaging with hardware optimization: Hardware 3D noise reduction, sharpening, local dynamic tone mapping, ROI white balance, and the Ultra-Fine color engine stabilize image quality.
- Built-in XCamView for easy operation: Control via USB mouse, save images and videos directly to a USB drive, and preview or playback locally—true plug-and-play.
- Cross-platform software support: Works with ToupView/ToupLite on Windows/macOS/Linux for measurement, stitching, depth extension, and more; SDKs simplify secondary development.

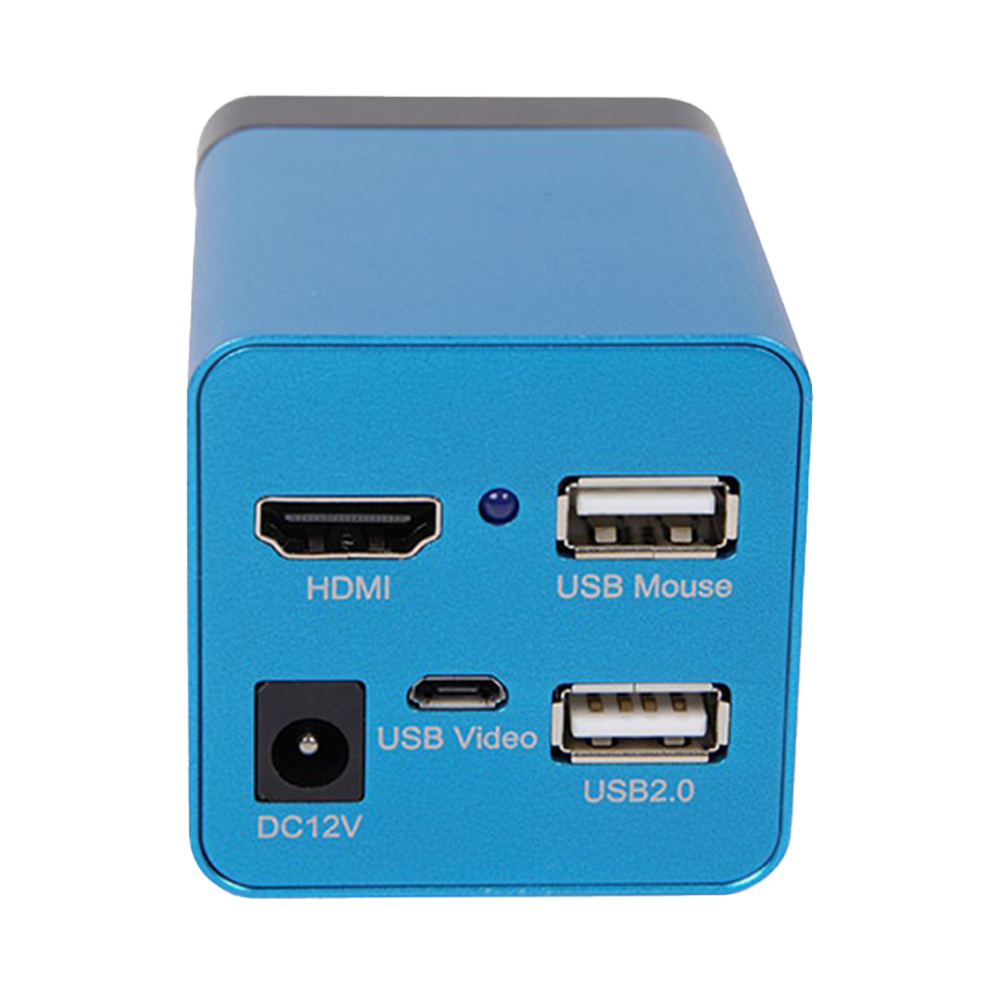

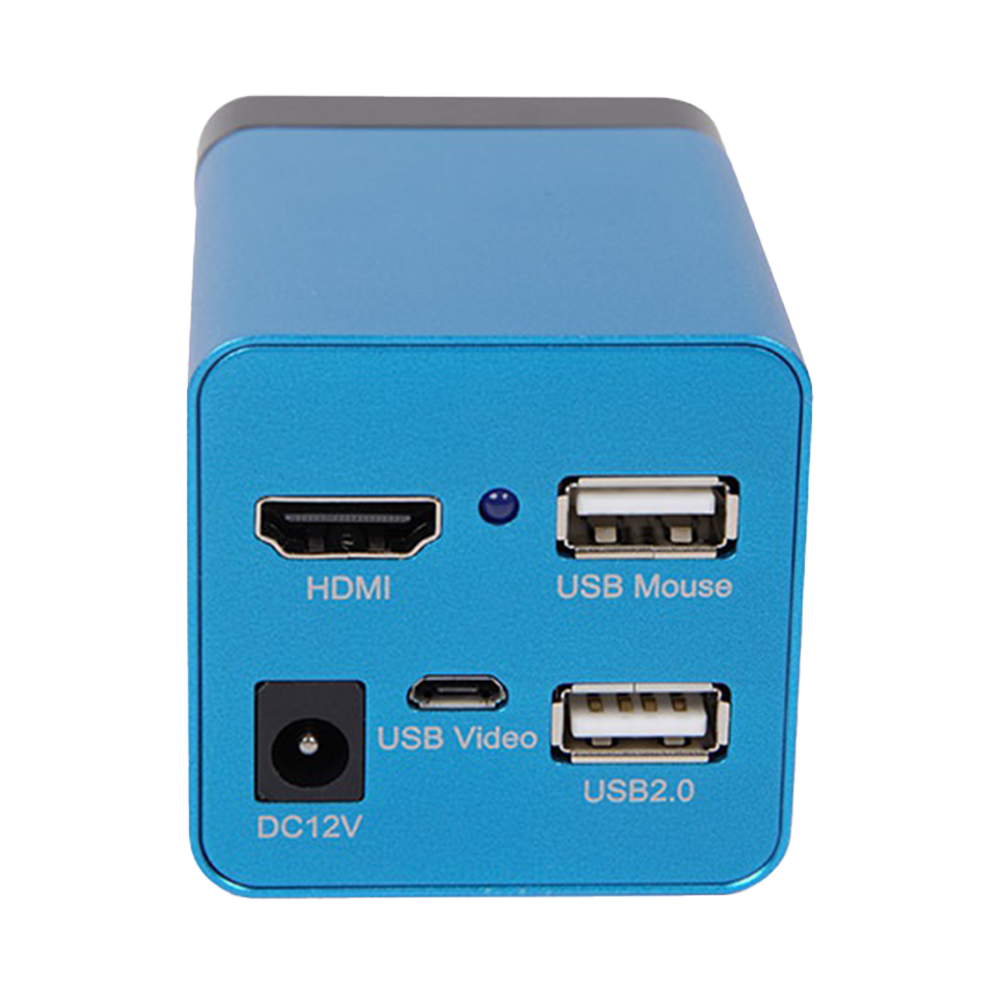

- Usage note: USB Video and USB Mouse cannot be used simultaneously. When Micro USB connects to a PC for capture, mouse control is unavailable; disconnecting Micro USB restores mouse usage.
Core Advantages
-
1
Compact body with dual outputs HDMI and USB run in parallel, fitting easily into portable or space-constrained solutions.
-
2
4K real-time performance Adaptive 4K/1080p output with 4K HDMI at 30 fps and USB 4K at 20 fps.
-
3
Plug-and-play with local storage XCamView and USB mouse provide direct control; USB drives handle recording and playback.
-
4
Professional image optimization Hardware 3D noise reduction, sharpening, and ROI white balance secure clarity and color accuracy.
-
5
Integration-friendly ecosystem Supports ToupView/ToupLite and standard SDKs across teaching, research, and industrial inspection use cases.
