Introduction

TZM0640 Product Introduction

TZM0640 series MZO (Monocular Zoom Objective, single-tube continuous zoom microscope objective) adopts a modular design concept with parallel optical paths at both ends. It offers excellent optical performance and strong customization options. It is specially designed for machine vision inspection, industrial inspection, scientific research, and educational applications.

The standard configuration of the TZM0640 series MZO is TZM0640-W3100-TV3100-A50, with the following features:

  • Continuous zoom from 0.6X to 4.0X, with a zoom ratio of 6.5X
  • Large NA: 0.015-0.067 (using a 1X auxiliary objective)
  • High resolution: 18.3µm - 4.1µm (using a 1X auxiliary objective)
  • Wide field: 1.78mm - 57.14mm
  • Maximum compatible image sensor size: 2/3 inch (using a 1X TV lens)
  • Working distance: 56mm - 248mm
  • Adjustable back focal distance; parfocal throughout the zoom range
  • Image center adjustable; image center remains unchanged during zooming
  • Compatible with infinity-corrected biological or metallurgical microscope objectives
  • Compact dimensions: 194mm x 40mm (standard model)
  • Optional auxiliary objectives available in 0.35X, 0.50X, 0.75X, 1.00X, and 1.50X magnifications
  • Optional TV lenses available in 0.50X, 0.75X, and 1.00X magnifications
  • Optional brightness-adjustable LED ring light
  • Optional brightness-adjustable LED ring polarizing light
  • Optional brightness-adjustable LED coaxial illumination light
  • Optional high-brightness LED transillumination light
  • Optional 45mm or 50mm mounting adapter

TZM0640 Series MZO Naming Rules

TZM0640

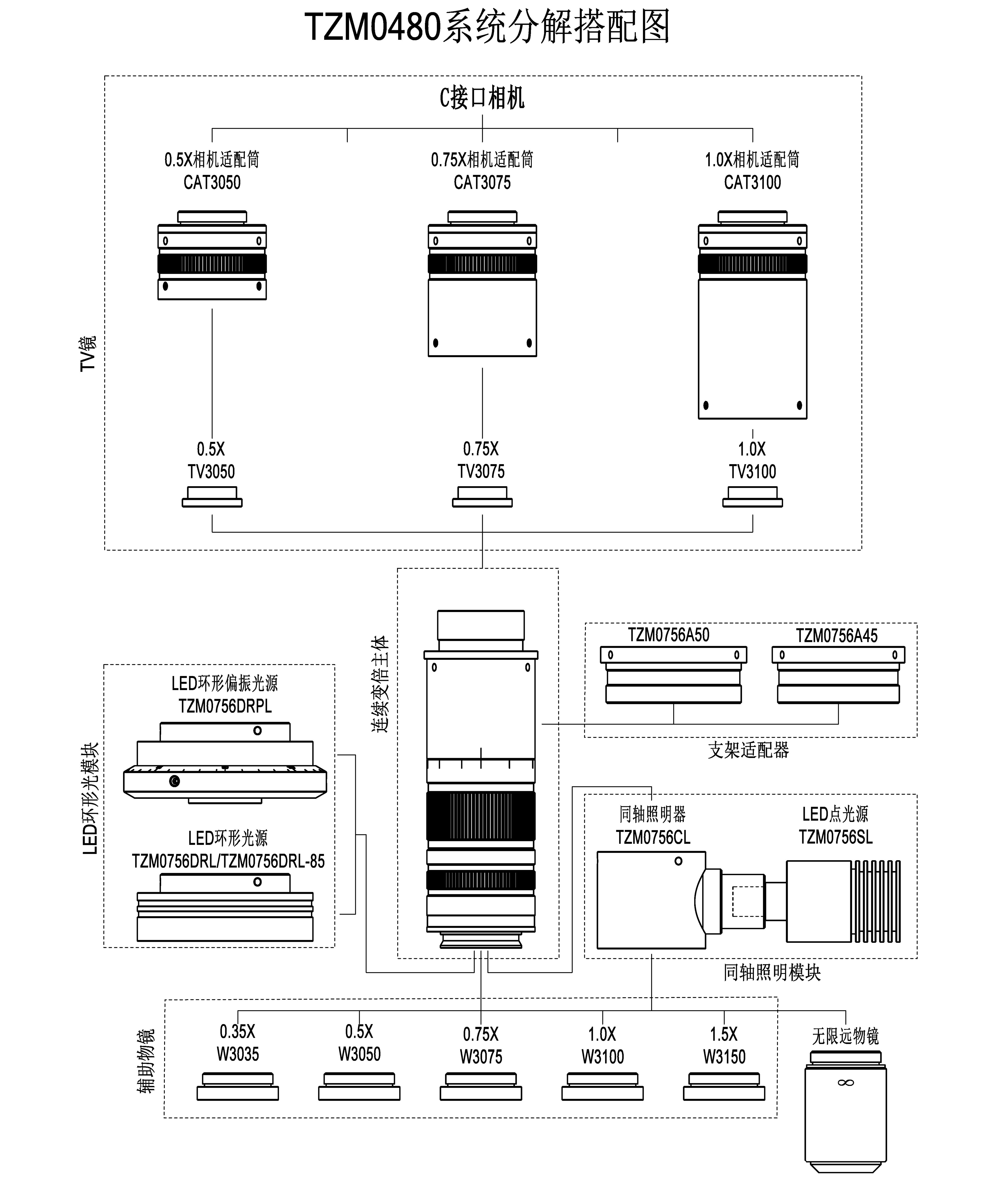

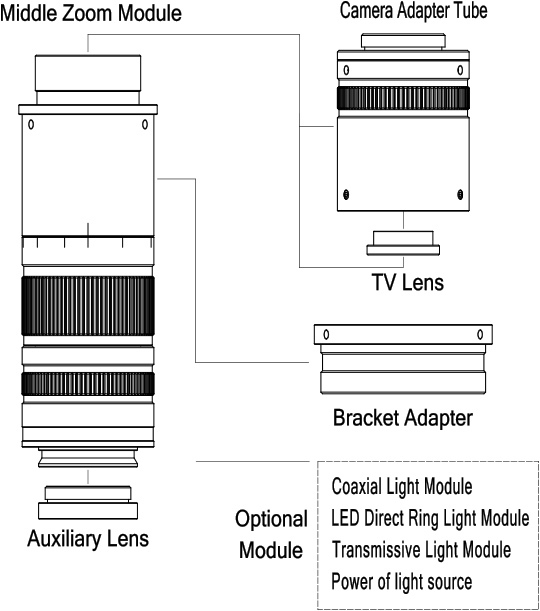

The TZM0640 series MZO consists of five basic modules, as shown in the diagram on the left. These five basic modules are: the continuous zoom body, the auxiliary objective, the TV lens, the mounting adapter, and the optional modules. Apart from the continuous zoom body, users can choose the other modules according to their application requirements.


The final naming convention for the TZM0640 series MZO is to combine the names of each module using hyphens, forming a comprehensive name that clearly indicates the parameters of the MZO. For example, if you select the continuous zoom body TZM0640D, a 1.00X auxiliary objective (W3100), a 0.50X TV lens (TV3050), and a 50mm mounting adapter (A50), the continuous zoom microscope objective will be named: TZM0640D-W3100-TV3050-A50

Currently available TZM0640a modules: TZM0640 (standard model, no letter) and TZM0640D (where "D" indicates fixed zoom);

Currently available W3bbb modules: W3100, W3035, W3050, W3075, W3150;

Currently available TV3ccc modules: TV3100, TV3050, TV3075;

Currently available Add modules: A50 and A45;

The optional modules mainly consist of ring light modules (both standard ring light and polarizing ring light) and a coaxial illumination module (comprising a coaxial illuminator and an LED point light).

Other magnifications of auxiliary objectives, TV lenses, and mounting adapters can be customized according to requirements.

Purchase and Matching

The parameters for different configurations of the TZM0640 series MZO are listed in the table below. You can determine the required combination by following these steps:

  • Determine the potential 1) FOV and 2) object-side working distance, and select the auxiliary objective accordingly.
  • When using a 705 infinity objective, choose the M26x0.705 to M20x0.705 objective adapter.
  • Based on 1) sensor size (1/x inches), 2) imaging diagonal length, 3) imaging width, and 4) imaging height, determine the camera’s imaging circle size and select the TV lens.
  • Select a 45mm or 50mm mounting adapter.
  • Select the LED ring light module for reflective illumination.
  • If necessary, choose the coaxial illumination module.
  • If needed, you may also select the transmitted light illumination module.
  • Choose the appropriate camera.

Our company offers a variety of microscope cameras. You can refer to the detailed information in the Camera Selection Tool to choose the appropriate camera based on the corresponding parameters.

Different Combinations of Continuous Zoom Body – Auxiliary Objective – TV Lens

Camera

Main Zoom Module-Auxiliary Lens-TV Lens

WD(mm)

PMAG

DFOV(mm)

NAO

1/3inch

TZM0640-W3035-TV3050

248

0.11X-0.7X

57.14-8.57

0.005-0.023

TZM0640-W3050-TV3050

174

0.15X-1.0X

40.00-6.00

0.007-0.033

TZM0640-W3075-TV3050

115

0.23X-1.5X

26.67-4.00

0.011-0.050

TZM0640-W3100-TV3050

86

0.3X-2.0X

20.00-3.00

0.015-0.067

TZM0640-W3150-TV3050

56

0.45X-3.0X

13.33-2.00

0.022-0.101

1/2inch

TZM0640-W3035-TV3075

248

0.16X-1.05X

50.79-7.62

0.005-0.023

TZM0640-W3050-TV3075

174

0.23X-1.5X

35.56-5.33

0.007-0.033

TZM0640-W3075-TV3075

115

0.34X-2.25X

23.7-3.56

0.011-0.050

TZM0640-W3100-TV3075

86

0.45X-3.00X

17.78-2.67

0.015-0.067

TZM0640-W3150-TV3075

56

0.68X-4.5X

11.85-1.78

0.022-0.101

2/3inch

TZM0640-W3035-TV3100

248

0.21X-1.4X

52.38-7.86

0.005-0.023

TZM0640-W3050-TV3100

174

0.3X-2.0X

36.67-5.50

0.007-0.033

TZM0640-W3075-TV3100

115

0.45X-3.00X

24.44-3.67

0.011-0.050

TZM0640-W3100-TV3100

86

0.6X-4.0X

18.33-2.75

0.015-0.067

TZM0640-W3150-TV3100

56

0.9X-6.0X

12.22-1.83

0.022-0.101

Related Modules

Based on the modular design characteristics of the TZM0480 series MZO, each module of the TZM0480 series MZO is named separately. The specific naming rules and corresponding parameters for each module are as follows:

Module 1 is the continuous zoom body, which is the main component of the TZM0480 series MZO. Its code is TZM0480a; "TZM0480" represents the continuous zoom body code, and "a" represents the auxiliary function code of the continuous zoom body. The specific definitions are shown in the table below.

Continuous Zoom Body Code and Its Functions

Order Number

Meaning

TZM0640

Postfix meaning

TZM0640

Ordinary Middle Zoom Module

ZM：Zoom

0640：0.6X~4.0X

NA

TZM0640D

Middle Zoom Module with detent to fix the magnification function

D：Detent

Module 2 is the interchangeable auxiliary objective, which connects by a threaded mount to the lower end of Module 1, the continuous zoom body. Its code is W3bbb, where "3" represents the product series number and "bbb" represents the magnification of the auxiliary objective. Auxiliary objectives of different magnifications are used to switch the overall magnification of the TZM0480 series MZO, and their working distances differ. For example, compared with the 1.00X auxiliary objective W3100 with a working distance of 86mm, the 0.50X auxiliary objective W3050 will reduce the overall magnification of the TZM0480 series MZO by half, while its working distance will extend from 86mm to approximately 174mm; the optical parameters of the auxiliary objectives are shown in the table below.

Auxiliary Objective

Order number

Magnification

Working distance（mmm）

W3035

0.35X

248

W3050

0.50X

174

W3075

0.75X

115

W3100

1.00X

86

W3150

1.50X

56
* When the same auxiliary objective is paired with different TV lenses, it is only to adapt to image sensors of different sizes, with minimal effect on the field of view.

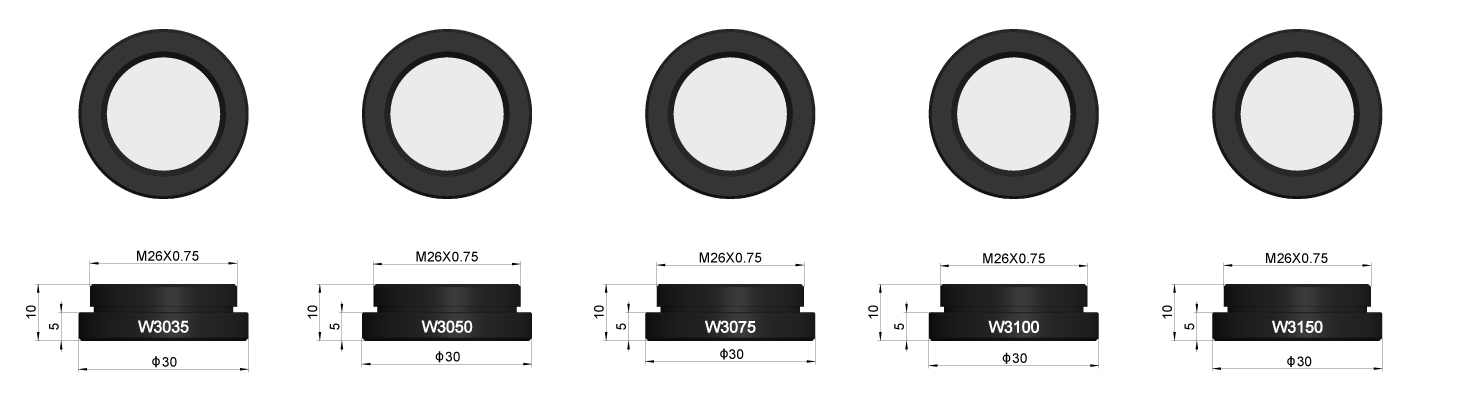

Five different magnifications of the TZM0640 objectives
Five different magnifications of the TZM0640 objectives

Module 3 is the interchangeable TV lens, which mounts by a threaded connection to the upper part of the continuous zoom body in Module 1. Its code is TV3ccc, where "3" represents the series number and "ccc" represents the TV lens magnification. It is mainly used to match image sensors of different sizes. For example, compared with the 1.00X TV lens TV3100, the 0.50X TV lens TV3050 will halve the size of the matched image sensor while the field of view remains largely unaffected; the TV lens parameters are shown in the table below.

TV Lens
* TV lenses with higher magnification can also be paired with smaller image sensors; however, this will reduce the overall field of view of the MZO.

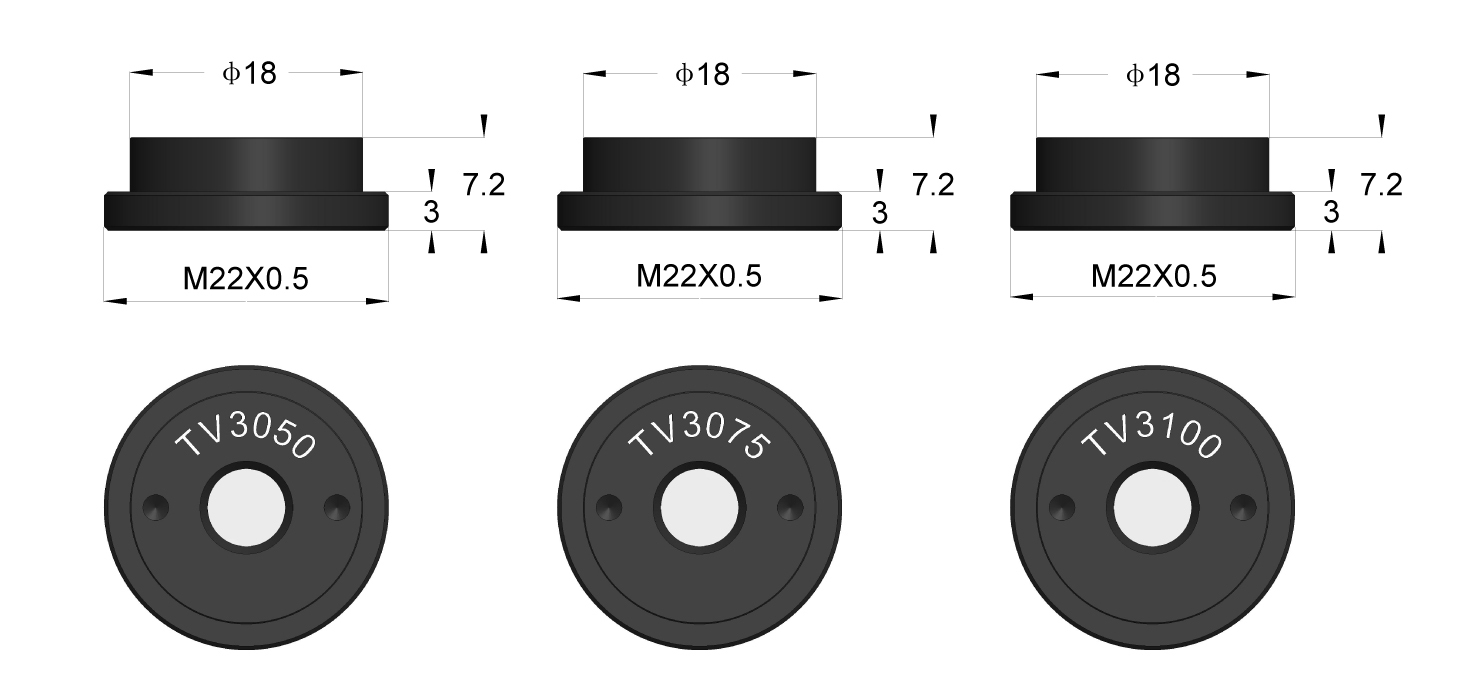

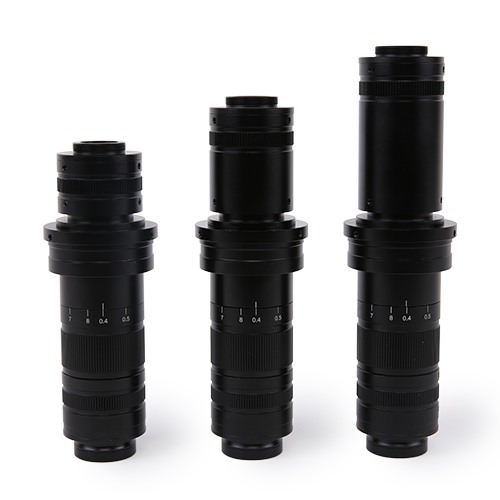

Three different magnification TV lenses for the TZM0640
Three different magnification TV lenses for the TZM0640

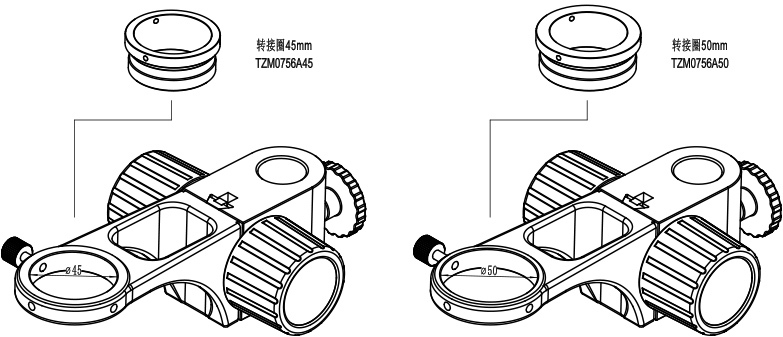

Module 4 is the mounting adapter, used to adapt to different diameter mounts, and is fitted around the continuous zoom body in Module 1. Its code is Add, where "dd" indicates the mounting diameter, available in 45mm or 50mm. The mounting adapter and the mount installation methods are shown in the figure below.

TZM0640 series MZO Mounting Adapter
TZM0640 series MZO Mounting Adapter

The optional modules mainly include ring light modules (both standard and polarized ring lights) and a coaxial illumination module (consisting of a coaxial illuminator and LED point light source). The details of the optional modules are shown in the table below.

Light Source Modules Compatible with the TZM0640 Series MZO

Module Name

Model

Model Description

LED Ring Light Module

TZM0756DRL-65/85

LED Ring Light

TZM0756DRPL-65

LED Polarized Ring Light

Coaxial Illumination Module

TZM0756CL+TZM0756SL

Coaxial Illuminator + LED Point Light (3W)

Transmitted Illumination Module

TZM0756TL

LED Transmitted Backlight

LED Light Power Supply

40600014

Power Adapter 12V/1A (US Standard)

40600015

Power Adapter 12V/1A (EU Standard)
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85, LED with a maximum diameter of 85mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65, LED with a maximum diameter of 65mm, center diameter of 40mm, can be directly attached to the front of the corresponding MZO to achieve uniform polarized illumination
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL, LED Point Light for Coaxial Illumination – can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination
TZM0756TL, LED with an Illumination Area Diameter of 37mm for Transmitted Illumination

Configuration and Dimensions

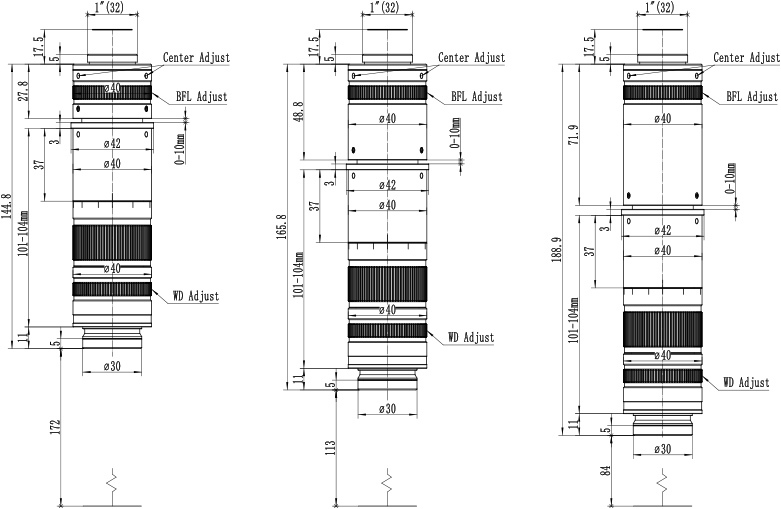

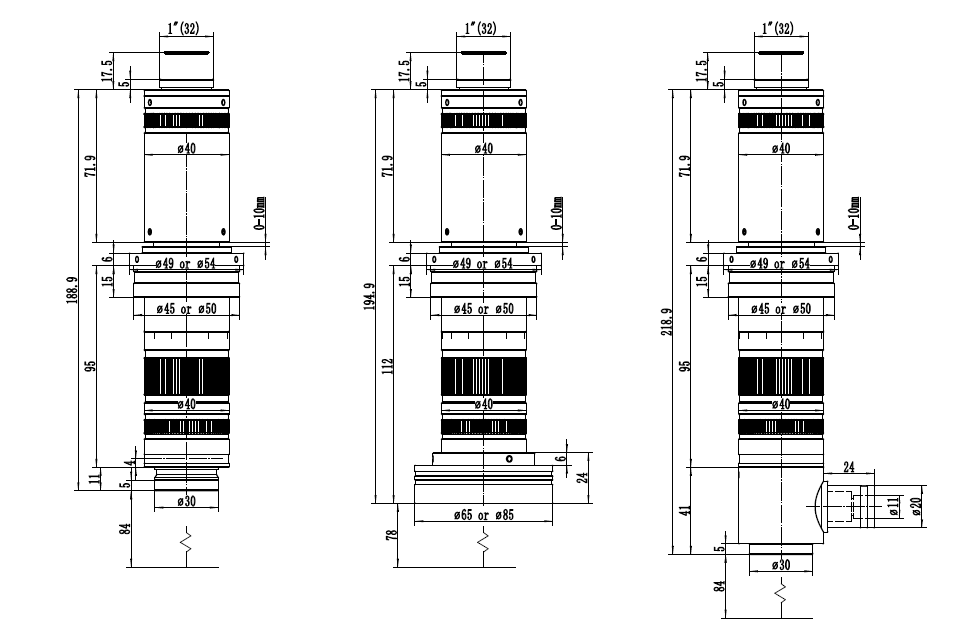

The dimensions of the TZM0640 series MZO with different auxiliary lens and TV lens combinations are shown in the diagram. Among these, the total length of TZM0640-W3100-TV3100 is 194mm.

Dimension Diagram for TZM0640 Series MZO with Various Auxiliary and TV Lenses
Dimension Diagram for TZM0640 Series MZO with Various Auxiliary and TV Lenses
Left: TZM0640-W3050-TV3050  Middle: TZM0640-W3075-TV3075  Right: TZM0640-W3100-TV3100
Dimensions of the Base Model with Different Light Source Configurations
Dimensions of the Base Model with Different Light Source Configurations
Left: Base model; Middle: TZM0640 with standard ring light; Right: TZM0640 with coaxial lighting

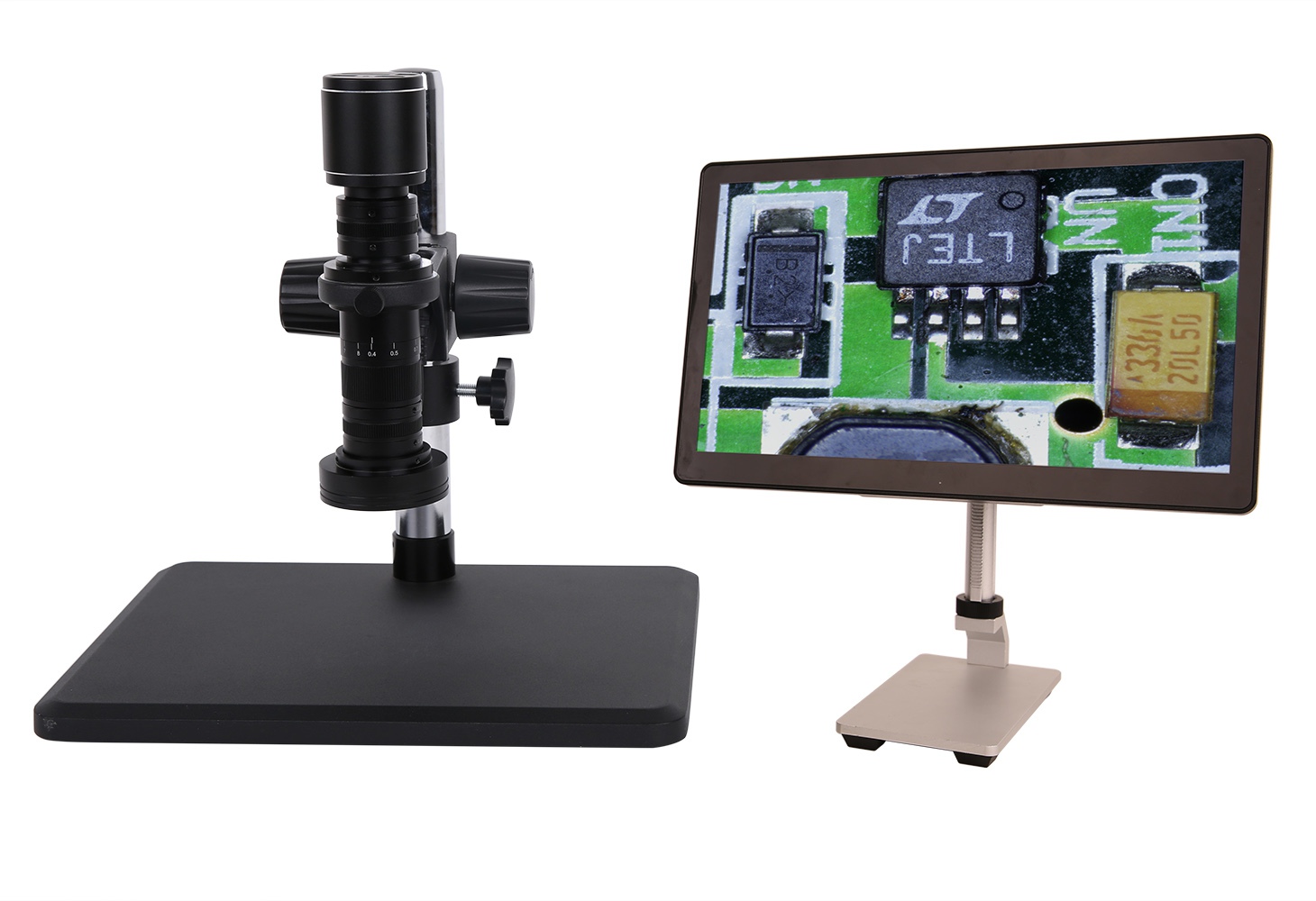

TZM0640-W100-TV100 + TZM0640DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR
TZM0640-W100-TV100 + TZM0640DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR
TZM0640-W3100-TV3050 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-20A + SCR

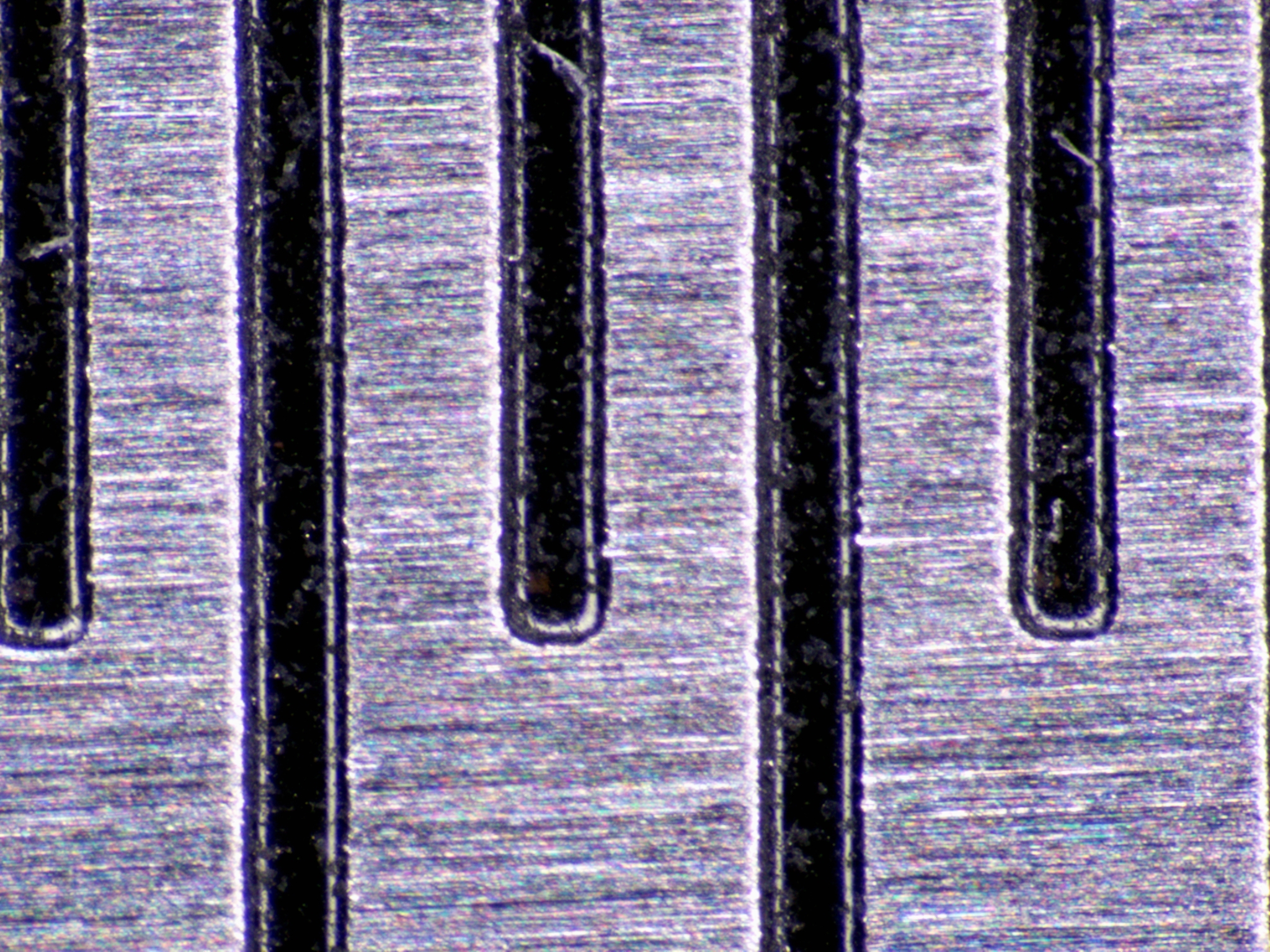

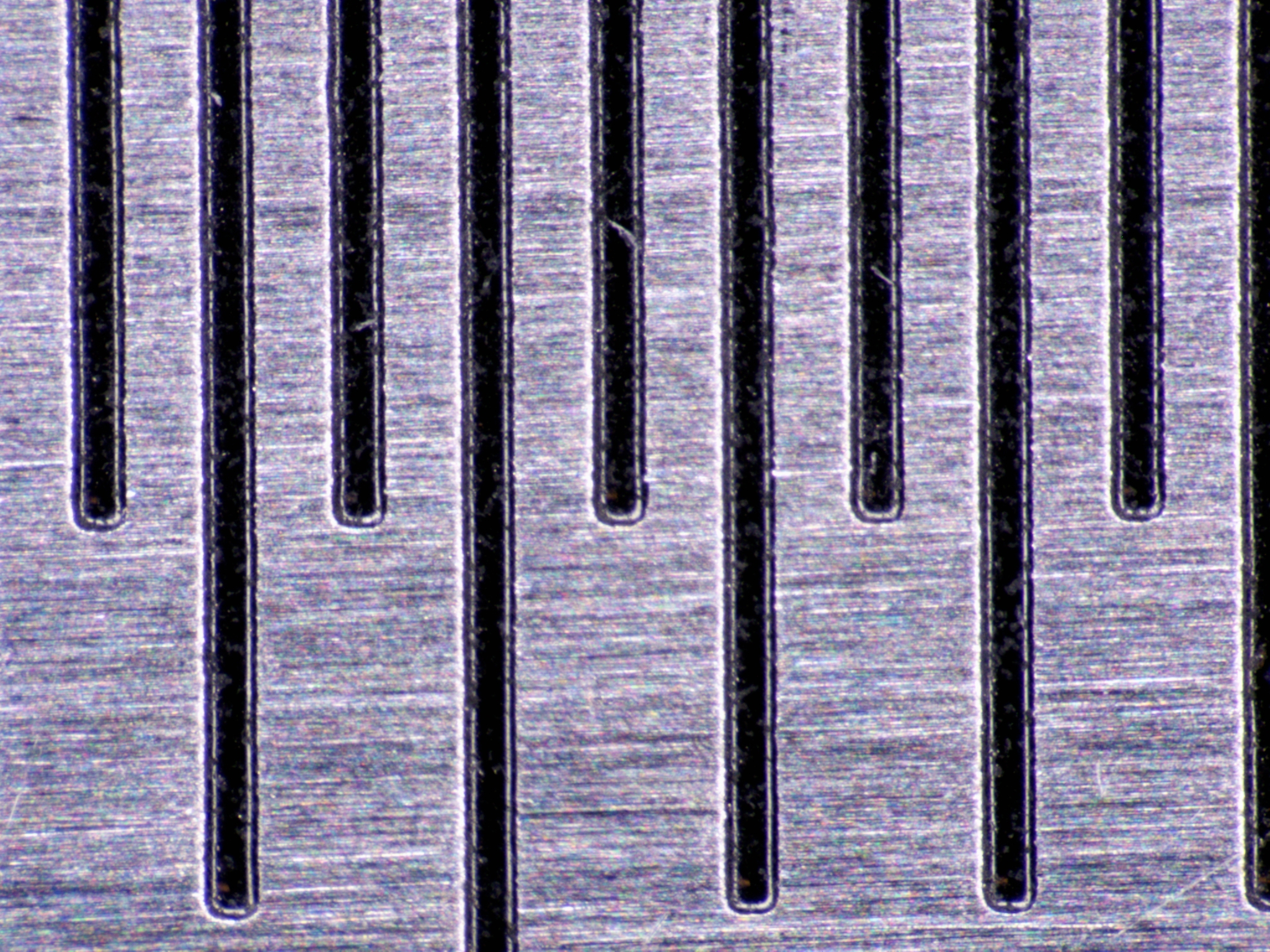

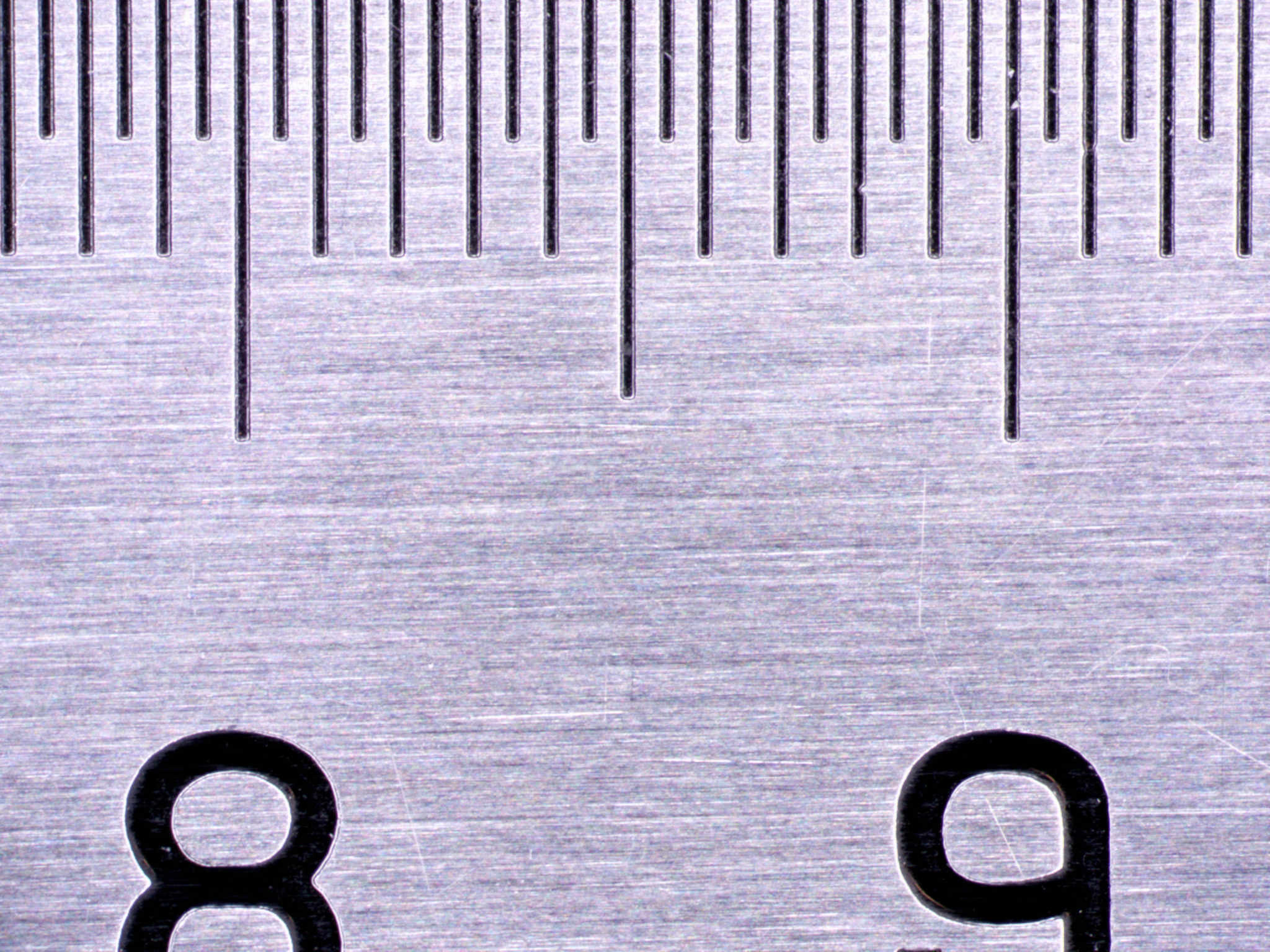

TZM0640-W3100-TV3050 with Ring Light – Ruler Image: Left) 0.6X, Middle) 2.0X, Right) 4.0X
TZM0640-Ruler1
TZM0640-Ruler2
TZM0640-Ruler3
TZM0640-W3100-TV3050 with Ring Light – Ruler Image: Left) 0.6X, Middle) 2.0X, Right) 4.0X

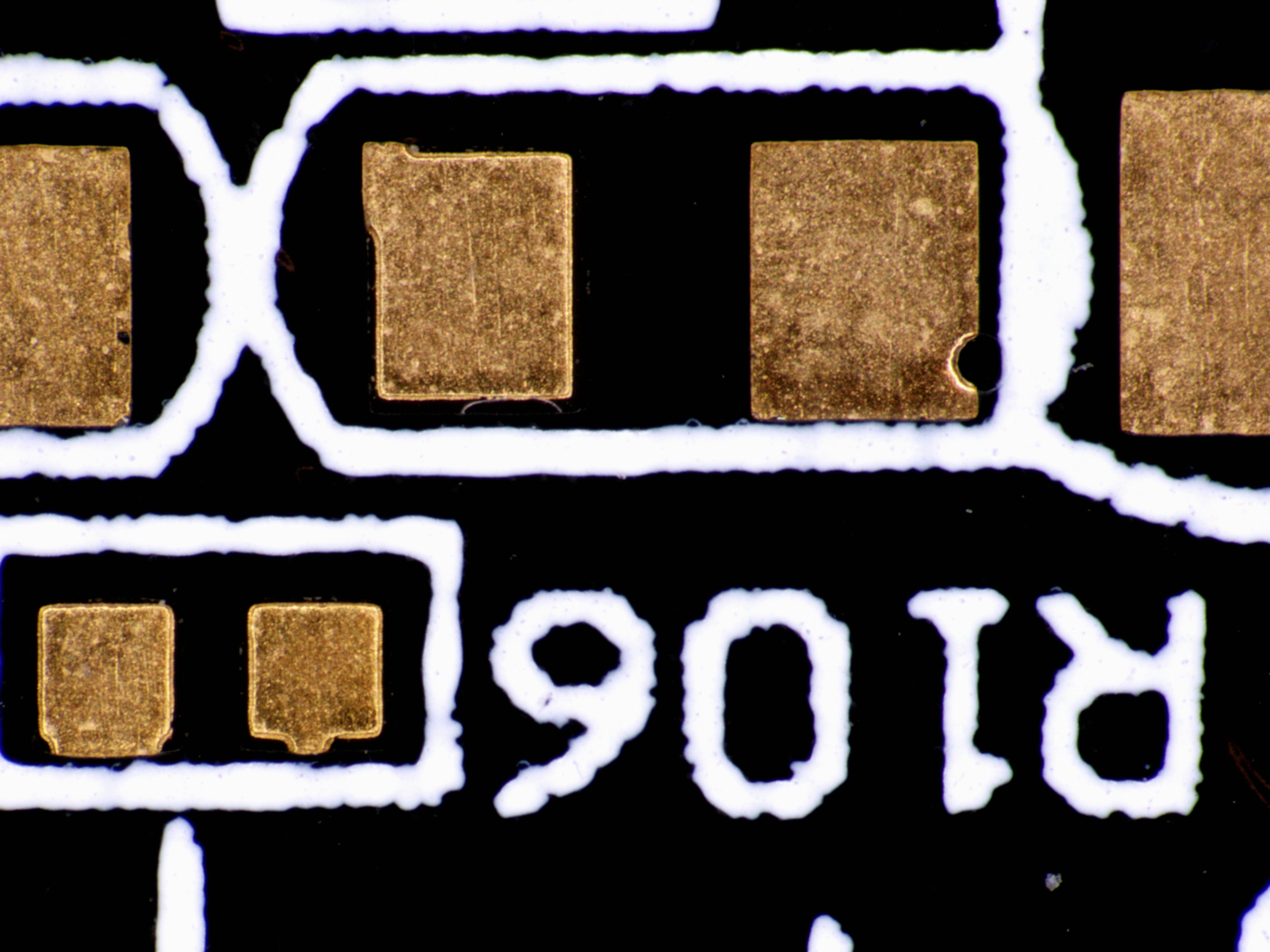

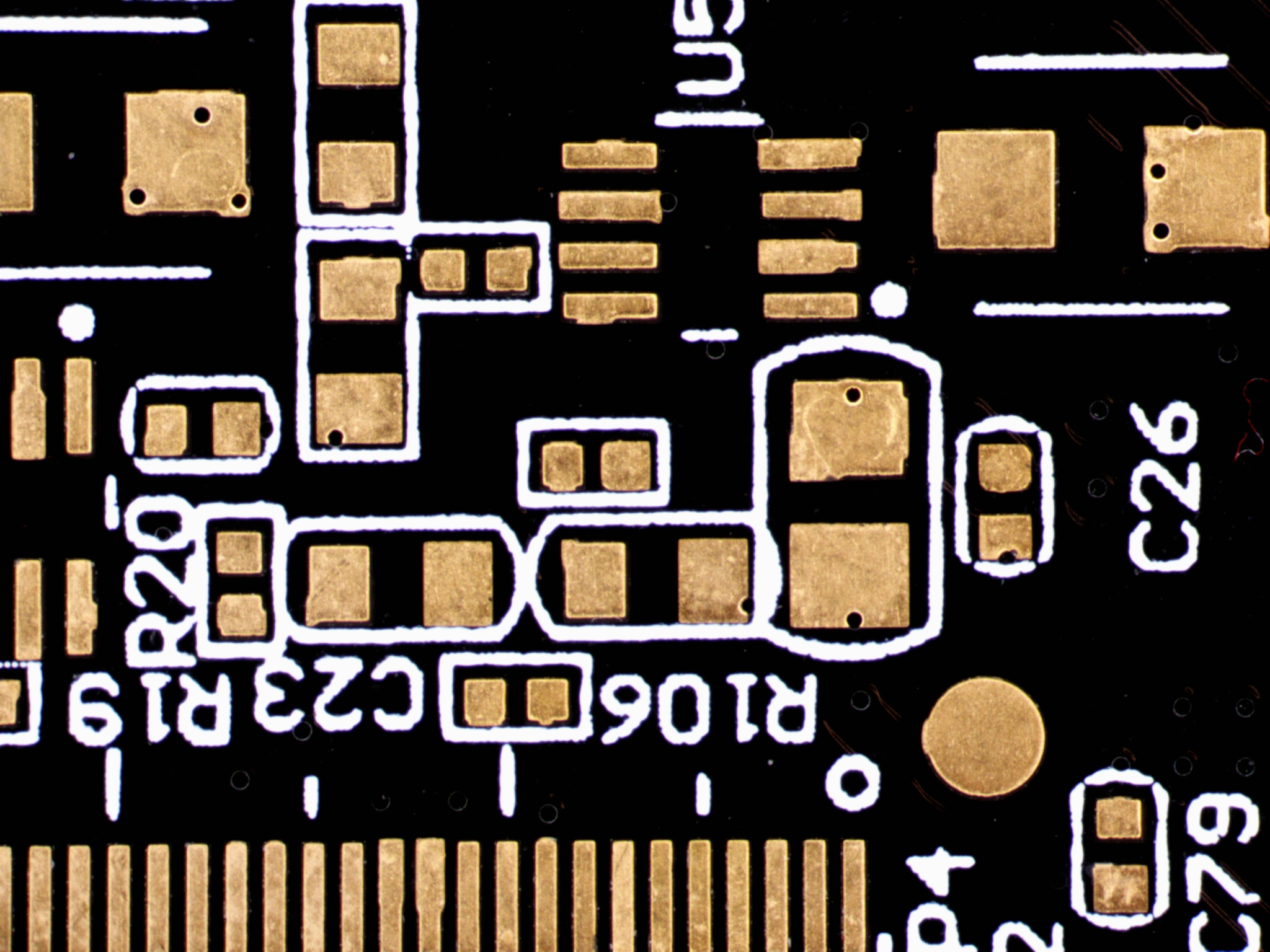

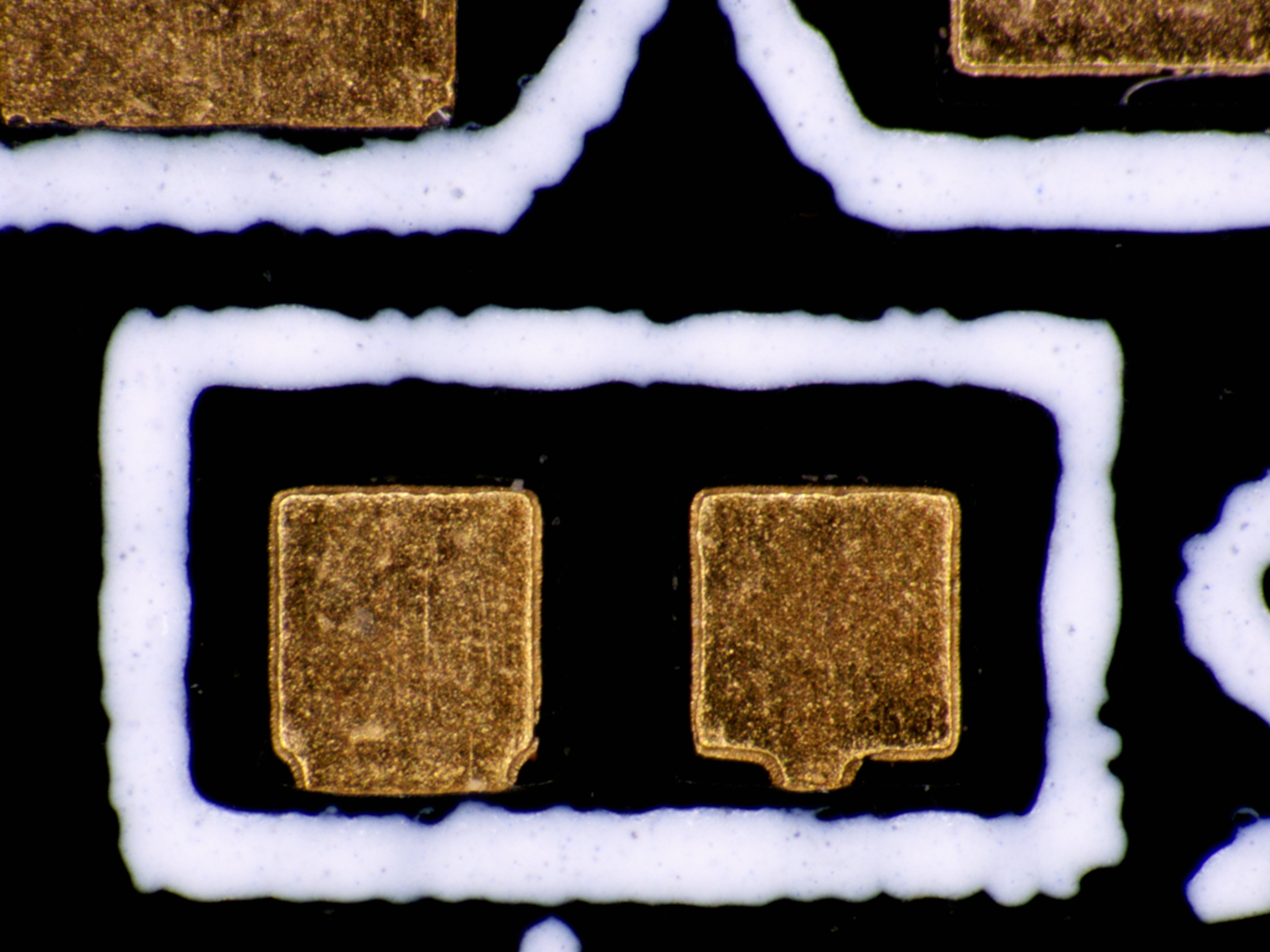

TZM0640-W3100-TV3050 – Circuit Board Image: Left) 0.6X, Middle) 2.0X, Right) 4.0X
TZM0640-Ruler4
TZM0640-Ruler5
TZM0640-Ruler6
TZM0640-W3100-TV3050 – Circuit Board Image: Left) 0.6X, Middle) 2.0X, Right) 4.0X
