Introduction

TZM0480 Product Introduction

TZM0480 series MZO (Monocular Zoom Objective, a single-tube continuous zoom objective) adopts a modular design with parallel light paths at both ends. It offers superior optical performance and excellent configurability, and is designed specifically for applications in machine vision inspection, industrial inspection, scientific research, and education.

The standard configuration for the TZM0480 series MZO is TZM0480-W3100-TV3100-A50, featuring:

  • Continuous zoom from 0.4X to 8.0X with an overall zoom ratio of 20X
  • High NA: 0.01–0.12 (using a 1X auxiliary objective)
  • High resolution: 27.5μm to 2.3μm (using a 1X auxiliary objective)
  • Large field of view: 0.9mm to 86mm
  • Maximum compatible image sensor size: 2/3 inch (using a 1X TV lens)
  • Working distance: 56mm to 248mm
  • Adjustable back focus to maintain focus during zooming
  • Adjustable image center so that the image remains centered during zooming
  • Compatible with infinity-corrected biological or metallurgical objectives
  • Compact dimensions: 194mm x 40mm (standard model)
  • Optional auxiliary objectives available with magnifications of 0.35X, 0.50X, 0.75X, 1.00X, and 1.50X
  • Optional TV lenses available with magnifications of 0.50X, 0.75X, and 1.00X
  • Optional adjustable LED ring light
  • Optional adjustable LED polarized ring light
  • Optional adjustable LED coaxial illumination light
  • Optional high-brightness LED transmission backlight
  • Optional 45mm or 50mm bracket adapter

TZM0480 Series MZO Naming Rules

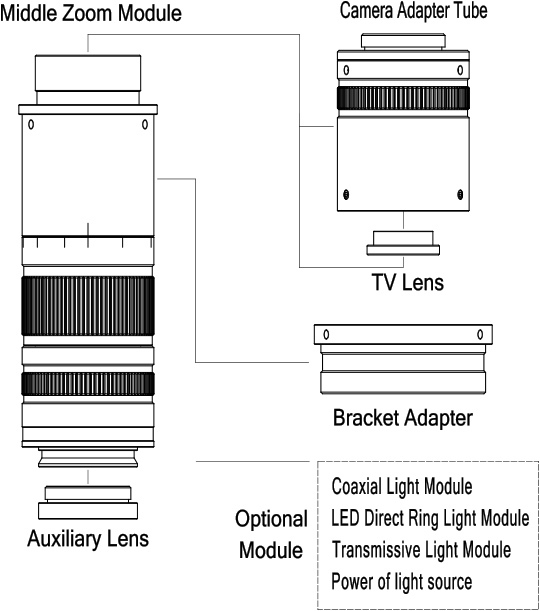

TZM0480 Exploded View

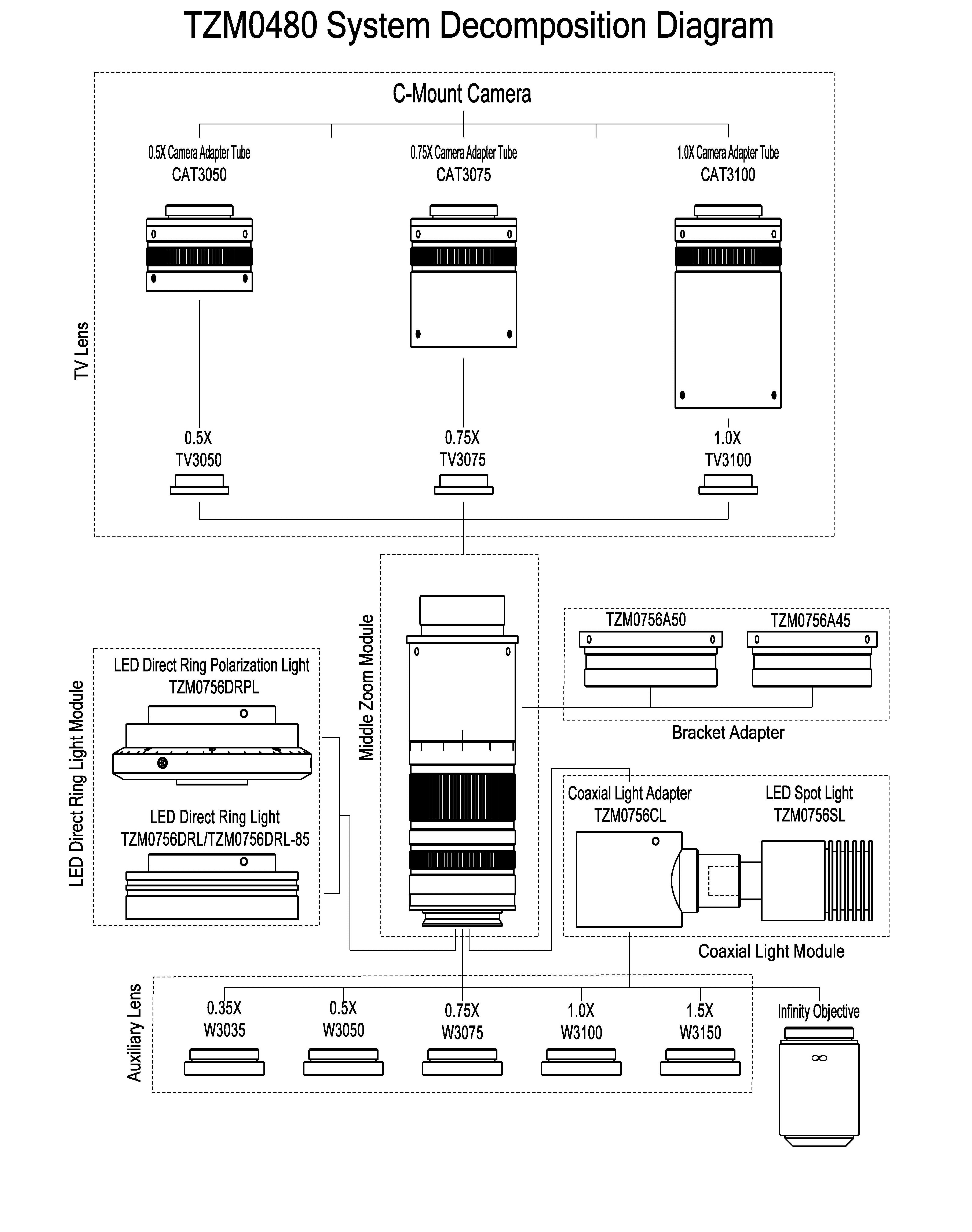

The TZM0480 series MZO is composed of five fundamental modules, as shown in the image on the left. These modules are: the continuous zoom body, the auxiliary objective, the TV lens, the bracket adapter, and the optional modules. Except for the continuous zoom body, users can choose the other modules according to their application needs.


The final naming convention for the TZM0480 series MZO is to concatenate the names of each module with hyphens, forming a composite name that clearly indicates the MZO’s key parameters. For example, if you select a continuous zoom body TZM0480D, a 1.00X auxiliary objective W3100, a 0.50X TV lens TV3050, and a 50mm bracket adapter A50, the resulting name of the microscope objective will be: TZM0480D-W3100-TV3050-A50

Available TZM0480a modules: TZM0480 (standard version, with no suffix) and TZM0480D (where "D" denotes fixed zoom).

Available W3bbb modules: W3100, W3035, W3050, W3075, and W3150.

Available TV3ccc modules: TV3100, TV3050, and TV3075.

Available Add modules: A50 and A45.

The optional modules mainly include ring light modules (standard ring light and polarized ring light) and coaxial illumination modules (comprising a coaxial illuminator and an LED point light source).

Additional magnifications for auxiliary objectives, TV lenses, and bracket adapters can be customized as required.

Purchase & Matching

The parameters for different configurations of the TZM0480 series MZO are listed in the table below. You can determine the desired combination by following these steps:

  • Determine the possible 1) FOV and 2) object-side working distance, and select the appropriate auxiliary objective accordingly.
  • If using an infinity-corrected objective with a 705 specification, choose an adapter to convert M26x0.705 to M20x0.705.
  • Based on 1) the sensor size (in 1/x inches), 2) the diagonal length of the imaging area, 3) the imaging width, and 4) the imaging height, determine the size of the camera's imaging circle and select the appropriate TV lens.
  • Select a 45mm or 50mm bracket adapter.
  • Select an LED ring light module for reflective illumination.
  • If necessary, choose a coaxial illumination module.
  • If needed, select a transmission illumination module.
  • Choose the compatible camera.

Our company offers a variety of microscopic cameras. You can refer to the detailed specifications in the Camera Selection Tool to choose the appropriate camera from our list.

Combinations of Continuous Zoom Body – Auxiliary Objective – TV Lens

Camera

Main Zoom Module-Auxiliary Lens-TV Lens

WD(mm)

PMAG

DFOV(mm)

NAO

1/3”

TZM0480-W3035-TV3050

248

0.07X-1.4X

85.70-4.29

0.004-0.039

TZM0480-W3050-TV3050

174

0.1X-2.0X

60.00-3.00

0.005-0.056

TZM0480-W3075-TV3050

115

0.15X-3.0X

40.00-2.00

0.008-0.084

TZM0480-W3100-TV3050

86

0.2X-4.0X

30.00-1.50

0.010-0.112

TZM0480-W3150-TV3050

56

0.3X-6.0X

20.00-1.00

0.015-0.168

1/2”

TZM0480-W3035-TV3075

248

0.105X-2.1X

76.19-3.81

0.004-0.039

TZM0480-W3050-TV3075

174

0.15X-3.0X

53.33-2.67

0.005-0.056

TZM0480-W3075-TV3075

115

0.23X-4.5X

35.56-1.78

0.008-0.084

TZM0480-W3100-TV3075

86

0.3X-6.0X

26.67-1.33

0.010-0.112

TZM0480-W3150-TV3075

56

0.45X-9.0X

17.78-0.89

0.015-0.168

2/3”

TZM0480-W3035-TV3100

248

0.14X-2.8X

78.57-3.93

0.004-0.039

TZM0480-W3050-TV3100

174

0.2X-4.0X

55.00-2.75

0.005-0.056

TZM0480-W3075-TV3100

115

0.3X-6.0X

36.67-1.83

0.008-0.084

TZM0480-W3100-TV3100

86

0.4X-8.0X

27.50-1.38

0.010-0.112

TZM0480-W3150-TV3100

56

0.6X-12.0X

18.33-0.92

0.015-0.168

Related Modules

Based on the modular design characteristics of the TZM0480 series MZO, the modules are individually named. The specific naming rules and corresponding parameters for each module are as follows:

Module 1 is the continuous zoom main body, which is the primary component of the TZM0480 series MZO. Its code is TZM0480a; here, "TZM0480" represents the continuous zoom main body code, and "a" indicates the auxiliary function code of the continuous zoom main body. The detailed definitions are shown in the table below.

Continuous Zoom Main Body Code and Its Functionality

Order Number

Meaning

TZM0480

Postfix meaning

TZM0480

Ordinary Middle Zoom Module

ZM：Zoom

0480：0.4X~8.0X

NA

TZM0480D

Middle Zoom Module with detent to fix the magnification function

D：Detent

Module 2 is the interchangeable auxiliary objective lens, which is connected via a threaded interface to the lower end of Module 1 (the continuously zooming main body). Its code is W3bbb, where "3" represents the product series number and "bbb" denotes the magnification of the auxiliary objective lens. Auxiliary objective lenses with different magnifications are used to change the overall magnification of the TZM0480 series MZO, and their working distances also vary. For example, compared to the auxiliary objective lens W3100 with a 1.00X magnification and an 86mm working distance, the auxiliary objective lens W3050 with a 0.50X magnification will reduce the overall magnification of the TZM0480 series MZO by half, while its working distance increases from 86mm to approximately 174mm, and so on. The optical parameters of the auxiliary objective lenses are shown in the table below.

Auxiliary Objective Lens

Order number

Magnification

Working distance（mmm）

W3035

0.35X

248

W3050

0.50X

174

W3075

0.75X

115

W3100

1.00X

86

W3150

1.50X

56
* The same auxiliary objective lens paired with different TV lenses is only for accommodating different sensor sizes, with minimal effect on the field of view.

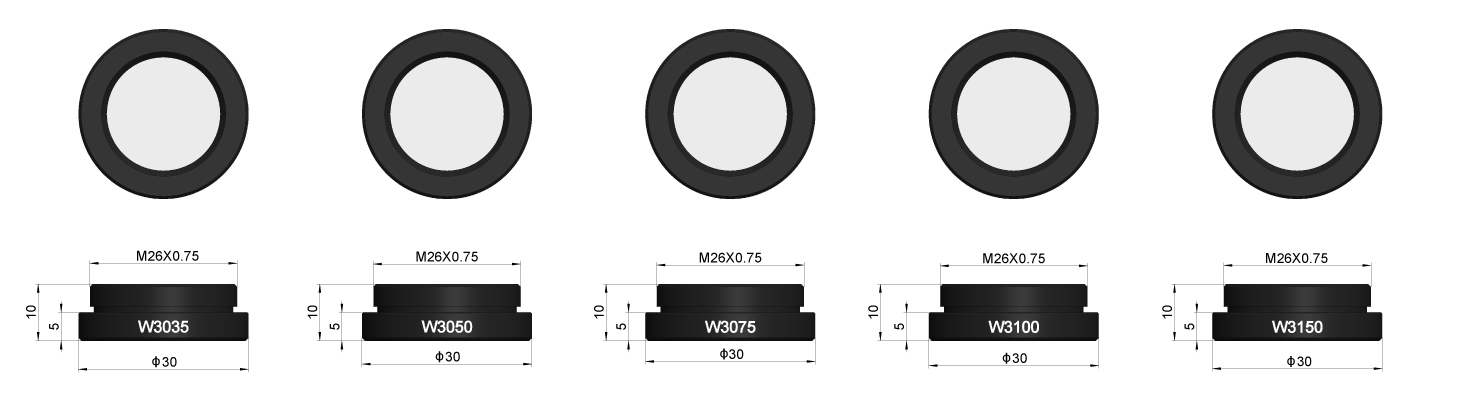

Five different magnifications of TZM0480 objective lenses
Five Different Magnifications of TZM0480 Objective Lenses

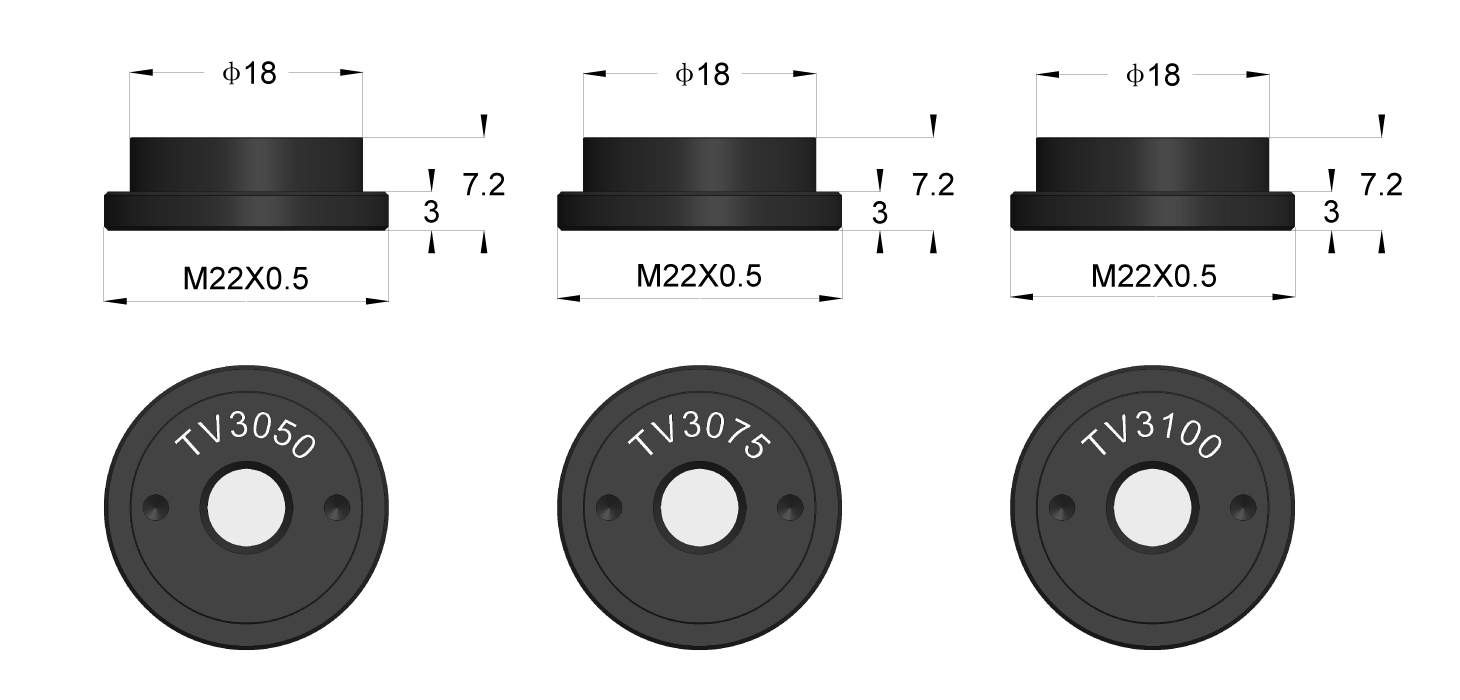

Module 3 is the interchangeable TV lens, which can be attached via a threaded connection to the upper part of Module 1 (the continuously zooming main body). Its code is TV3ccc, where "3" represents the series number and "ccc" denotes the TV lens magnification. It is primarily used to match image sensors of various sizes. For example, compared to the 1.00X TV lens TV3100, the 0.50X TV lens TV3050 is designed for an image sensor that is half the size, while the field of view remains essentially unchanged. The TV lens parameters are shown in the table below.

TV Lens

Order number

Magnification

The maximum compatible sensor size

TV3050

0.50X

1/3"

TV3075

0.75X

1/1.8"

TV3100

1.00X

2/3"
* TV lenses with higher magnification can also be paired with smaller image sensors, although this will reduce the overall field of view of the MZO.

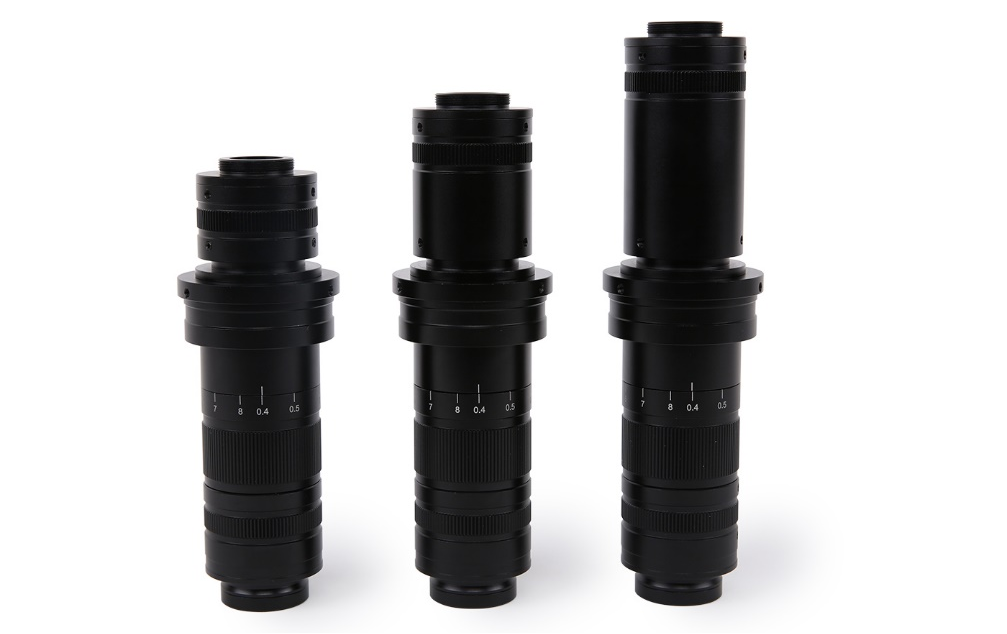

Three different TV lenses for TZM0480
Three Different TV Lenses for TZM0480

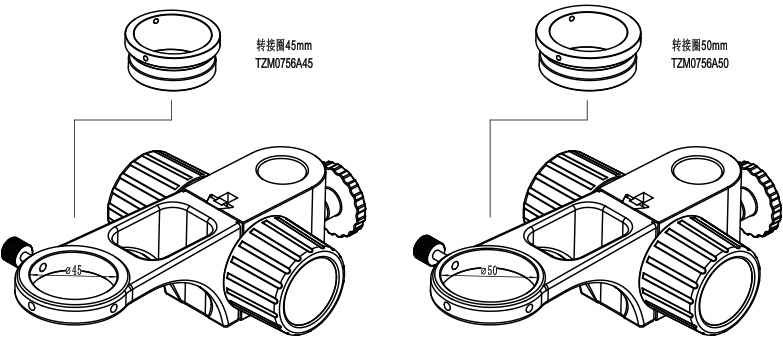

Module 4 is the mounting adapter, which is used to adapt mounts of different diameters. It fits around the middle of the continuously zooming main body (Module 1). Its code is "Add", with "dd" indicating the mounting diameter, available in 45mm and 50mm options. The installation method of the mounting adapter with the mount is shown in the image below.

TZM0480 Series MZO Mounting Adapter
TZM0480 Series MZO Mounting Adapter

The optional module mainly comprises ring light modules (available in both standard and polarized versions), as well as a coaxial illumination module (comprising a coaxial illuminator and LED point light). The details of the various optional modules are listed in the table below.

Light Source Modules Compatible with the TZM0480 Series MZO

Module Name

Model

Model Description

LED Ring Light Module

TZM0756DRL-65/85

LED Ring Light

TZM0756DRPL-65

LED Polarized Ring Light

Coaxial Illumination Module

TZM0756CL+TZM0756SL

Coaxial Illuminator + LED Point Light (3W)

Transmitted Illumination Module

TZM0756TL

LED Transmitted Backlight

LED Light Power Supply

40600014

Power Adapter 12V/1A (US Standard)

40600015

Power Adapter 12V/1A (EU Standard)
TZM0756DRL-65: LED with a maximum diameter of 65mm, with a 40mm central diameter that can be directly mounted on the front of the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65: LED with a maximum diameter of 65mm, with a 40mm central diameter that can be directly mounted on the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-65: LED with a maximum diameter of 65mm, with a 40mm central diameter that can be directly mounted on the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85: LED with a maximum diameter of 85mm, with a 40mm central diameter that can be directly mounted on the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85: LED with a maximum diameter of 85mm, with a 40mm central diameter that can be directly mounted on the corresponding MZO to achieve uniform reflective illumination
TZM0756DRL-85: LED with a maximum diameter of 85mm, with a 40mm central diameter that can be directly mounted on the corresponding MZO to achieve uniform reflective illumination
TZM0756DRPL-65: LED with a maximum diameter of 65mm, with a 40mm central diameter that can be directly mounted on the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65: LED with a maximum diameter of 65mm, with a 40mm central diameter that can be directly mounted on the corresponding MZO to achieve uniform polarized illumination
TZM0756DRPL-65: LED with a maximum diameter of 65mm, with a 40mm central diameter that can be directly mounted on the corresponding MZO to achieve uniform polarized illumination
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756SL: LED Point Light for Coaxial Illumination, which can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL: LED Point Light for Coaxial Illumination, which can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756SL: LED Point Light for Coaxial Illumination, which can be directly connected to the coaxial illuminator to achieve coaxial illumination
TZM0756TL: LED Transmission Light Source with an Illumination Area Diameter of 37mm
TZM0756TL: LED Transmission Light Source with an Illumination Area Diameter of 37mm
TZM0756TL: LED Transmission Light Source with an Illumination Area Diameter of 37mm

Configuration and Dimensions

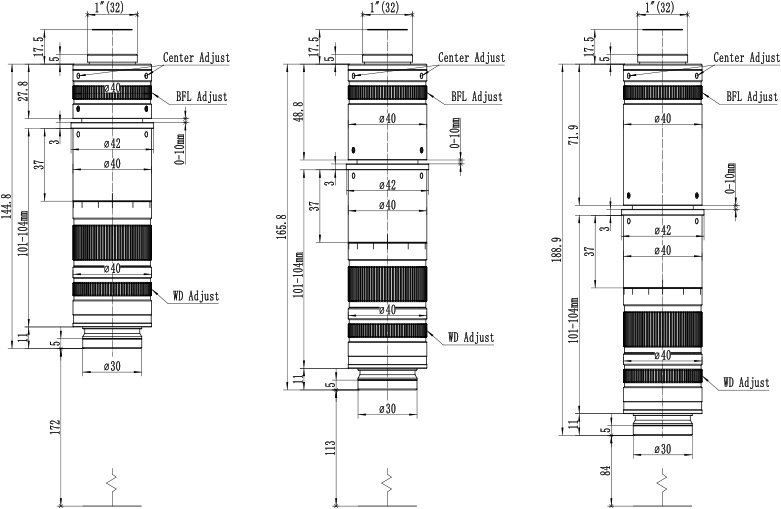

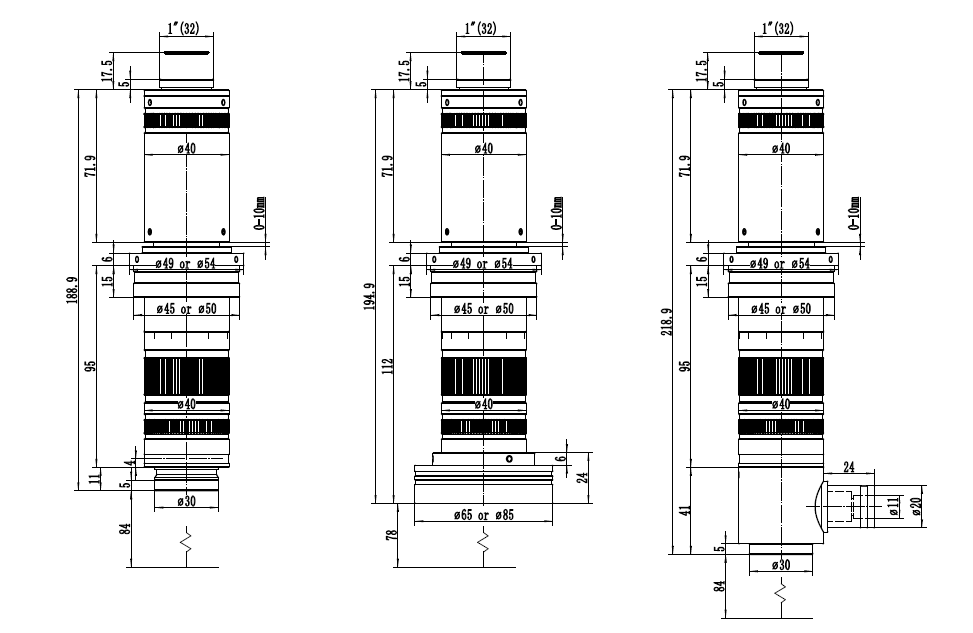

The dimensions for the TZM0480 Series MZO when paired with different magnification auxiliary lenses and TV lenses are shown in the diagram below. In this configuration, the overall length of the TZM0480-W3100-TV3100 is 194mm.

Dimension Diagram of the TZM0480 Series MZO with Various Auxiliary and TV Lenses
Dimension diagram of the TZM0480 Series MZO with various auxiliary and TV lenses
Left) TZM0480-W3050-TV3050    Middle) TZM0480-W3075-TV3075    Right) TZM0480-W3100-TV3100
Dimensions of the Basic Model and with Different Light Source Options
Dimensions of the basic model and with different light source options for the TZM0480 Series MZO
Left) Basic TZM0480; Middle) TZM0480 with a standard ring light; Right) TZM0480 with coaxial illumination

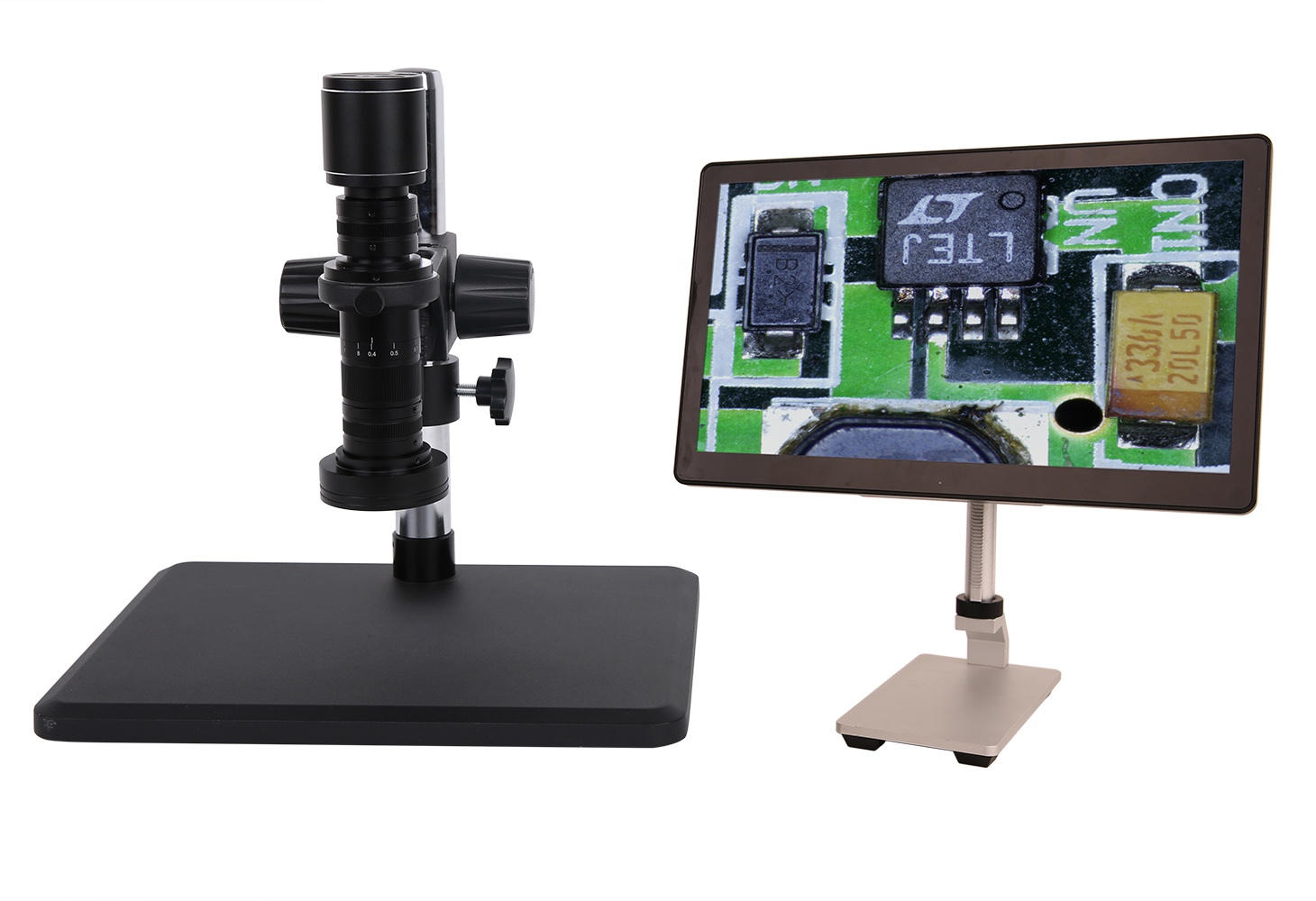

TZM0480-W100-TV100 + TZM0480DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR
TZM0480-W100-TV100 + TZM0480DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-10A + SCR
TZM0480-W3100-TV3050 + TZM0756DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Circular) + TPS-20A + SCR

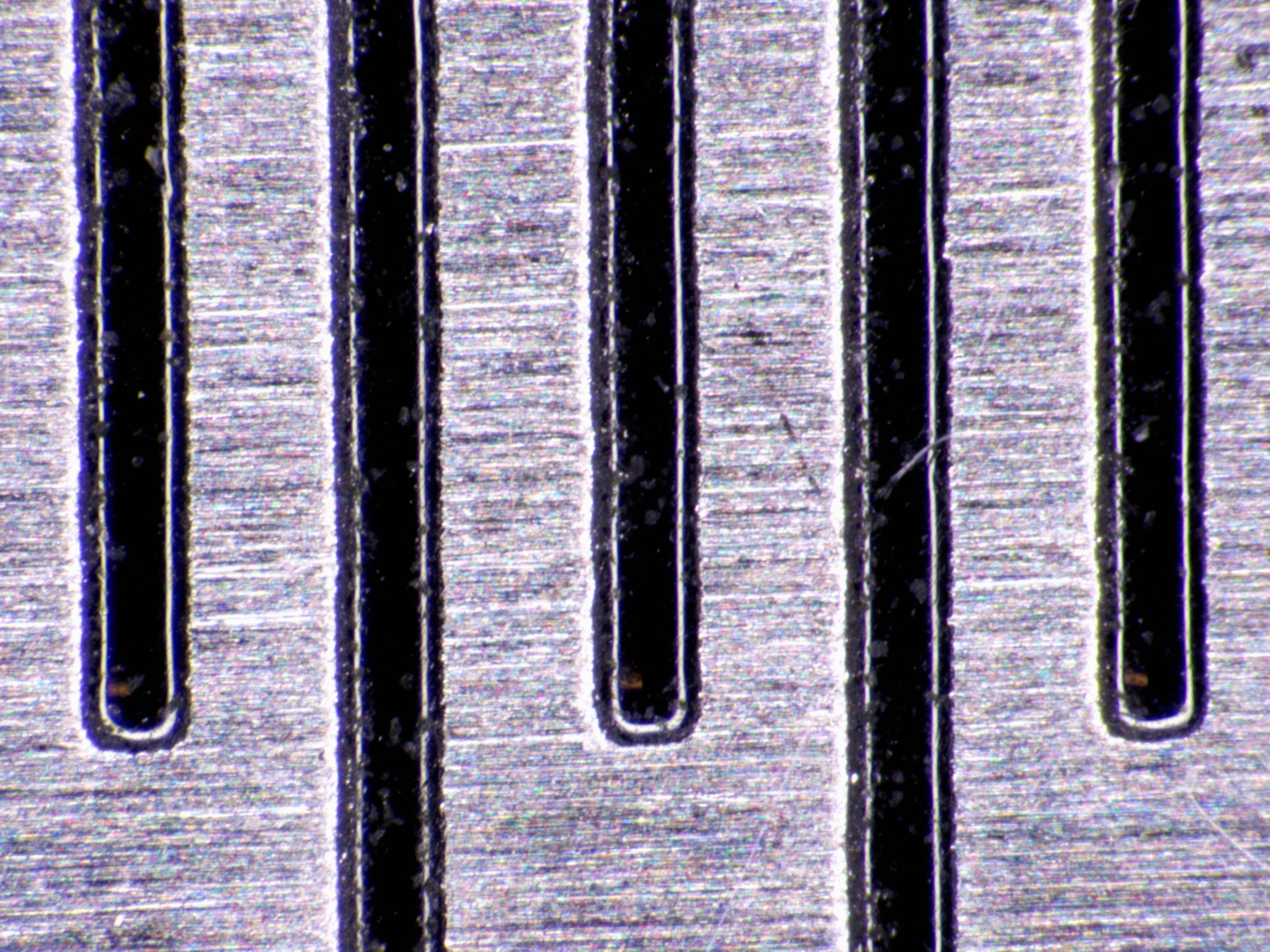

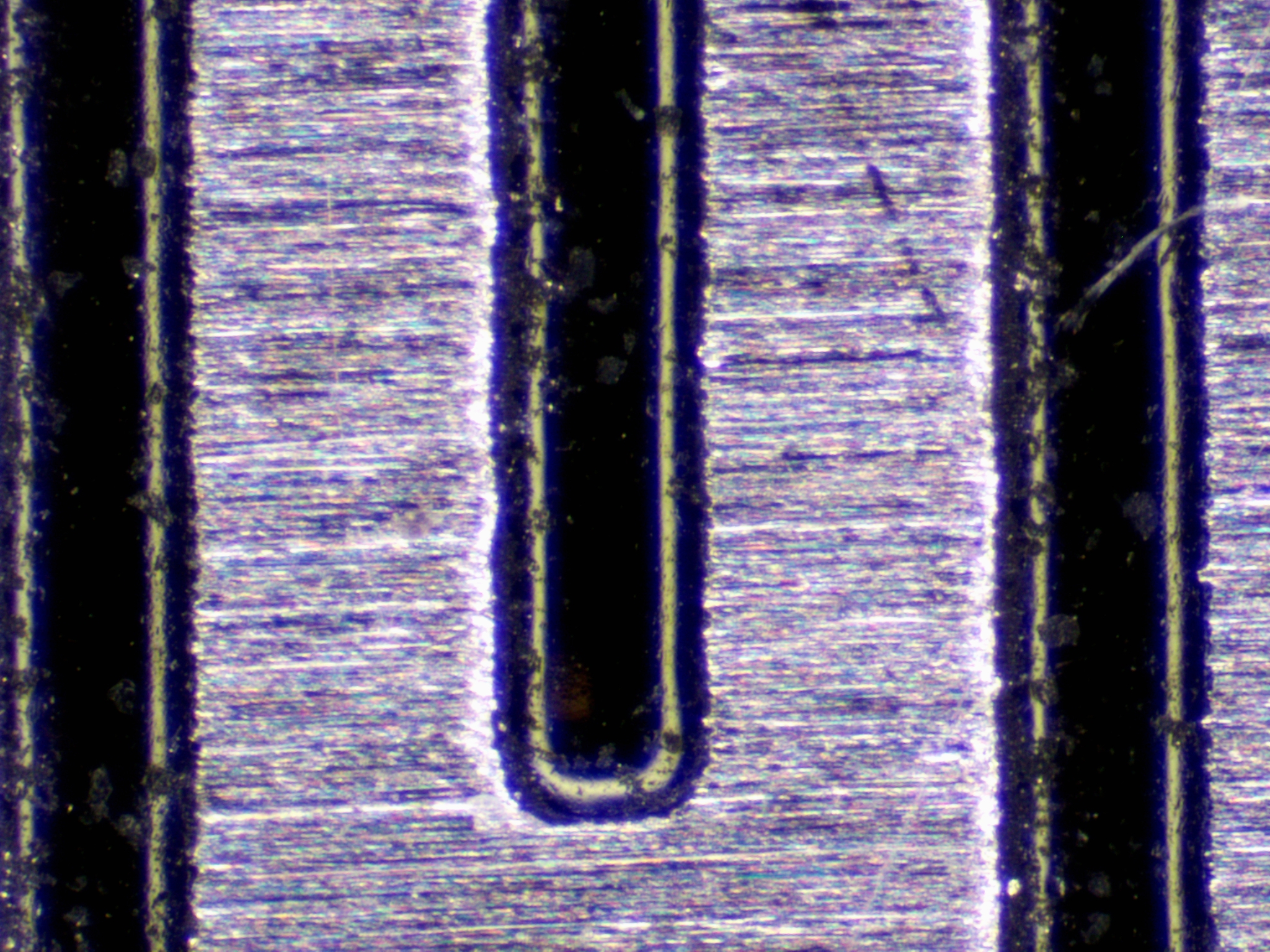

TZM0480-W3100-TV3050 with Ring Light – Steel Ruler Image: Left) 0.4X    Middle) 4.0X    Right) 8.0X
TZM0480-W5100-TV5100 0.3X
TZM015120-W5100-TV5100 1.2X
TZM015120-W5100-TV5100 2.5X
TZM0480-W3100-TV3050 with ring light – Steel ruler image: Left) 0.4X    Middle) 4.0X    Right) 8.0X

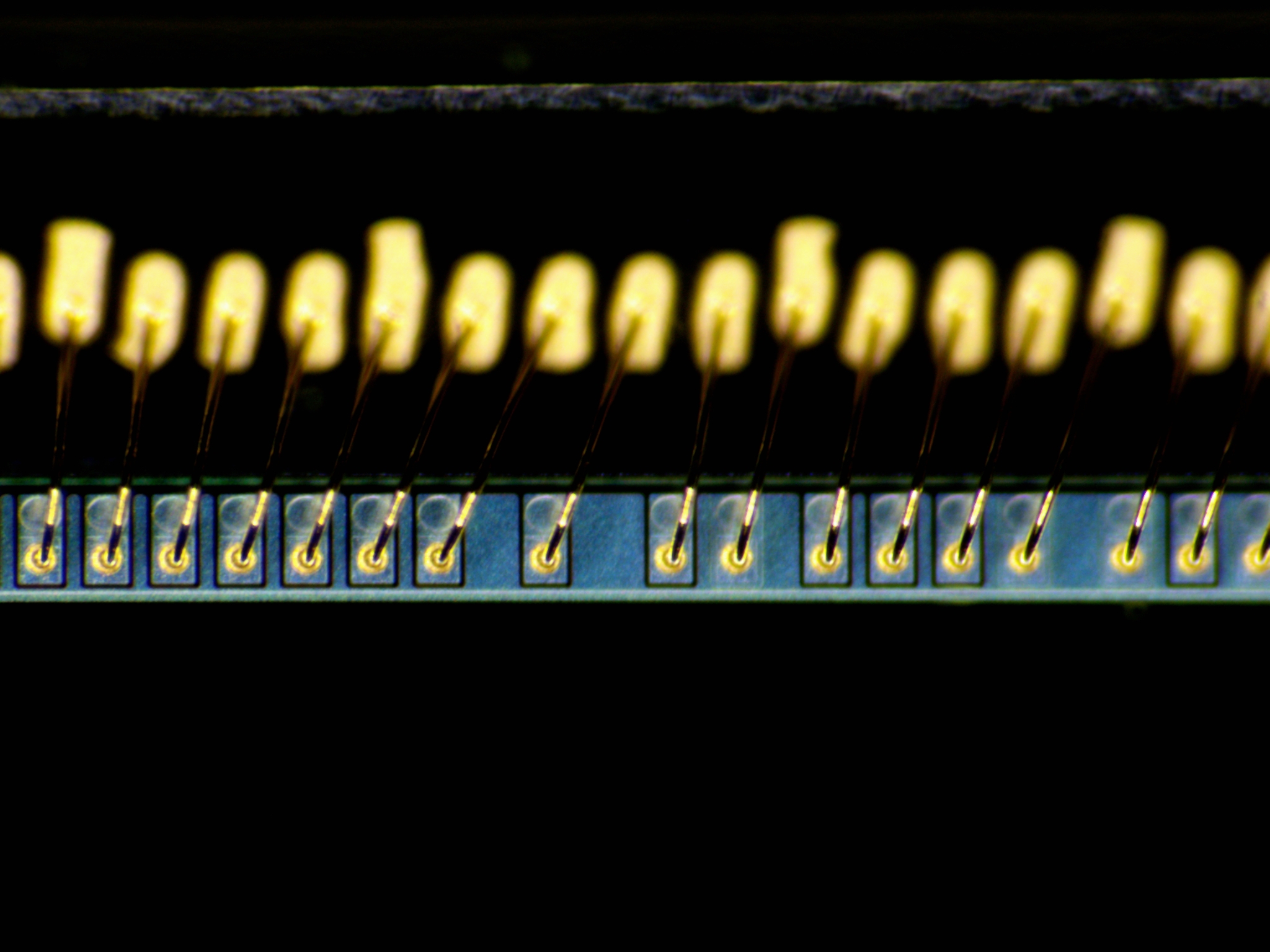

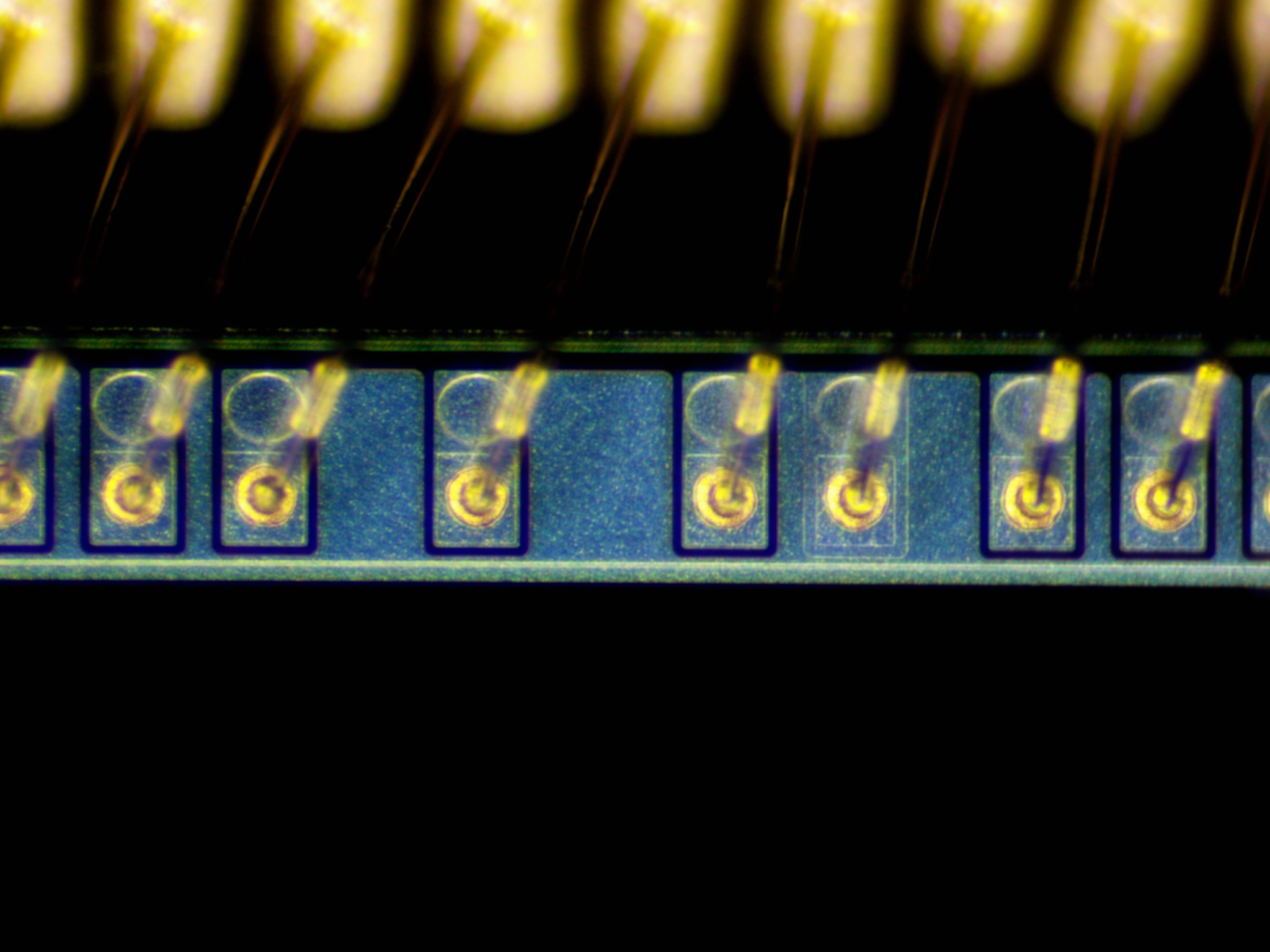

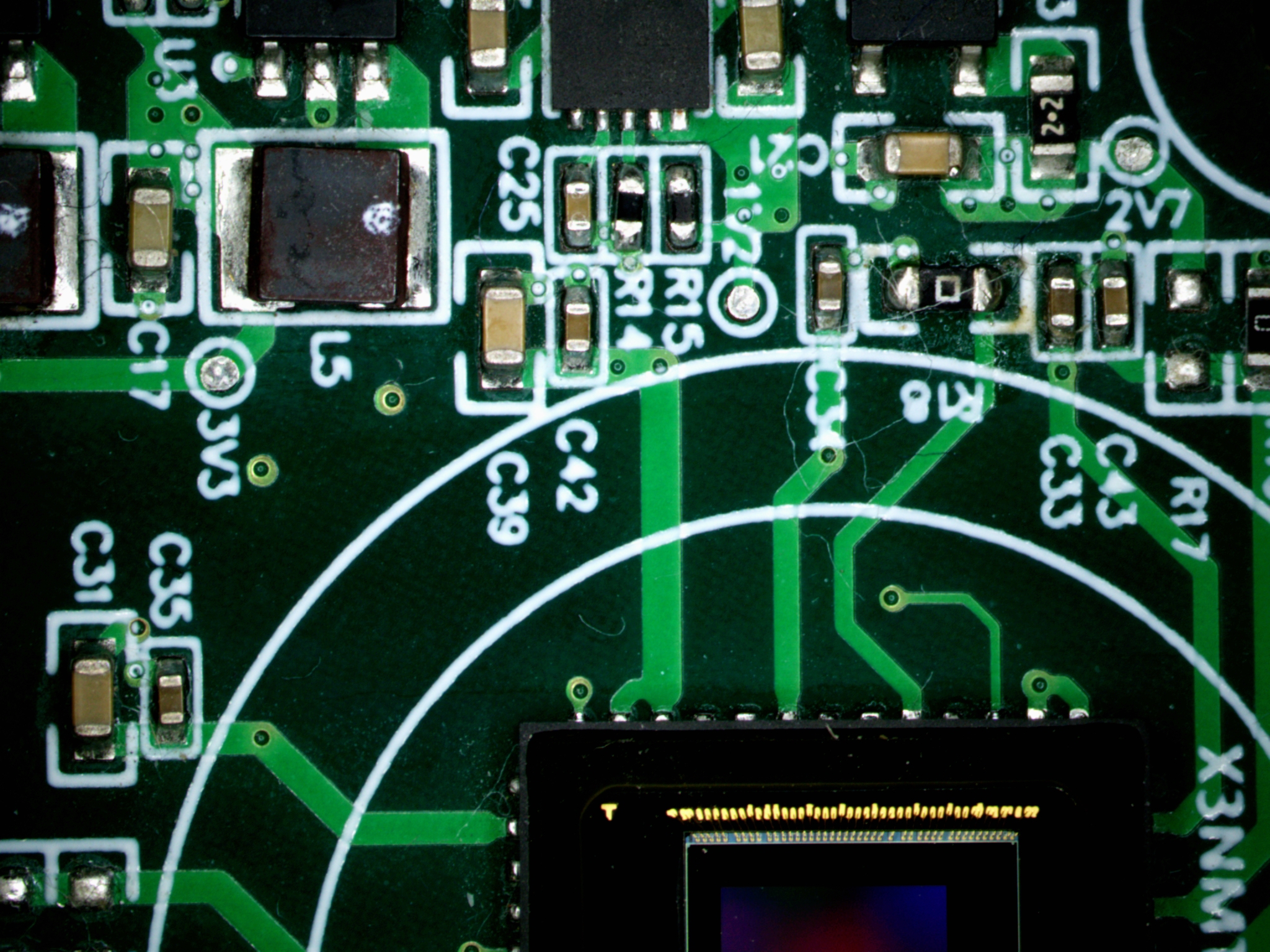

TZM0480-W3100-TV3050 – PCB Image: Left) 0.4X    Middle) 4.0X    Right) 8.0X
TZM015120-W5100-TV5100 0.3X
TZM015120-W5100-TV5100 1.2X
TZM015120-W5100-TV5100 2.5X
TZM0480-W3100-TV3050 – PCB image: Left) 0.4X    Middle) 4.0X    Right) 8.0X
