TZM0460 Series 0.4-6.0X Monocular Zoom Objective (MZO)

For Purchase / Trial / OEM / ODM, Please Contact Us

Contact Us Download Materials
ToupTek

Introduction

TZM0460 Product Introduction

The TZM0460 series MZO (Monocular Zoom Objective) utilizes a modular design with a dual-end parallel optical path. It offers excellent optical performance and high configurability, and is specifically designed for machine vision inspection, industrial testing, scientific research, and educational applications.

The standard configuration for the TZM0460 series MZO is TZM0460-W3100-TV3100-A50, which features:

  • 0.4X–6.0X continuous zoom with a 15X zoom ratio
  • High NA: 0.01–0.07 (using a 1X auxiliary objective)
  • High Resolution: 27.5µm–4.1µm (using a 1X auxiliary objective)
  • Wide Field of View: 2.00 mm–85.71 mm
  • Maximum compatible image sensor size: 2/3 inch (using a 1X TV lens)
  • Working distance: 56mm–248mm
  • Adjustable back focal distance; parfocal during zoom
  • Adjustable image center; image center remains fixed during zoom
  • Compatible with infinity-corrected biological or metallurgical microscope objectives
  • Compact dimensions: 194mm x 40mm (standard model)
  • Optional auxiliary objectives available in 0.35X, 0.50X, 0.75X, 1.00X, and 1.50X magnifications
  • Optional TV lenses available in 0.50X, 0.75X, and 1.00X magnifications
  • Optional adjustable LED ring light
  • Optional adjustable LED polarized ring light
  • Optional adjustable LED coaxial illumination light
  • Optional high brightness LED transmitted backlight
  • Optional 45mm or 50mm bracket adapter

TZM0460 Series MZO Naming Rules

TZM0460

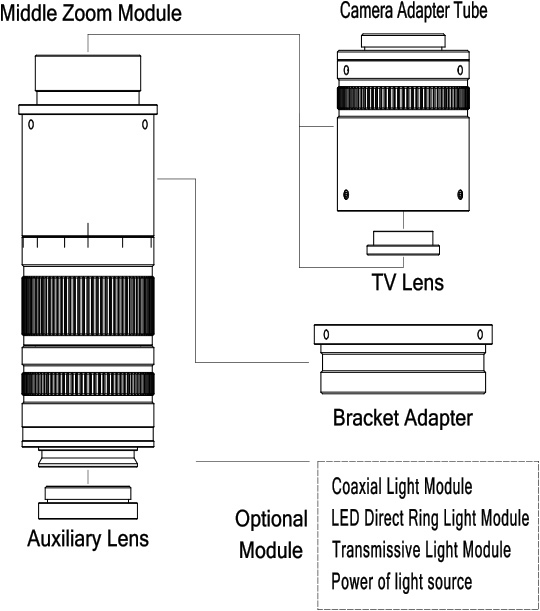

The TZM0460 series MZO consists of five basic modules, as shown in the exploded view on the left. These five modules are: the continuous zoom body, the auxiliary objective, the TV lens, the bracket adapter, and the optional modules. Except for the continuous zoom body, users can choose the other modules according to their application requirements.


The final naming convention for the TZM0460 series MZO is to join the names of each module with hyphens, forming a composite name that clearly indicates the MZO’s parameters. For example, if you select the continuous zoom body TZM0460D, a 1.00X auxiliary objective (W3100), a 0.50X TV lens (TV3050), and a 50mm bracket adapter (A50), the microscope will be named: TZM0460D-W3100-TV3050-A50

Currently available TZM0460a modules: TZM0460 (standard type, with no suffix) and TZM0460D (where D indicates fixed magnification);

Currently available W3bbb modules: W3100, W3035, W3050, W3075, W3150;

Currently available TV3ccc modules: TV3100, TV3050, TV3075;

Currently available Add modules: A50 and A45;

The optional modules mainly include ring light modules (both standard and polarized ring lights) as well as a coaxial illumination module (comprising a coaxial illuminator and an LED point light source).

Other magnifications for auxiliary objectives, TV lenses, and bracket adapters can be customized as needed.

Purchase and Matching

The parameters corresponding to different configurations of the TZM0460 series MZO are listed in the table below. You can determine the required combination by following these steps:

  • Determine the possible 1) Field of View (FOV) and 2) object-side working distance, then select the appropriate auxiliary objective.
  • If using a 705 infinity-corrected objective, choose the M26x0.705 to M20x0.705 objective adapter.
  • Based on 1) the sensor size (1/x inch), 2) the imaging diagonal, 3) the imaging width, and 4) the imaging height, determine the size of the camera’s imaging circle and select the appropriate TV lens.
  • Choose a 45mm or 50mm bracket adapter.
  • Select an LED ring light module for reflective illumination.
  • If necessary, choose a coaxial illumination module.
  • If necessary, choose a transmitted illumination module.
  • Select the compatible camera.

Our company offers a variety of microscope cameras. You can use our Camera Selection Tool to review the detailed parameters and choose the appropriate camera.

Combinations of Continuous Zoom Body – Auxiliary Objective – TV Lens

Camera

Main Zoom Module-Auxiliary Lens-TV Lens

WD(mm)

PMAG

DFOV(mm)

NAO

1/3”

TZM0460-W3035-TV3050

248

0.07X-1.05X

85.71-5.71

0.004-0.032

TZM0460-W3050-TV3050

174

0.1X-1.5X

60.00-4.00

0.005-0.045

TZM0460-W3075-TV3050

115

0.15X-2.25X

40.00-2.67

0.008-0.068

TZM0460-W3100-TV3050

86

0.2X-3.0X

30.00-2.00

0.010-0.09

TZM0460-W3150-TV3050

56

0.3X-4.5X

20.00-1.33

0.015-0.135

1/2”

TZM0460-W3035-TV3075

248

0.11X-1.58X

76.19-5.08

0.004-0.032

TZM0460-W3050-TV3075

174

0.15X-2.25X

53.33-3.56

0.005-0.045

TZM0460-W3075-TV3075

115

0.23X-3.38X

35.56-2.37

0.008-0.068

TZM0460-W3100-TV3075

86

0.3X-4.50X

26.67-1.78

0.010-0.09

TZM0460-W3150-TV3075

56

0.45X-6.75X

17.78-1.19

0.015-0.135

2/3”

TZM0460-W3035-TV3100

248

0.14X-2.1X

78.57-5.24

0.004-0.032

TZM0460-W3050-TV3100

174

0.2X-3.0X

55.00-3.67

0.005-0.045

TZM0460-W3075-TV3100

115

0.3X-4.5X

36.67-2.44

0.008-0.068

TZM0460-W3100-TV3100

86

0.4X-6.0X

27.50-1.83

0.010-0.09

TZM0460-W3150-TV3100

56

0.6X-9.0X

18.33-1.22

0.015-0.135

Related Modules

Based on the modular design of the TZM0440 series MZO, each module is named individually. The specific naming rules and corresponding parameters for each module are as follows:

Module 1 is the continuous zoom body – the main component of the TZM0440 series MZO. Its code is “TZM0440a”, where “TZM0440” denotes the continuous zoom body and “a” indicates the auxiliary function code. The details are shown in the table below.

Continuous Zoom Body Code and Functions

Order Number

Meaning

TZM0460

Postfix meaning

TZM0460

Ordinary Middle Zoom Module

ZM：Zoom

0460：0.4X~6.0X

NA

TZM0460D

Middle Zoom Module with detent to fix the magnification function

D：Detent

Module 2 is the interchangeable auxiliary objective. It connects via a threaded interface to the bottom of Module 1 (the continuous zoom body). Its code is “W3bbb”, where “3” is the series number and “bbb” represents the magnification of the auxiliary objective. Different auxiliary objectives adjust the overall magnification of the TZM0440 series MZO and have different working distances. For example, compared with the 1.00X auxiliary objective “W3100” (working distance 86mm), a 0.50X auxiliary objective “W3050” will reduce the overall magnification by half and extend the working distance from 86mm to approximately 174mm. The optical parameters of the auxiliary objectives are detailed in the table below.

Auxiliary Objectives

Auxiliary Objective Model

Magnification

Working Distance (mm)

W3035

0.35X

248

W3050

0.50X

174

W3075

0.75X

115

W3100

1.00X

86

W3150

1.50X

56
* Note: The same auxiliary objective, when paired with different TV lenses, only serves to accommodate various sensor sizes with minimal effect on the field of view.

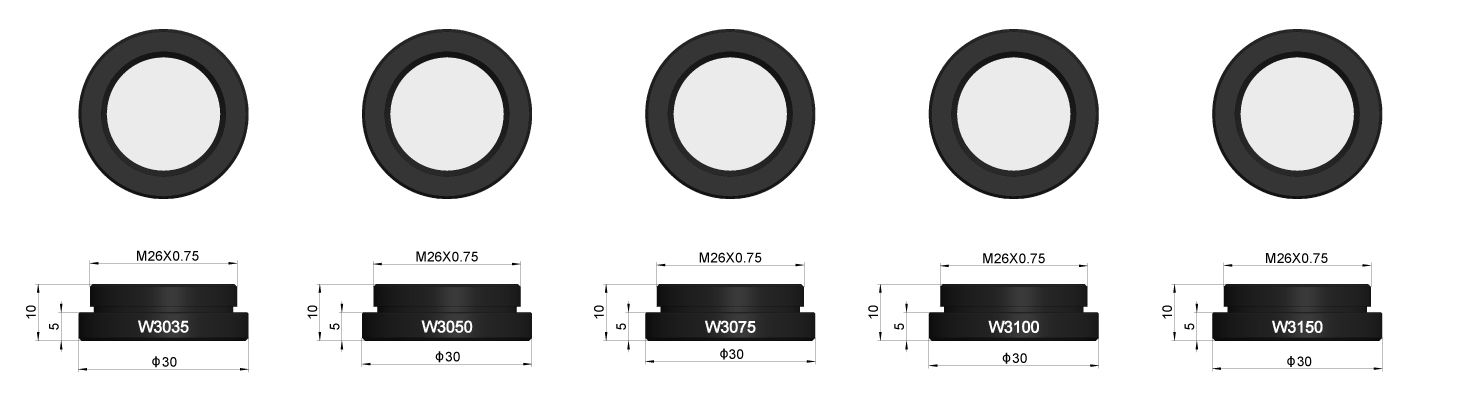

Five different magnification auxiliary objectives for TZM0460
Five different magnification auxiliary objectives for TZM0460

Module 3 is the interchangeable TV lens. It attaches via a threaded connection to the top of Module 1 (the continuous zoom body) and is coded as “TV3ccc”, where “3” represents the series number and “ccc” indicates the TV lens magnification. For instance, compared to a 1.00X TV lens (TV3100), a 0.50X TV lens (TV3050) will be paired with an image sensor half the size, while the field of view remains essentially unchanged. The TV lens parameters are detailed in the table below.

TV Lens

Order number

Magnification

The maximum compatible sensor size

TV3050

0.50X

1/3"

TV3075

0.75X

1/1.8"

TV3100

1.00X

2/3"
* Note: A TV lens with higher magnification can also be used with a smaller image sensor, although this will reduce the overall field of view of the MZO.

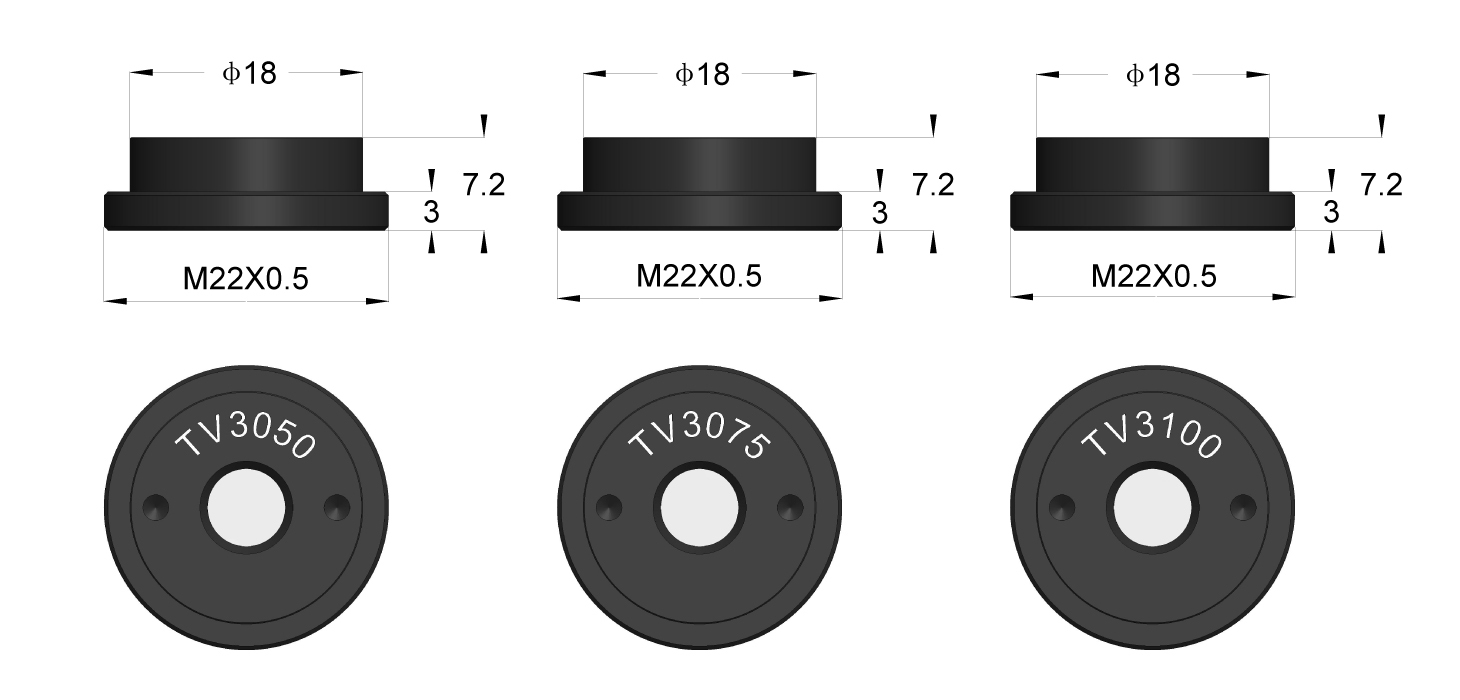

Three different magnification TV lenses for TZM0460
Three different magnification TV lenses for TZM0460

Module 4 is the bracket adapter, used to adapt brackets of different diameters by fitting between the continuous zoom body (Module 1) and the bracket. Its code is “Add”, with “dd” representing the mounting diameter. It is available in both 45mm and 50mm options. The installation method of the adapter with the bracket is shown in the diagram below.

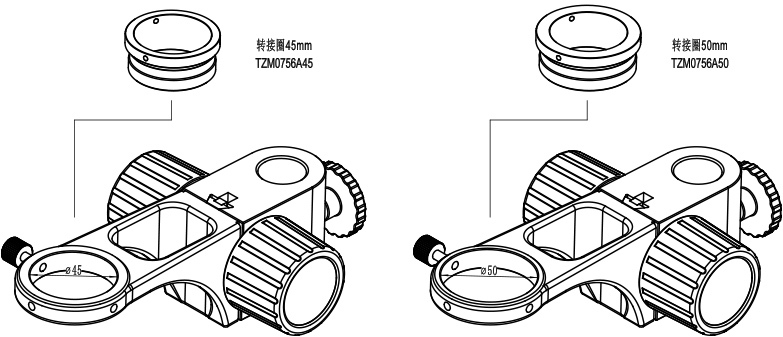

TZM0460 Series MZO Bracket Adapter
TZM0460 Series MZO Bracket Adapter

Module 5 consists of the optional modules, which mainly include ring light modules (available in standard and polarized versions) and a coaxial illumination module (comprising a coaxial illuminator and an LED point light source). The details for these optional modules are provided in the table below:

Light Source Modules for the TZM0460 Series MZO

Module Name

Model

Model Description

LED Ring Light Module

TZM0756DRL-65/85

LED Ring Light

TZM0756DRPL-65

LED Polarized Ring Light

Coaxial Illumination Module

TZM0756CL+TZM0756SL

Coaxial Illuminator + LED Point Light (3W)

Transmitted Illumination Module

TZM0756TL

LED Transmitted Backlight

LED Light Power Supply

40600014

Power Adapter 12V/1A (US Standard)

40600015

Power Adapter 12V/1A (EU Standard)
TZM0756DRL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-85: LED diameter up to 85mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-85: LED diameter up to 85mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-85: LED diameter up to 85mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRPL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform polarized illumination
TZM0756DRPL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform polarized illumination
TZM0756DRPL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform polarized illumination
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756SL LED Point Light Source for Coaxial Illumination
TZM0756SL LED Point Light Source for Coaxial Illumination
TZM0756SL LED Point Light Source for Coaxial Illumination
TZM0756TL LED Transmitted Backlight, with a 37mm Illumination Area Diameter
TZM0756TL LED Transmitted Backlight, with a 37mm Illumination Area Diameter
TZM0756TL LED Transmitted Backlight, with a 37mm Illumination Area Diameter

Configuration & External Dimensions


The dimensions for different combinations of auxiliary objectives and TV lenses for the TZM0460 series MZO are shown below. For instance, the TZM0460-W3100-TV3100 configuration has an overall length of 194mm.

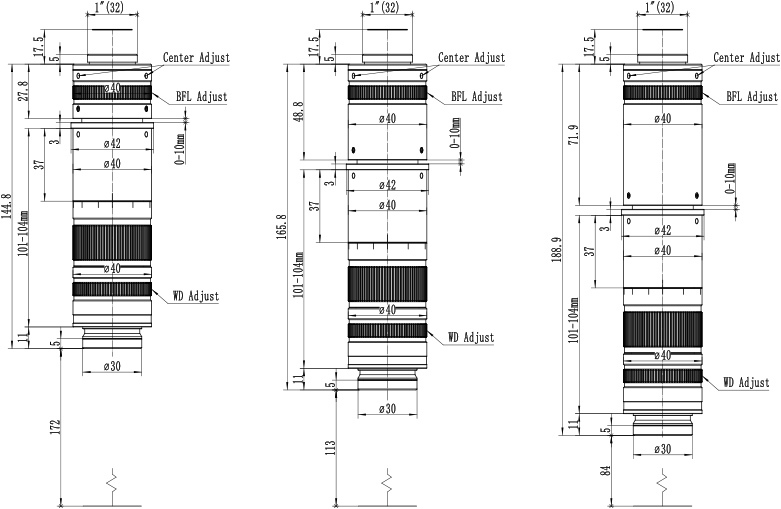

Dimension Diagram for TZM0460 Series MZO with Various Auxiliary Objectives and TV Lenses
Dimension Diagram for TZM0460 Series MZO with Various Auxiliary Objectives and TV Lenses

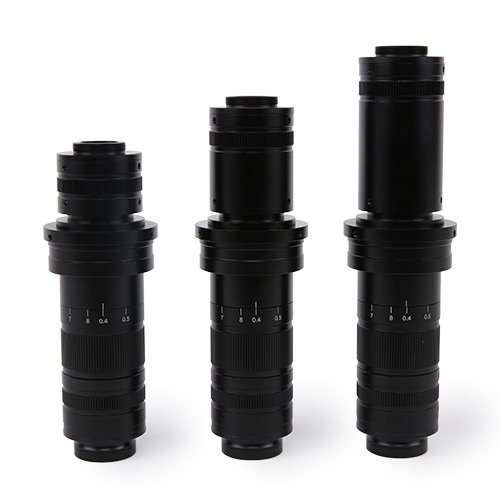

Left: TZM0460-W3050-TV3050    Middle: TZM0460-W3075-TV3075    Right: TZM0460-W3100-TV3100

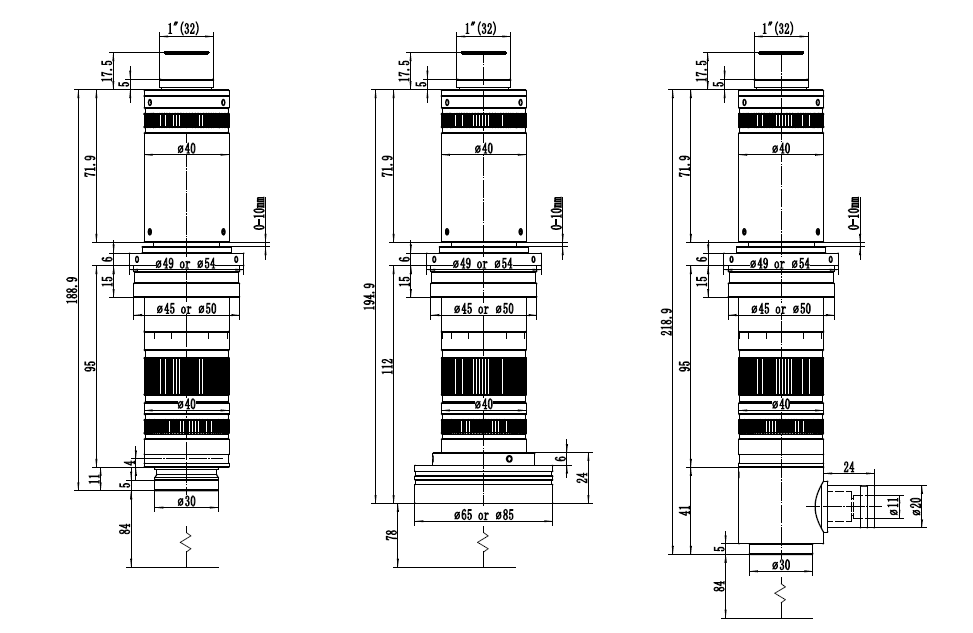

Dimensions of the Basic Model with Different Light Source Configurations
Dimensions of the Basic Model with Different Light Source Configurations
Left: Basic TZM0460 Model; Middle: TZM0460 with standard ring light; Right: TZM0460 with coaxial illumination

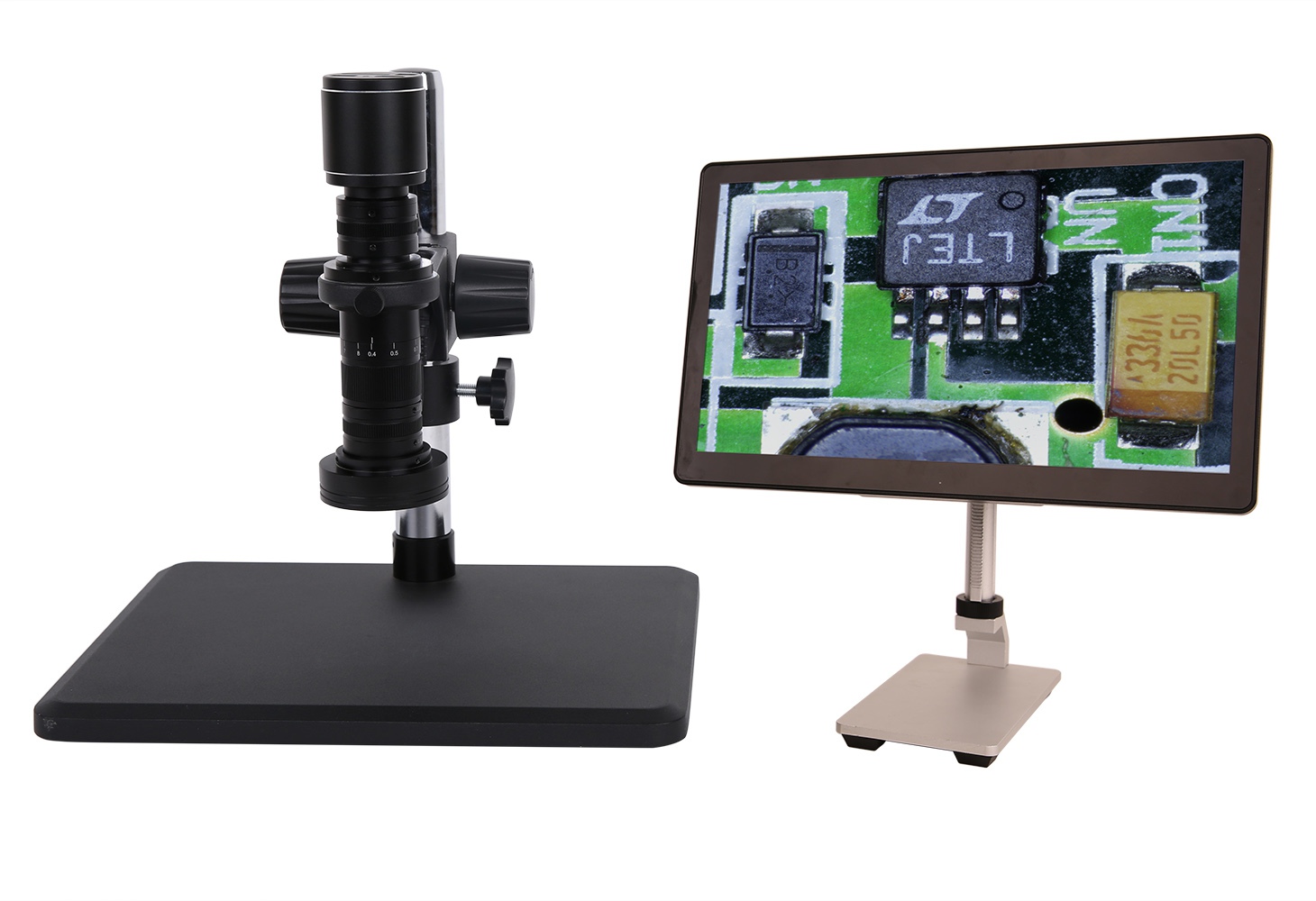

TZM0460-W100-TV100 + TZM0460DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR
TZM0460-W100-TV100 + TZM0460DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR
TZM0460-W100-TV100 + TZM0460DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR

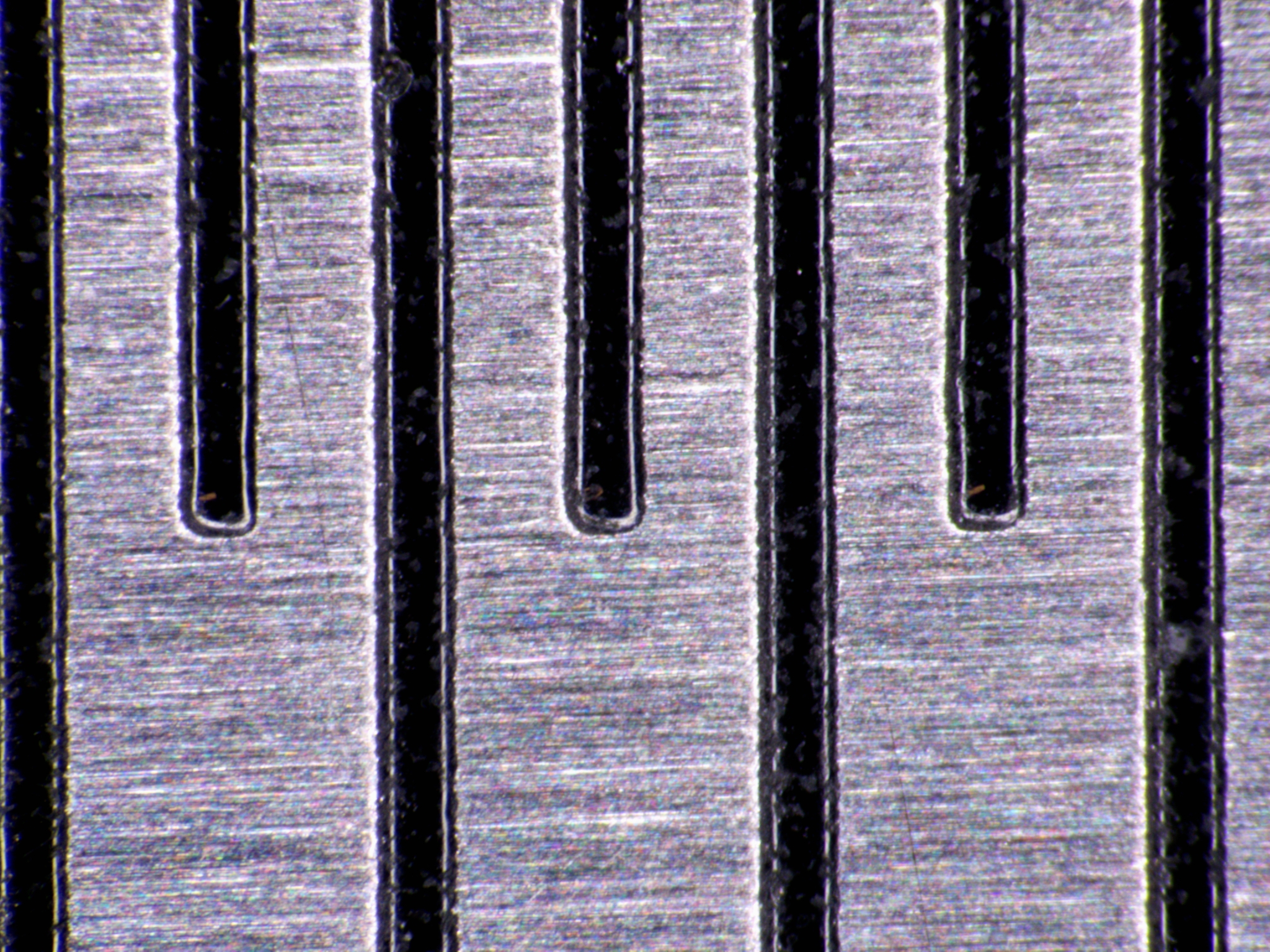

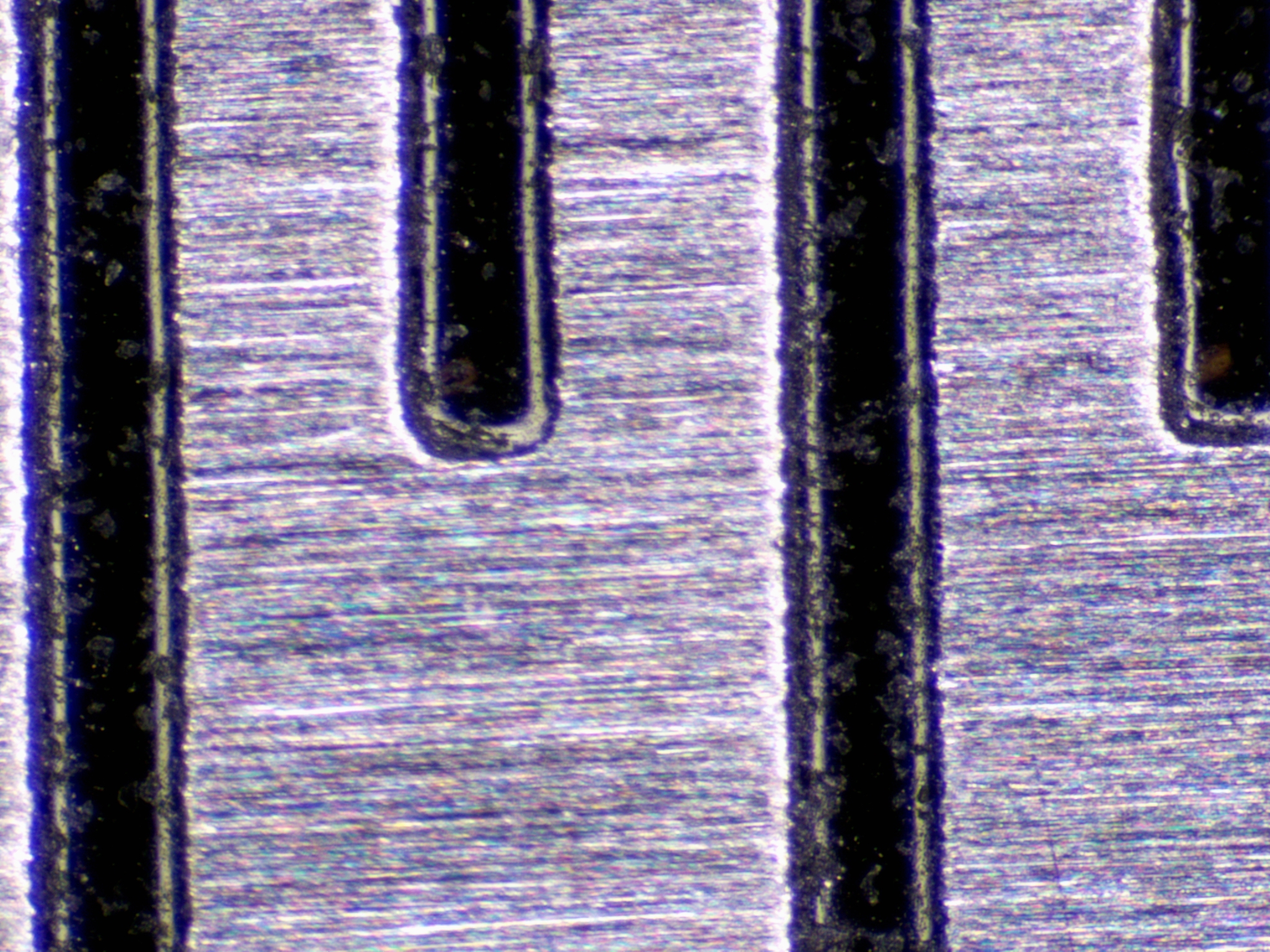

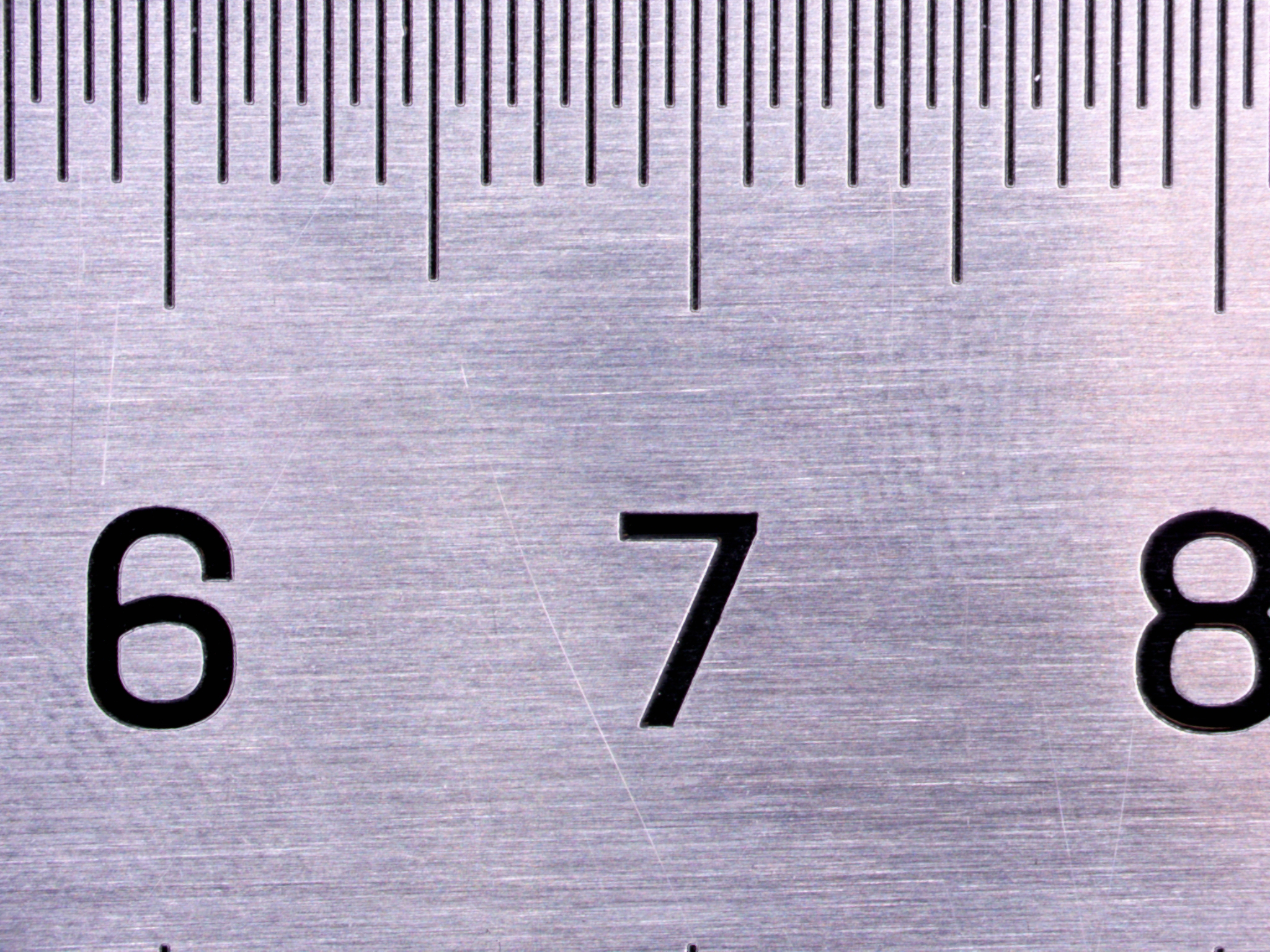

TZM0460-W3100-TV3050 with Ring Light: Steel Ruler Images (Left: 0.4X, Middle: 3.0X, Right: 6.0X)
TZM0460-W5100-TV5100 0.3X
TZM015120-W5100-TV5100 1.2X
TZM015120-W5100-TV5100 2.5X
TZM0460-W3100-TV3050 with ring light captured on a steel ruler: Left: 0.4X, Middle: 3.0X, Right: 6.0X
TZM015120-W4100-TV4100 capturing an SD card image: Left: 0.15X, Middle: 0.6X, Right: 1.2X
TZM015120-W5100-TV5100 0.3X
TZM015120-W5100-TV5100 1.2X
TZM015120-W5100-TV5100 2.5X

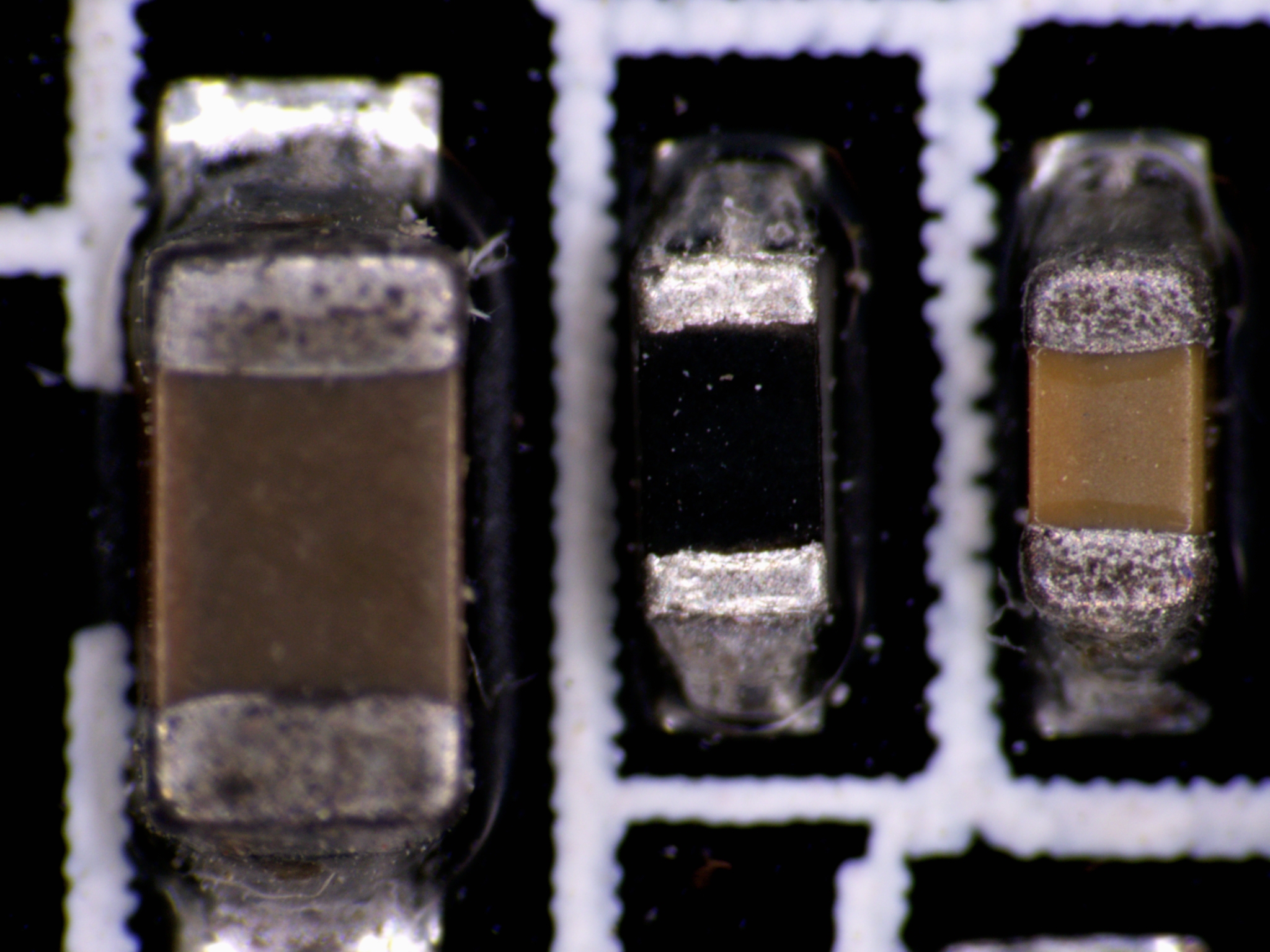

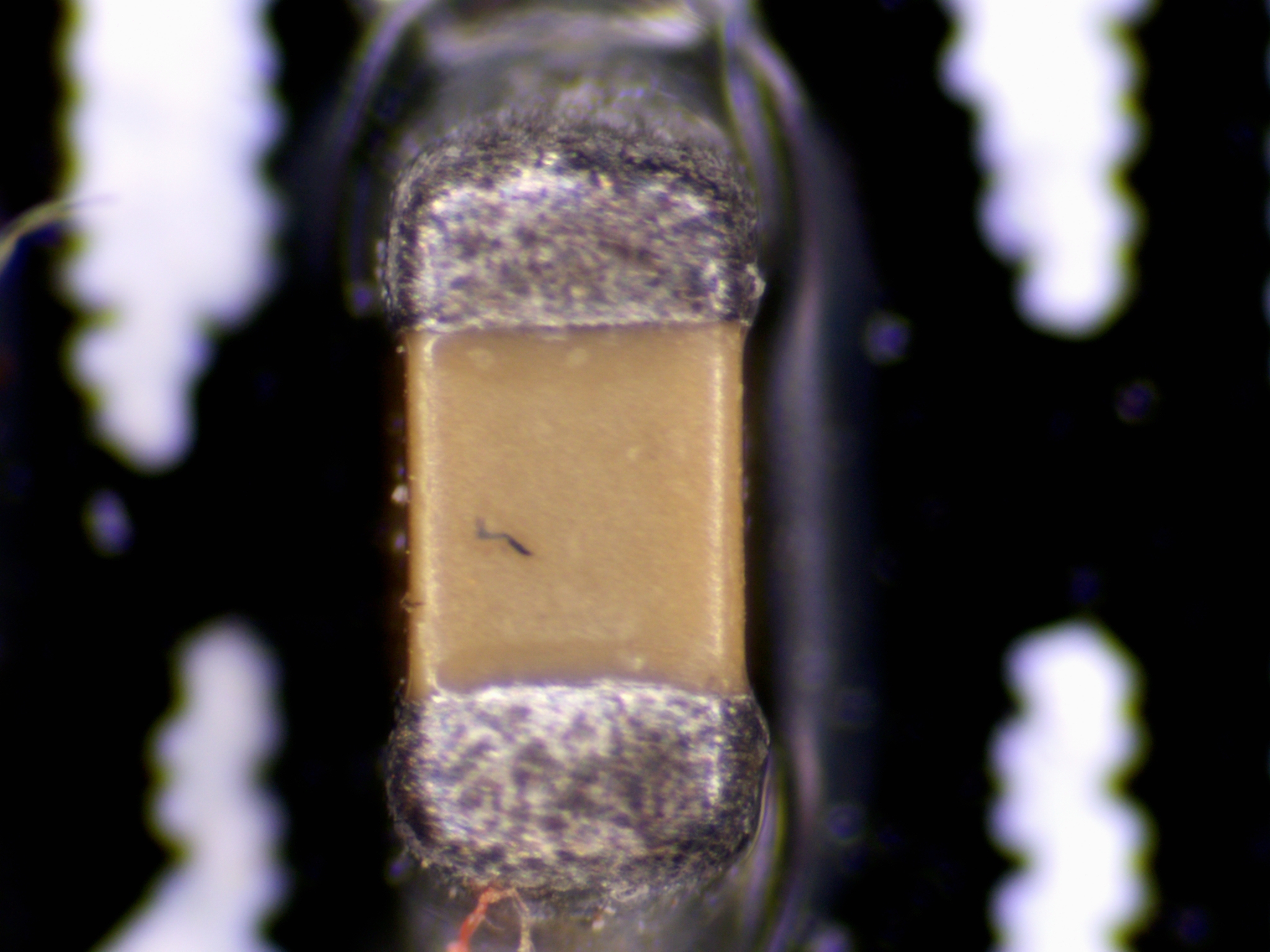

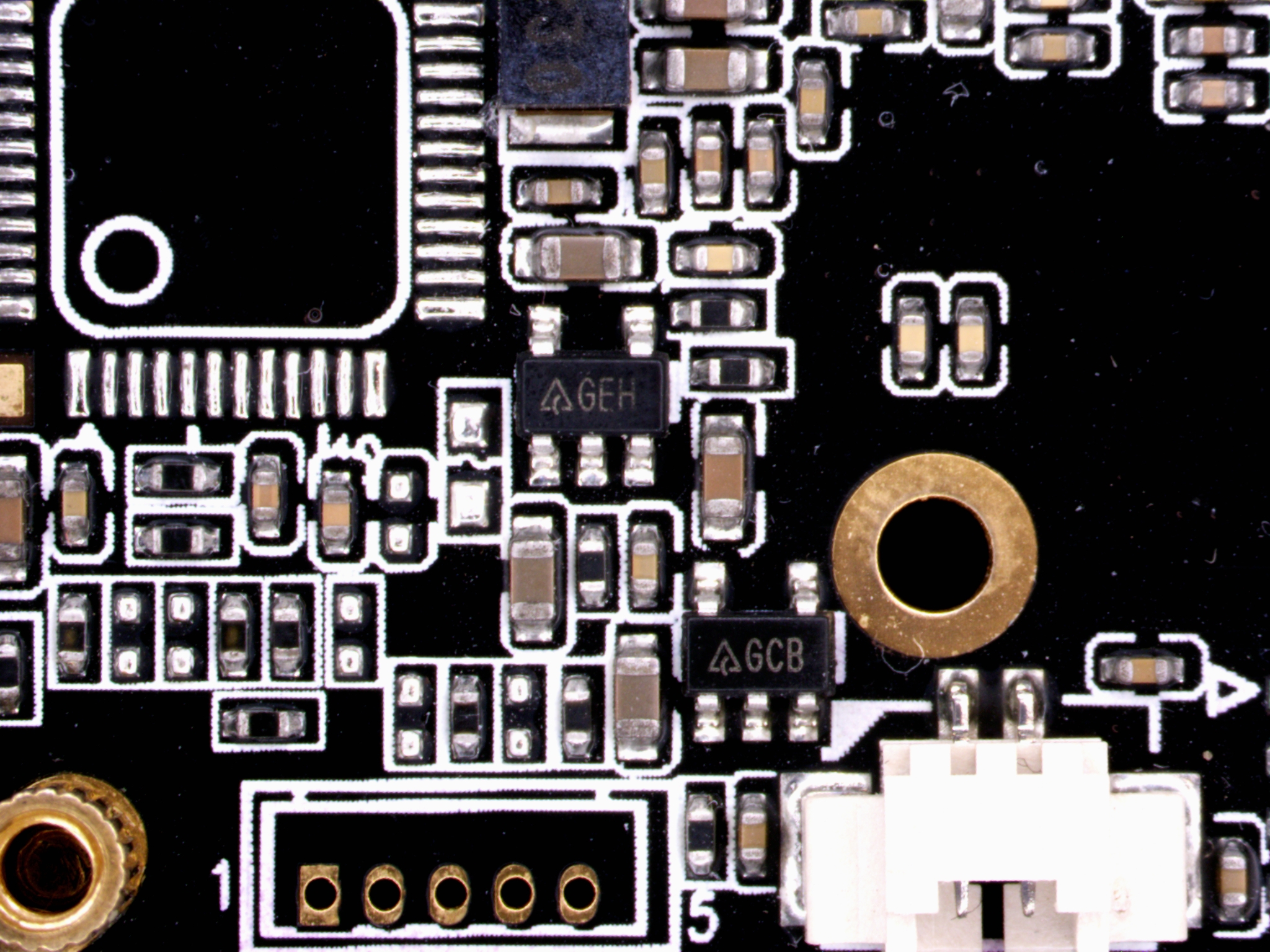

TZM0460-W3100-TV3050 capturing a circuit board image: Left: 0.4X, Middle: 3.0X, Right: 6.0X

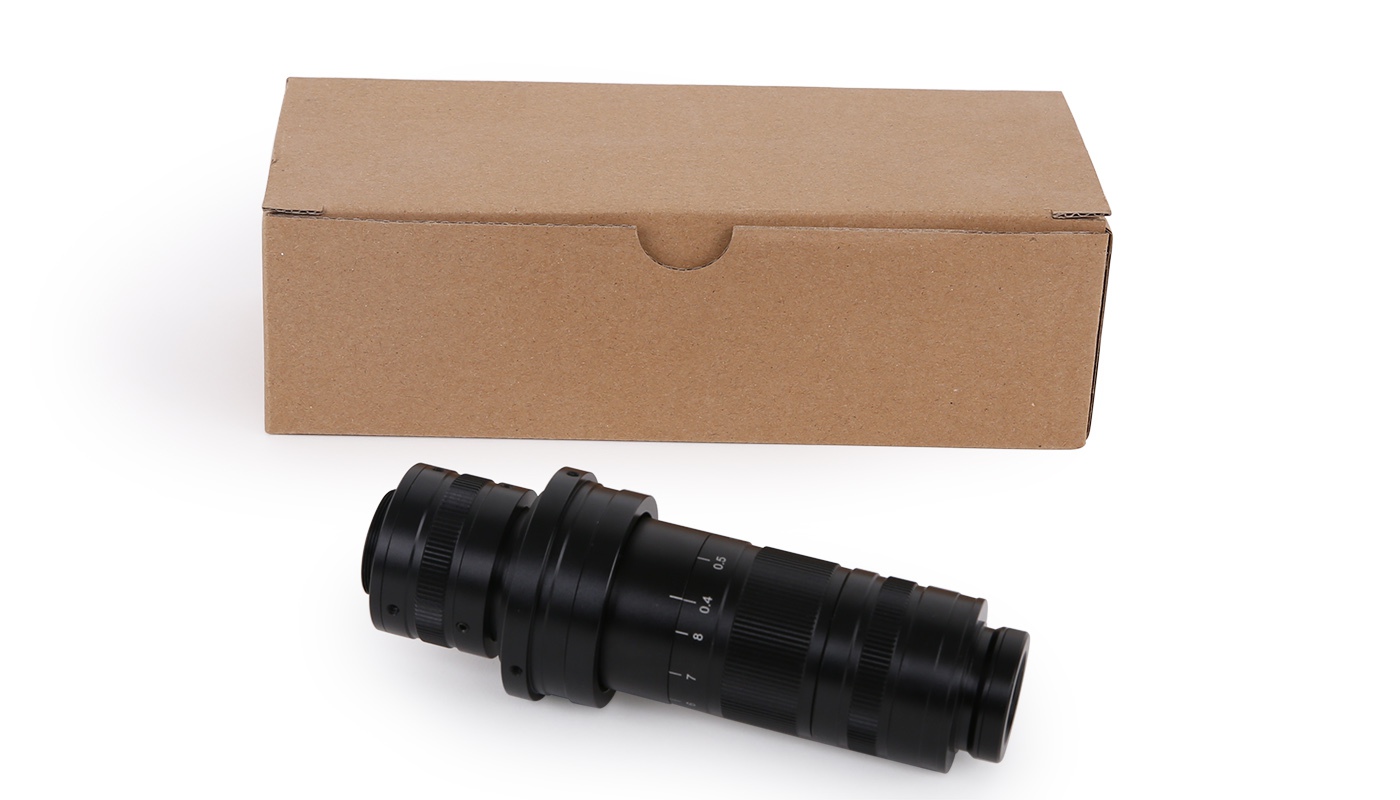

Packaging List
