TZM0440 Series 0.4-4.0X Monocular Zoom Objective

For Purchase / Trial / OEM / ODM, Please Contact Us

Contact Us Download Materials
ToupTek

Introduction

TZM0440 Product Introduction

The TZM0440 series MZO (Monocular Zoom Objective) adopts a modular design concept with a dual-end parallel optical path, offering excellent optical performance and high configurability. It is specifically designed for machine vision inspection, industrial testing, scientific research, and educational applications.

The standard configuration of the TZM0440 series MZO is TZM0440-W3100-TV3100-A50, featuring:

  • 0.4X–4.0X continuous zoom with a 10X zoom ratio
  • High NA: 0.01–0.07 (using a 1X auxiliary objective)
  • High Resolution: 27.5µm–4.1µm (using a 1X auxiliary objective)
  • Wide Field of View: 2.00 mm–85.71 mm
  • Maximum compatible image sensor size: 2/3 inch (using a 1X TV lens)
  • Working distance: 56mm–248mm
  • Adjustable back focal distance; parfocal during zoom
  • Adjustable image center; image center remains fixed during zoom
  • Compatible with infinity-corrected biological or metallurgical microscope objectives
  • Compact dimensions: 194mm x 40mm (standard model)
  • Optional auxiliary objectives available in 0.35X, 0.50X, 0.75X, 1.00X, and 1.50X magnifications
  • Optional TV lenses available in 0.50X, 0.75X, and 1.00X magnifications
  • Optional adjustable brightness LED ring light
  • Optional adjustable brightness LED polarized ring light
  • Optional adjustable brightness LED coaxial illumination light
  • Optional high brightness LED transmitted backlight
  • Optional 45mm or 50mm bracket adapter

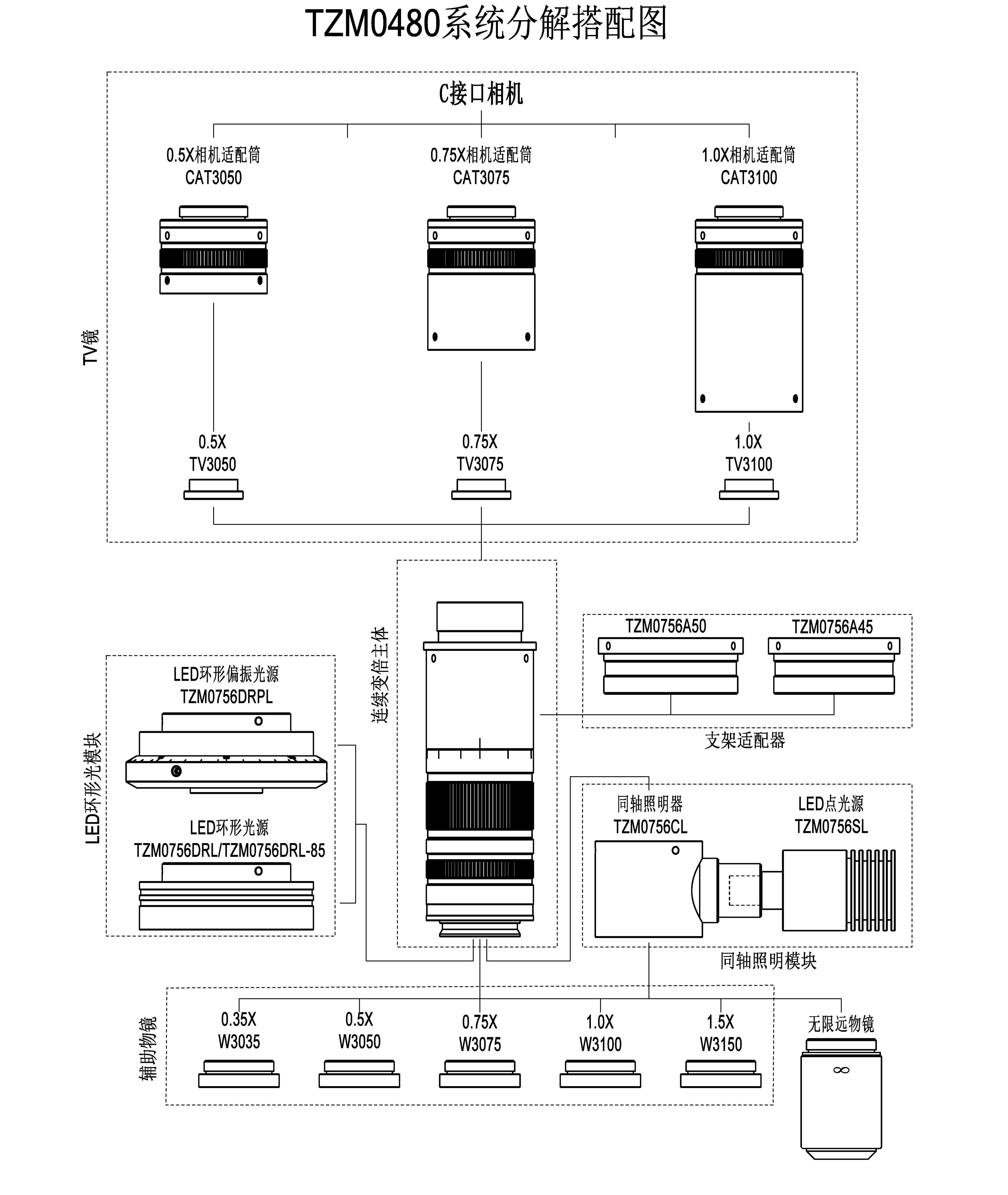

Naming Rules for the TZM0440 Series MZO

TZM0440

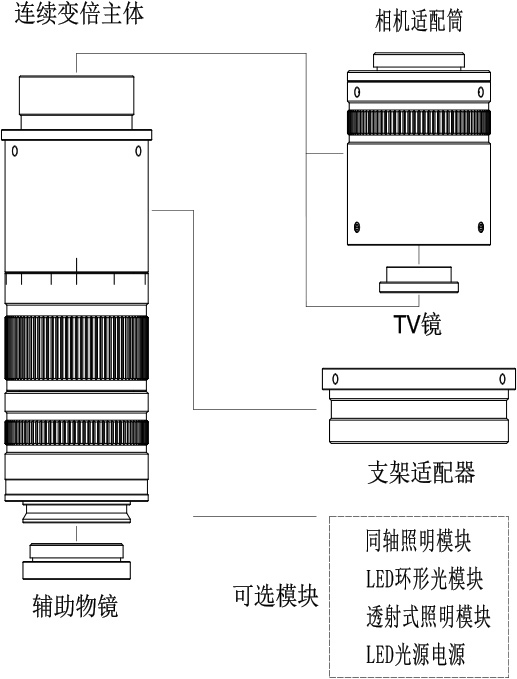

The TZM0440 series MZO consists of five basic modules, as shown in the exploded view on the left. These five modules are: the continuous zoom body, the auxiliary objective, the TV lens, the bracket adapter, and the optional module. Except for the continuous zoom body, all other modules can be selected by the user based on application requirements.


The final naming convention for the TZM0440 series MZO is to combine the names of each module with hyphens, forming a composite name that clearly indicates the parameters of the MZO. For example, if you select the continuous zoom body TZM0440D, a 1.00X auxiliary objective W3100, a 0.50X TV lens TV3050, and a 50mm bracket adapter A50, the microscope is named: TZM0440D-W3100-TV3050-A50

Currently available TZM0440a modules: TZM0440 (standard type, with “a” omitted) and TZM0440D (where D indicates fixed magnification);

Currently available W3bbb modules: W3100, W3035, W3050, W3075, W3150;

Currently available TV3ccc modules: TV3100, TV3050, TV3075;

Currently available Add modules: A50 and A45;

The optional modules mainly include ring light modules (available as standard ring lights or polarized ring lights), as well as a coaxial illumination module (comprising a coaxial illuminator and LED point light source).

Other magnifications for auxiliary objectives, TV lenses, and bracket adapters can be customized as needed.

Purchase and Matching

The parameters corresponding to different configurations of the TZM0460 series MZO are listed in the table below. You can determine the required combination by following these steps:

  • Determine the potential 1) Field of View (FOV) and 2) Object-side working distance, then select the auxiliary objective accordingly.
  • If using a 705 infinity-corrected objective, choose the M26x0.705 to M20x0.705 objective adapter.
  • Based on 1) the sensor size (1/x inch), 2) the imaging diagonal, 3) the imaging width, and 4) the imaging height, determine the size of the camera’s imaging circle and select the appropriate TV lens.
  • Choose a 45mm or 50mm bracket adapter.
  • Select the LED ring light module for reflective illumination.
  • If necessary, choose a coaxial illumination module.
  • If necessary, choose a transmitted illumination module.
  • Select the compatible camera.

Our company offers a variety of microscope cameras. You can refer to the detailed information in our Camera Selection Tool to choose the appropriate camera based on your requirements.

Different Combinations of Continuous Zoom Body – Auxiliary Objective – TV Lens

Camera

Main Zoom Module-Auxiliary Lens-TV Lens

WD(mm)

PMAG

DFOV(mm)

NAO

1/3英寸

TZM0440-W3035-TV3050

248

0.07X-0.7X

85.71-8.57

0.004-0.023

TZM0440-W3050-TV3050

174

0.1X-1.0X

60.00-6.00

0.005-0.033

TZM0440-W3075-TV3050

115

0.15X-1.5X

40.00-4.00

0.008-0.05

TZM0440-W3100-TV3050

86

0.2X-2.0X

30.00-3.00

0.010-0.067

TZM0440-W3150-TV3050

56

0.3X-3.0X

20.00-2.00

0.015-0.101

1/2英寸

TZM0440-W3035-TV3075

248

0.105X-1.05X

76.19-7.62

0.004-0.023

TZM0440-W3050-TV3075

174

0.15X-1.5X

53.33-5.33

0.005-0.033

TZM0440-W3075-TV3075

115

0.23X-2.23X

35.56-3.56

0.008-0.05

TZM0440-W3100-TV3075

86

0.3X-3.0X

26.67-2.67

0.010-0.067

TZM0440-W3150-TV3075

56

0.45X-4.5X

17.78-1.78

0.015-0.101

2/3英寸

TZM0440-W3035-TV3100

248

0.14X-1.4X

78.57-7.86

0.004-0.023

TZM0440-W3050-TV3100

174

0.2X-2.0X

55.00-5.5

0.005-0.033

TZM0440-W3075-TV3100

115

0.3X-3.0X

36.67-3.67

0.008-0.05

TZM0440-W3100-TV3100

86

0.4X-4.0X

27.50-2.75

0.010-0.067

TZM0440-W3150-TV3100

56

0.6X-6.0X

18.33-1.83

0.015-0.101

Related Modules

Based on the modular design of the TZM0440 series MZO, each module is named individually. The specific naming rules and corresponding parameters for each module are as follows:

Module 1 is the continuous zoom body, which is the main component of the TZM0440 series MZO. Its code is "TZM0440a", where "TZM0440" represents the continuous zoom body code and "a" indicates the auxiliary function code. The specific definitions are as follows:

Continuous Zoom Body Code and Functions

Order Number

Meaning

TZM0440

Postfix meaning

TZM0440

Ordinary Middle Zoom Module

ZM：Zoom

0440：0.4X~4.0X

NA

TZM0440D

Middle Zoom Module with detent to fix the magnification function

D：Detent

Module 2 is the interchangeable auxiliary objective, which is attached via a threaded connection to the lower end of Module 1 (the continuous zoom body). Its code is "W3bbb", where "3" is the series number and "bbb" indicates the magnification of the auxiliary objective. Different magnification auxiliary objectives are used to change the overall zoom ratio of the TZM0440 series MZO, and their working distances also vary. For example, compared with the 1.00X auxiliary objective "W3100" with a working distance of 86mm, a 0.50X auxiliary objective "W3050" will reduce the overall magnification by half, and the working distance will increase from 86mm to approximately 174mm; the optical parameters of the auxiliary objectives are shown in the table below.

Auxiliary Objectives

Auxiliary Objective Model

Magnification

Working Distance (mm)

W3035

0.35X

248

W3050

0.50X

174

W3075

0.75X

115

W3100

1.00X

86

W3150

1.50X

56
* Note: The same auxiliary objective, when paired with different TV lenses, is only used to accommodate different sensor sizes, with minimal impact on the field of view.

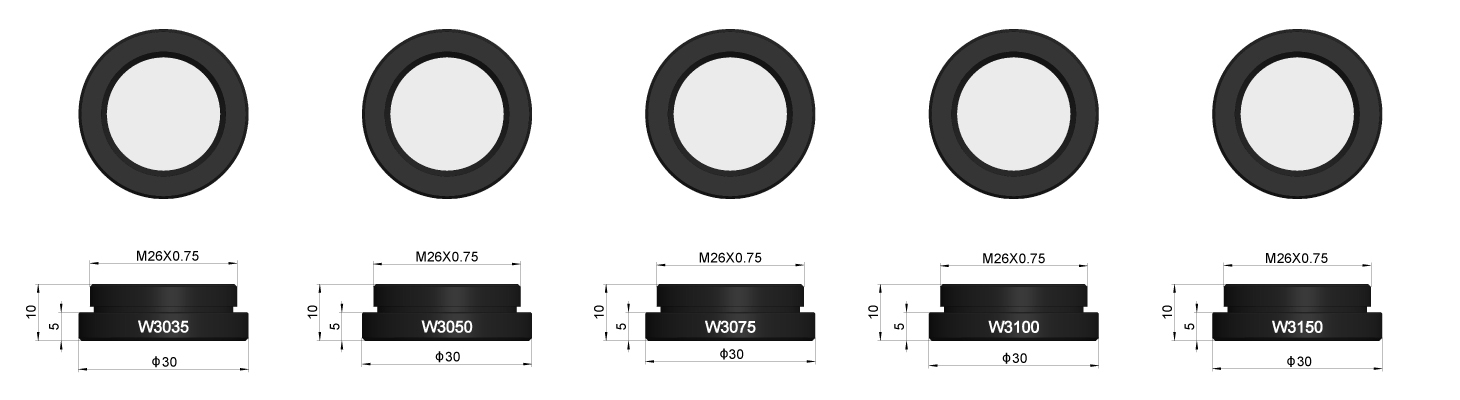

Five auxiliary objectives with different magnifications for TZM0440
Five auxiliary objectives with different magnifications for TZM0440

Module 3 is the interchangeable TV lens, which attaches via a threaded connection to the upper end of Module 1 (the continuous zoom body). Its code is "TV3ccc", where "3" is the series number and "ccc" represents the magnification of the TV lens. It is mainly used to match different image sensor sizes. For example, compared to a 1.00X TV lens (TV3100), a 0.50X TV lens (TV3050) will be paired with an image sensor that is half the size, while the field of view is essentially unaffected. The TV lens parameters are provided in the table below.

TV Lens
* Note: A TV lens with a higher magnification can also be paired with a smaller image sensor, though this will reduce the overall field of view of the MZO.

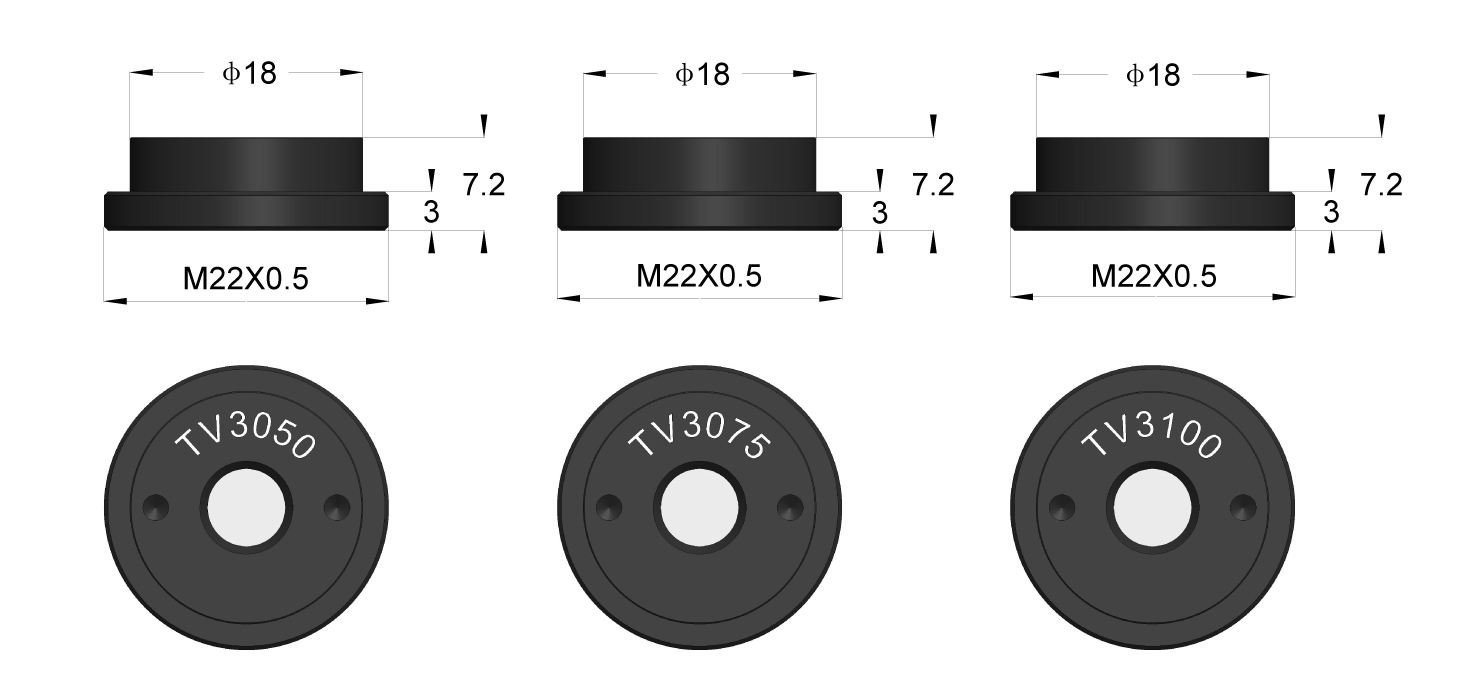

Three TV lenses with different magnifications for TZM0440
Three TV lenses with different magnifications for TZM0440

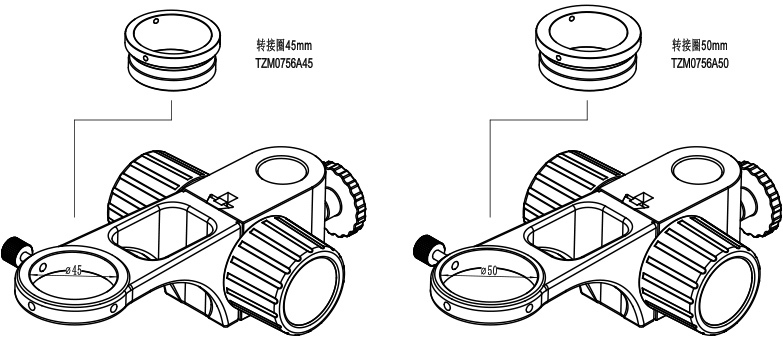

Module 4 is the bracket adapter, used to adapt brackets of different diameters, which is mounted on the continuous zoom body (Module 1). Its code is "Add", with "dd" indicating the mounting diameter; available in both 45mm and 50mm options. The installation method between the adapter and the bracket is shown in the diagram below.

TZM0440 Series MZO Bracket Adapter
TZM0440 Series MZO Bracket Adapter

Module 5 comprises the optional modules, which mainly include ring light modules (available as standard ring lights or polarized ring lights) as well as a coaxial illumination module (comprising a coaxial illuminator and an LED point light source). The detailed parameters for these optional modules are listed in the table below:

Light Source Modules for the TZM0440 Series MZO

Order number

Magnification

The maximum compatible sensor size

TV3050

0.50X

1/3"

TV3075

0.75X

1/1.8"

TV3100

1.00X

2/3"
TZM0756DRL-65: LED diameter up to 65mm, with a 40mm central diameter that can be directly mounted on the front of the MZO for uniform reflective illumination
TZM0756DRL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-85: LED diameter up to 85mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-85: LED diameter up to 85mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRL-85: LED diameter up to 85mm, with a 40mm central diameter for uniform reflective illumination
TZM0756DRPL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform polarized illumination
TZM0756DRPL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform polarized illumination
TZM0756DRPL-65: LED diameter up to 65mm, with a 40mm central diameter for uniform polarized illumination
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756CL Coaxial Illuminator
TZM0756SL LED Point Light Source for Coaxial Illumination
TZM0756SL LED Point Light Source for Coaxial Illumination
TZM0756SL LED Point Light Source for Coaxial Illumination
TZM0756TL LED Transmitted Backlight, with a 37mm Illumination Area Diameter
TZM0756TL LED Transmitted Backlight, with a 37mm Illumination Area Diameter
TZM0756TL LED Transmitted Backlight, with a 37mm Illumination Area Diameter

Configuration & External Dimensions


The dimensions of the TZM0440 Series MZO with different auxiliary objectives and TV lenses are shown below. For example, the TZM0440-W3100-TV3100 combination has a total length of 194mm.

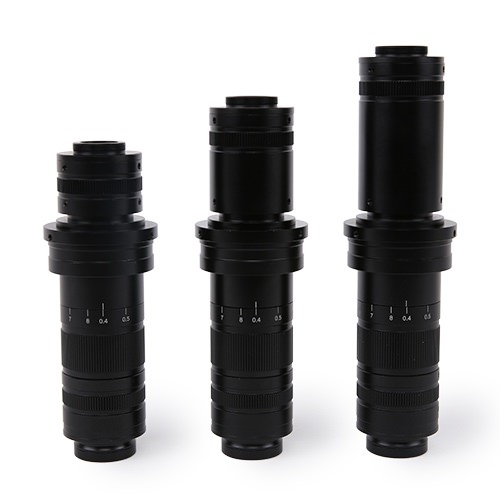

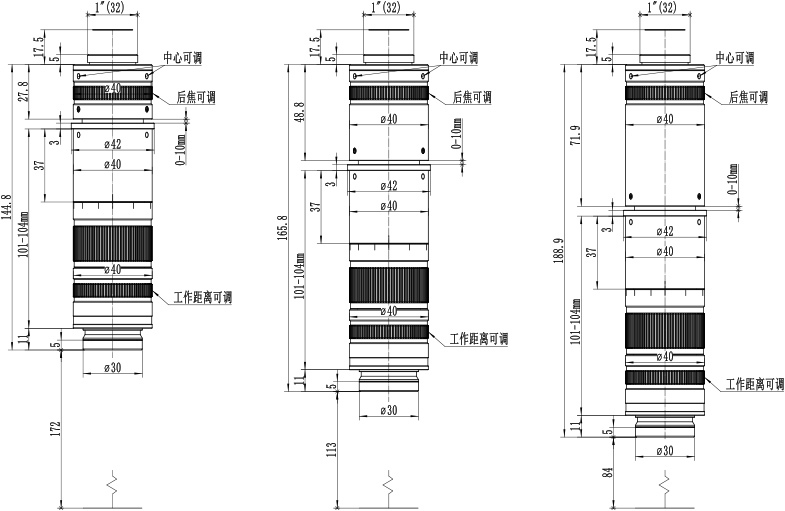

Dimensions with Various Auxiliary Objectives and TV Lenses
Dimensions with Various Auxiliary Objectives and TV Lenses for the TZM0440 Series MZO
Left: TZM0440-W3050-TV3050    Middle: TZM0440-W3075-TV3075    Right: TZM0440-W3100-TV3100

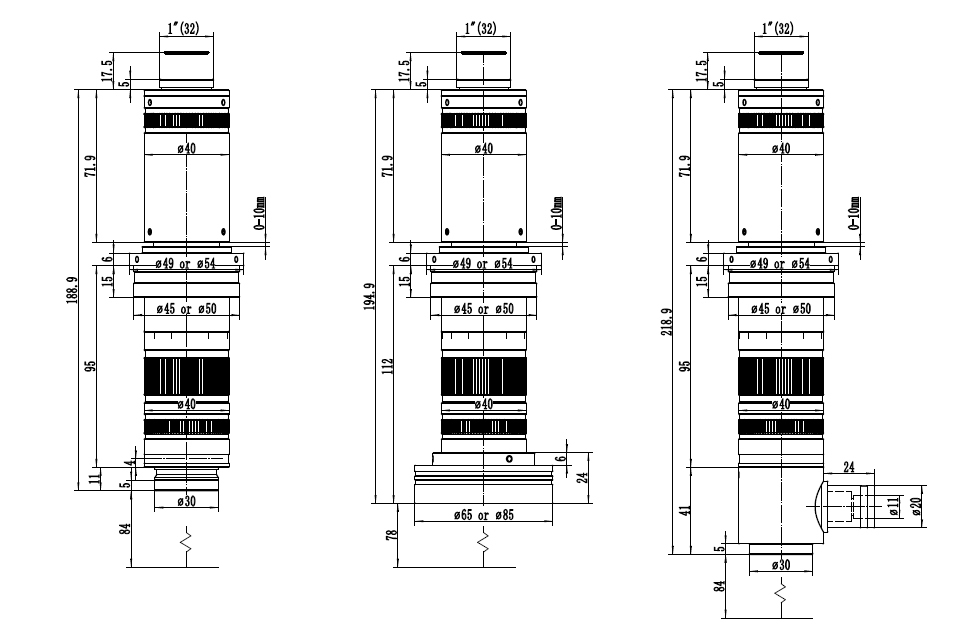

Dimensions of the Basic Model with Different Light Source Configurations
Basic Model Dimensions with Various Light Source Configurations for the TZM0440 Series MZO
Left: Basic TZM0440; Middle: TZM0440 with standard ring light; Right: TZM0440 with coaxial illumination

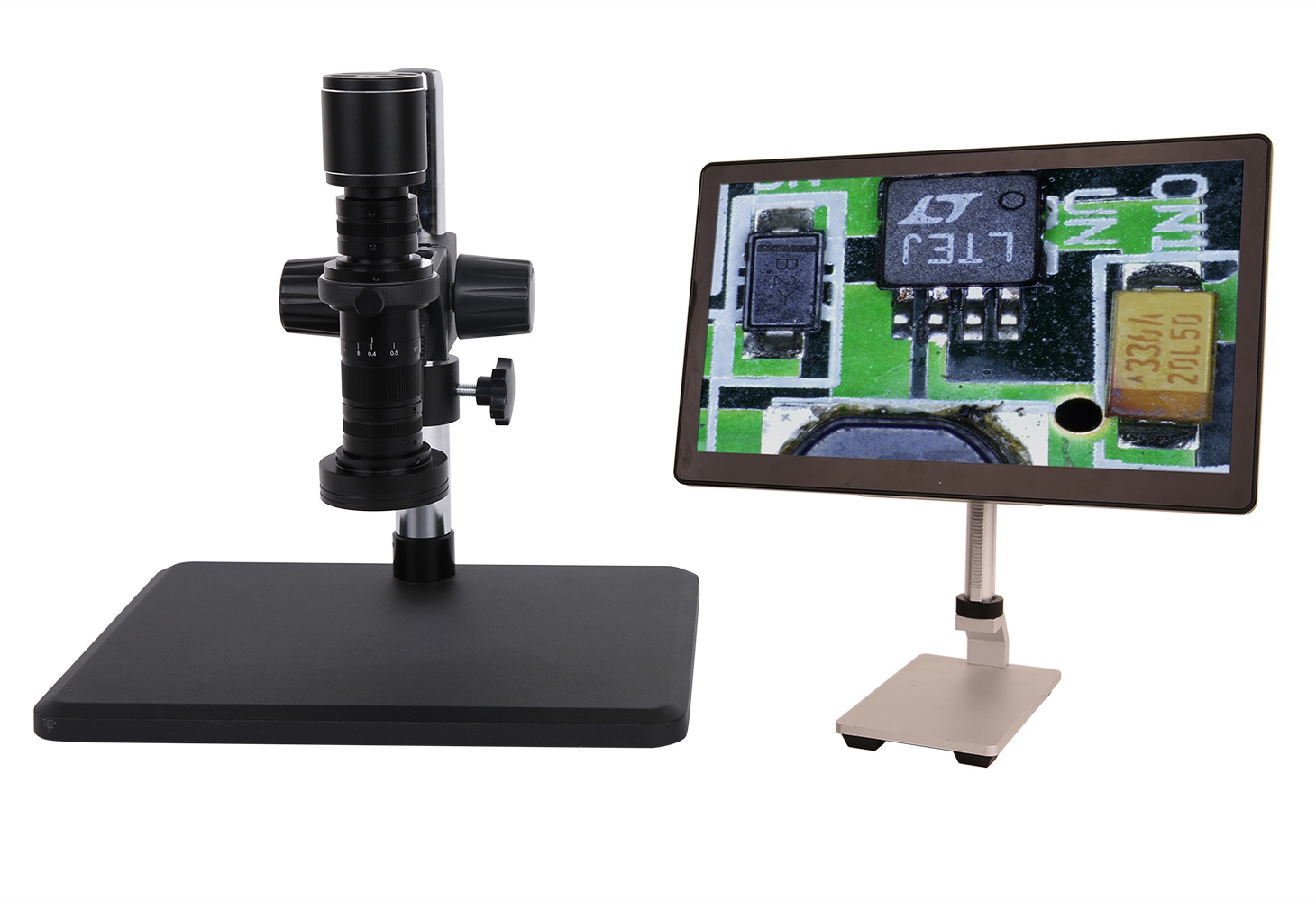

Example: TZM0440-W100-TV100 + TZM0440DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR
Example configuration: TZM0440-W100-TV100 + TZM0440DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR
TZM0440-W100-TV100 + TZM0440DRL (Standard Ring Light) + HDMI Camera XCAMLite1080PA (Round) + TPS-10A + SCR

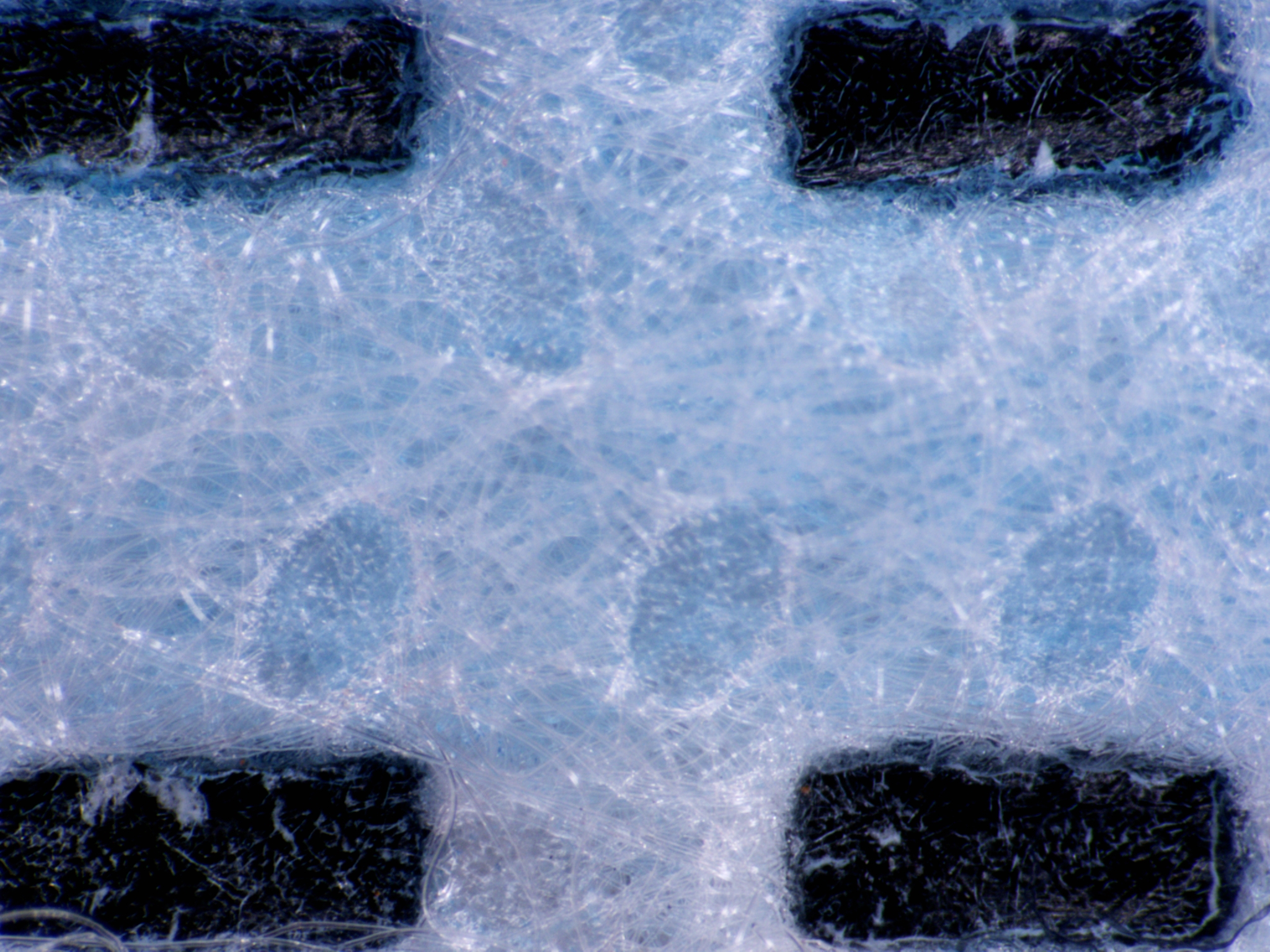

Example: TZM0440-W3100-TV3050 with Ring Light – Mask Fabric Images at 0.4X, 2.0X, and 4.0X
TZM0440-W3100-TV3050 at 0.4X
TZM0440-W3100-TV3050 at 2.0X
TZM0440-W3100-TV3050 at 4.0X
TZM0440-W3100-TV3050 captured mask fabric images: Left) 0.4X; Middle) 2.0X; Right) 4.0X
Example: TZM015120-W4100-TV4100 capturing SD card images at 0.15X, 0.6X, and 1.2X
TZM015120-W4100-TV4100 at 0.15X
TZM015120-W4100-TV4100 at 0.6X
TZM015120-W4100-TV4100 at 1.2X
TZM0440-W3100-TV3050 captured mask fabric images: Left) 0.4X; Middle) 2.0X; Right) 4.0X

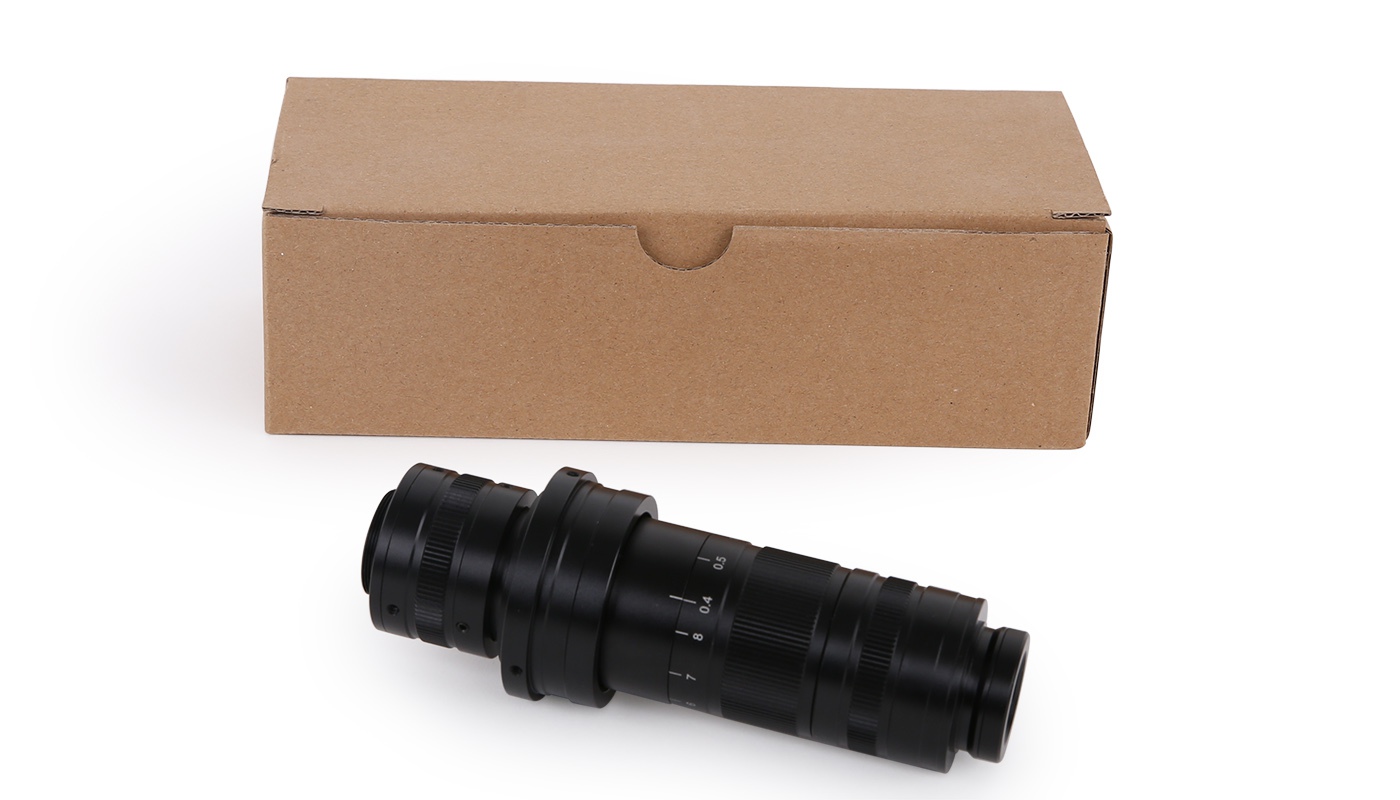

Packing List
