1 Inch SWIR Series Machine Vision Lenses

Related Models Main Features

Model Number	Wavelength (nm)	Resolution (lp/mm)	Focal Length (mm)	F/#	Optical Distortion	Field Angle			Working Distance	Filter Thread	Mount	Download
Model Number	Wavelength (nm)	Resolution (lp/mm)	Focal Length (mm)	F/#	Optical Distortion	D	H	V	Working Distance	Filter Thread	Mount	Download

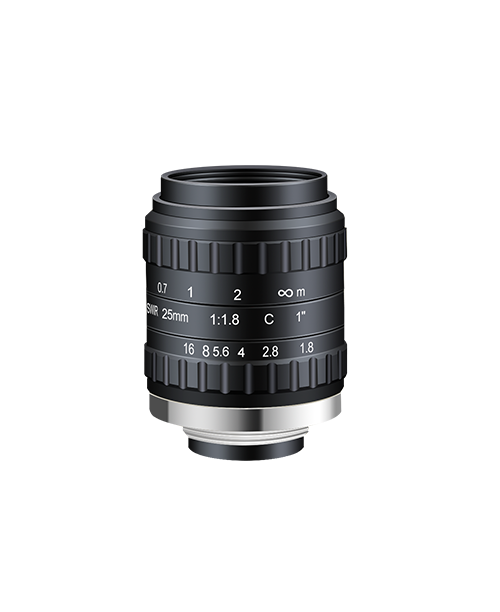

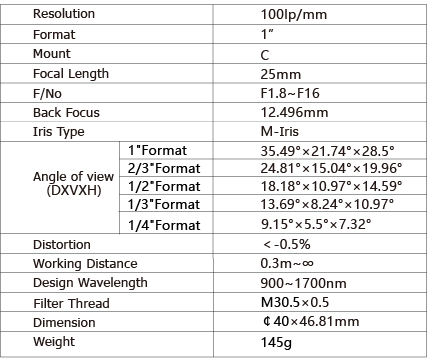

TPL-2518SWIR	900-1700	100	25	F1.8-F16	-0.50%	35.49°	28.5°	21.74°	0.3m-∞	M30.5x0.5	C

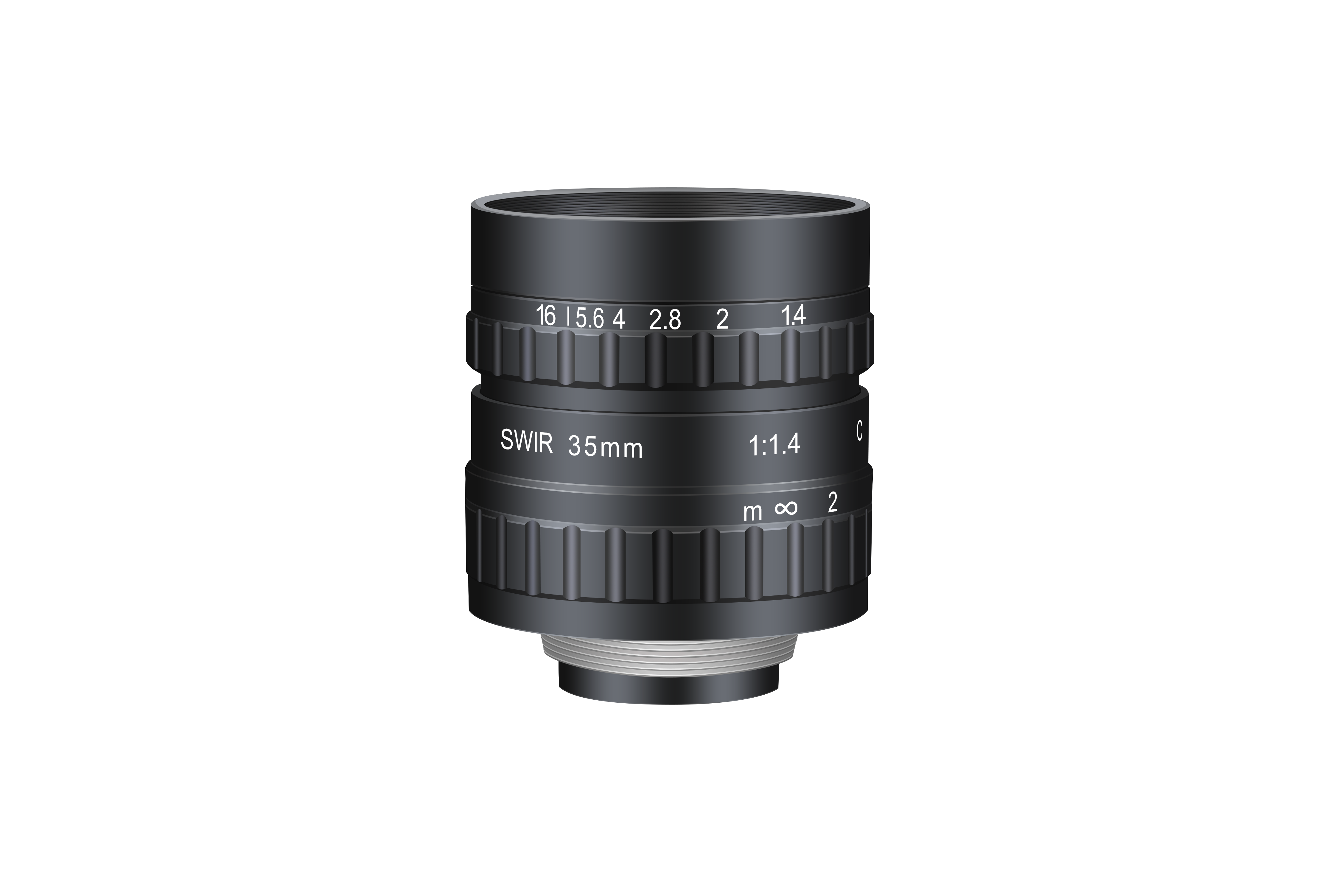

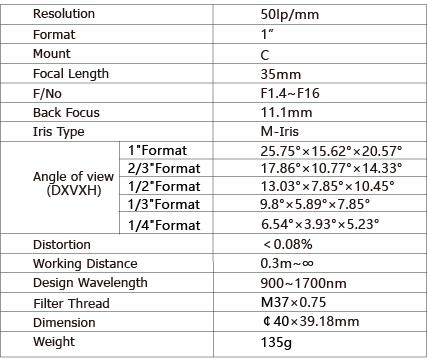

TPL-3514SWIR	900-1700	50	35	F1.4-F16	0.08%	25.75°	20.57°	15.62°	0.3m-∞	M37x0.75	C

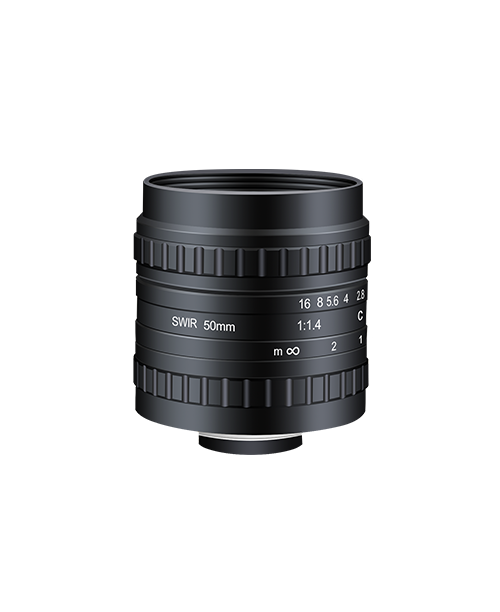

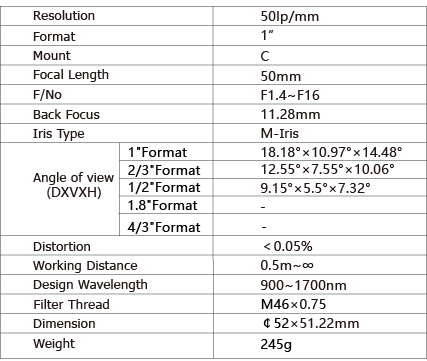

TPL-5014SWIR	900-1700	50	50	F1.4-F16	0.05%	18.18°	14.48°	10.97°	0.5m-∞	M46x0.75	C

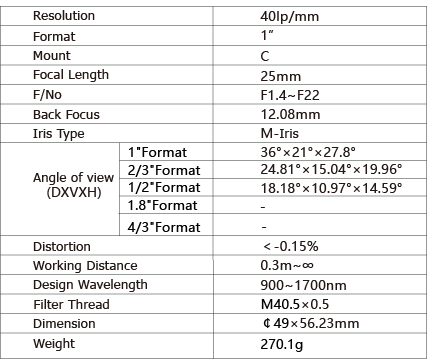

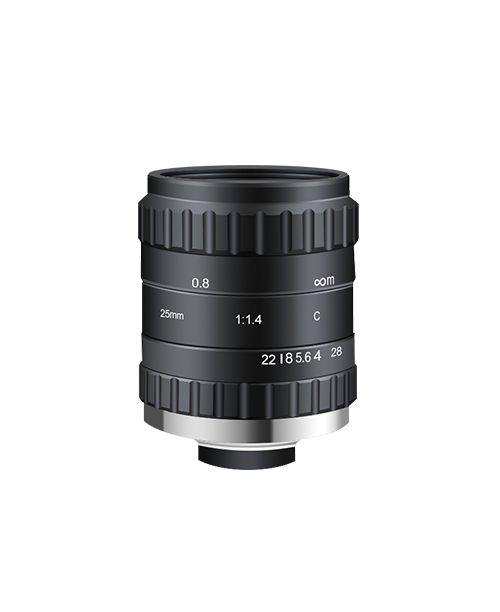

TPL-NV2514SWIR	900-1700	40	25	F1.4-F22	-0.15%	36°	27.8°	21°	0.3m-∞	M40.5x0.5	C
