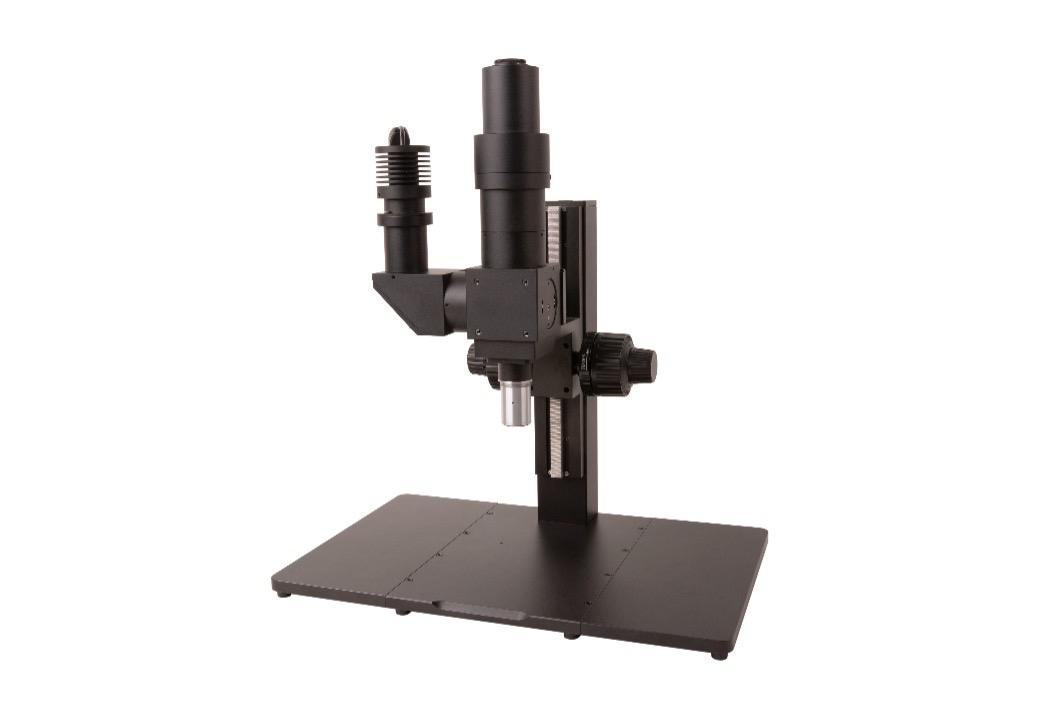

BMM 100 Series Brightfield Metallographic Microscope System

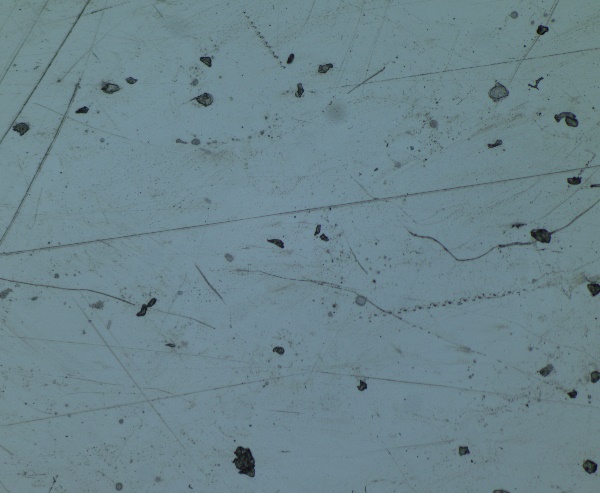

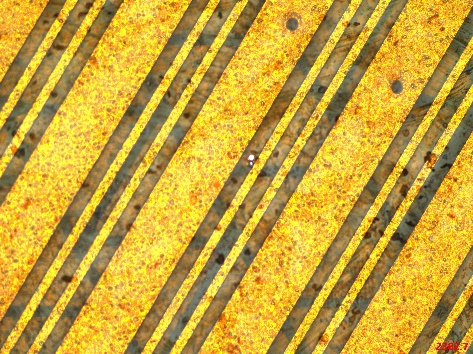

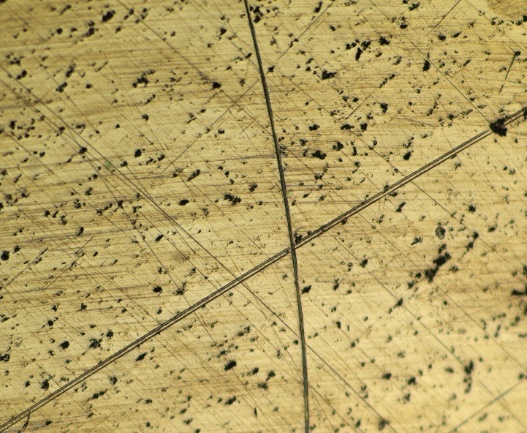

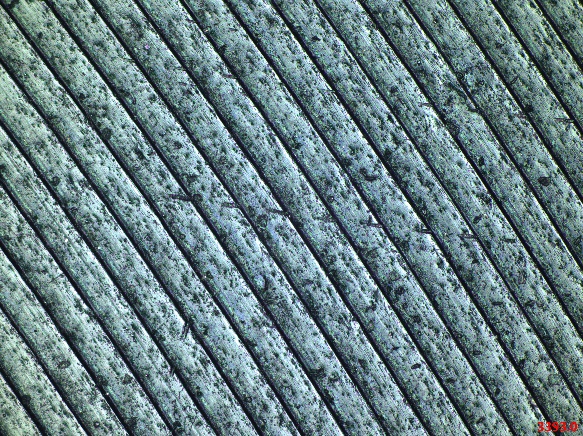

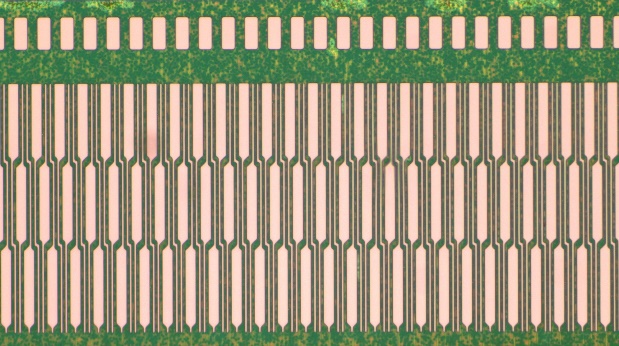

The brightfield metallographic microscope is mainly composed of three systems: the illumination system, imaging system, and mechanical system. It is a precision optical instrument widely used in various fields of modern science and technology, serving as an extremely important inspection tool. In particular, in fields such as biology, geology, mineral resources, and medicine, the metallographic microscope plays an increasingly important role.

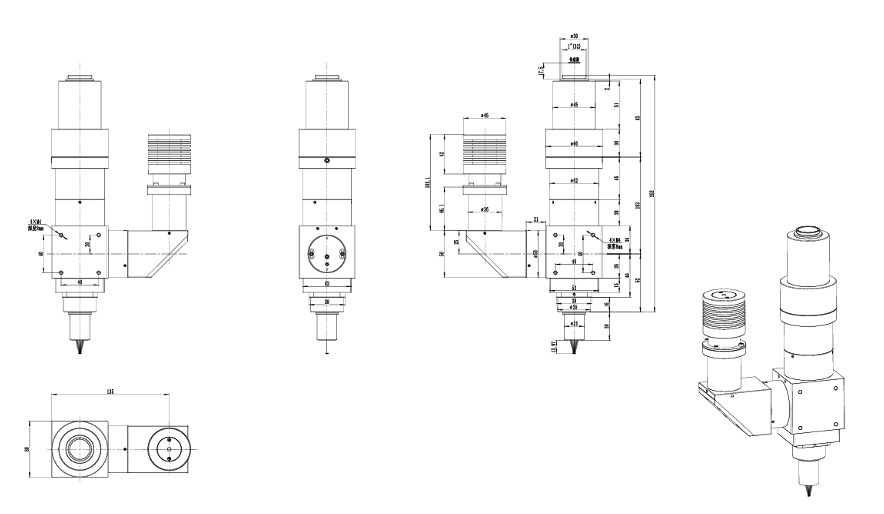

Key Features of the BMM100 Series Brightfield Metallographic Microscope System:
- Standard working distance series / long working distance series objectives (optional);
- Imaging optical path: 1X (tube lens focal length 180mm), with the option to customize reduction lenses for different magnifications;
- Image plane size: 25mm;
- Imaging optical path spectral range: Visible light;
- Camera interface options: C/M42/M52, etc. (optional);
- Illumination options: Critical illumination / Köhler illumination (optional);
- Light source: 10W white/blue LED illumination (optional);
Standard Working Distance Objective Parameters (45mm parfocal)
Order code
Magnification
NA
WD/mm
Focal length(mm)
Resolution(um)
OFOV(mm)
IFOV(mm)
Thread
BF2.5XA
2.5X
0.075
6.2
80
4.46
10
25
M26*0.705
BF5XA
5X
0.15
23.5
39
2.2
5
25
M26*0.705
BF10XA
10X
0.30
22.8
20
1.1
2.5
25
M26*0.705
BF20XA
20X
0.40
19.2
10
0.8
1.1
25
M26*0.705
BF50XA
50X
0.55
11
4
0.6
0.44
25
M26*0.705
