C2CMOS02100KPA Microscopy Camera
Product Introduction
The C2CMOS series features compact C-mount USB2.0 microscopy cameras with built-in hardware ISP image processing engines. Through MJPEG compression and dedicated decoding links, these cameras achieve high frame rates and stable transmission under USB2.0 (480 Mbit/s) bandwidth. Typical models can reach 30 fps at 5 MP/8 MP, while 12 MP models achieve 15–20 fps (model and settings dependent). The cameras comply with UVC (USB Video Class) protocol for out-of-the-box compatibility with third-party software, while also including ToupView/ToupLite software and cross-platform SDK support for convenient system integration and secondary development. Suitable for educational demonstrations, microscopy documentation, and general experimental imaging.
Key Features
- Sensor: Sony / onsemi CMOS sensors (model dependent) with standard C-mount lens interface
- USB2.0 (480 Mbit/s) data link with UVC protocol plug-and-play compatibility with third-party acquisition software
- MJPEG high-efficiency compression with dedicated decoding for higher frame rates and stable links
- Frame rate examples: 5 MP / 8 MP ≈ 30 fps; 12 MP ≈ 15–20 fps (model and settings dependent)
- Built-in hardware ISP: demosaicing, AE/AGC, AWB/ROI white balance, color correction, gamma, contrast/brightness, bad pixel correction, image flipping
- Supports histogram, flat field correction (FPN/PRNU), dark field correction, video ROI
- Onboard large-capacity buffer improves USB2.0 transmission stability and reduces frame loss risk
- Exposure control: automatic/manual switching with fine exposure time settings and ROI metering support
- Metal CNC housing (aluminum/zinc-aluminum alloy) for durability with heat dissipation and electromagnetic shielding
- Software and ecosystem: includes ToupView/ToupLite; provides Windows / Linux / macOS SDK
- Certification: compliant with CE / FCC (model dependent)
Product Details
| Key Parameters | |
| Model | C2CMOS02100KPA |
| Sensor | IMX307(C) |
| Effective Pixels / Resolution | 2.1M (1920×1080) |
| Frame Rate (Full Resolution) | 38 fps@1920×1080; 38 fps@960×540 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Imaging Performance | |
| Pixel Size | 2.9 µm × 2.9 µm |
| Sensor Size | 5.73mm × 4.3mm |
| Diagonal | 0.45" (7.16 mm) |
| Dynamic Range | 73 dB |
| Bit Depth | MJPEG |
| Sensitivity | 1300 mV |
| Interface & Mechanical | |
| Data Interface | USB2.0 |
| GPIO | TBD |
| Lens Mount | C-mount |
| Dimensions | TBD |
| Weight | 0.5~0.55Kg |
| Power Supply | USB powered |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C ~ 50 °C / 30%~80%RH |
| Storage Temperature / Humidity | -20 °C ~ 60 °C / 10%~60%RH |
| Operating System | Windows/Linux/Mac OS |
| Certification | CE/FCC |
Product Overview
C2CMOS02100KPA is a digital camera specifically designed for microscopy imaging applications, featuring a IMX307(C) high-performance image sensor with the following characteristics:
- Excellent imaging quality: 2.1M (1920×1080) resolution, 2.9 µm × 2.9 µm pixel size, sensor format 5.73mm × 4.3mm , ensuring clear detail presentation
- Imaging characteristics: Features Rolling Shutter design, supports color imaging, suitable for brightfield, darkfield, phase contrast, fluorescence and other microscopy observation methods
- High-speed data transmission: Uses USB2.0 interface, maximum frame rate up to 38 fps@1920×1080; 38 fps@960×540 , supporting real-time preview and rapid capture
- Color reproduction: MJPEG color depth, dynamic range reaches 73 dB , truly reproducing sample colors
- Sensitivity performance: Excellent low-light performance, sensitivity of 1300 mV , suitable for weak light sample observation
- Optical adaptation: Standard C-mount interface, compatible with various microscope brands, equipped with 0.5X/0.63X/1X adapters available
- Compact design: Overall dimensions only TBD , weight 0.5~0.55Kg , power supply USB powered , no additional power source required
- Software support: Includes professional microscopy imaging software ToupView, supports Windows/Linux/Mac OS systems, provides measurement, annotation, stitching, focus stacking functions, supports C/C++, C#, Python, ImageJ, μManager and other development environments
Core Performance Metrics
Resolution
2.1M (1920×1080)
Frame Rate
Up to 38 fps@1920×1080; 38 fps@960×540
Pixel Size
2.9 µm × 2.9 µm
Data Interface
USB2.0
Microscopy Imaging Features
Professional Microscopy Applications
Optimized for biomedical, materials science, industrial inspection and other microscopy observation needs, supporting brightfield, darkfield, phase contrast, fluorescence and other observation methods
Excellent Color Reproduction
Precise color reproduction algorithms and white balance control ensure true and accurate sample colors, meeting professional requirements such as pathological diagnosis
Measurement Analysis Functions
Included software provides measurement tools for length, area, angle, supports annotation and statistical analysis, meeting quantitative analysis requirements
Image Processing Capabilities
Supports real-time image enhancement, focus stacking, image stitching and other advanced functions, improving observation effects and imaging quality
Why Choose This Camera
The C2CMOS02100KPA microscopy camera, with its excellent imaging quality, convenient operation experience, and professional software support, is an ideal choice for microscope digital upgrades. Whether for biomedical research, materials analysis, or industrial inspection, it provides clear, accurate, and reliable microscopy image recording and analysis solutions.
C2CMOS02100KPA Product Manual
PDF format, includes detailed technical parameters and dimensional structure
SDK Development Kit
Supports Windows, Linux, macOS and other multi-platforms
3D Model Files
STEP format, for mechanical design integration
Packing List #
Standard kit and packaging for the C2CMOS high-speed USB2.0 CMOS camera series
Standard Items
- Shipping carton: L 52 cm × W 32 cm × H 33 cm (20 pcs, 12–17 kg per carton)
- Inner box: L 15 cm × W 15 cm × H 10 cm (0.50–0.55 kg per box)
- C2CMOS series camera (1 pc)
- High-speed USB2.0 Type-A male to Type-B male gold-plated cable (2.0 m)
- Software CD (drivers and application suite, Ø 12 cm)
Optional Accessories
- Adjustable eyepiece adapters
Dia. 23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075
Dia. 31.75 mm eyepiece to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075 - Fixed eyepiece adapters
Dia. 23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075
Dia. 31.75 mm eyepiece to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075 - 108015 (Dia. 23.2 mm to 30.0 mm ring) – adapter ring for 30 mm eyepiece tubes
- 108016 (Dia. 23.2 mm to 30.5 mm ring) – adapter ring for 30.5 mm eyepiece tubes
- 108017 (Dia. 23.2 mm to 31.75 mm ring) – adapter ring for 31.75 mm eyepiece tubes
- Calibration reticles
106011/TS-M1 (X = 0.01 mm / 100 divisions)
106012/TS-M2 (X, Y = 0.01 mm / 100 divisions)
106013/TS-M7 (X = 0.01 mm / 100 divisions; 0.10 mm / 100 divisions)

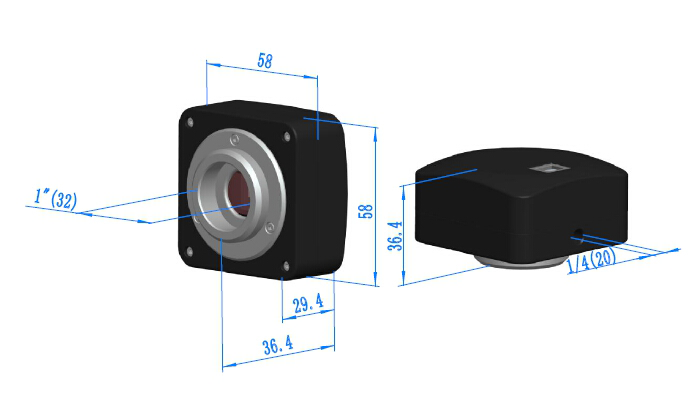

Product Dimensions #
Mechanical outline for C2CMOS high-speed USB2.0 CMOS cameras
C2CMOS cameras are ToupTek’s high-performance USB2.0 CMOS microscopy cameras. Premium Sony or onsemi CMOS sensors cover resolutions from 2.1 MP to 12 MP, delivering sharp, low-noise imagery. An on-board high-speed buffer paired with an enhanced MJPEG compression engine achieves industry-leading frame rates over USB2.0 for real-time imaging. The CNC-machined aluminum alloy body is rugged with no moving parts, ensuring dependable long-term operation.
Key Features
High-Quality CMOS Sensors
Sony/onsemi CMOS sensors with high sensitivity, wide dynamic range, and low noise.
High-Speed Buffer & MJPEG Compression
On-board buffer sustains top frame rates across the USB2.0 interface.
Ultra-Fine Color Engine
Hardware ISP processing reproduces accurate, lifelike color.
Advanced Image Correction Toolkit
Dead-pixel removal, flat/dark-field correction, and other professional utilities.
Performance Highlights
Resolution Range
2.1–12 MP
Selectable sensor optionsFrame Rate
Up to 30 fps
5 MP / 8 MP modelsPixel Size
1.55–2.9 µm
Fine detail with high sensitivityExposure Range
0.1–2000 ms
Precisely adjustableIn-Depth Technical Overview
Premium CMOS Sensor Platform
C2CMOS cameras adopt Sony or onsemi CMOS sensors that combine high sensitivity, broad dynamic range, and low noise. The advanced sensor architecture captures crisp, faithful imagery even under low illumination. Multiple sensor options support use cases ranging from high-resolution inspection to low-light fluorescence observations.
Industry-Leading High-Speed Transfer
The on-board high-speed buffer and optimized MJPEG compression algorithm achieve industry-leading frame rates over USB2.0. The 5 MP and 8 MP models reach up to 30 fps, while the 12 MP variant delivers up to 15 fps. ROI readout pushes frame rates even higher for rapid dynamic processes. The compression pipeline maximizes throughput without compromising visual fidelity.
Advanced Ultra-Fine Color Engine
A hardware-based ISP working with ToupTek’s Ultra-Fine color algorithm reproduces accurate color and fine detail. Automatic and manual exposure modes offer precise control over integration time, while automatic, manual, and ROI white balance keep color consistent in challenging scenes. The color fidelity suits pathology, material science, and other color-critical applications.
Comprehensive Advanced Image Corrections
Real-time dead-pixel removal, color mode switching, histogram adjustment, flat-field and dark-field correction, image flipping, and ROI video capture deliver professional image optimization. These advanced tools come standard across the series, giving users capabilities typically reserved for high-end scientific cameras. Automated control works alongside manual fine-tuning to cover diverse microscopy scenarios.
Industrial-Grade Thermal Design
The CNC-machined aluminum alloy body features passive thermal dissipation with no moving parts. Precision metal fabrication keeps the camera structurally stable and vibration-free during extended sessions. Excellent heat conduction maintains optimal sensor temperature for consistent image quality while shielding against electromagnetic interference and physical shocks.
Applications
Representative microscopy applications for the C2CMOS series.
C2CMOS Series Advantages
High Frame Rate
Optimized MJPEG compression pipeline.
Sony/onsemi Sensors
Premium imaging performance guaranteed.
Hardware ISP
Ultra-Fine color engine inside.
Advanced Corrections
Professional-grade image optimization.
Aluminum Alloy Housing
CNC precision machining craftsmanship.
Automated Control
Auto exposure and white balance.
Complete SDK
Multi-platform development toolkit.
Wide Model Range
Sensors from 2.1–12 MP.
