Introduction

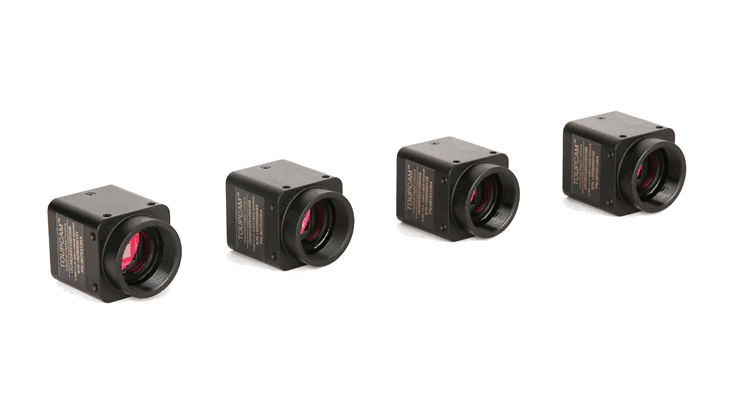

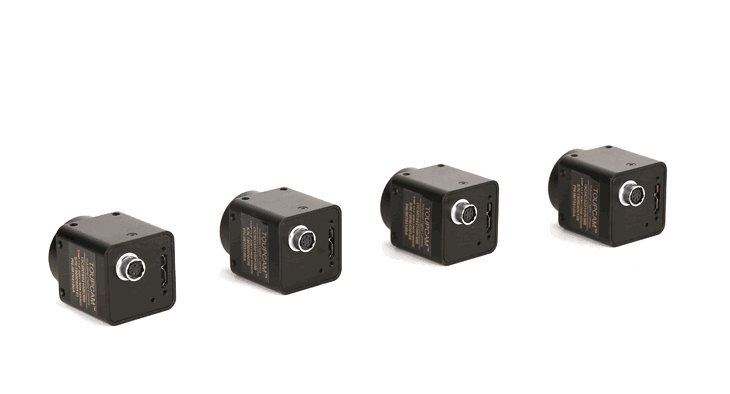

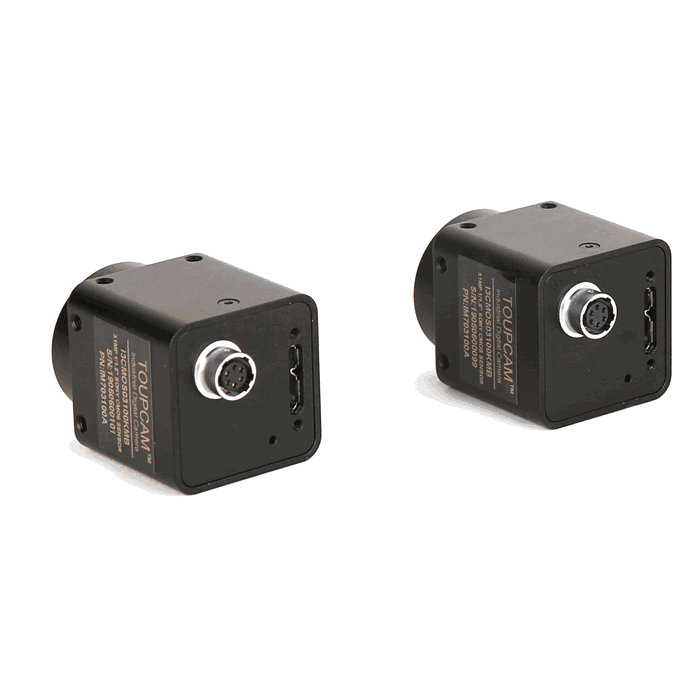

I3CMOS Series Machine Vision Camera

Machine Vision Camera

The I3CMOS series is a USB3.0 interface monochrome camera line designed for industrial applications.

I3CMOS series black-and-white cameras are compact and cost-effective. These cameras use a USB3.0 interface to rapidly transmit uncompressed images, and support image data acquisition and parameter setting (such as operating mode and image parameter adjustment) via client software.

I3CMOS Machine Vision Camera Key Features:

  • Uses Sony Exmor back-illuminated CMOS sensors with dual noise reduction technology for ultra-high sensitivity and low noise;
  • Utilizes a USB3.0 data transmission interface, compatible with USB2.0;
  • Comes with advanced video and image processing software ToupView, offering multi-platform SDKs for Windows/Linux/OSX that support native C/C++, C#/VB.Net, DirectShow, and Twain API;
  • Supports hardware triggering, software triggering, and free-run mode;
  • Offers functions such as ROI, image flipping, and bit-depth switching;
  • Supports on-site firmware upgrades;
  • Complies with CE, FCC, and RoHS certifications;
  • Supports hardware triggering, software triggering, and free-run mode;
  • Supports ROI, image flipping, and bit-depth switching;
  • Supports on-site firmware upgrades;
  • Complies with CE, FCC, and RoHS certifications.

Related Models

Model Number

Image Sensor

Pixel Size(μm)

G Sensitivity
Dark Signal

FPS/Resolution

Binning

Exposure Time

I3 with 33mm x 33mm x 33mm housing

I3CMOS00500KMA
IM700500A

0.5M/IMX433LLJ(M,GS)
1/1.7“ (7.31x5.58)

9.0x9.0

8100mv with 1/30s
0.30mv with 1/30s

166.5fps@812×620

1x1

6us~15s

I3CMOS01500KMA
IM701500A

1.5M/IMX273LLR(M,GS)
1/2.9“ (4.97x3.73)

3.45×3.45

1830mv with 1/30s
0.19mv with 1/30s

226.5fps@1440×1080
506fps@720×540

1x1
2x2

15us~15s

I3CMOS02300KMA
IM702300A

2.3M/IMX174LLJ(M,GS)
1/1.2“ (11.25x7.03)

5.86x5.86

1650mv with 1/30s
0.15mv with 1/30s

164.5fps@1920×1200

1x1

15us~15s

I3CMOS02300KMB
IM702300B

2.3M/IMX249LLJ(M,GS)
1/1.2“ (11.25x7.03)

5.86x5.86

1650mv with 1/30s
0.15mv with 1/30s

30fps@1920×1200

1x1

42us~15s

I3CMOS02400KMA
IM702400A

2.4M/GMAX4002(M,GS)
1/1.7“ (8.19x4.80)

4.0x4.0

3.26x107e-/((W/m2)·s)
8.3e-/s

155fps@2048×1200
620fps@1024×600

1x1
2x2

55us~15s

I3CMOS03100KMA
IM703100A

3.1M/IMX252LLR(M,GS)
1/1.8“ (7.07x5.30)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

110.6fps@2048×1536
233.8fps@1024×768

1x1
1x1

15us~15s

I3CMOS03100KMB
IM703100B

3.1M/IMX265LLR(M,GS)
1/1.8“ (7.07x5.30)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

55.4fps@2048×1536
115.1fps@1024×768

1x1
1x1

15us~15s

I3CMOS03200KMA
IM703200A

3.2M/IMX900AMR(M,GS)
1/3.1“ (4.61x3.46)

2.25x2.25

1807mv/lx/s
0.15mv with 1/30s

53.4fps@2048×1536
126.8fps@1024×768

1x1
1x1

11us~15s

I3CMOS04200KMA
IM704100A

4.2M/IMX664AAMR(M,RS)
1/1.8“(7.80x4.41)

2.9×2.9

TBD

88.1fps@2688×1520
116.1fps@1344×760

1x1

15us~15s

I3CMOS05000KMA
IM705000A

5.0M/IMX250LLR(M,GS)
2/3“ (8.45x7.07)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

70.9fps@2448×2048
175.2fps@1224×1024

1x1
1x1

15us~15s

I3CMOS05000KMB
IM705000B

5.0M/IMX264LLR(M,GS)
2/3“ (8.45x7.07)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

35.6fps@2448×2048
87.6fps@1224×768

1x1
1x1

15us~15s

I3CMOS05000KMC
IM705000C

5.0M/IMX250MZR(M,GS)
2/3“ (8.45x7.07)
Polarsens

3.45×3.45

684mv with 1/30s
0.15mv with 1/30s

35.6fps@2448×2048
87.6fps@1224×768

1x1
1x1

15us~15s

I3CMOS05100KMA
IM705100A

5.1M/GMAX3405(M,GS)

2/3“ (8.32x6.96)

3.4x3.4

2.36x107e-/((W/m2)·s)
4.4e-/s

71fps@2448×2048
100fps@1224×1024

1x1
2x2

10us~15s

I3CMOS06300KMA
IM706300A

6.3M/IMX178LLJ(M, RS)
1/1.8“ (7.37x4.92)

2.4x2.4

760mv with 1/30s
0.15mv with 1/30s

58.7fps@3072×2048
59.5fps@1536×1024

1x1
2x2

17us~15s

I3CMOS08000KMA
IM708000A

8.0M/IMX546-AAMJ(M,GS)
2/3“ (7.78x7.78)

2.74x2.74

2649mv/lx/s
0.25mv with 1/30s

41fps@2840x2840
118fps@1420x1420

1x1
1x1

30us~15s

I3ISPM08300KPB
IP808300B

8.3M/IMX585-AAQJ1-C(C,RS)
1/1.2“ (11.14x6.26)

2.9x2.9

5970mv with 1/30s
0.13mv with 1/30s

45fps@3840x2160
70fps@1920x1080

1x1
1x1

30us~15s

I3 with 38mm x 38mm x 33mm housing

I3CMOS01300KMA
IM701300A

1.3M/GLUX9701BSI(M,UV,RS)
1“(12.49x9.99)

9.76x9.76

2.57x108(e-/((W/m2).s))
QE89%@610nm
40(e-/s/pix)

30fps@1280×1024
30fps@640×512

1x1
2x2

63us~60s

I3CMOS01700KMA
IM701700A

1.7M/IMX432LLJ(M,GS)
1.1“ (14.4x9.9)

9.0x9.0

8100mv with 1/30s
0.3mv with 1/30s

98.6fps@1600×1100

1x1

6us~15s

I3CMOS01700KMB
IM701700B

1.7M/IMX425LLJ(M,GS)
1.1“ (14.4x9.9)

9.0x9.0

8100mv with 1/30s
0.3mv with 1/30s

210fps@1600×1100

1x1

6us~15s

I3CMOS02000KMA
IM702000A

2.0M/IMX430LLJ(M, GS)
1/1.7“(7.31x5.58)

4.5x4.5

3354mv with 1/30s
0.15mv with 1/30s

132fps@1624×1240

1x1

6us~15s

I3CMOS02800KMA
IM702800A

2.8M/IMX421LLJ(M,GS)
2/3“ (8.71x6.59)

4.5x4.5

3354mv with 1/30s
0.15mv with 1/30s

121fps@1936×1464
425fps@968×732

1x1
1x1

6us~15s

I3CMOS07100KMA
IM707100A

7.1M/IMX428LLJ(M,GS)
1.1“ (14.4x9.9)

4.5x4.5

3354mv with 1/30s
0.15mv with 1/30s

51.3fps@3200×2200
133.8fps@1584×1100

1x1
1x1

6us~15s

I3CMOS08300KMB
IM708300B

8.3M/IMX585-AAMJ1-C(M,RS)
1/1.2“ (11.14x6.26)

2.9x2.9

19120mv with 1/30s
0.13mv with 1/30s

45fps@3840x2160
70fps@1920x1080

1x1
1x1

30us~15s

I3CMOS12300KMA
IM712300A

12.3M/IMX304LLR-C(M,GS)
1.1“(14.13x10.35)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750

1x1
2x2
4x4

30us~15s

I3CMOS12500KMA
IM712500A

12.5M/GMAX3412(M,GS)

1.1“ (13.93x10.44)

3.4×3.4

2.36x107e-/((W/m2)·s)
81.6e-/s

30fps@4096x3072
60fps@2048x1536

1x1
2x2

15us~15s

I3CMOS20400KMA
IM720400A

20.4M/IMX541-AAMJ-C(M,GS)
1.1“ (12.32x12.32)

2.74x2.74

2649mv with 1/30s
0.15mv with 1/30s

17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120

1x1
2x2
4x4

30us~15s
*C: Color; M: Monochrome; RS: Rolling Shutter; GS: Global Shutter.

Model Number

Image Sensor

Pixel Size(μm)

G Sensitivity
Dark Signal

FPS/Resolution

Binning

Exposure Time

I3 with 33mm x 33mm x 42mm housing

I3CMOS03100KMB-G

3.1M/IMX265LLR(M,GS)
1/1.8“ (7.07x5.30)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

36.9fps@2048x1536
115.1fps@1024x768

1x1
1x1

50us~5s

I3CMOS03200KMA-G

3.2M/IMX900AMR(M,GS)
1/3.1“ (4.61x3.46)

2.25x2.25

1807mv/lx/s
0.15mv with 1/30s

16.9fps@2048x1536
66fps@1024x768

1x1
1x1

50us~5s
*C: Color; M: Monochrome; RS: Rolling Shutter; GS: Global Shutter; G: 1 Gigabit Ethernet Interface.

Detailed Specifications

Digital I/O

1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port

Data Format

8bit / 12bit

General Specifications

Power Supply Method

Powered via USB3.0 interface

Power Consumption

<3.0W

Temperature

Operating: -10 ~ 50℃, Storage: -30 ~ 70℃

Humidity

20%-80% (non-condensing)

Dimensions

38mm x 38mm x 33mm

Weight

70g

Lens Mount

C-mount

Software

Complete SDK package / ToupView

Platform and Architecture

Win32/WinRT/Linux/macOS/Android; X86/X64/armhf/armel/arm64

Certifications

CE, FCC

Camera Interfaces and Overall Dimensions


33mm Mechanical Dimensions

I3CMOS Overall Dimensions
I3CMOS Overall Dimensions (Unit: mm)
I3CMOS Bare Board Dimensions
I3CMOS Bare Board Dimensions (Unit: mm)

38mm Mechanical Dimensions

I3CMOS Overall Dimensions
I3CMOS Overall Dimensions (Unit: mm)

Interface Overview

I3CMOS Camera Interface Diagram
I3CMOS Camera Interface Diagram

V1 Version (I3CMOS00500KPA) Power and I/O Interface Definitions

IUC Camera Interface Parameters

Color

Pin

Signal

Signal Description

Red

1

DIR_IN

Non-isolated input signal (line2)

White

2

OPTO_GND

Opto-isolated signal ground

Blue

3

OPTO_OUT

Opto-isolated output signal (line1)

Green

4

OPTO_IN

Opto-isolated input signal (line0)

Black

5

GND

Non-isolated signal ground

Yellow

6

DIR_OUT

Non-isolated output signal (line3)

V2 Version Power and I/O Interface Definitions

IUC Camera Interface Parameters

Color

Pin

Signal

Signal Description

Red

1

DIR_GPIO

Non-isolated signal (software configurable as input/output) (line2)

White

2

OPTO_GND

Opto-isolated signal ground

Blue

3

OPTO_OUT

Opto-isolated output signal (line1)

Green

4

OPTO_IN

Opto-isolated input signal (line0)

Black

5

GND

Non-isolated signal and power ground

Yellow

6

5V

5VDC power input

Mechanical Dimensions

I3CMOS Overall Dimensions
I3CMOS Overall Dimensions (Unit: mm)

Interface Overview

I3CMOS Camera Interface Diagram
I3CMOS Camera Interface Diagram

Order number

Specification

1

GigE Interface

2

Trigger 7-PIN Interface

Power and I/O Interface Definitions

IUC Camera Interface Parameters Color Pin Signal Signal Description

White

1

GND

Non-isolated signal and power ground

Red

2

12V

12VDC power input

Blue

3

OPTO_GND

Opto-isolated signal ground

Yellow

4

DIR_GPIO0

Non-isolated signal (software configurable as input/output) (line2)

Black

5

DIR_GPIO1

Non-isolated signal (software configurable as input/output) (line3)

Green

6

OPTO_IN

Opto-isolated input signal (line0)

Pink

7

OPTO_OUT

Opto-isolated output signal (line1)

Packing List

Order number

Accessory Name

Quantity

Description

1

Camera Assembly

1

The camera referred to in this manual

2

I/O Cable

1

6 Pin cable or extension cable

3

Cable

1

Micro USB3.0 Cable

4

Lens (Optional)

1

C-mount lens

Order number

Accessory Name

Quantity

Description

1

Camera Assembly

1

The camera referred to in this manual

2

I/O Cable

1

7Pin cable or extension cable

3

Cable

1

GigE Cable

4

Lens (Optional)

1

C-mount lens
