Introduction

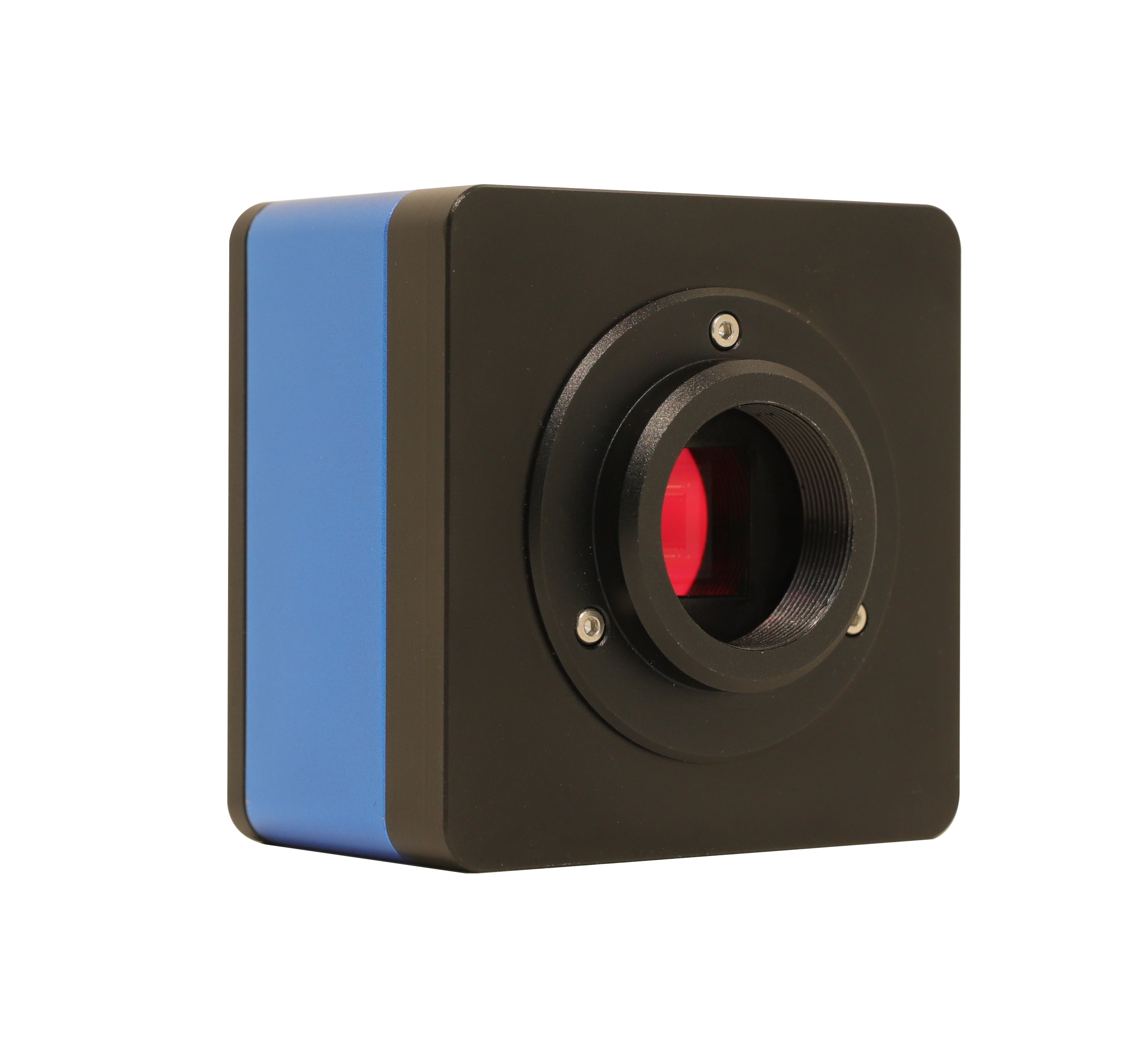

OCAM Series HDMI Camera
OCAM series HDMI Camera can capture video and images directly from stereomicroscopes or biological microscopes without the need for a computer.
Key Features of the OCAM Series HDMI Cameras:
- HDMI cameras equipped with Sony Starvis backside-illuminated CMOS sensors
- Built-in XCamView software for camera control, offering extensive measurement, grid management, and customizable template functions
- Provides automatic edge detection, automatic parallel line distance measurement, automatic rectangular measurement, and other automated measurement features
- Offers USB storage functionality, supporting local preview and playback, with image-to-image and image-to-video comparison features
- Powerful ISP capabilities including dark area enhancement, sharpening, and 3D denoising
- Supports quick switching between default effects for biological and stereomicroscopes, making it convenient for multi-scenario use
Order Code
Sensor & Size(mm)
Pixel(μm)
G Sensitivity
Dark Signal
FPS/Resolution
Binning
Exposure(ms)
OCAM4K8MPA
Sony IMX678(C)
1/1.8"(7.68x4.32)
2.0x2.0
1364mv with 1/30s
0.15mv with 1/30s
30@3840*2160(HDMI)
1x1
0.04~1000
OCAM4K8MPB
Sony IMX415(C)
1/2.8"(5.57x3.13)
1.45x1.45
300mv with 1/30s
0.13mv with 1/30s
30@3840*2160(HDMI)
1x1
0.04~1000
OCAM1080P2MPA
Sony IMX385(C)
1/2"(7.2x4.05)
3.75x3.75
1175mv with 1/30s
0.15mv with 1/30s
60@1920*1080(HDMI)
1x1
0.04~1000
OCAM1080P2MPB
Sony IMX462(C)
1/2.8"(5.57x3.13)
2.9x2.9
921mv with 1/30s
0.15mv with 1/30s
60@1920*1080(HDMI)
1x1
0.04~1000
