TAFDM412 Touchscreen Continuous Zoom Autofocus Digital Microscope
Product Introduction
TAFDM412 is a touch control all-in-one Touchscreen Continuous Zoom Autofocus Digital Microscope, featuring an integrated 13.3-inch 1080P touch screen with support for touch/mouse dual interface operation. Equipped with Sony IMX415LQR-C sensor, providing 18× (0.0218X~0.392X) optical zoom, with working distance of 205~255 mm (standard 250 mm).
Product Features
- Camera connected to 13.3-inch 1080P touchscreen for touch operation, providing two UI sets (touch interface and mouse interface) with switching capability
- Motorized zoom control of 5 groups and 16 elements, achieving 0.0218X~0.392X, 18× optical zoom, supporting auto/manual focus
- Standard measurement working distance 250 mm, target objects within 205-255 mm range can be clearly observed through autofocus
- Low magnification 255×145 mm for quick positioning, high magnification 14.2×8 mm for microscopic observation
- 4K HDMI/USB/NETWORK multi-interface output, 4K/1080P HDMI adaptive switching
- SD card/USB flash drive capture and playback, embedded XCamView measurement and control, multi-language support
- Magnetic head-mounted LED ring light controlled by camera, neat and convenient
Product Details
TAFDM412 Specifications
| Key Parameters | |
| Product Model | TAFDM412 |
| Product Series | Touchscreen Continuous Zoom Autofocus Digital Microscope |
| Sensor Parameters | |
| Sensor Model | Sony IMX415LQR-C |
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.4 mm |
| Pixel Size | 1.45 µm × 1.45 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Optical Parameters | |
| Lens Type | EMZO-18XA-250 lens |
| Optical Zoom | 18× (0.0218X~0.392X) |
| Working Distance | 205~255 mm (standard 250 mm) |
| Field of View | Low magnification: 255×145 mm, High magnification: 14.2×8 mm |
| Autofocus | Supported |
| Performance Parameters | |
| Frame Rate | HDMI/USB/Network: 30 fps@3840×2160 |

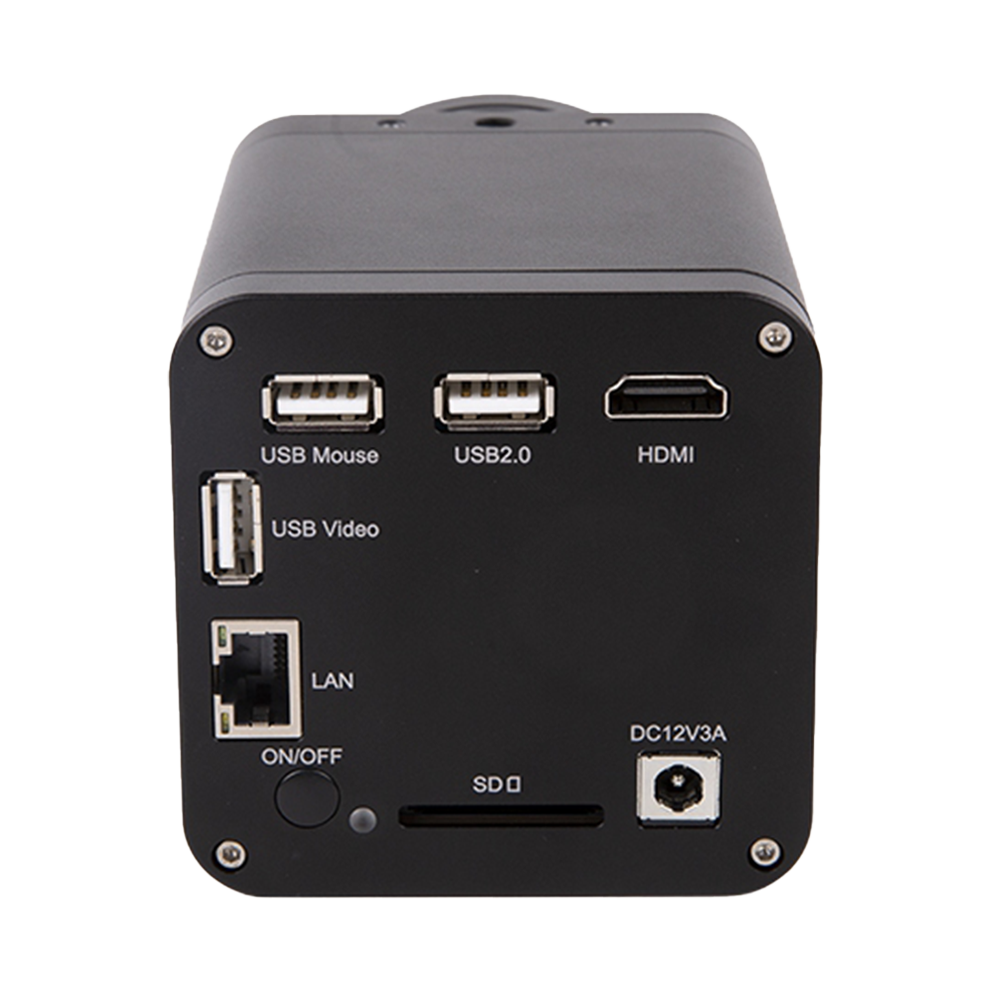

| Output Interfaces | HDMI1.4, USB Video, Ethernet, Wi-Fi, 13.3-inch touchscreen |
| Storage Support | SD card, USB flash drive |
| Software Support | XCamView, ToupView, ToupLite |
| Physical Parameters | |
| Power Supply | DC 12 V/3 A |
| Dimensions | 80 × 80 × 122 mm |
| Weight | 0.75 kg |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ +50 °C |
| Storage Temperature | -20 °C ~ +60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Other Information | |
| OS Support | Windows, Linux, macOS, Android, iOS |
| Certification | CE, FCC, UL |
Product Overview
TAFDM412 is an all-in-one continuous zoom autofocus digital microscope designed for convenient touch control operation, featuring the following core characteristics:

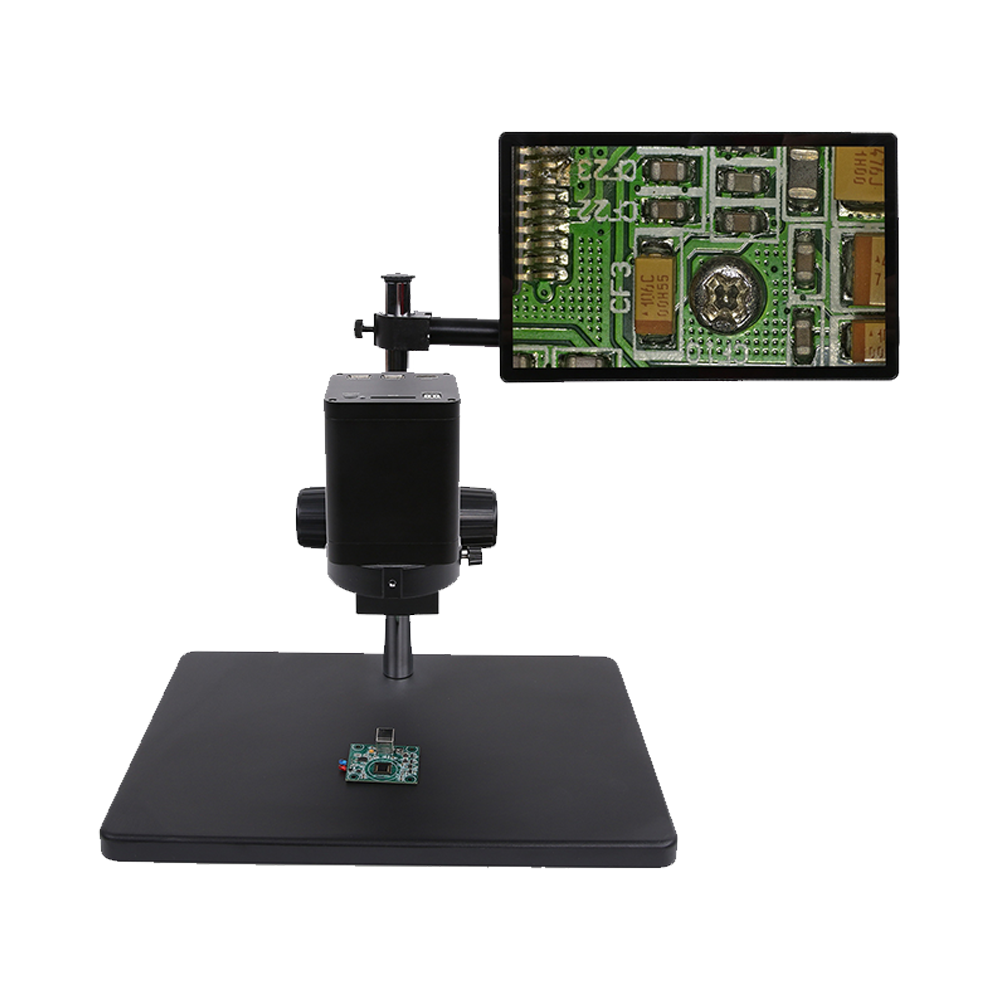

- Touch Screen All-in-One Design: Integrated 13.3-inch 1080P touch screen, no external monitor required, plug and play, switchable between touch/mouse dual interfaces
- Motorized Continuous Zoom: 18× (0.0218X~0.392X) continuous optical zoom, 5-group 16-element lens design, maintains focus throughout zoom process
- Autofocus System: Achieves fast and precise focusing within 205~255 mm (standard 250 mm) range, supports auto/single/manual three focus modes
- High-Performance Imaging: Equipped with Sony IMX415LQR-C sensor, resolution up to 8MP (3840×2160), Sony Starvis technology ensures high signal-to-noise ratio
- Multiple Interface Output: Supports HDMI1.4, USB Video, Ethernet, Wi-Fi, 13.3-inch touchscreen multiple output methods to meet different usage scenarios
- Embedded XCamView Software: Direct operation via touch screen for camera control panel, measurement toolbar, image adjustment toolbar, autofocus control panel
- Powerful ISP Functions: Sharpening, 3D noise reduction, ROI white balance, Ultra-Fine color engine, local dynamic range adjustment and other image enhancement technologies
- Local Storage Support: Supports SD card and USB storage, can directly save images and videos (H.264/H.265 encoding), supports local preview and playback
- Wireless Extension Capability: Supports 5G WiFi adapter, AP/STA dual mode, convenient for wireless deployment and multi-device networking
- Multi-Language Support: Supports English/Simplified Chinese/Traditional Chinese/Korean/Thai/French/German/Japanese/Italian and other languages
Core Performance Indicators
Optical Zoom
18× (0.0218X~0.392X)
Working Distance
205~255 mm (standard 250 mm)
Field of View
Low magnification: 255×145 mm, High magnification: 14.2×8 mm
Resolution
8MP (3840×2160)
Touch Screen All-in-One Features
Dual Interface Operation Mode
Provides two UI sets for touch interface and mouse interface, freely switchable according to user preference to meet different operation needs
Built-in Measurement Function
Supports calibration and geometric measurements including line, angle, rectangle, circle and other measurement tools, data exportable to CSV format
Five Connection Methods
HDMI touch screen, USB Video, WiFi AP, Ethernet, multi-device networking, flexibly adapts to various application scenarios
LED Lighting Control
Head-integrated LED ring light, brightness directly controlled by camera, clean and simple
Recommendation
TAFDM412 perfectly integrates touch screen with microscope, featuring 18× motorized continuous zoom, 250 mm standard working distance, 255×145 mm large field of view, combined with the intuitive operation experience of a 13.3-inch touch screen, providing convenient and efficient all-in-one microscopic imaging solutions for industrial inspection, medical observation, educational research, automation systems and other applications. The embedded XCamView software and flexible connection methods make it an ideal choice for modern digital microscopic observation.
Application Scenarios
Industrial inspection
Industrial inspection
Medical observation
Medical observation
Educational and research
Educational and research
Automation systems
Automation systems
Selection Guide
- Large Field of View Requirement: Choose TAFDM412, low magnification field of view up to 255×145 mm, suitable for quick positioning of large samples
- High Magnification Requirement: Choose TAFDM411, 20× optical zoom, high magnification field of view 10×5.6 mm, suitable for detailed observation
- Long Working Distance: Choose TAFDM412, standard working distance 250 mm, suitable for samples with greater thickness
- Compact Space: Choose TAFDM411, standard working distance 192 mm, more compact system configuration
- On-site Demonstration: Both models equipped with 13.3-inch touch screen, no external monitor required, convenient for on-site operation demonstration
Typical Configuration Recommendations
| Application Need | Recommended Model | Main Advantages | Suitable Scenarios |
|---|---|---|---|
| Teaching Demonstration | TAFDM411 | 20× zoom, intuitive touch operation | Classroom teaching, laboratory demonstration |
| PCB Inspection | TAFDM412 | Large field 255×145 mm, 250 mm working distance | Circuit board inspection, solder analysis |
| Biological Observation | TAFDM411 | High magnification detail observation, precise autofocus | Cell culture, tissue sections |
| Field Inspection | TAFDM412 | All-in-one design, easy mobile deployment | Quality sampling, field analysis |
TAFDM412 Product Manual
PDF covering installation guidance, focus calibration, and touch workflow tips.
Software & Firmware
Download XCamView updates, ToupView suites, and touchscreen firmware.
Integration Consultation
Request fixture drawings, lens pairing guides, or OEM customization support.
TAFDM41X Camera Series | Packing List #
Standard Packing List
- A Camera box size: 33 cm × 21.5 cm × 6.8 cm
- B 1080p touchscreen ×1
- C TAFDM41X series camera ×1
- D Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 3 A; US HKA03612030-7K (UL/CE/FCC, with US AC cord), EU HKA03612030-7K (UL/CE/FCC, with EU AC cord); EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
- E USB Type-A to Type-C cable 0.5 m (for close screen placement)
- F USB Type-A to Type-C cable 1.5 m (for distant screen placement)
- G HDMI cable 0.5 m (for close screen placement)
- H HDMI cable 1.5 m (for distant screen placement)
- I USB2.0 Type-A male to Type-A male cable 1.5 m
- J CD (driver and applications, Ø12 cm)
Optional Accessories
- K Mouse
- L SD card (16 GB+, Class 10)
- M 32 GB USB drive
- N LED ring light (DRL-5076A-NPC) or AALRL-200-7650
- O Ethernet cable
- P USB wireless network adapter (required for WiFi mode; appearance varies by model)
- Q Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
TAFDM41X Product Deep Dive
The TAFDM41X series is an all-in-one touchscreen motorized zoom autofocus digital microscope. It integrates a 13.3-inch 1080p touchscreen with touch/mouse dual UI control. Powered by the Sony IMX415LQR-C sensor (1/2.8"), it delivers 4K (3840×2160) output with HDMI/USB/Network all reaching 4K @ 30 fps.
TAFDM411 ships with the EMZO-20XA lens for 20× motorized continuous zoom (0.028X–0.56X), a standard working distance of 192 mm (150–195 mm AF range), 200×112.5 mm FOV at low mag, and 10×5.6 mm at high mag. TAFDM412 uses the EMZO-18XA-250 lens for 18× motorized continuous zoom (0.021X–0.39X), a 250 mm working distance (205–255 mm AF range), 255×145 mm FOV at low mag, and 14.2×8 mm at high mag.
XCamView is built in, allowing direct control of camera panels, measurement toolbar, image adjustment toolbar, and autofocus panel on the touchscreen. It supports HDMI 1.4 (4K/1080p auto switch), USB Video (UVC), and Ethernet; a 5G WiFi adapter via USB enables wireless transmission (AP/STA modes). The system offers robust ISP tools such as sharpening, 3D noise reduction, and ROI white balance, plus SD card/USB local storage with H.264/H.265 video (recording at 30 fps).
TAFDM41X Key Features
Integrated Touch Control
13.3-inch 1080p touch display with touch/mouse dual UI for intuitive control.
Motorized Continuous Zoom
TAFDM411: 20× zoom (0.028X–0.56X); TAFDM412: 18× zoom (0.021X–0.39X).
Auto/Manual Focus
Auto focus, single-shot focus, and manual focus modes with customizable AF area.
Wide FOV Observation
TAFDM411: 200×112.5 mm at low mag; TAFDM412: 255×145 mm at low mag for quick targeting.
Built-In Measurement
Supports calibration, geometric measurements, and CSV export.
Multi-Interface Output
HDMI/USB Video/LAN/WiFi connectivity, ready for multi-camera networking.
ISP Image Processing
Sharpening, 3D noise reduction, ROI white balance, Ultra-Fine color engine, local dynamic range tuning.
Local Capture & Playback
SD card/USB storage for image capture, video recording (H.264/H.265), and on-device playback.
Multi-Language UI
Supports English/Simplified Chinese/Traditional Chinese/Korean/Thai/French/German/Japanese/Italian.
LED Illumination Control
Magnetic LED ring light with camera-controlled brightness for convenience.
TAFDM41X Core Advantages
All-in-One Touch Design
Built-in 13.3-inch touchscreen, plug-and-play without external monitors.
Flexible Dual UI
Switch between touch and mouse interfaces to suit any workflow.
4K Real-Time Output
Sony 1/2.8\" 4K Starvis CMOS for high SNR and crisp image quality.
Wireless Expansion
Supports 5G WiFi adapter with AP/STA modes for wireless deployment.
Multi-Camera Networking
Network multiple cameras over LAN/WiFi with unicast/multicast options.
Cross-Platform Software
Full support across Windows/Linux/macOS/iOS/Android.
Typical Applications
Industrial Inspection
PCB inspection, electronic component checks, solder joint analysis
Medical Observation
Pathology slides, cell culture, tissue sample review
Teaching & Research
Microscopy teaching, experiment data capture, academic studies
Automation Systems
Machine vision integration, inline quality control, smart manufacturing
