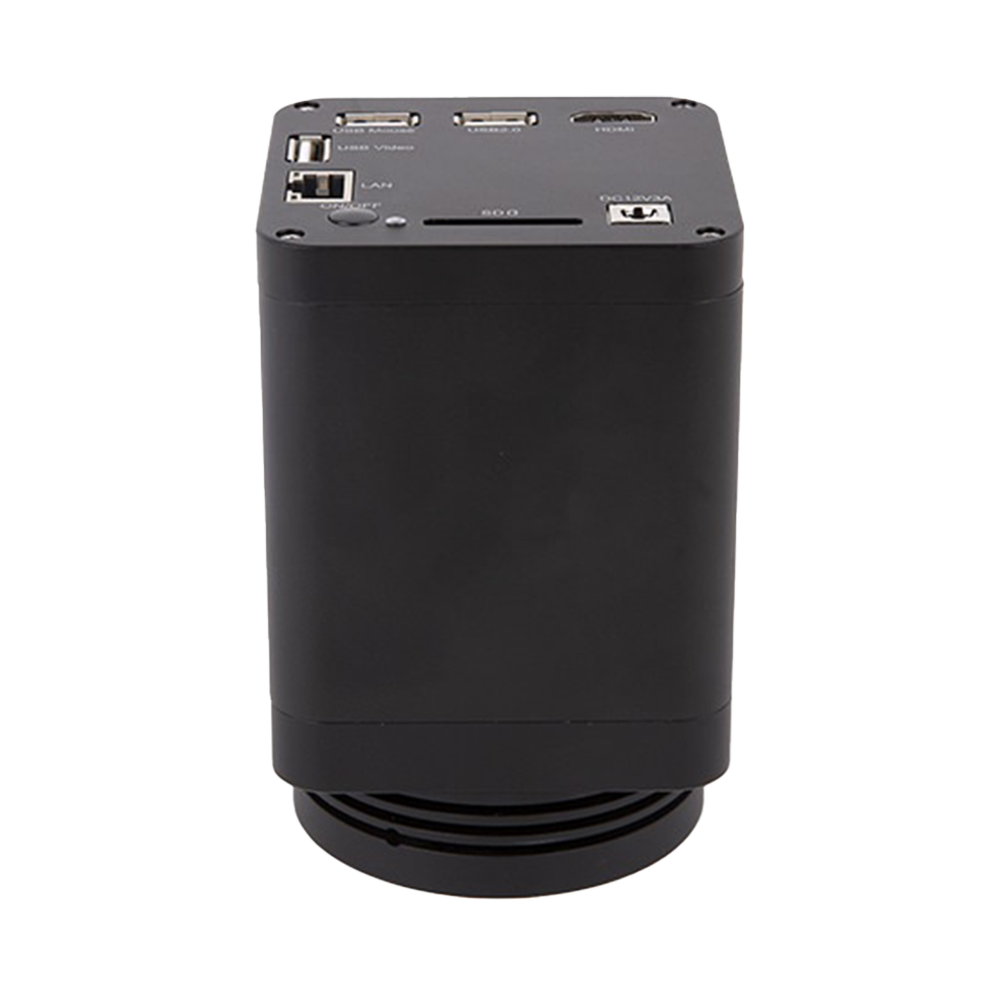

AFDM511A Continuous Zoom Autofocus Digital Microscope
Product Introduction
AFDM511A is a high-performance Continuous Zoom Autofocus Digital Microscope, featuring Sony IMX415LQR-C sensor, providing 20× (0.028X~0.56X) optical zoom, with working distance of 150-195 mm (standard 192 mm).
Product Features
- 4K60 HDMI, USB3.0, NETWORK multi-interface output, Wi-Fi wireless connection
- SD card/USB flash drive capture and playback, supporting RAW images
- Embedded XCamView: autofocus control, measurement toolbar, comprehensive control toolbar
- Motorized zoom control with 5 groups of 16 lens elements, 20× optical zoom, auto/manual focus
- ROI white balance, 3D noise reduction, sharpening; supports automatic photo upload to server
- Supports USB voice control module with voice commands
Product Details
AFDM511A Specifications

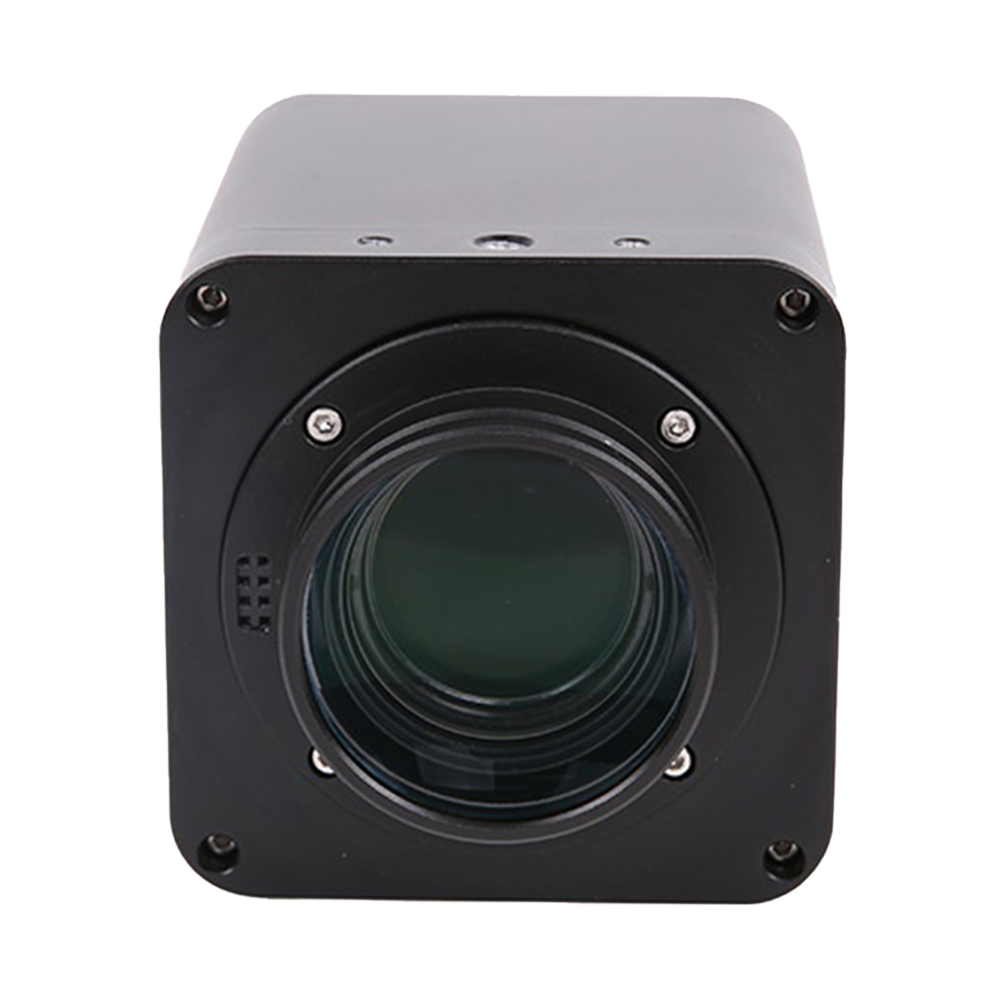

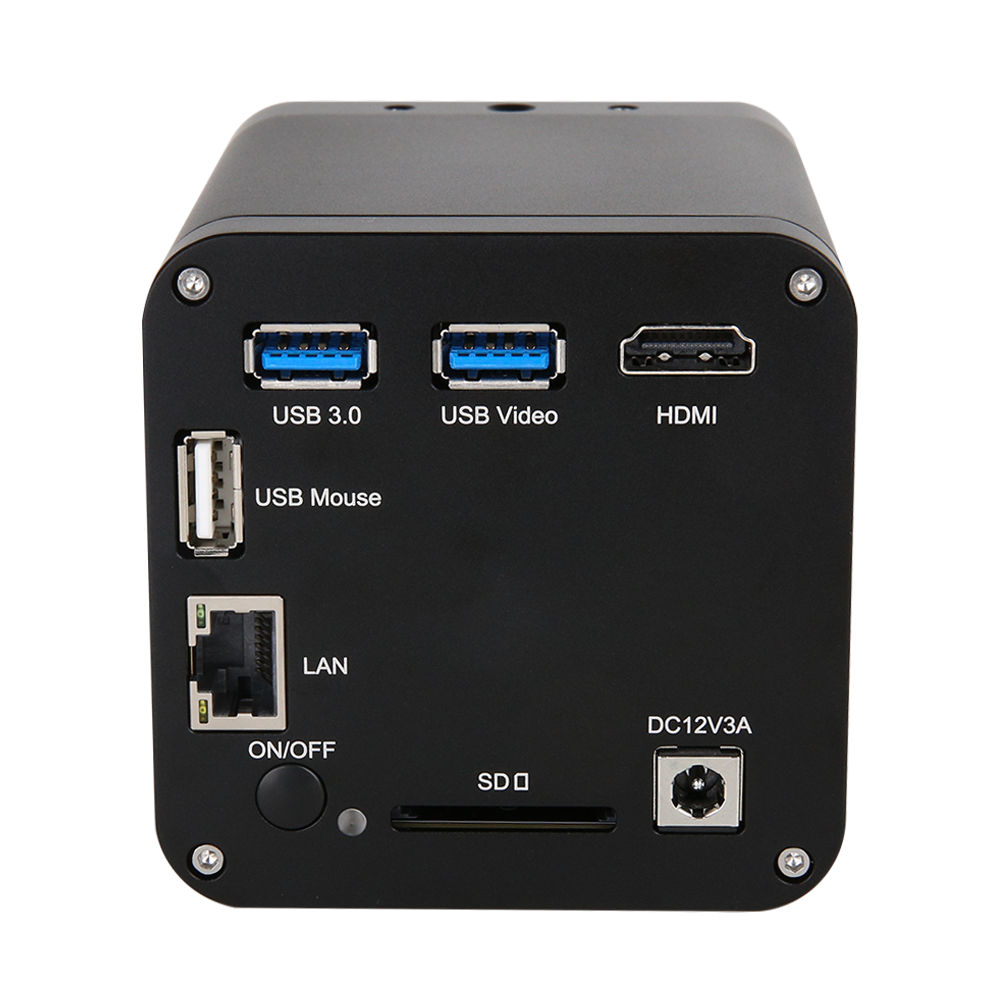

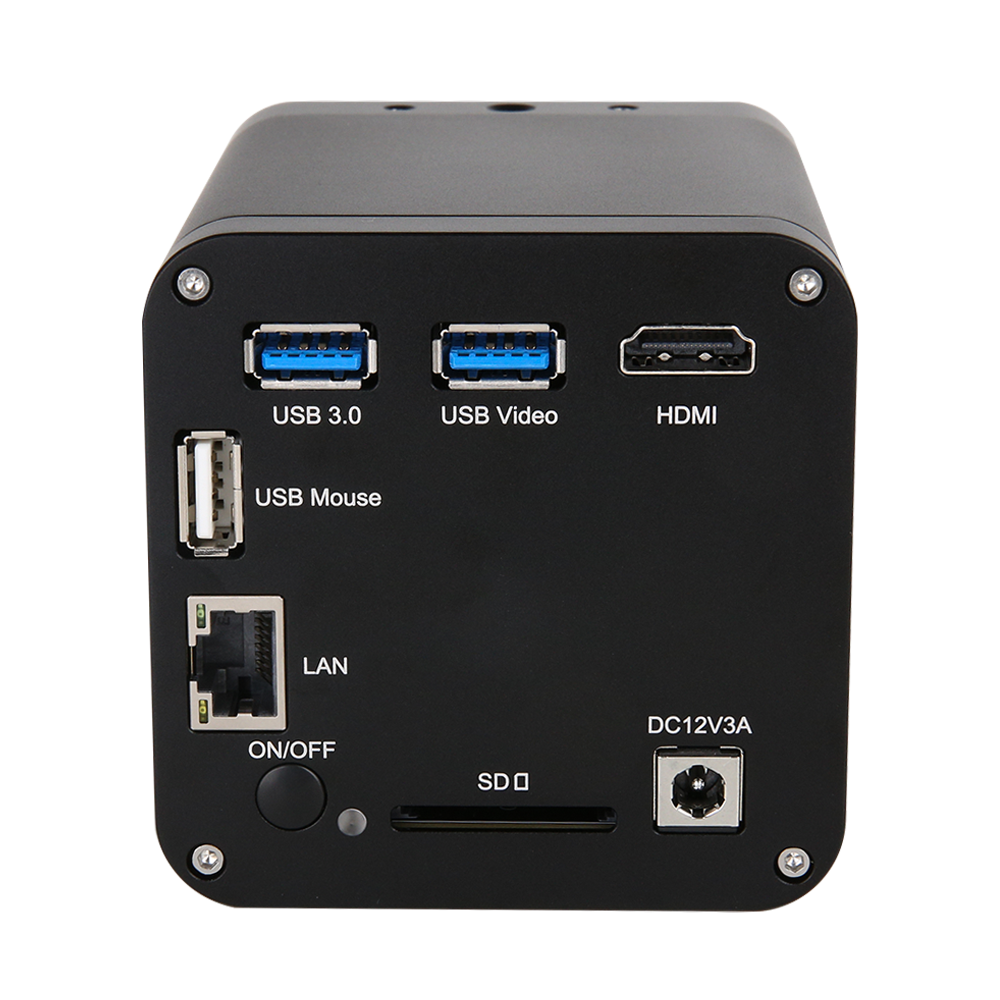

| Key Parameters | |
| Product Model | AFDM511A |
| Product Series | Continuous Zoom Autofocus Digital Microscope |
| Sensor Parameters | |
| Sensor Model | Sony IMX415LQR-C |
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.3 mm |
| Pixel Size | 1.45 µm × 1.45 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Optical Parameters | |
| Lens Type | EMZO-20XA Integrated Lens |
| Optical Zoom | 20× (0.028X~0.56X) |
| Working Distance | 150-195 mm (standard 192 mm) |
| Field of View | Low magnification: 200×112.5 mm, High magnification: 10×5.6 mm |
| Autofocus | Supported |
| Performance Parameters | |
| Frame Rate | HDMI2.0: 60 fps@3840×2160; Video Recording: 60 fps@3840×2160/1920×1080/1280×720; USB3.0: 30 fps@3840×2160, 45 fps@2688×1512, 60 fps@1920×1080; Network: 60 fps@1920×1080 |
| Output Interfaces | HDMI2.0, USB3.0, Ethernet, Wi-Fi |
| Storage Support | SD Card (SDIO3.0), USB Flash Drive |
| Software Support | XCamView, ToupView, ToupLite |
| Physical Parameters | |
| Power Supply | DC 12 V / 3 A |
| Dimensions | 80 × 80 × 122 mm |
| Weight | 0.75 kg |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ +50 °C |
| Storage Temperature | -20 °C ~ +60 °C |
| Operating Humidity | 30~80% RH |
| Storage Humidity | 10~60% RH |
| Other Information | |
| Operating System Support | Windows XP/7/8/10/11 (32/64-bit), Linux, macOS 10.10+, Android 5.1+, iOS 11+ |
| Certification | CE, FCC, RoHS |
Product Overview
AFDM511A is an autofocus continuous zoom digital microscope designed for precision microscopic observation with the following core features:
- Autofocus Technology: Integrated high-precision autofocus system enables fast and accurate focusing within 150-195 mm (standard 192 mm) range, significantly improving operational efficiency
- Continuous Optical Zoom: 20× (0.028X~0.56X) continuous optical zoom with parfocal throughout the zoom process, no refocusing needed from low to high magnification observation
- High-Performance Imaging: Featuring Sony IMX415LQR-C sensor with resolution up to 8MP (3840×2160), ensuring image clarity and color reproduction
- Multiple Interface Outputs: Supports HDMI2.0, USB3.0, Ethernet, Wi-Fi multiple output methods to meet different usage scenarios
- Intelligent Measurement: Built-in measurement calibration information, combined with professional software for precise measurement, depth of field synthesis, image stitching and other advanced functions

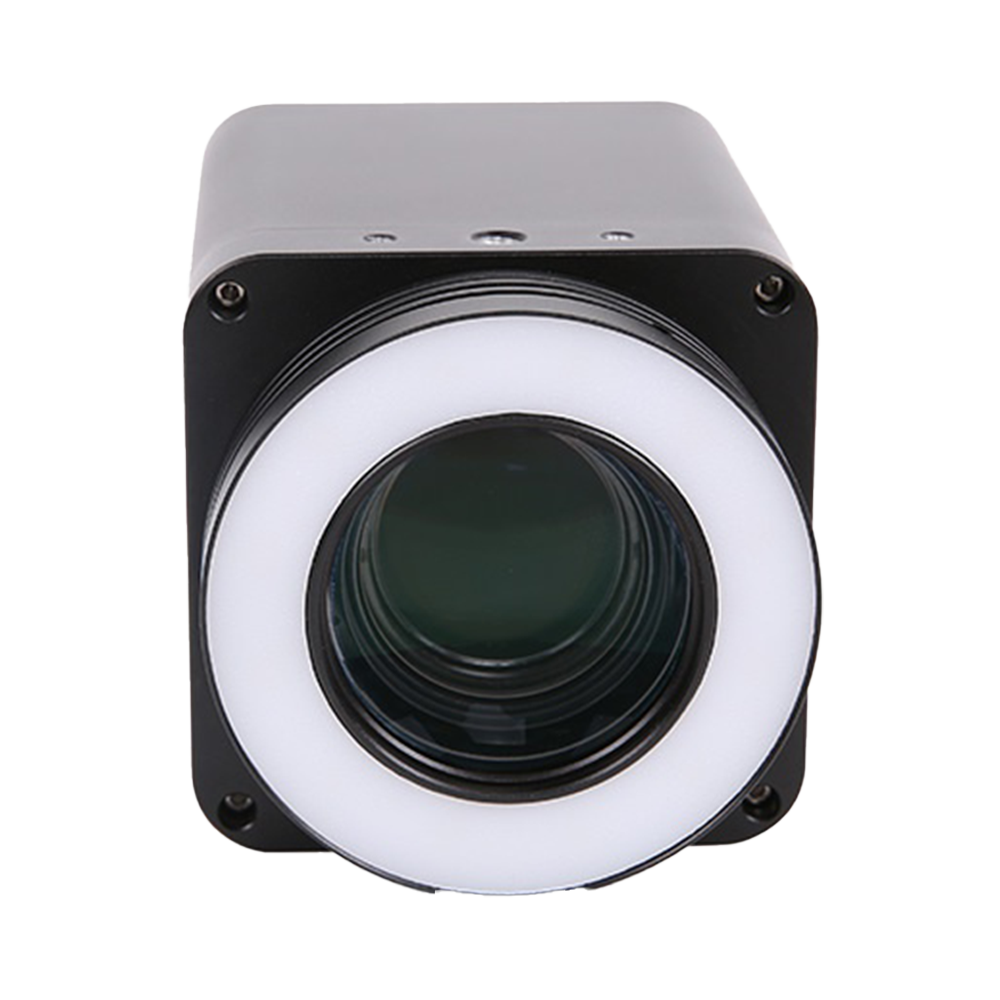

- Integrated LED Lighting: Head-mounted LED ring light with programmable brightness adjustment, providing uniform and stable illumination
- Local Storage Support: Supports SD card and USB storage for direct saving of images and videos with local preview and playback
Core Performance Indicators
Optical Zoom
20× (0.028X~0.56X)
Working Distance
150-195 mm (standard 192 mm)
Field of View
Low magnification: 200×112.5 mm, High magnification: 10×5.6 mm
Resolution
8MP (3840×2160)
Why Choose This Product
AFDM511A with its autofocus technology, continuous optical zoom capability and multiple interface output features, provides an efficient and convenient microscopic imaging solution for industrial inspection, scientific research analysis, teaching demonstration and other applications. The built-in intelligent software functions and flexible configuration options make it an ideal choice for modern digital microscopic observation.
Applications
Industrial Inspection
PCB inspection, electronic component checking, solder joint quality analysis, precision parts measurement, etc.
Medical Observation
Pathological slide observation, cell culture monitoring, tissue sample analysis, clinical diagnosis assistance
Teaching & Research
Teaching & Research
Automation Systems
Automation Systems
Selection Guide
- Touchscreen Requirements: Choose TAFDM511 series, equipped with 13.3-inch touchscreen for more intuitive operation
- High Resolution Requirements: Choose 4K models with "B" suffix (e.g., AFDM511411B, TAFDM511412), supporting 3840×2160 resolution
- Ultra-Long Working Distance: Choose AFDM511512B or AFDM511412B with working distance up to 640 mm
- Advanced Features Requirements: Choose AFDM511512 series, supporting 4K 60 fps output, depth of field synthesis, voice control, etc.
- Economic Choice: Choose AFDM511101 series, providing basic autofocus and continuous zoom functions
Recommended Configurations
| Application Requirements | Recommended Model | Main Advantages | Suitable Scenarios |
|---|---|---|---|
| Teaching Demonstration | TAFDM511411 | Touchscreen operation, 4K output | Classroom teaching, lab demonstration |
| Precision Inspection | AFDM511512A | 4K 60 fps, advanced image processing | Electronic manufacturing, quality control |
| Large Samples | AFDM511512B | Ultra-long working distance 640 mm | Large workpiece inspection |
| Basic Observation | AFDM511101A | High cost-performance, complete functions | Routine inspection, basic research |
AFDM511A Product Manual
PDF covering configuration guidance, autofocus calibration, and maintenance tips.
Software & Firmware
Get the latest XCamView, ToupView, and firmware packages.
Optics & Fixture Guide
Request adapter lists, lighting recommendations, and turnkey configurations.
AFDM511 Auto-Focus Digital Microscope | Package Contents #

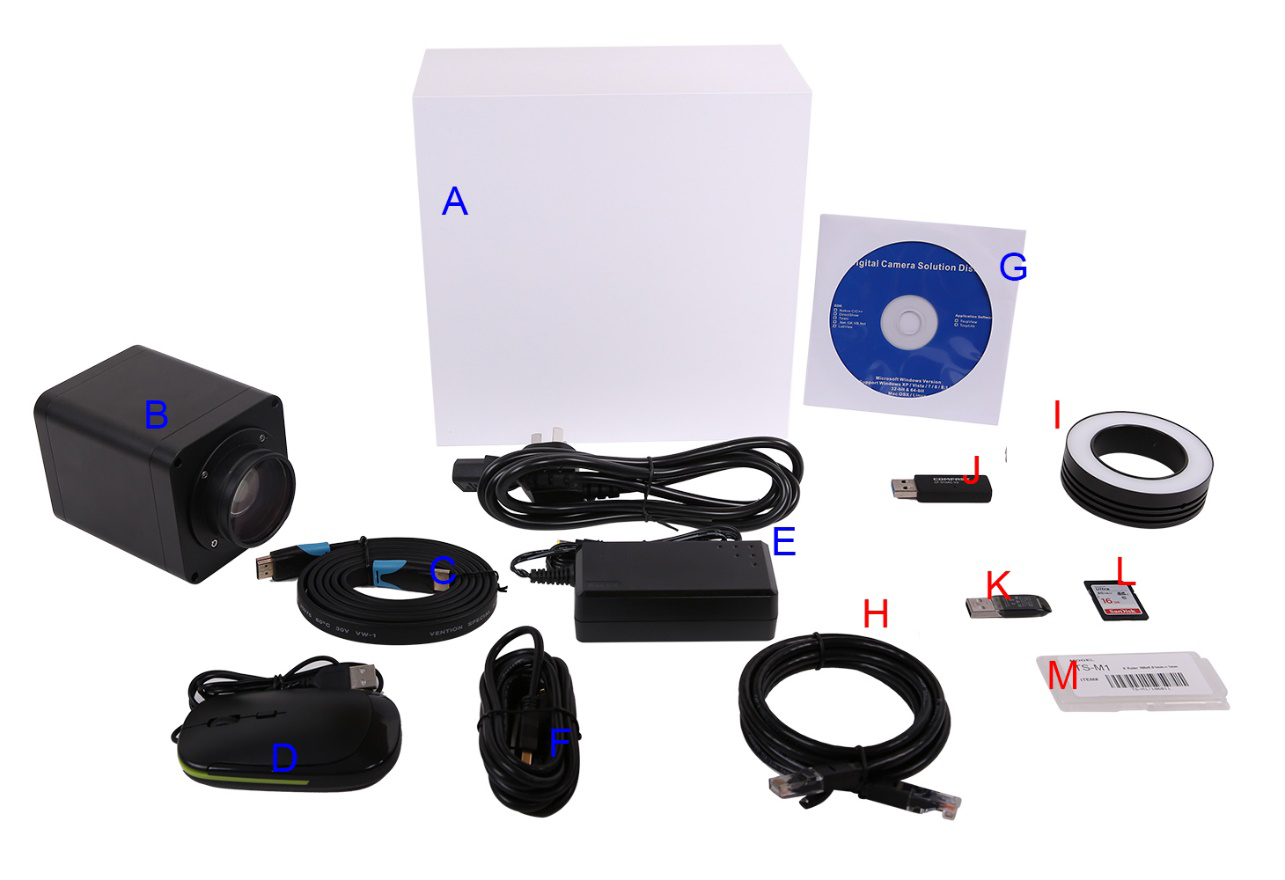

Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM511 series auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, includes CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F High-speed USB 3.0 Type-A to Type-A gold-plated cable (1.5 m)
- G Drivers and application media (CD / bundled USB flash drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB flash drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M USB audio control module
- N Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
AFDM511 Auto-Focus Digital Microscope | Product Dimensions #
Enclosure dimensions and environmental indicators

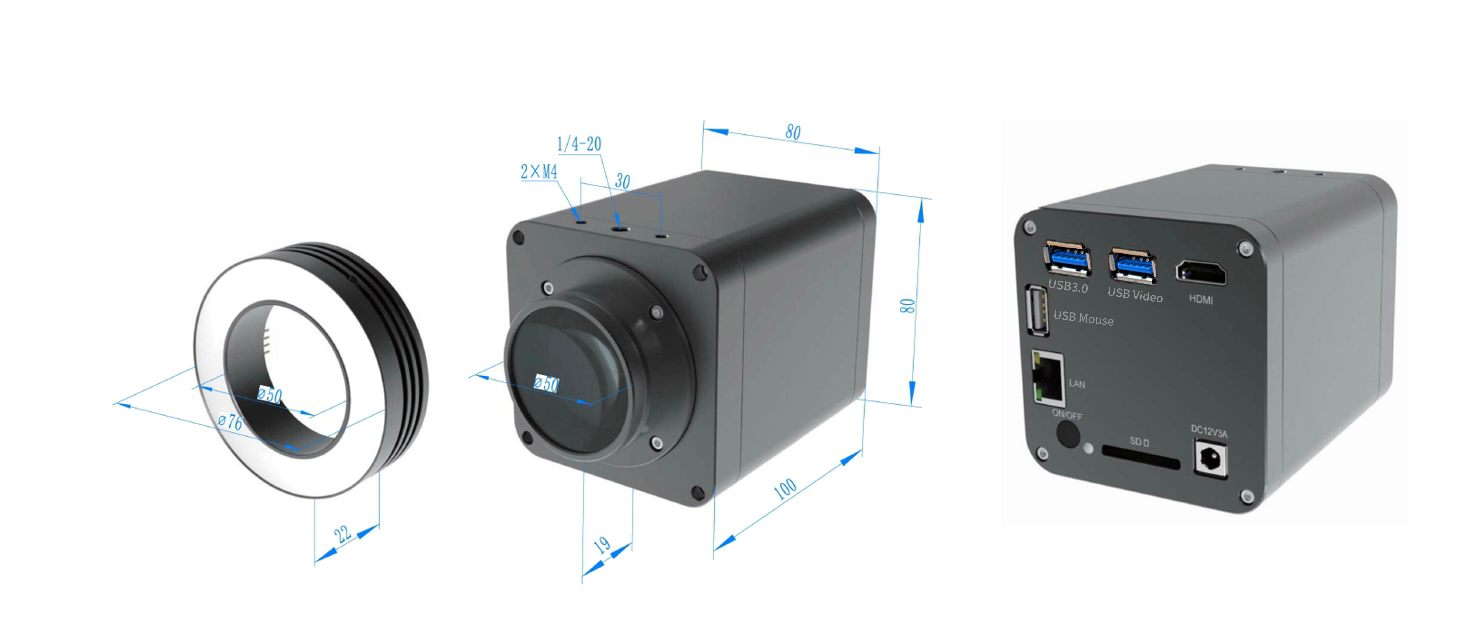

Housing 80 × 80 × 122 mm, see Fig. 3-18
Confirm mounting hole positions and connector orientation with the dimension diagram before installation.
AFDM511 In-Depth Overview
The AFDM511 series integrates a Sony IMX415 STARVIS back-illuminated CMOS sensor (1/2.8") with native 4K (3840×2160) resolution. HDMI 2.0 delivers low-latency 4K @ 60 fps display (typical latency about 40 ms). A 20× motorized continuous zoom lens and auto/manual focus are built in, together with the XCamView control and measurement software.
AFDM511 provides a standard working distance of 192 mm (effective auto-focus range approximately 150 to 195 mm). Within this range, the field of view spans 200 × 112.5 mm at low magnification and 10 × 5.6 mm at high magnification, covering rapid positioning and detailed inspection. Output interfaces include HDMI 2.0, USB 3.0 (USB Video captured via ToupView) and Ethernet (ToupView network transmission), with optional USB 5G Wi-Fi adapters for wireless streaming.
Feature highlights include real-time depth-of-field fusion, real-time image stitching, RAW capture, H.264 recording (4K storage frame rate up to 60 fps), automatic upload of captured images, and USB audio control module voice commands (capture/record/freeze), enabling efficient workflows across inspection, teaching and automation scenarios.
AFDM511 Key Functions
4K Low-Latency Display (HDMI)
HDMI 2.0 4K @ 60 fps with typical latency around 40 ms for smooth real-time operation.
20× Motorized Zoom
0.028×–0.56× continuous optical zoom with auto/manual focus and focus-plus-depth fusion modes.
STARVIS Sensor
Sony IMX415 (1/2.8", 8 MP) delivers sharp imaging with excellent signal-to-noise performance.
Voice Control (USB audio module)
Supports capture, record and freeze commands through the USB audio control module.
Real-Time Depth Fusion
Real-time video depth-of-field fusion plus multi-image depth stacking to enhance clarity.
Real-Time Image Stitching
Live processing with seamless stitching to generate larger high-quality fields of view.
Measurement and Calibration
Built-in measurement toolbar with calibration data (1–20×) for geometric measurement and data export.
Open SDK
Multi-platform SDK for Windows/Linux/macOS/Android (C/C++, C#/VB.NET, Python, Java, etc.).
Recording and Upload
Supports H.264 4K recording with automatic upload of captured files and local SD/USB playback.
Multi-Interface and Wireless Expansion
HDMI/USB 3.0/LAN outputs with optional 5G Wi-Fi adapter for wireless streaming via ToupView.
AFDM511 Core Advantages
Low-Latency Monitoring
HDMI 4K @ 60 fps with ~40 ms latency for responsive operation.
Wide Magnification Coverage
20× motorized zoom with auto/manual focus balances quick positioning and detailed observation.
Advanced Imaging
Real-time depth fusion, live stitching, 3D noise reduction and ROI white balance keep images clear.
Versatile Connectivity
HDMI/USB/LAN integration with wireless expansion and automatic file upload support.
Effortless Measurement
Built-in calibration and measurement tools deliver ready-to-use geometric measurement and data export.
Easy Integration
Cross-platform, multi-language SDK simplifies integration with existing systems.
