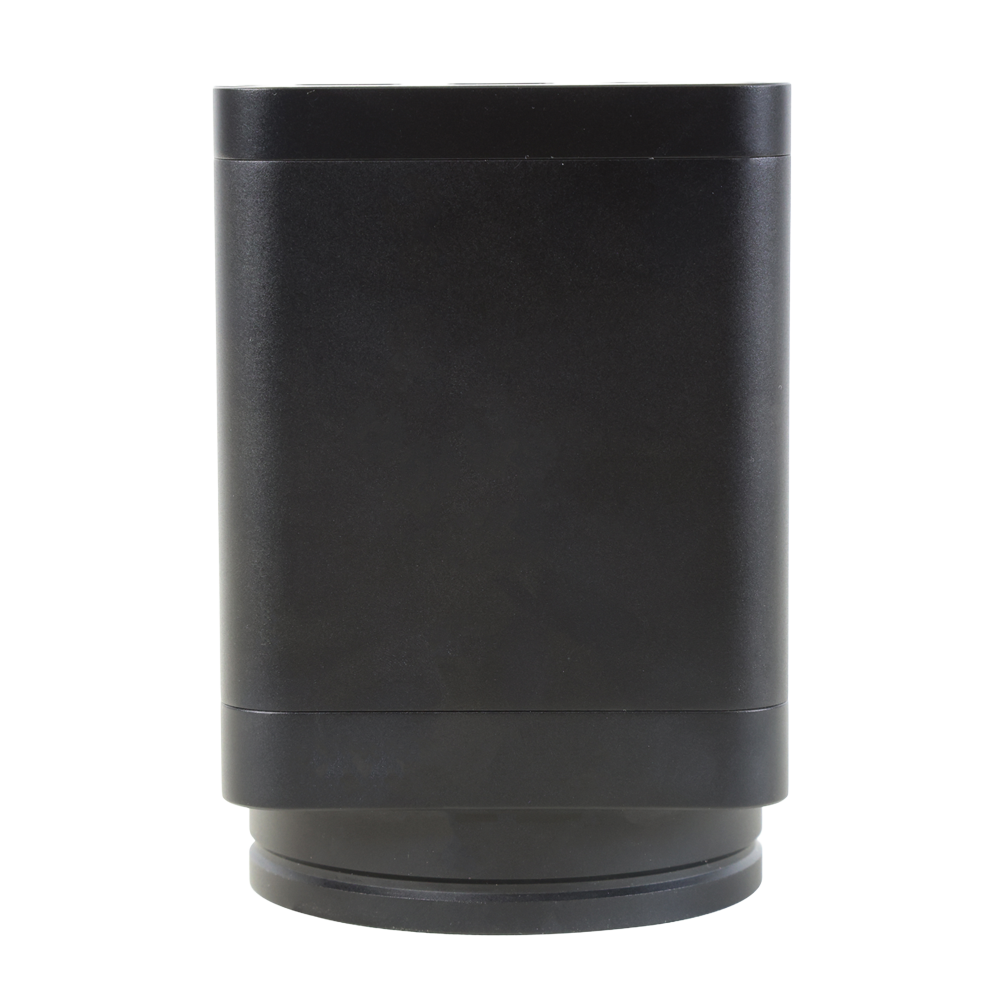

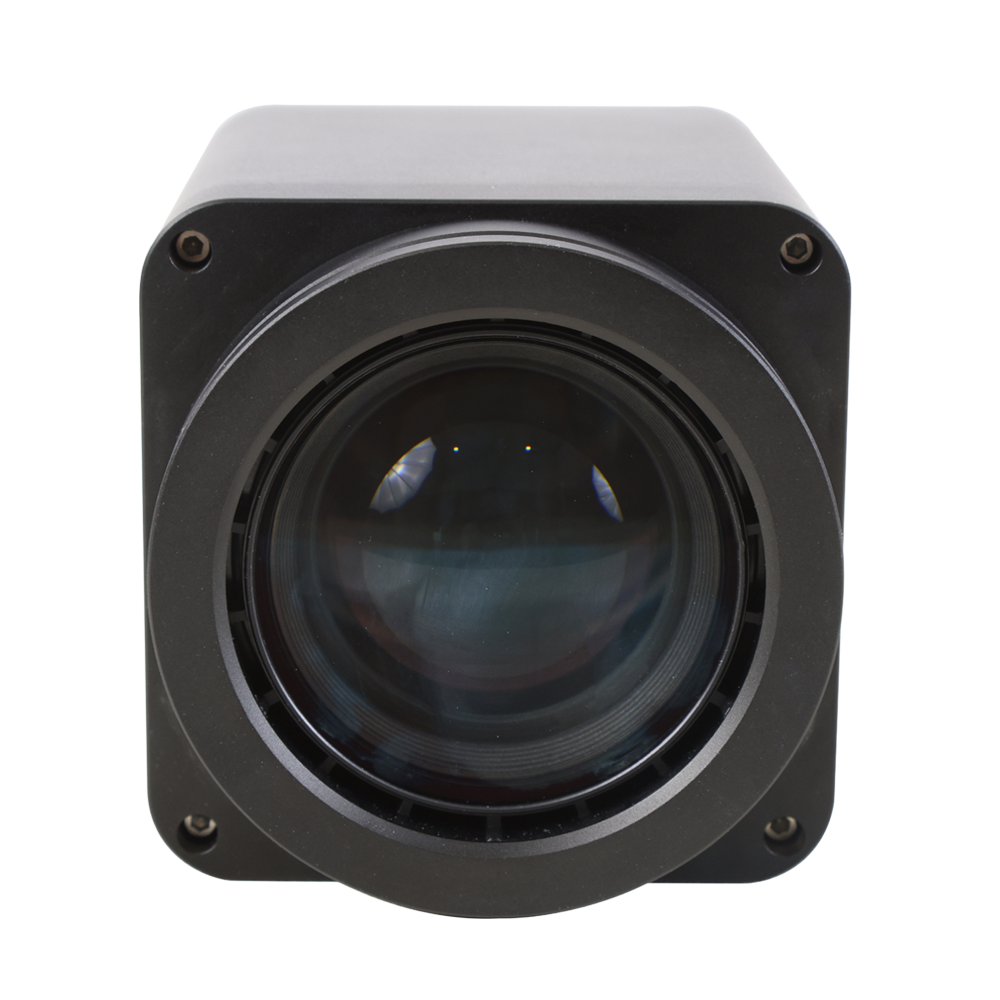

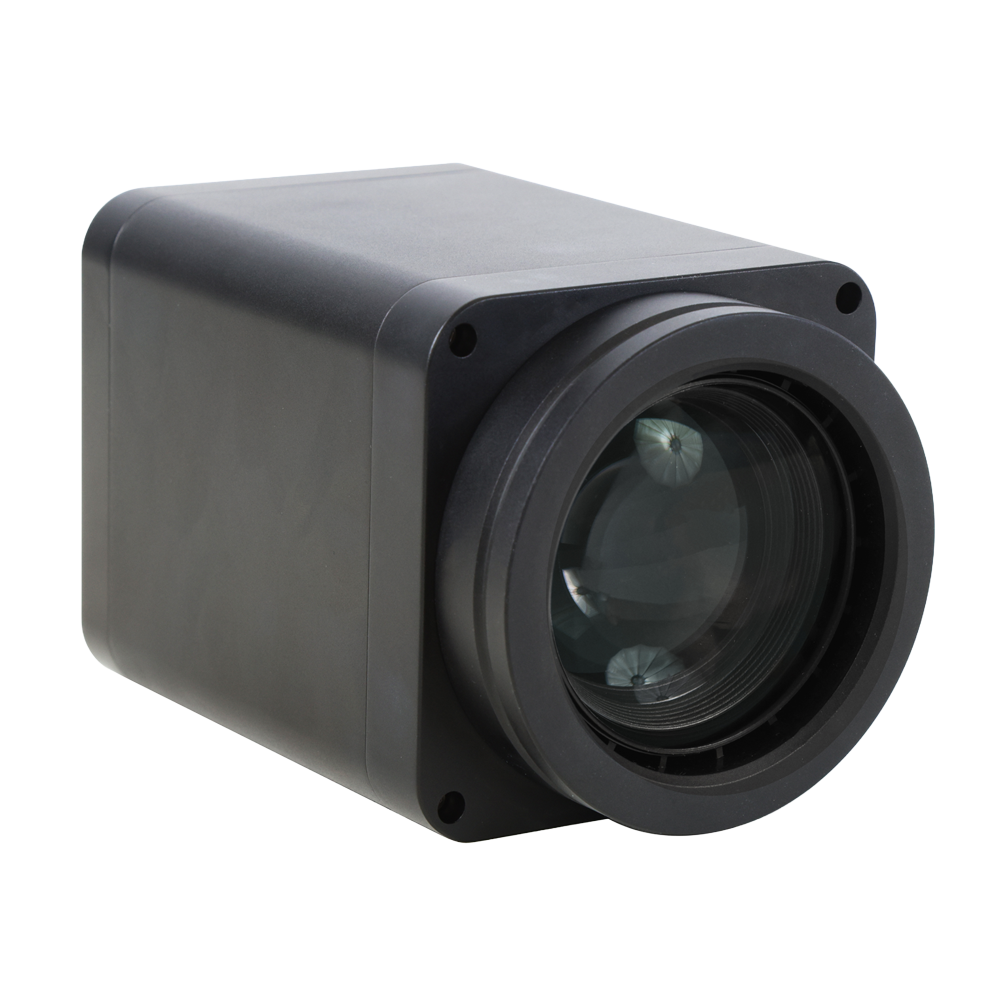

AFDM434
Product Introduction
AFDM is a series of electrically controlled continuous-zoom and autofocus all-in-one digital microscopes with a large field of view by ToupTek Photonics. It is integrated with an HDMI camera and an electrically controlled continuous-zoom autofocus objective. AFDM is the abbreviation of Autofocus Digital Microscope. Different products in the AFDM series can be formed with different parts to satisfy the application requirement.
AFDM can be assembled with various brackets or arms and offers a continuous zooming ratio with different lenses. AFDM also supports autofocus mode and manual focus mode. AFDM comes with a high-performance Sony CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has XCamView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse.
The images and videos captured by AFDM can be saved on a USB flash drive for on-site analysis and follow-up research. AFDM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation systems and other fields.
AFDM434 supports HDMI/NETWORK/USB control and video output (ToupView). The frame rate of the output is 4K/30 fps, and the focal length range is 5.1 mm–91.9 mm. It also supports electric zoom and autofocusing. AFDM434 supports a handset, enabling electric zoom, autofocus, manual focus and image flip functions to meet remote adjustment and snap control requirements.
Product Features
- 5 groups, 11 elements, 14 lenses EMZO with 5.1 mm–91.9 mm focal length range; supports auto and manual focus
- Working distance: 260–1000 mm
- Sony IMX715 1/2.8-inch 4K STARVIS CMOS with high signal-to-noise ratio
- 4K HDMI/NETWORK/USB multiple video outputs
- 4K/1080P auto switching according to monitor resolution
- USB flash drive for captured image and video storage; supports local preview and playback
- Supports handset for snap, video recording, autofocus and image flip operations
- Built-in mouse control software XCamView; all functions can be realized with a USB mouse
- Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar and AF Control Panel
- Excellent ISP with local tone mapping and 3D denoising
- ToupView/ToupLite software for PC
- iOS/Android applications for smartphones or tablets
- With the adapter bracket of 76 mm diameter, an electrically controlled continuous-zoom AFDM can be built
AFDM434 Lens Module Specifications
| Lens Code | EMZO-18XA-1000 |
|---|---|
| Optical Zoom | 18X |
| Working Distance | 260 mm ~ 1000 mm |
| Focal Length | 5.1 mm ~ 91.9 mm |
| TV Distortion | -1.54% (wide); -0.05% (tele) |
| Projection Resolution | Wide: 240 lp/mm (center), 200 lp/mm (0.8 field); tele: 200 lp/mm (center), 170 lp/mm (0.8 field) |
| Field of View | 260 mm WD: 332×181 mm (1X), 37.5×26 mm (18X); 1000 mm WD: 1235×684 mm (1X), 115×65 mm (18X) |
1X and 18X are defined by the relative focal length: 1X corresponds to 5.1 mm and 18X to 91.9 mm.
Models
| Model | Sensor | Resolution | Frame Rate | Interface | Sensor Size | Pixel Size | Lens Mount | Storage | Exposure Time |
|---|---|---|---|---|---|---|---|---|---|
| AFDM434 | Sony IMX715 (C) | 8 MP (3840×2160) | 30 fps @ 3840×2160 | HDMI1.4; USB2.0; NETWORK | 1/2.8" (5.57×3.13 mm) | 1.45 µm × 1.45 µm | EMZO-18XA-1000 | USB flash drive | 0.04 ms ~ 1000 ms |
Detailed Introduction
Specifications
| General Information | |
| Color Type | Color |
|---|---|
| Sensor Parameters | |
| Sensor Model | Sony IMX715 (C) |
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Pixel Size | 1.45 µm × 1.45 µm |
| Resolution | 8 MP (3840×2160) |
| G Sensitivity | 348 mV @ 1/30 s |
| Dark Current | 0.13 mV @ 1/30 s |
| Output & Performance | |
| Frame Rate | 30 fps @ 3840×2160 |
| Exposure Time | 0.04 ms ~ 1000 ms |
| Output Interfaces | HDMI1.4; USB2.0; NETWORK |
| Sampling / Binning | 1×1 |
| Storage | USB flash drive |
| Sensor Output | 30 fps @ 3840×2160 |
| Video Recording | 30 fps @ 3840×2160 |
| HDMI Output | 30 fps @ 3840×2160; 30 fps @ 1920×1080 |
| USB Output | 30 fps @ 3840×2160; 30 fps @ 2688×1512; 30 fps @ 1920×1080 |
| Network Output | 30 fps @ 1920×1080 |
| Physical & Environmental | |
| Power Supply | DC 12 V / 1 A |
| Dimensions | 80 mm × 80 mm × 118 mm |
| Weight | 0.75 kg (shipping weight) |
| Operating Temperature | -10 °C ~ +50 °C |
| Storage Temperature | -20 °C ~ +60 °C |
| Operating Humidity | 30%–80% RH |
| Storage Humidity | 10%–60% RH |
| Software & Compatibility | |
| Software | XCamView; ToupView; ToupLite |
Detailed Introduction
Product composition and remote control

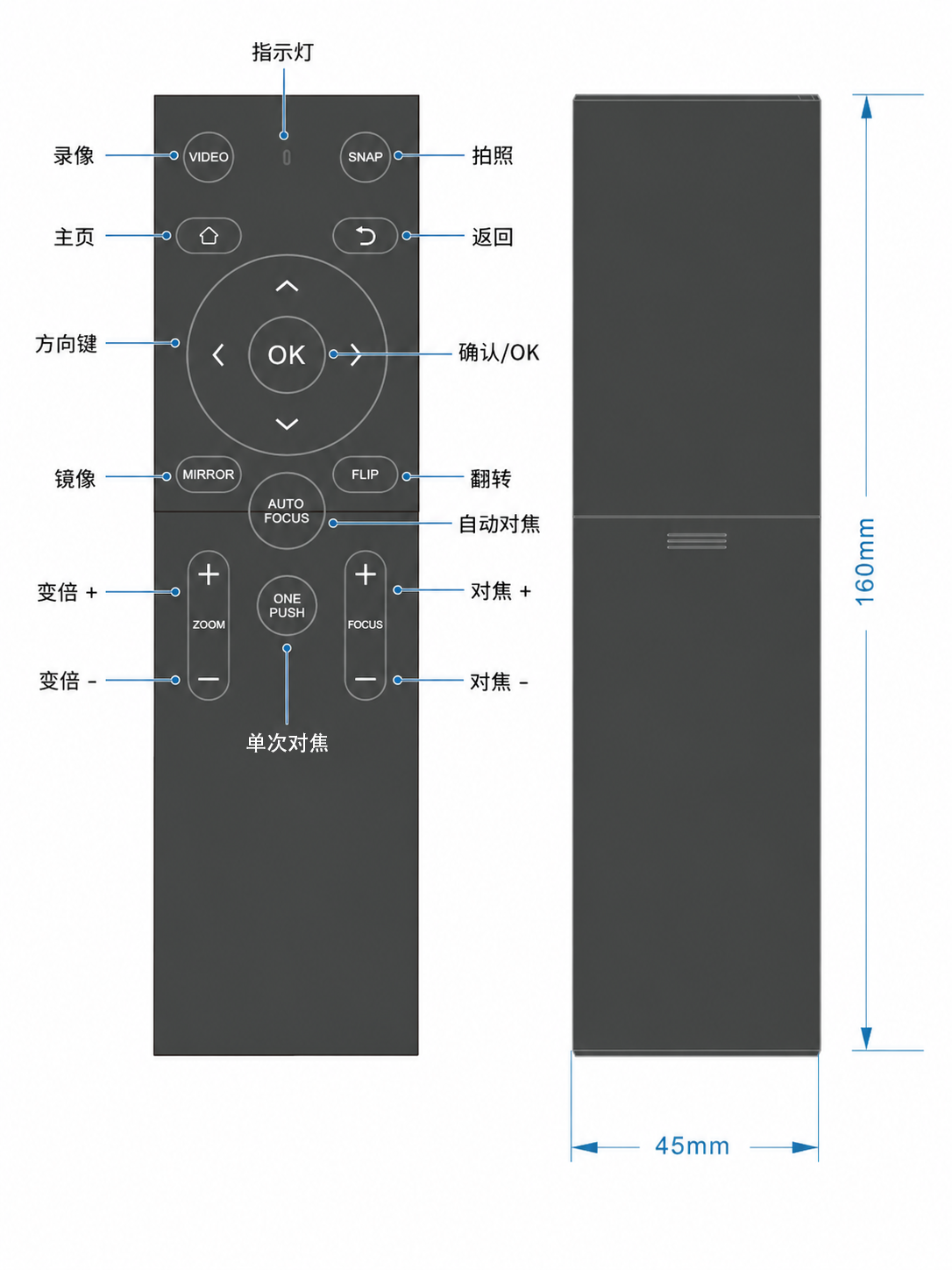

AFDM434 consists of the H4KPA camera and EMZO-18XA-1000 lens. The supplied handset controls focal length, autofocus, manual focus, image flip, capture and recording from a distance.
Continuous zoom and focusing
The optical system covers 5.1–91.9 mm focal length and a 260–1000 mm working-distance range. Autofocus, one-push focus and manual focus are available through XCamView or the handset.
Storage and XCamView
Images and H.264 MP4 videos can be stored on a USB flash drive with local preview and playback. XCamView provides camera controls, measurement tools, autofocus controls and image processing through a USB mouse.
Computer and network operation

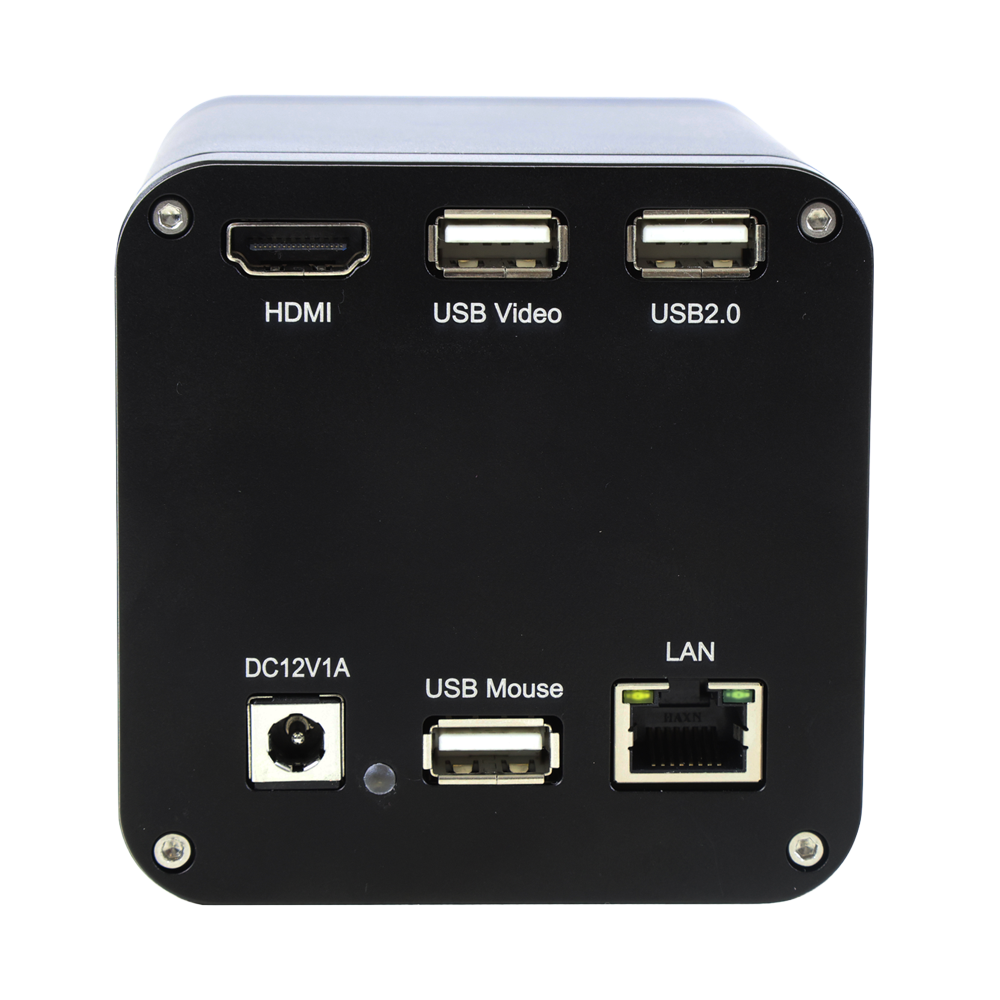

USB Video and LAN provide video to ToupView/ToupLite. HDMI1.4 supplies 4K/1080P output and automatically switches according to the connected monitor.
USB connection and computer software
When the camera is connected to a computer through USB Video, mouse operation on the camera in HDMI mode is unavailable. Disconnect the USB Video cable to use the camera mouse. ToupView supports Windows 8/10/11 (32/64-bit); ToupLite supports macOS 10.10 or later and Linux distributions with kernel 2.6.27 or later.
Product Features
5 groups, 11 elements, 14 lenses EMZO with 5.1 mm–91.9 mm focal length range; supports auto and manual focus
Working distance: 260–1000 mm
Sony IMX715 1/2.8-inch 4K STARVIS CMOS with high signal-to-noise ratio
4K HDMI/NETWORK/USB multiple video outputs
4K/1080P auto switching according to monitor resolution
USB flash drive for captured image and video storage; supports local preview and playback
Supports handset for snap, video recording, autofocus and image flip operations
Built-in mouse control software XCamView; all functions can be realized with a USB mouse
Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar and AF Control Panel
Excellent ISP with local tone mapping and 3D denoising
ToupView/ToupLite software for PC
iOS/Android applications for smartphones or tablets
With the adapter bracket of 76 mm diameter, an electrically controlled continuous-zoom AFDM can be built
Industrial inspection
Medical observation
Teaching and research
Automation systems

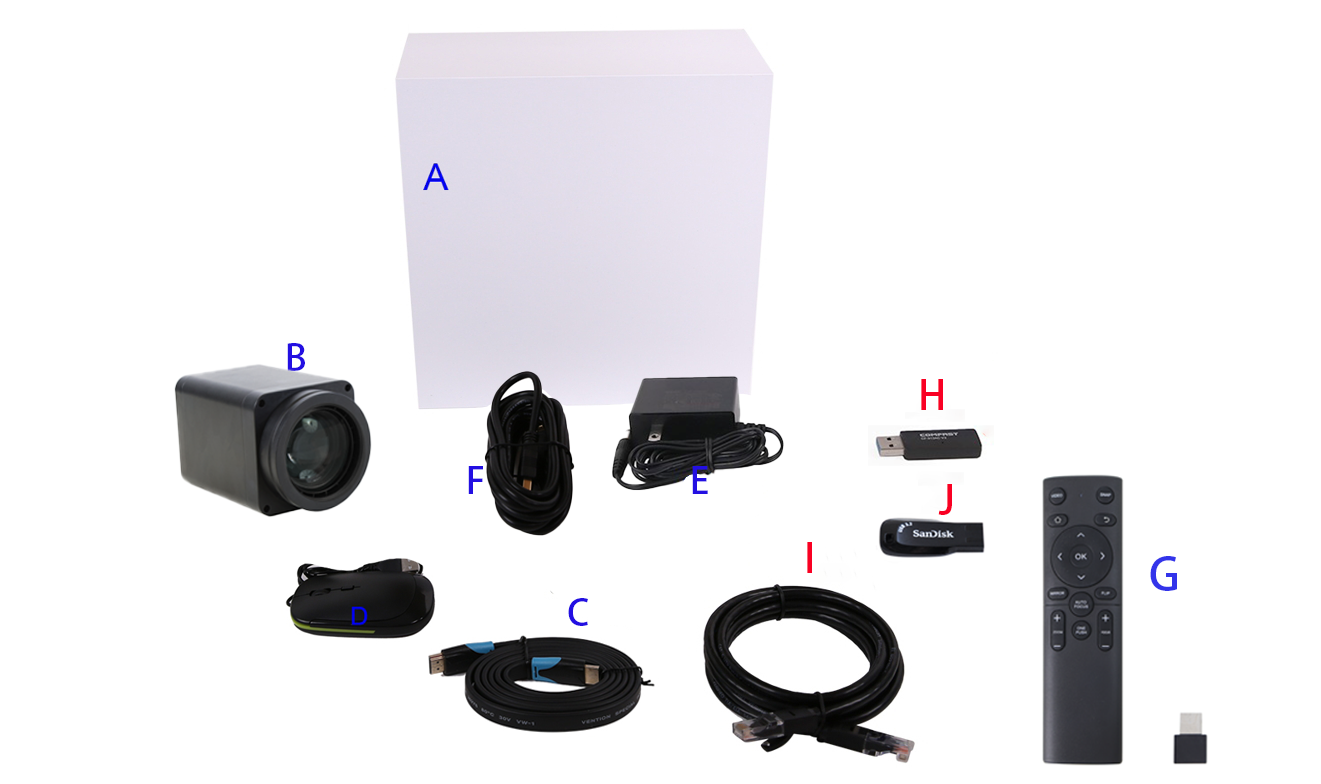

Package Contents#
Standard Package
- AGift box
- BAFDM434 digital microscope
- CHDMI cable
- DUSB mouse
- EPower adapter: Input AC 100–240 V, 50/60 Hz; Output DC 12 V / 1 A
American standard: POWER-U-12V1A (MSA-C1000IC12.0-12W-US) — UL/CE/FCC
European standard: POWER-E-12V1A (MSA-C10001C12.0-12W-DE) — UL/CE/FCC
British standard: POWER-UK-12V1A (NGE12I12-P1J) - F2.0 m USB2.0 Type-A male to Type-A male cable

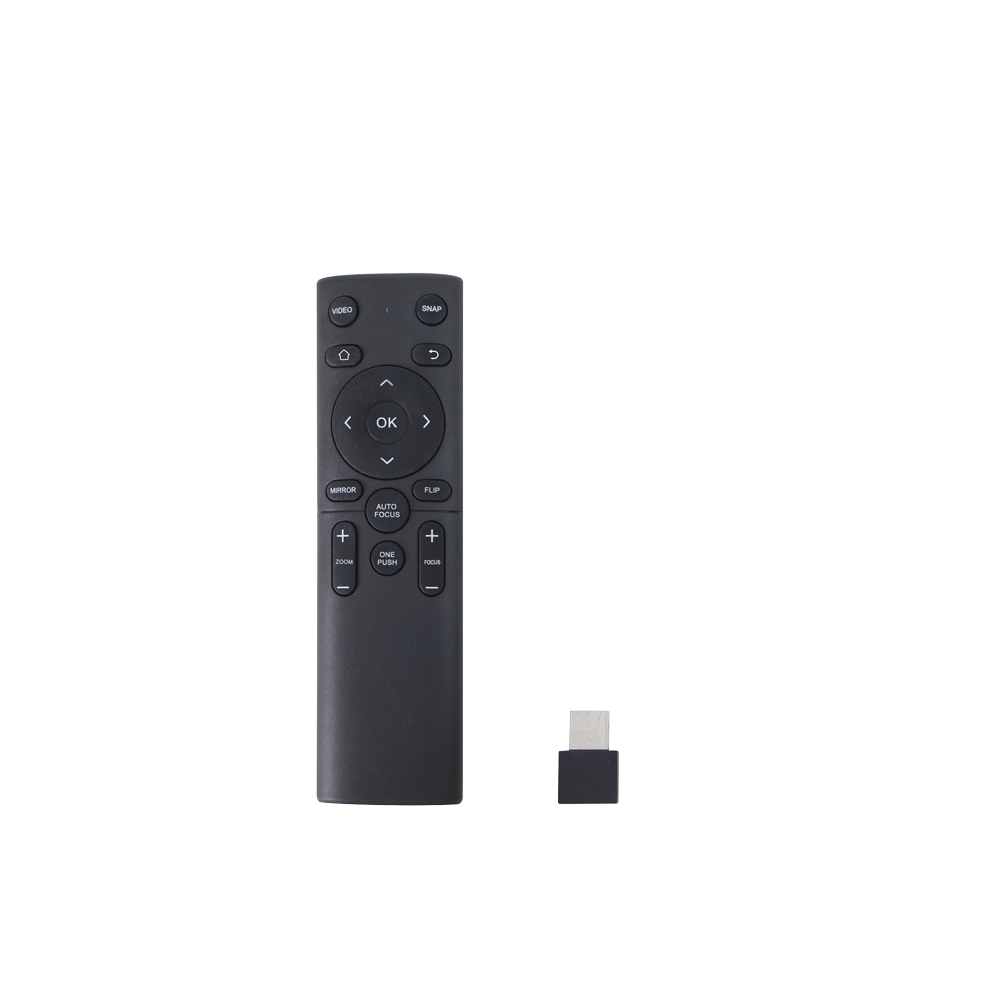

- GHandset
Optional Accessories
- H USB Wi-Fi adapter
- I Ethernet cable
- J USB flash drive

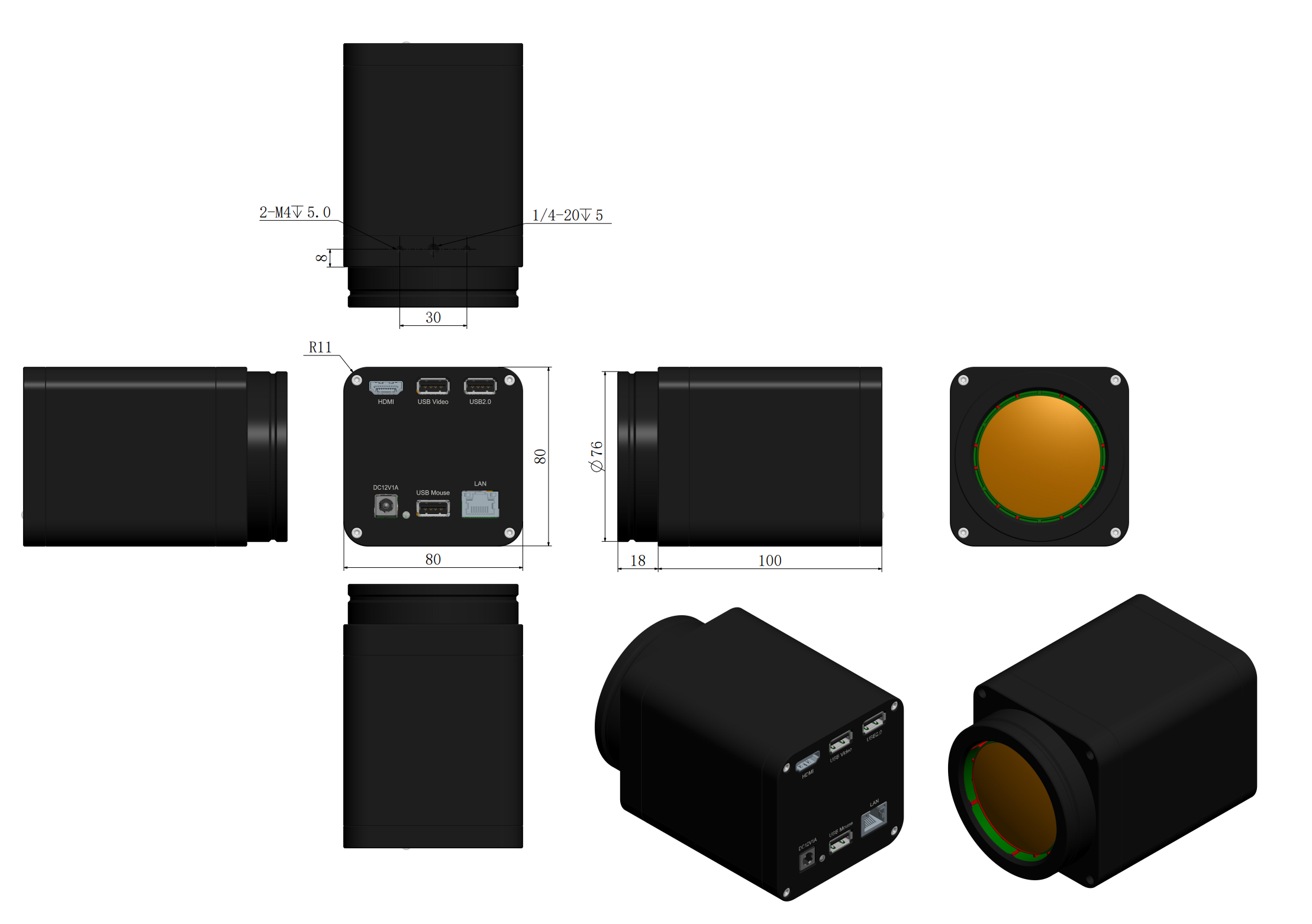

Dimensions
Dimensions
