TAFDM412 Digitalmikroskop mit kontinuierlichem Zoom und Autofokus
Product Introduction
TAFDM412 is a high-performance Digitalmikroskop mit kontinuierlichem Zoom und Autofokus, featuring Sony IMX415LQR-C sensor, providing 18-fach (0,021× – 0,39×) optical zoom, with working distance of 205 – 255 mm (Standard 250 mm). Equipped with a 13.3-inch HD touchscreen, supporting both touch operation and mouse interface.
Product Features
- 18-facher optischer Zoom, Auto-/Manuellfokus
- Standard-Messarbeitsabstand 250 mm, 205 – 255 mm Bereich mit Autofokus für klare Beobachtung
- Niedrige Vergrößerung 255×145 mm für schnelle Positionierung, hohe Vergrößerung 14,2×8,0 mm für mikroskopische Beobachtung
- Sony IMX415 1/2.8" 4K Starvis CMOS, hohes Signal-Rausch-Verhältnis
- 4K HDMI/USB/NETWORK Mehrfachschnittstellenausgabe, HDMI adaptiv 4K/1080P
- Videokodierung H.264/H.265 wählbar, lokale Speicherung 30 fps
- SD-Karte/USB-Speicherstick Speicherung und Wiedergabe, integriertes XCamView Mess- und Steuerungssystem
Product Details
TAFDM412 Specifications
| Key Parameters | |
| Product Model | TAFDM412 |
| Product Series | Digitalmikroskop mit kontinuierlichem Zoom und Autofokus |
| Sensor Parameters | |
| Sensor Model | Sony IMX415LQR-C |
| Sensor Size | 1/2.8" (5.57×3.13mm) |
| Diagonal | 6.4mm |
| Pixel Size | 1.45μm × 1.45μm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Farbe |
| Optical Parameters | |
| Lens Type | EMZO-18XA-250 integriertes Objektiv |
| Optical Zoom | 18-fach (0,021× – 0,39×) |
| Working Distance | 205 – 255 mm (Standard 250 mm) |
| Field of View | Niedrige Vergrößerung: 255×145 mm, Hohe Vergrößerung: 14,2×8,0 mm |
| Autofocus | Supported |
| Performance Parameters | |
| Frame Rate | HDMI/USB/Network: 30fps@3840×2160 |

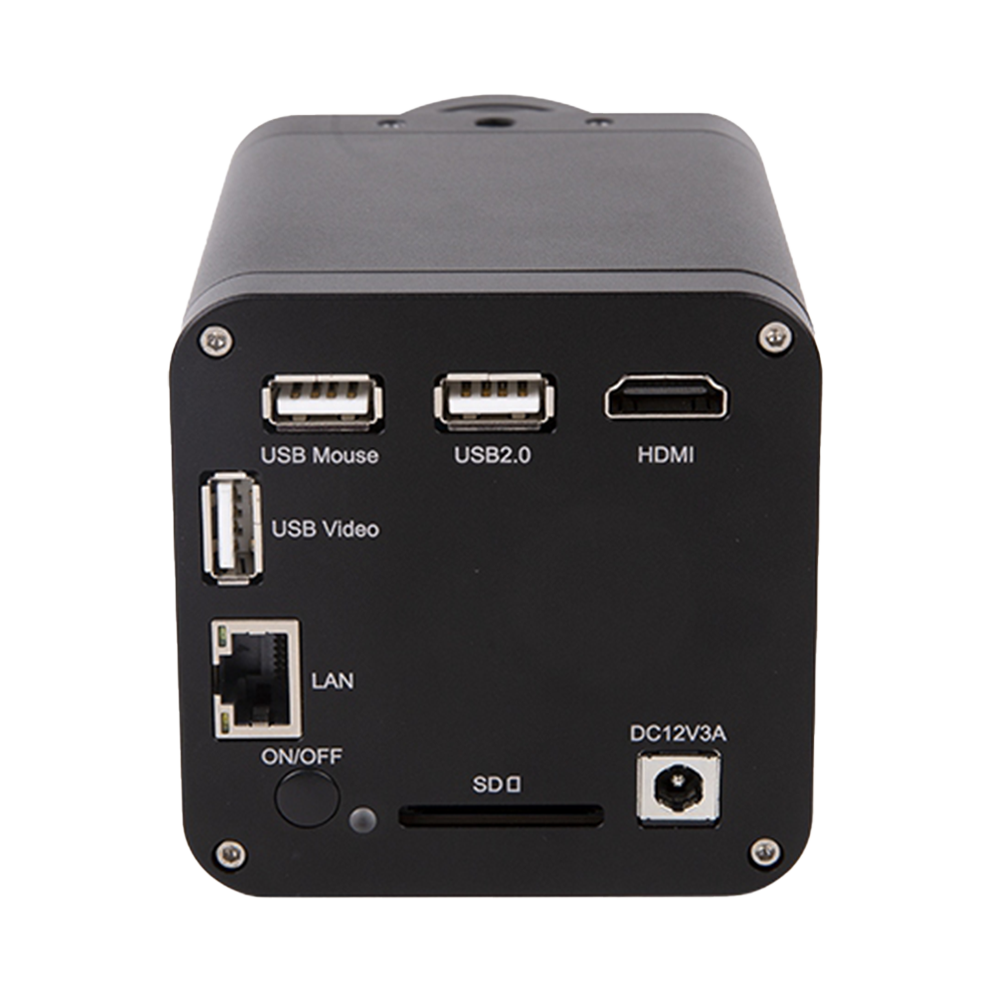

| Output Interfaces | HDMI1.4, USB Video, LAN, Wi-Fi, 13,3-Zoll-Touchscreen |
| Storage Support | SD-Karte, USB-Stick |
| Software Support | XCamView, ToupView, ToupLite |
| Physical Parameters | |
| Power Supply | DC 12V/3A |

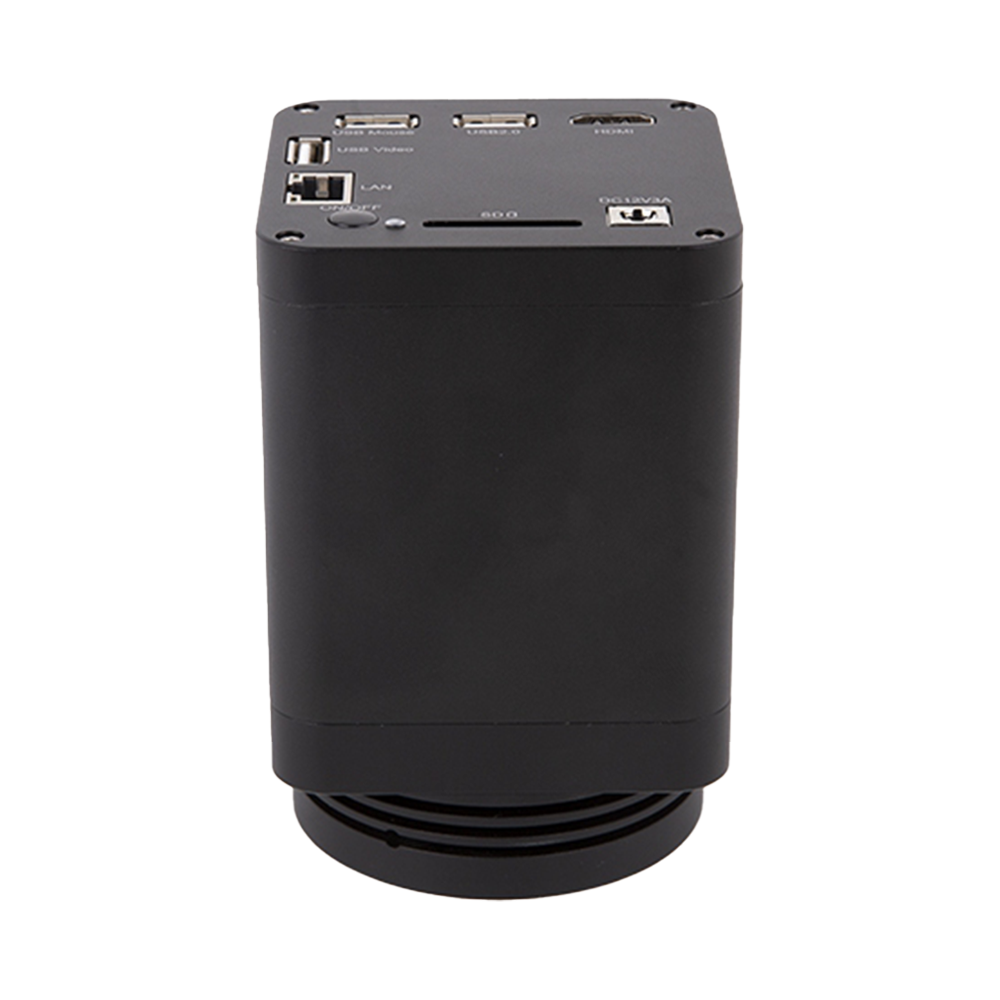

| External Dimensions | 80 × 80 × 122mm |
| Weight | 0.75kg |
| Environmental Parameters | |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Other Information | |
| Operating System Support | Windows, Linux, macOS, Android, iOS |
| Certification | CE, FCC, UL |
Product Overview
TAFDM412 is an autofocus continuous zoom digital microscope designed specifically for precision microscopic observation, featuring the following core characteristics:
- Autofocus Technology: Integrated high-precision autofocus system, achieving fast and accurate focusing within 205 – 255 mm (Standard 250 mm) range, significantly improving operational efficiency
- Continuous Optical Zoom: 18-fach (0,021× – 0,39×) continuous optical zoom with complete parfocal throughout zoom process, no refocusing required from low to high magnification observation
- High-Performance Imaging: Utilizing Sony IMX415LQR-C sensor with resolution up to 8MP (3840×2160) , ensuring image clarity and color reproduction
- Multiple Interface Output: Supports HDMI1.4, USB Video, LAN, Wi-Fi, 13,3-Zoll-Touchscreen multiple output methods, meeting different usage scenarios

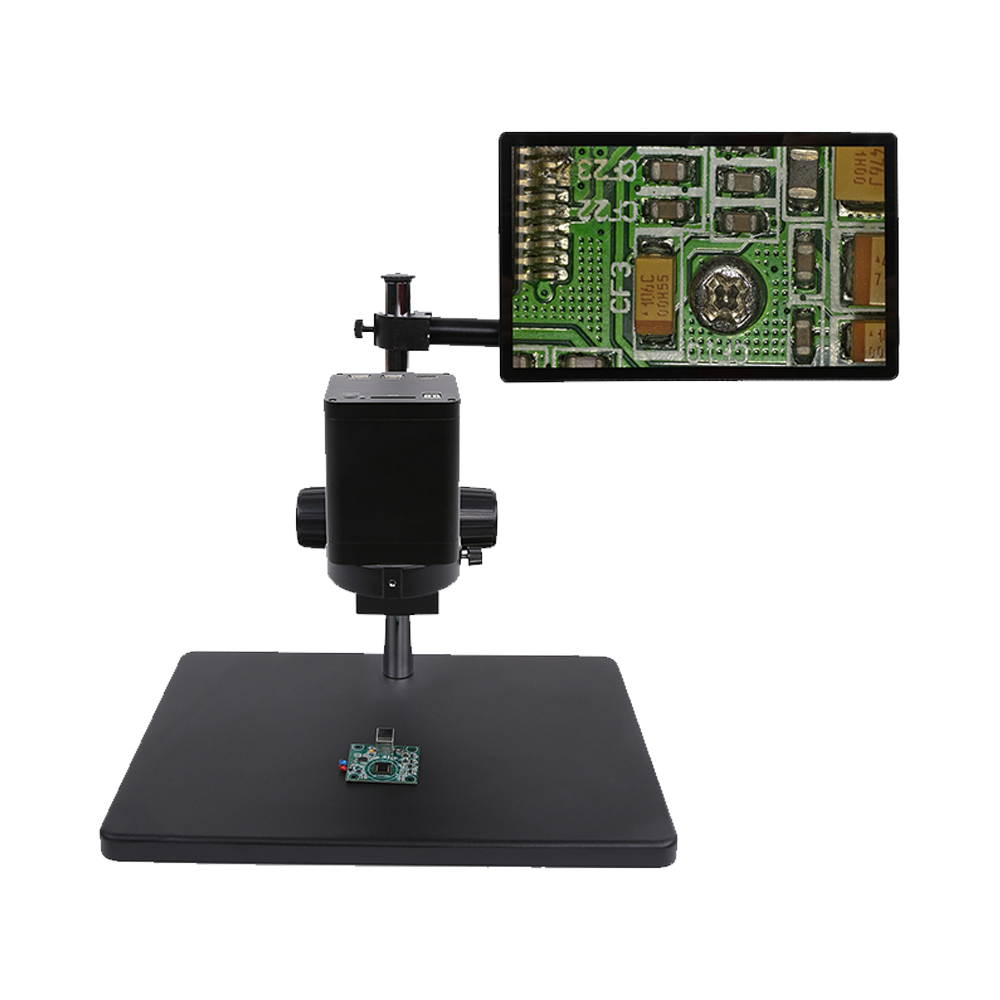

- Touchscreen Operation: Equipped with 13.3-inch HD touchscreen, providing both touch interface and mouse interface dual modes for intuitive and convenient operation
- Intelligent Measurement: Built-in measurement calibration information, combined with professional software for precise measurement, depth of field synthesis, image stitching, and other advanced functions
- Integrated LED Illumination: Head-integrated LED ring light with programmable brightness adjustment, providing uniform and stable illumination
- Local Storage Support: Supports SD card and USB storage, can directly save images and videos, supports local preview and playback
Core Performance Indicators
Optical Zoom
18-fach (0,021× – 0,39×)
Working Distance
205 – 255 mm (Standard 250 mm)
Field of View
Niedrige Vergrößerung: 255×145 mm, Hohe Vergrößerung: 14,2×8,0 mm
Resolution
8MP (3840×2160)
Recommendation Reasons
TAFDM412 with its autofocus technology, continuous optical zoom capability, and multiple interface output features, combined with touchscreen operation interface, provides efficient and convenient microscopic imaging solutions for industrial inspection, scientific research analysis, educational demonstration, and other applications. Built-in intelligent software functions and flexible configuration options make it an ideal choice for modern digital microscopic observation.
Application Scenarios
Industrielle Inspektionen
Industrielle Inspektionen
Medizinische Beobachtung
Medizinische Beobachtung
Lehre und Forschung
Lehre und Forschung
Automatisierungssystem
Automatisierungssystem
Selection Recommendations
- Touchscreen Requirements: Choose TAFDM series, equipped with 13.3-inch touchscreen for more intuitive operation
- High Resolution Requirements: Choose models with "B" suffix 4K models (such as AFDM411B, TAFDM412), supporting 3840×2160 resolution
- Ultra-Long Working Distance: Choose AFDM512B or AFDM412B with working distance up to 640 mm
- Advanced Function Requirements: Choose AFDM512 series, supporting 4K 60fps output, depth of field synthesis, voice control, etc.
- Economic Choice: Choose AFDM101 series, providing basic autofocus and continuous zoom functions
Configuration Recommendations
| Application Requirements | Recommended Model | Main Advantages | Suitable Scenarios |
|---|---|---|---|
| Teaching Demonstration | TAFDM411 | Touchscreen operation, 4K output | Classroom teaching, laboratory demonstration |
| Precision Inspection | AFDM512A | 4K 60fps, advanced image processing | Electronics manufacturing, quality control |
| Large Samples | AFDM512B | Ultra-long working distance 640 mm | Large-sized workpiece inspection |
| Basic Observation | AFDM101A | High cost-performance, complete functions | Routine inspection, basic research |
TAFDM412 产品手册
PDF format with detailed specifications, dimensional drawings, and application guidance
AFDM Series Auto-Focus Microscopes | Package Contents #
Select a model to view the standard packing list and optional accessories
Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM412 auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, supplied with CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F USB 2.0 Type-A to Type-A gold-plated cable (2.0 m)
- G Drivers and application media (CD / bundled USB drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM511 series auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, supplied with CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F High-speed USB 3.0 Type-A to Type-A gold-plated cable (1.5 m)
- G Drivers and application media (CD / bundled USB drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M USB audio control module
- N Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
Standard Packing List
- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM512 series auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, supplied with CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F High-speed USB 3.0 Type-A to Type-A gold-plated cable (1.5 m)
- G Drivers and application media (CD / bundled USB drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M USB audio control module
- N Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
AFDM Series Auto-Focus Microscopes | Product Dimensions #
Core enclosure dimensions and shipping information
Housing 80 × 80 × 122 mm, see Fig. 3-32
Housing 80 × 80 × 122 mm, see Fig. 3-18
Housing 80 × 80 × 122 mm, see Fig. 3-34
Before installation, confirm the mounting holes and connector orientation using the dimension diagram, and reserve routing space for lighting and control cables if needed.
Product In-Depth Introduction
The AFDM Series Auto-Focus Continuous Zoom Digital Microscopes represent a high-end digital imaging solution specifically designed by Topu Photonics for users in industrial, research, medical, and educational sectors. This series integrates high-sensitivity Sony CMOS sensors, high-precision motorized zoom lenses, auto-focus modules, intelligent local control systems, and multi-platform output interfaces, comprehensively meeting diverse user needs from macro observation to micro analysis.
The AFDM Series supports 18-20× optical continuous zoom, covering everything from low-magnification wide fields to high-magnification detail observation. With built-in or external high-brightness LED ring lights and flexible adjustable illumination modes, the products significantly enhance sample surface details and contrast. Multiple standard working distances and lens modules are available, adapting to complex application environments including PCB/semiconductor, metal materials, biomedical, and automated production lines. The unique linkage control between auto-focus and motorized zoom provides solid support for efficient measurement, batch inspection, and real-time analysis.
The intelligent local system integrates rich functions including image measurement, photography, video recording, depth of field synthesis, and image stitching, supporting SD card/USB local storage and USB/HDMI/Ethernet/Wi-Fi multi-platform synchronized output. Selected models support 13.3-inch HD touchscreen all-in-one operation, suitable for on-site teaching, demonstrations, field engineering work, and direct factory production line deployment. The entire series supports multilingual operation interfaces and mainstream operating systems, truly achieving "plug-and-play, what you see is what you get."
Main Functions
Auto-Focus/Manual Focus
Supports one-touch auto-focus, real-time focus lock and fine-tuning, simple operation, efficient and precise.
Motorized Continuous Optical Zoom (18×/20×)
Achieves stepless zoom from ultra-wide field to high-magnification microscopic details, smooth magnification switching, meeting various sample and inspection requirements.
Multi-Platform Multi-Interface Output
Supports 4K HDMI, USB3.0, Ethernet, Wi-Fi and multiple output methods, compatible with monitors, computers, mobile terminals, adapting to various application scenarios.
High-Resolution Imaging & High Frame Rate Output
Adopts Sony Starvis high-performance CMOS sensor, supporting up to 8MP (4K@60 fps), clear and detailed image quality with true color reproduction.
Local Intelligent Operating System
Built-in XCamView/ToupView system supports local real-time measurement, photography, video recording, depth of field synthesis, image stitching, custom image parameters and multiple functions, can be used independently without external computer.
Multiple Working Distances & Lens Options
Multiple standard working distances and lens combinations meet inspection and observation requirements for different height spaces and sample sizes.
Powerful Storage & Data Export
Supports SD card/USB local storage, one-touch data export and local playback, convenient for on-site data management and subsequent analysis.
Comprehensive Illumination Solutions
Built-in or external high-brightness LED ring light, optional coaxial light source, programmable brightness control, adapting to diverse sample surface characteristics.
Multi-Language/Multi-System Compatibility
Supports multilingual menus including Chinese and English, compatible with Windows, Mac, Linux, Android, iOS and other mainstream platforms.
Touchscreen Operation (Selected Models)
TAFDM Series supports 13.3-inch HD touchscreen all-in-one unit, supports touch/mouse dual operation modes, suitable for on-site teaching, demonstrations and mobile office work.
Core Advantages
Highly Integrated
Imaging, zoom, focus, illumination, and intelligent operation in one unit, highly integrated system with compact and reliable structure.
All-Scenario Adaptation
Supports multiple magnifications, interfaces, and working distances, meeting professional requirements in research, industry, medical, and education sectors.
Ultimate Image Quality & Smooth Operation
4K resolution, up to 60 fps frame rate, Sony Starvis sensor, ensuring detailed images without delay.
Convenient & Easy to Use
No complex training required, supports plug-and-play and multi-platform control with user-friendly interface design.
High Expandability
Flexible combination of different cameras, lenses, and illumination modules, convenient for subsequent upgrades and customization.
Stable & Reliable
Industrial-grade quality design, adapts to harsh environments, widely used in batch inspection, online quality control, research documentation and other scenarios.
High Cost-Performance Ratio
High integration, low maintenance costs, wide application range, significantly improving work efficiency and data quality for enterprises and laboratories.
