Digital Microscope Applications in Precision Instrument Repair
Solution Background:
Digital microscopes represent a powerful tool for the precision instrument repair industry due to their ability to provide high-resolution images and convenient data transmission capabilities. These microscopes can magnify tiny components, helping repair engineers identify problems and perform precise operations.
Digital Microscope Advantages:
High-Resolution Imaging: Digital microscopes provide extremely high-definition images that help observe the microscopic structure of instruments. Digital microscopes feature powerful magnification capabilities that allow careful examination and location of faulty or damaged small components. Through this technology, repair engineers can quickly and accurately diagnose problems, thereby accelerating the repair process.
Real-time Data Analysis and Recording: Many digital microscopes can connect to computers, enabling real-time data transmission and analysis. The repair process can be photographed and video recorded through digital microscopes, facilitating documentation and subsequent explanation and analysis. Delicate repair work can be completed under digital microscopes, ensuring operational accuracy.
Application Practice:
Problem Location: Repair engineers use digital microscopes to carefully examine the mainboard of a music player. High-magnification reveals a tiny wire break problem that would be difficult to observe with the naked eye. Through the digital microscope's connection software, engineers observe damaged circuits and digital components in real-time on computer screens, determining the exact location requiring repair.

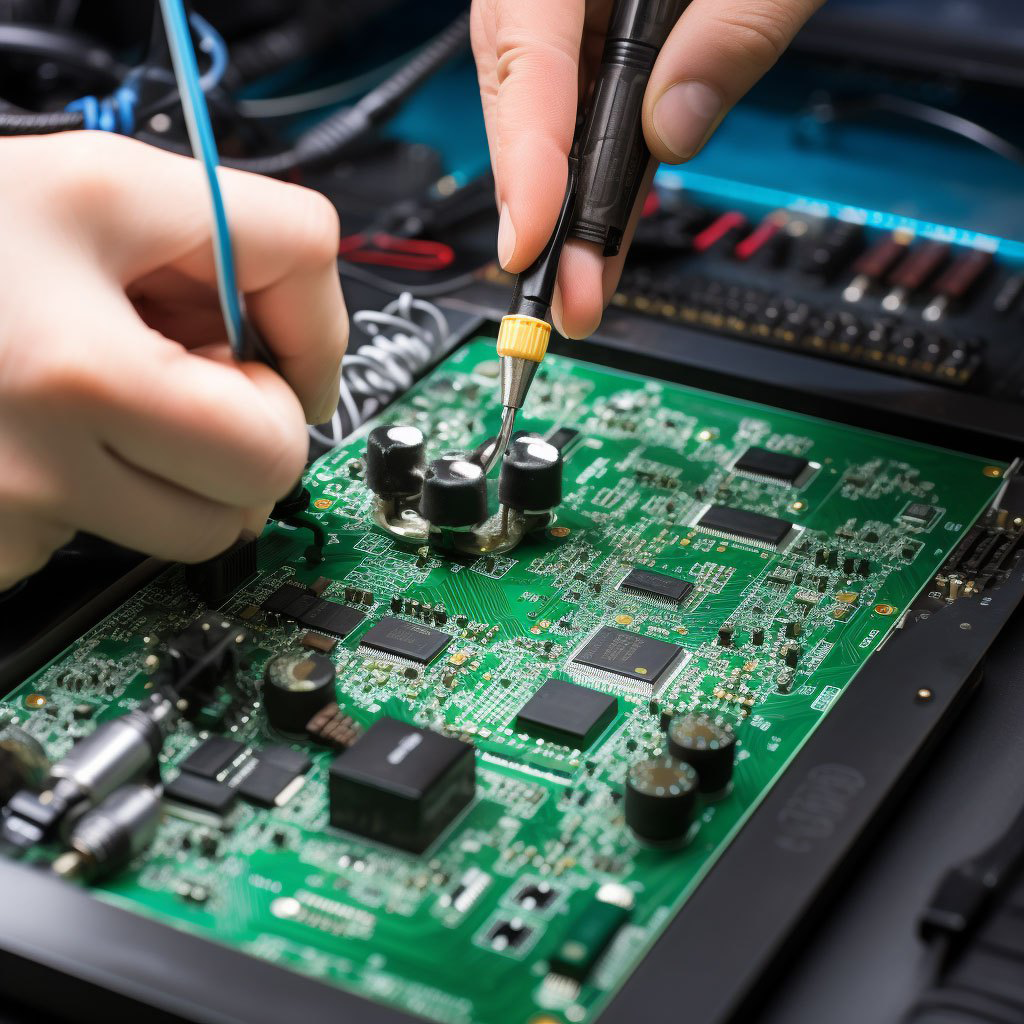

Precision Repair Process: High-definition images under the microscope help engineers use professional tools such as soldering irons to precisely repair broken wires and damaged components. Throughout the entire repair process, the digital microscope records detailed images and videos, providing customers with a comprehensive repair report and serving as a quality assurance reference.
Quality Inspection: After repair completion, engineers again use the digital microscope for inspection to ensure all components are correctly installed and soldered, with no remaining solder balls or other potential problems.
