SWIR5000KMA Short-Wave Infrared Camera
Product Introduction
Featuring the Sony IMX992 SenSWIR InGaAs sensor (3.45 µm pixel size), covering the 400–1700 nm spectral band, with support for USB3 / 10GigE / CoaXPress / CameraLink / GigE and other interfaces. Available in deep cooling and uncooled versions, combining high resolution, high dynamic range, and low noise characteristics, suitable for scientific imaging, semiconductor inspection, laser imaging, and other high-end applications.
Key Features
- Sony IMX992 SenSWIR InGaAs sensor, 3.45 µm pixel size
- 400–1700 nm wide spectral response
- Multi-interface support: USB3 / 10GigE / CoaXPress / CameraLink / GigE
- Deep cooling and uncooled options available, low dark current, low noise
- Global shutter, high-speed imaging
- Up to 12-bit depth (some models support 8/10/12-bit)
- Hardware ROI, external/software triggering support
- Built-in large-capacity buffer for stable high-speed transmission
- Industrial-grade temperature and humidity range, CE / FCC certified
- Multi-platform SDK available (Windows / Linux / macOS / Android)
Product Details
| Specifications | |
| Model | SWIR5000KMA |
| Sensor | Sony IMX992-AABA-C (InGaAs) |
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 5.0 MP (2560×2048) |
| Sensor Size | 8.94 mm × 7.09 mm |
| Sensor Diagonal | 0.71" (11.41 mm) |
| Pixel Size | 3.45 µm × 3.45 µm |
| Spectral Response Range | 400–1700 nm |
| Performance Specifications | |
| Frame Rate | 61.9 fps @ 2560×2048; 135.7 fps @ 1280×1024 |
| Bit Depth | 8/12-bit |
| Dynamic Range | 51.36 dB (HCG); 51.47 dB (LCG) |
| Sensitivity | TBD |
| Interface Specifications | |
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
| Lens Mount | C-mount |
| Data Interface | USB3 |
| Power Supply | USB3 bus-powered / 12V power adapter |
| Physical Specifications | |
| Dimensions | 80 mm × 80 mm × 45.5 mm |
| Weight | <390 g |
| Environmental Specifications | |
| Operating Temperature | -20 °C ~ +60 °C |
| Operating Humidity | 20%~80% (non-condensing) |
| Storage Temperature | -40 °C ~ +85 °C |
| Storage Humidity | 20%~80% (non-condensing) |
| Additional Specifications | |
| Operating System | Win32/WinRT/Linux/macOS/Android |
| Certifications | CE, FCC |
Product Overview
SWIR5000KMA pairs a high-performance Sony IMX992-AABA-C (InGaAs) InGaAs CMOS sensor with advanced SWIR system design to serve demanding industrial and scientific imaging needs.
- Broad spectral response: covers the visible band through SWIR with a response range of 400–1700 nm.
- High-resolution imaging: provides 5.0 MP (2560×2048) pixels with 3.45 µm × 3.45 µm pixel size, supporting frame rates up to 61.9 fps @ 2560×2048 while outputting 8/12-bit.
- Global shutter architecture: utilises Global shutter to capture high-speed scenes without motion artifacts.
- Thermoelectric cooling: integrated TE module maintains temperature at ≤ –25 °C for consistent low-noise imaging.
- Flexible connectivity: offers USB3 interfaces, supports C-mount lenses, and provides ROI, trigger I/O, and binning controls.
- Compact integration: compact housing (80 mm × 80 mm × 45.5 mm) with a weight of approximately <390 g suits space-constrained system designs.
- Platform-ready ecosystem: broad Win32/WinRT/Linux/macOS/Android support with SDK and ToupView software, meeting CE, FCC certifications.
Performance
Frame Rate
Up to 61.9 fps @ 2560×2048
Resolution
5.0 MP (2560×2048)
Dynamic Range
51.36 dB (HCG); 51.47 dB (LCG)
Product Summary
SWIR5000KMA is an ideal choice for industrial and research users. Its superb imaging performance, stable thermal management, and flexible integration adapt to complex application environments.
SWIR5000KMA Product Manual
PDF format with detailed specifications and mechanical drawings
SDK Package
Supports Windows, Linux, macOS, and more
3D Model File
STEP format for mechanical design integration

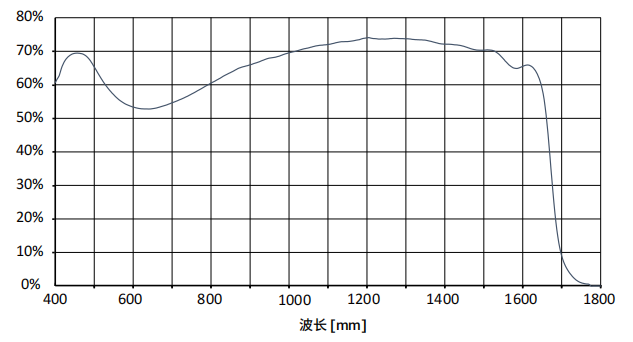

Quantum Efficiency Curve #
IMX992 SenSWIR 400–1700 nm typical quantum efficiency response
Package Contents #
Standard accessories and packing information
- A Outer shipping carton (not pictured): L 28.2 cm × W 25.2 cm × H 16.7 cm
- B 3-A protective instrument case: L 28 cm × W 23.0 cm × H 15.5 cm (1 pc, 2.8 kg per case)
- C SWIR 400–1700 Series USB cooled camera
- D AC power cable (CN/US/EU/UK: D1/D2/D3/D4, not pictured)
- E Power adapter: Input AC 100–240 V 50/60 Hz; Output DC 12 V 3 A
- F High-speed USB3 Type-A to Type-B gold-plated data cable (1.5 m)
- G External trigger cable
- H USB drive with drivers and application software
- A Outer shipping carton (not pictured): L 28.2 cm × W 25.2 cm × H 16.7 cm
- B 3-A protective instrument case: L 28 cm × W 23.0 cm × H 15.5 cm (1 pc, 2.8 kg per case)
- C SWIR 400–1700 Series GigE cooled camera
- D AC power cable (CN/US/EU/UK: D1/D2/D3/D4, not pictured)
- E Power adapter: Input AC 100–240 V 50/60 Hz; Output DC 12 V 3 A
- F External trigger cable
- G Ethernet cable: G1 3 m / G2 5 m / G3 10 m (G4 50 m not pictured)
- H USB drive with drivers and application software
- A Outer shipping carton (not pictured): L 28.2 cm × W 25.2 cm × H 16.7 cm
- B 3-A protective instrument case: L 28 cm × W 23.0 cm × H 15.5 cm (1 pc, 2.8 kg per case)
- C SWIR 400–1700 Series CoaXPress cooled camera
- D AC power cable (CN/US/EU/UK: D1/D2/D3/D4, not pictured)
- E Power adapter: Input AC 100–240 V 50/60 Hz; Output DC 12 V 3 A
- F CoaXPress cable
- G External trigger cable
- H USB drive with drivers and application software
- A 3-A protective instrument case: L 28 cm × W 23.0 cm × H 15.5 cm (1 pc, 2.8 kg per case)
- B SWIR 400–1700 Series CL cooled camera
- C CameraLink cables ×2
- D 12 V / 3 A 6-pin aviation power adapter
- E AC power cable
- F External trigger cable
- A Outer shipping carton (not pictured): L 28.2 cm × W 25.2 cm × H 16.7 cm
- B 3-A protective instrument case: L 28 cm × W 23.0 cm × H 15.5 cm (1 pc, 2.8 kg per case)
- C SWIR 400–1700 Series USB uncooled camera
- D High-speed USB3 Type-A to Type-B gold-plated data cable (1.5 m)
- E External trigger cable
- F USB drive with drivers and application software
Product Dimensions #
Dimensional drawings for each interface and cooling configuration
IMX993 / IMX992 / IMX991 / IMX990 Sensor Comparison
Key specifications of the 400–1700 nm SenSWIR family (current model: IMX992)
This page highlights the IMX992 (5 MP, 2560×2048, 3.45 µm), featuring high resolution and wide dynamic range. Use the table below to compare it with IMX993 (3 MP), IMX990 (1.3 MP), and IMX991 (VGA) for quick model selection.
| Sensor | Resolution | Pixel size | Spectral range | Typical full-resolution frame rate (per interface) | Bit depth | Dynamic range (typical) | Available interfaces |
|---|---|---|---|---|---|---|---|
| IMX992 Current model | 5.0 MP (2560×2048) | 3.45 µm | 400–1700 nm |
USB3: 61.9 fps; 10GigE: 145 fps; CoaXPress: 131 fps; CameraLink: 124 fps |
Up to 12-bit (select 8/10/12-bit modes) | ≈51.36 / 51.47 dB (HCG/LCG) | USB3 / 10GigE / CoaXPress / CameraLink / GigE |
| IMX993 | 3.0 MP (2048×1536) | 3.45 µm | 400–1700 nm |
USB3: 93 fps; 10GigE: 220 fps; CoaXPress: 173 fps; CameraLink: 150 fps |
Up to 12-bit (select 8/10/12-bit modes) | ≈51.36 / 51.47 dB (HCG/LCG) | USB3 / 10GigE / CoaXPress / CameraLink / GigE |
| IMX990 | 1.3 MP (1280×1024) | 5.0 µm | 400–1700 nm |
USB3: 200 fps; GigE: 90 fps; CoaXPress: 134 fps; CameraLink: 183 fps |
8/12-bit | ≈58.7 dB | USB3 / GigE / CoaXPress / CameraLink |
| IMX991 | 0.33 MP (640×512) | 5.0 µm | 400–1700 nm |
USB3: 400 fps; GigE: 257.8 fps; CoaXPress: ≈258 fps (656×520); CameraLink: 350 fps |
8/12-bit | ≈59.6–59.7 dB | USB3 / GigE / CoaXPress / CameraLink |
Frequently Asked Questions
Learn more about SWIR short-wave infrared camera technology
Deep Understanding of SWIR Cameras
Short-Wave Infrared (SWIR) cameras and their core sensors are important components of advanced imaging systems. SWIR technology covers the 900–1700 nanometer wavelength band and has excellent penetration capabilities in harsh environments, such as penetrating fog, smoke, and dust to achieve clear imaging under extreme conditions.
SWIR cameras primarily rely on short-wave infrared light reflection, similar to the visible light band, complementing the application range that thermal imaging cameras (LWIR) cannot cover, providing more complete imaging solutions. They are compact and flexibly integrated, making them easy to apply in various industrial and commercial systems.
The high resolution and high sensitivity of SWIR cameras can meet precision detection and high-requirement applications, capable of detecting minute changes and anomalies in samples, making them very suitable for quality control and defect detection. Some models support cooling, further ensuring imaging quality in high-temperature or high-noise environments.
To reduce system costs and improve integration efficiency, modern SWIR cameras commonly adopt standard optical interfaces and compact designs to accommodate broader application requirements. With the continuous development of imaging markets and technology, SWIR cameras have become one of the key technologies for high-end imaging and sensing in multiple industries due to their unique advantages.
Application Examples
Demonstration of SWIR camera applications in real-world scenarios
More Application Industry References
- Semiconductor Industry: Solar cell and chip inspection
- Agriculture: Spectral remote sensing applications via multirotor aircraft
- Recycling Industry: Material sorting of plastics, waste, and other materials
- Medical Imaging and Research: Hyperspectral and multispectral imaging
- Food Industry: Quality inspection and grading
- Beverage Industry: Liquid level detection in opaque containers
- Packaging: Seal inspection
- Glass Industry: High-temperature glass penetration defect detection
- Printing Industry: See-through hidden features
- Video Surveillance: Visual enhancement (e.g., smoke penetration)
- Security: Counterfeit detection, such as currency, wigs, or skin
