400–1700 nm | Sony SenSWIR InGaAs | USB3/GigE/10GigE/CXP | Cooled | Short-Wave Infrared Cameras
Product Introduction
The SWIR 400–1700 nm series industrial cameras feature Sony original high-performance InGaAs CMOS sensors, covering the visible to short-wave infrared spectrum (400–1700 nm) with high sensitivity, wide dynamic range, low noise, and global shutter advantages. Supporting multiple high-speed data interfaces including USB3.0, GigE, 10GigE, and CXP, compatible with multi-platform SDKs, widely applicable to semiconductor inspection, laser imaging, biomedical, research, and other fields requiring high imaging performance. The ideal choice for short-wave infrared imaging in industrial and scientific applications.
Product Features
- 400–1700 nm version uses SONY SenSWIR InGaAs sensors
- Resolution coverage from 5 MP to 0.33 MP

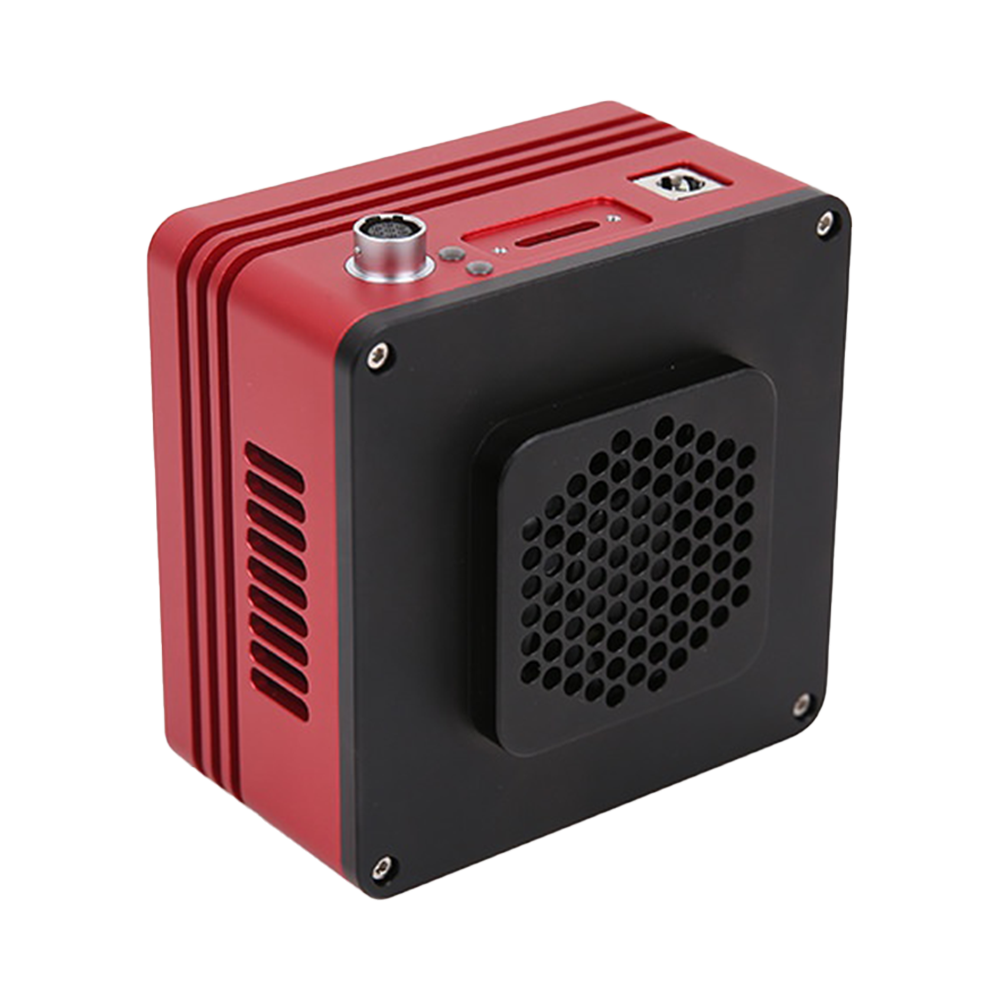

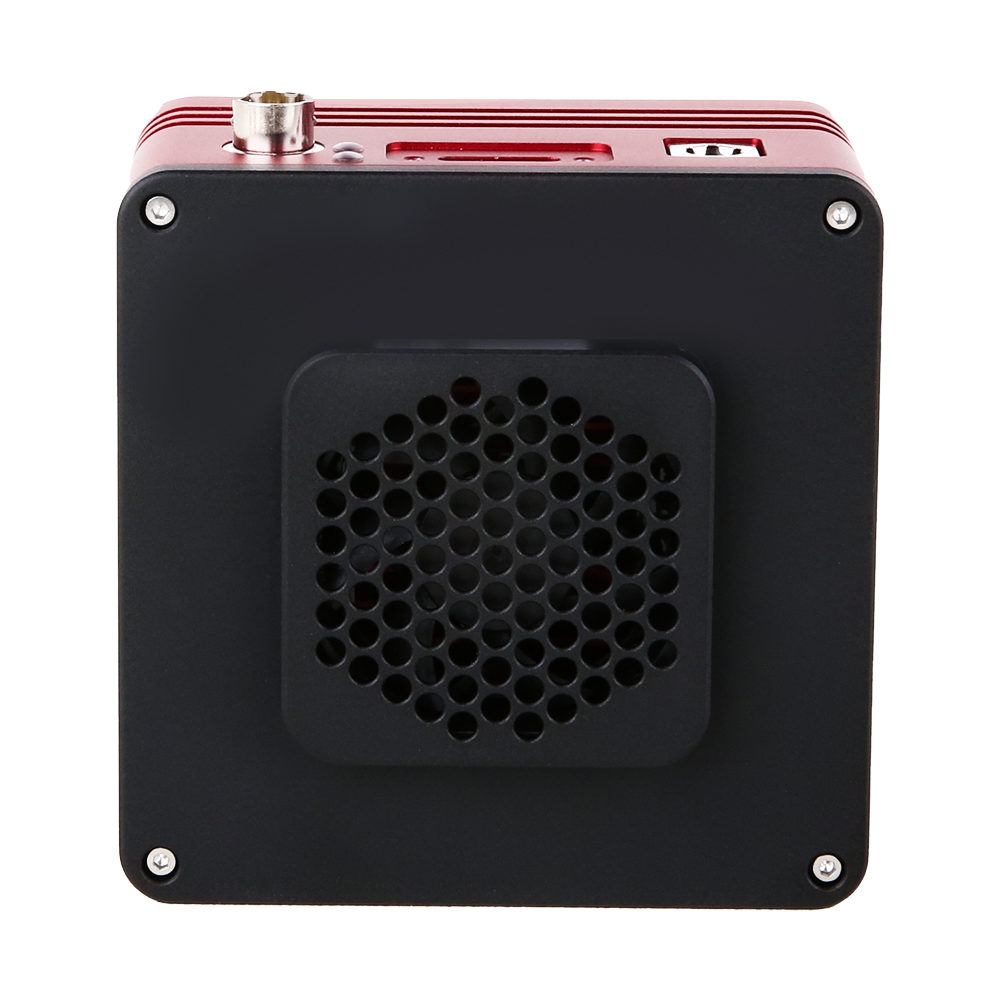

- Available in cooled or uncooled versions
- Precise temperature control, 10–25 °C below ambient
- Wide spectral response range: 400–1700 nm
- Multiple pixel sizes: 3.45 µm / 5 µm
- Global shutter
- Multiple data interfaces: USB3 / GigE / 10G / CXP / Analog AV
- Up to 14-bit ADC
- 4 Gb memory
- External I/O trigger control support
- High frame rates exceeding official specifications
- Field firmware upgrade support
- OEM customization available
Product Models
Choose the best 400–1700 nm | Sony SenSWIR InGaAs | USB3/GigE/10GigE/CXP | Cooled | Short-Wave Infrared Cameras model for your application needs
| Model | Sensor | Resolution | Pixel Size | Frame Rate | Data Interface | Dynamic Range | Action |
|---|---|---|---|---|---|---|---|
| SWIR5000KMA |
Sony IMX992-AABA-C (InGaAs)
8.94 mm × 7.09 mm
|
5.0 MP (2560×2048) | 3.45 µm × 3.45 µm |
61.9 fps@2560×2048
135.7 fps@1280×1024
|
USB3 |
51.36 dB (HCG); 51.47 dB (LCG)
|
View Details |
| SWIR5000KMA-10G |
Sony IMX992-AABA-C (InGaAs)
8.94 mm × 7.09 mm
|
5.0 MP (2560×2048) | 3.45 µm × 3.45 µm |
145 fps@2560×2048
278 fps@1280×1024
|
10GigE |
51.36 dB (HCG); 51.47 dB (LCG)
|
View Details |

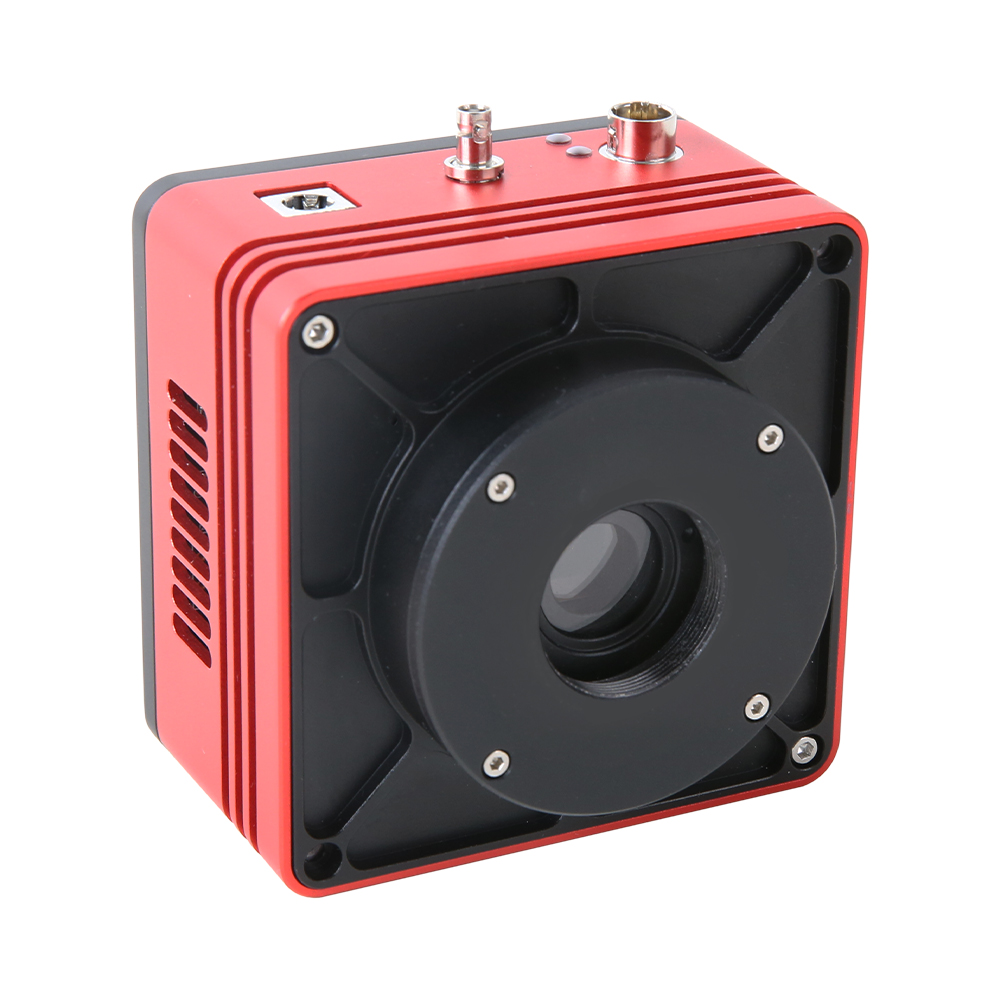

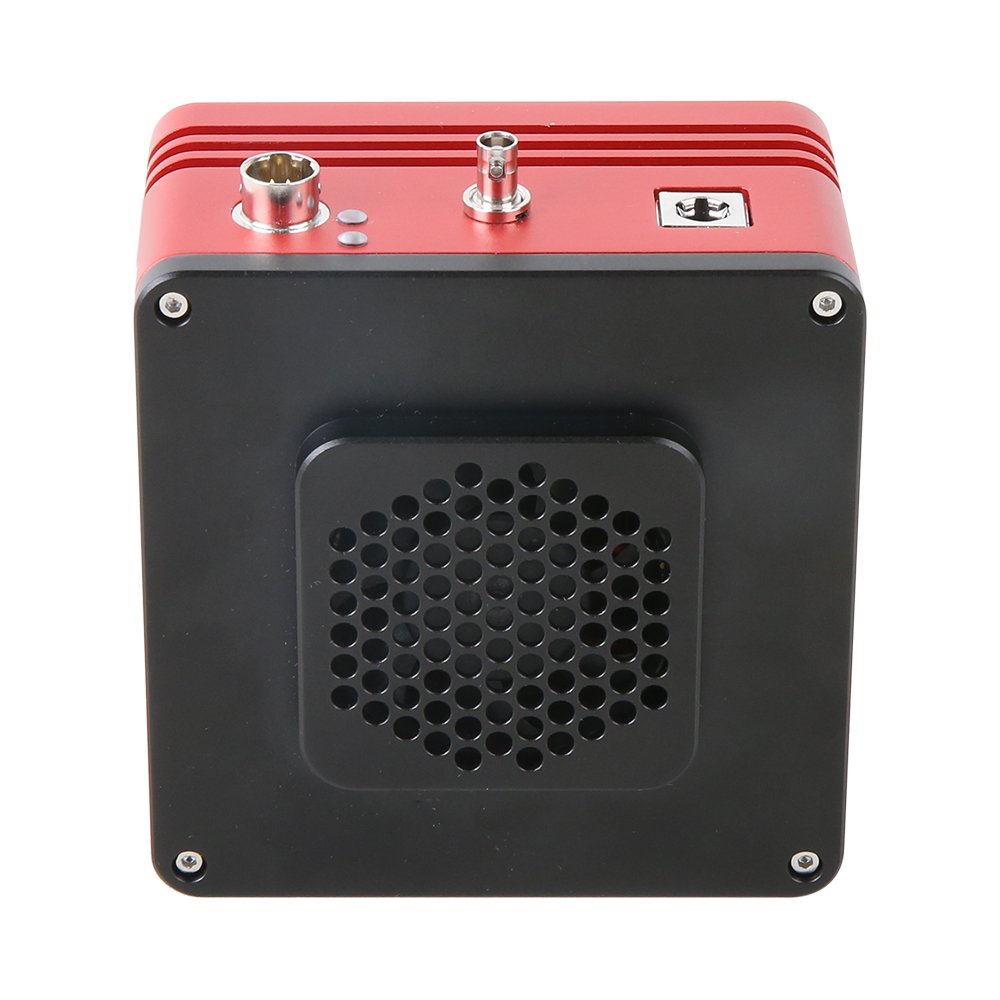

| SWIR5000KMA-CXP |
Sony IMX992-AABA-C (InGaAs)
8.94 mm × 7.09 mm
|
5.0 MP (2560×2048) | 3.45 µm × 3.45 µm |
131 fps@2560×2048
252 fps@1280×1024
|
CoaxPress |
51.3 dB (HCG); 51.36 dB (LCG)
|
View Details |
| SWIR5000KMB |
Sony IMX992-AABJ-C (InGaAs)
8.94 mm × 7.09 mm
|
5.0 MP (2560×2048) | 3.45 µm × 3.45 µm |
61.9 fps@2560×2048
135.7 fps@1280×1024
|
USB3 |
51.36 dB (HCG); 51.47 dB (LCG)
|
View Details |
| SWIR3000KMA |
Sony IMX993-AABA-C (InGaAs)
7.07 mm × 5.3 mm
|
3.0 MP (2048×1536) | 3.45 µm × 3.45 µm |
93 fps@2048×1536
176 fps@1024×768
|
USB3 |
51.36 dB (HCG); 51.47 dB (LCG)
|
View Details |
| SWIR3000KMA-10G |
Sony IMX993-AABA-C (InGaAs)
7.07 mm × 5.3 mm
|
3.0 MP (2048×1536) | 3.45 µm × 3.45 µm |
220 fps@2048×1536
415 fps@1024×768
|
10GigE |
51.36 dB (HCG); 51.47 dB (LCG)
|
View Details |
| SWIR3000KMA-CXP |
Sony IMX993-AABA-C (InGaAs)
7.07 mm × 5.3 mm
|
3.0 MP (2048×1536) | 3.45 µm × 3.45 µm |
173 fps@2048×1536
328 fps@1024×768
|
CoaxPress |
51.36 dB (HCG); 51.36 dB (LCG)
|
View Details |
| SWIR3000KMB |
Sony IMX993-AABJ-C (InGaAs)
7.07 mm × 5.3 mm
|
3.0 MP (2048×1536) | 3.45 µm × 3.45 µm |
93 fps@2048×1536
176 fps@1024×768
|
USB3 |
51.36 dB (HCG); 51.47 dB (LCG)
|
View Details |
| SWIR1300KMA |
Sony IMX990-AABA-C (InGaAs)
6.40 mm × 5.12 mm
|
1.3 MP (1280×1024) | 5.0 µm × 5.0 µm |
200 fps@1280×1024
392 fps@640×512
|
USB3 |
58.7 dB
|
View Details |
| SWIR1300KMA-G |
Sony IMX990-AABA-C (InGaAs)
6.40 mm × 5.12 mm
|
1.3 MP (1280×1024) | 5.0 µm × 5.0 µm |
90 fps@1280×1024
253 fps@640×512
|
GigE |
58.7 dB
|
View Details |
| SWIR1300KMA-CXP |
Sony IMX990-AABA-C (InGaAs)
6.40 mm × 5.12 mm
|
1.3 MP (1280×1024) | 5.0 µm × 5.0 µm |
134 fps@1280×1024
260 fps@640×512
|
CoaxPress |
58.7 dB
|
View Details |
| SWIR1300KMB |
Sony IMX990-AABJ-C (InGaAs)
6.40 mm × 5.12 mm
|
1.3 MP (1280×1024) | 5.0 µm × 5.0 µm |
200 fps@1280×1024
392 fps@640×512
|
USB3 |
58.7 dB
|
View Details |
| SWIR1300KMB-G |
Sony IMX990-AABJ-C (InGaAs)
6.40 mm × 5.12 mm
|
1.3 MP (1280×1024) | 5.0 µm × 5.0 µm |
90 fps@1280×1024
253 fps@640×512
|
GigE |
58.7 dB
|
View Details |
| SWIR330KMA |
Sony IMX991-AABA-C (InGaAs)
3.20 mm × 2.56 mm
|
0.33 MP (640×512) | 5.0 µm × 5.0 µm |
400 fps@640×512
753 fps@320×256
|
USB3 |
59.7 dB
|
View Details |
| SWIR330KMA-G |
Sony IMX991-AABA-C (InGaAs)
3.20 mm × 2.56 mm
|
0.33 MP (640×512) | 5.0 µm × 5.0 µm |
257.8 fps@640×512
486.1 fps@320×256
|
GigE |
59.7 dB
|
View Details |
| SWIR330KMA-CXP |
Sony IMX991-AABA-C (InGaAs)
3.20 mm × 2.56 mm
|
0.33 MP (640×512) | 5.0 µm × 5.0 µm |
258 fps@656×520
486 fps@328×260
|
CoaxPress |
58.7 dB
|
View Details |
| SWIR330KMB |
Sony IMX991-AABJ-C (InGaAs)
3.20 mm × 2.56 mm
|
0.33 MP (640×512) | 5.0 µm × 5.0 µm |
400 fps@640×512
753 fps@320×256
|
USB3 |
59.6 dB
|
View Details |
| SWIR330KMB-G |
Sony IMX991-AABJ-C (InGaAs)
3.20 mm × 2.56 mm
|
0.33 MP (640×512) | 5.0 µm × 5.0 µm |
257.8 fps@640×512
486.1 fps@320×256
|
GigE |
59.6 dB
|
View Details |
Frequently Asked Questions
Learn more about SWIR short-wave infrared camera technology
Deep Understanding of SWIR Cameras
Short-Wave Infrared (SWIR) cameras and their core sensors are important components of advanced imaging systems. SWIR technology covers the 900~1700 nanometer wavelength band and has excellent penetration capabilities in harsh environments, such as penetrating fog, smoke, and dust to achieve clear imaging under extreme conditions.
SWIR cameras primarily rely on short-wave infrared light reflection, similar to the visible light band, complementing the application range that thermal imaging cameras (LWIR) cannot cover, providing more complete imaging solutions. They are compact and flexibly integrated, making them easy to apply in various industrial and commercial systems.
The high resolution and high sensitivity of SWIR cameras can meet precision detection and high-requirement applications, capable of detecting minute changes and anomalies in samples, making them very suitable for quality control and defect detection. Some models support cooling, further ensuring imaging quality in high-temperature or high-noise environments.
To reduce system costs and improve integration efficiency, modern SWIR cameras commonly adopt standard optical interfaces and compact designs to accommodate broader application requirements. With the continuous development of imaging markets and technology, SWIR cameras have become one of the key technologies for high-end imaging and sensing in multiple industries due to their unique advantages.
Application Examples
Demonstration of SWIR camera applications in real-world scenarios
More Application Industry References
- Semiconductor Industry: Solar cell and chip inspection
- Agriculture: Spectral remote sensing applications via multirotor aircraft
- Recycling Industry: Material sorting of plastics, waste, and other materials
- Medical Imaging and Research: Hyperspectral and multispectral imaging
- Food Industry: Quality inspection and grading
- Beverage Industry: Liquid level detection in opaque containers
- Packaging: Seal inspection
- Glass Industry: High-temperature glass penetration defect detection
- Printing Industry: See-through hidden features
- Video Surveillance: Visual enhancement (e.g., smoke penetration)
- Security: Counterfeit detection, such as currency, wigs, or skin
