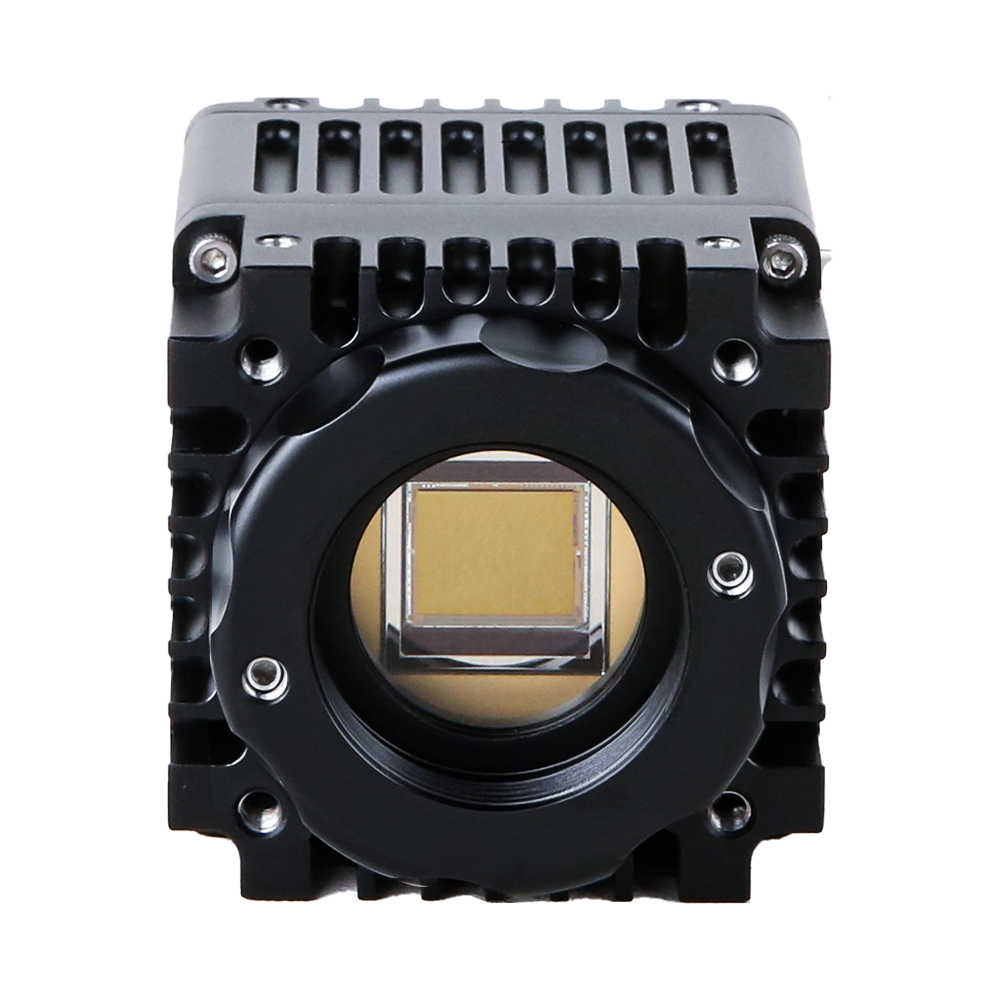

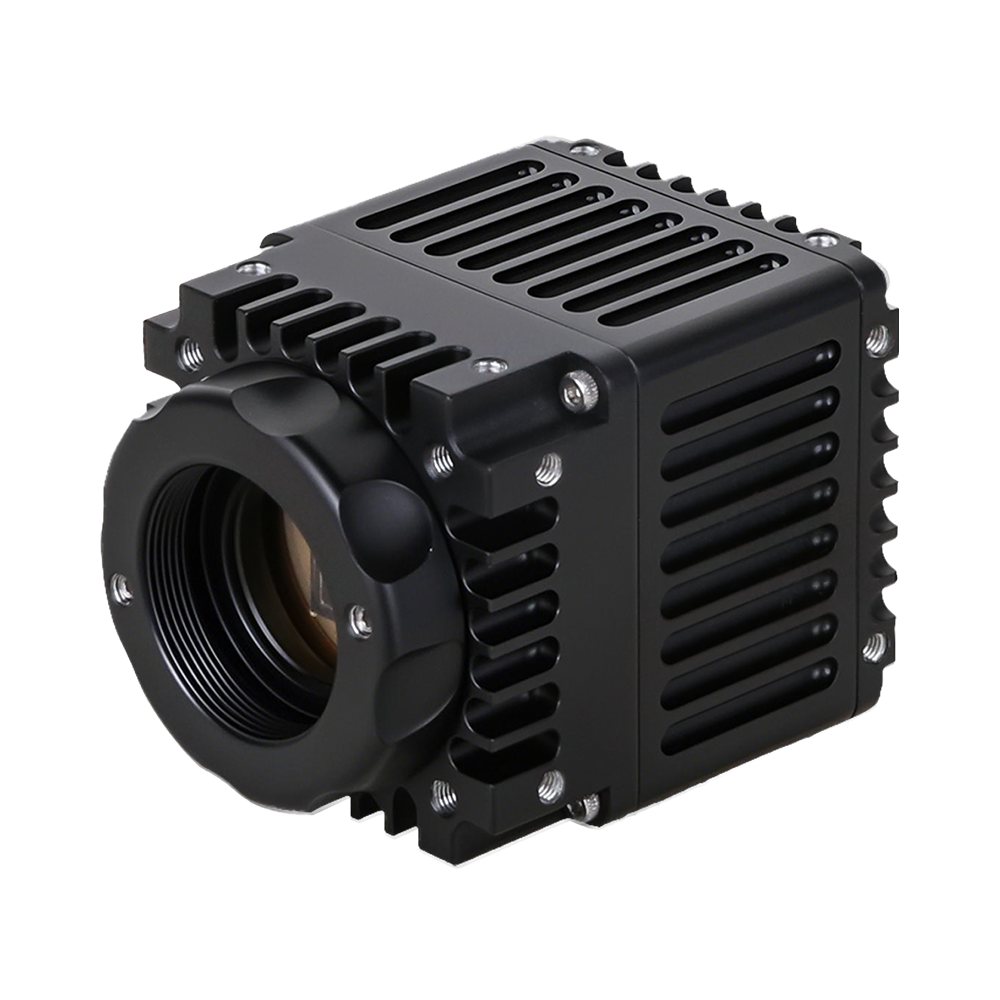

SWIR336KMB-UMV Short-Wave Infrared Cameras
Product Introduction
The CQD series uncooled Short-Wave Infrared (SWIR) camera features a novel quantum dot (CQD) material sensor, achieving ultra-wide spectral response from 300-1700 nm. With its compact body structure and support for USB 3.0 high-speed data interface, it is ideal for portable inspection, laboratory research, material analysis, and various other application scenarios. Featuring high sensitivity, low noise, global shutter, rich IO interfaces, and SDK compatibility, it is the perfect choice for innovative scientific research and industrial applications.
Key Features
- 300-1700 nm wide-spectrum CQD quantum dot sensor
- Compact structure with lightweight design
- High sensitivity and global shutter
- USB 3.0 high-speed data interface
- High frame rate with multi-platform SDK support
- Rich IO interfaces supporting external triggering
- 4 Gb memory
- Support for on-site firmware upgrades and OEM customization
Product Details
| Specifications | |
| Model | SWIR336KMB-UMV |
| Sensor | China-made 640×512 (CQDs) |
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 9.60 mm × 7.68 mm |
| Sensor Diagonal | 0.77" (12.29 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 300–1400 nm |
| Performance Parameters | |
| Frame Rate | 400 fps @ 640×512 |
| Bit Depth | 12/14-bit |
| Dynamic Range | 66 dB |
| Sensitivity | 40% |
| Interface Parameters | |
| GPIO | 1 opto-isolated input, 1 opto-isolated output |
| Lens Mount | C-mount |
| Data Interface | USB3 |
| Power Supply | DC 12 V power supply |
| Physical Parameters | |
| Dimensions | 45 mm × 45 mm × 50 mm |
| Weight | TBD |
| Environmental Parameters | |
| Operating Temperature | -30 °C to +60 °C |
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | -40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
| Other Parameters | |
| Operating System | Win32/WinRT/Linux/macOS/Android |
| Certification | CE, FCC |
Product Overview
SWIR336KMB-UMV is a short-wave infrared (SWIR) industrial camera based on the high-performance China-made 640×512 (CQDs) colloidal quantum dot (CQDs) sensor, featuring the following characteristics:
- Broad spectral response: covers the visible band through SWIR with a response range of 400–1700 nm.
- High-resolution imaging: delivers 0.33 MP (640×512) pixels with 15 µm × 15 µm pixel size, supporting frame rates up to 400 fps @ 640×512 while outputting 12/14-bit.
- Global shutter design: utilises Global shutter to capture fast-moving scenes without tearing.
- Multiple interface support: offers USB3 connectivity, works with C-mount lenses, and supports ROI, trigger I/O, and binning controls.
- Compact design: compact dimensions (45 mm × 45 mm × 50 mm) with a weight of approximately TBD simplify system integration.
- Cross-platform support: broad Win32/WinRT/Linux/macOS/Android compatibility, bundled SDK and ToupView software, and compliance with CE, FCC certifications.
Performance Parameters
Frame Rate
Up to 400 fps @ 640×512
Resolution
0.33 MP (640×512)
Dynamic Range
66 dB
Application Fields
- Machine Vision & Industrial Inspection
- Scientific Research & Materials Analysis
- Agricultural Spectral Remote Sensing
- Semiconductor Defect Detection
- Security Surveillance & Night Vision
- Food & Pharmaceutical Quality Inspection
Product Summary
The SWIR336KMB-UMV camera incorporates advanced CQD quantum dot technology, making it an ideal choice for industrial and research users. Its exceptional imaging performance, flexible spectral tuning capabilities, and compact structural design can meet the demands of various complex application environments, driving SWIR imaging technology from high-end research toward broader industrial and consumer-level applications.
SWIR336KMB-UMV Product Manual
PDF format, including detailed technical parameters and dimensional structure
CQD SWIR SDK Development Kit
Supports Windows, Linux, macOS and other platforms, includes CQD camera-specific APIs
ToupView Imaging Software
Professional imaging software supporting all CQD camera functions and parameter settings
3D Model Files
STEP format for mechanical design integration
Quantum Efficiency Curve #
Typical quantum efficiency response of the 300–1700 nm CQD uncooled model
Packing List #
Standard configuration for the 300–1700 nm CQD series (USB3 · uncooled · compact 45 × 45 × 50 mm)
- A 3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pc, ≈2.8 kg/box)
- B CQD 300–1700 USB interface camera
- C High-speed USB3 A-to-B gold-plated data cable (1.5 m)
- D 12 V / 3 A 6-pin aviation connector power adapter
- E Power cord
- F External trigger control cable (1 pc)
Product Dimensions #
Outline drawing of the compact USB3 uncooled model (C-mount)
Frequently Asked Questions
Learn more about CQD SWIR colloidal quantum dot short-wave infrared camera technology
Deep Understanding of CQDs CMOS SWIR Cameras
CQDs CMOS image sensors are a new type of short-wave infrared (SWIR) imaging technology that uses Colloidal Quantum Dots as photosensitive materials and deeply integrates with standard CMOS processes. Compared to traditional InGaAs solutions, CQDs CMOS sensors offer advantages such as high cost-effectiveness, high resolution, compact size, suitability for large-scale mass production, and environmental friendliness, promoting SWIR imaging from high-end scientific research to broader industrial, agricultural, and consumer-level applications.
The absorption peak of CQDs materials can be flexibly customized by adjusting quantum dot particle sizes, enabling a single chip to cover a broad wavelength band from approximately 300–1700 nm or even extended to 2500 nm. Their quantum efficiency, dynamic range, and signal-to-noise ratio continue to improve, with some models capable of room temperature low-noise imaging and optional TEC cooling for high-requirement scenarios.
CQDs CMOS SWIR cameras feature standard optical interfaces and compact module designs for easy system integration and large-scale applications, making them ideal solutions for industrial inspection, material analysis, semiconductors, agricultural sorting, machine vision, food and pharmaceutical testing, and other fields.
Technical Features
Core advantages of CQDs CMOS SWIR technology
Wide Spectral Tuning Capability
By selecting different CQDs materials and particle sizes, sensitive response across 300–1700 nm or even broader wavelength bands can be customized to meet diverse application requirements.
High Cost-Effectiveness
Using standard CMOS large-scale manufacturing, unit costs are significantly lower than InGaAs solutions, suitable for batch integration and consumer-level applications.
High Resolution and Small Pixels
Supports high pixel density designs with fine image quality, facilitating detection of minute defects and details, improving inspection accuracy.
Room Temperature/Cooled Dual Mode
Supports room temperature low-noise imaging and optional TEC cooling for high-end scenario requirements, offering strong adaptability.
Environmentally Friendly
New-generation CQDs materials (such as Ag₂Te, InAs, etc.) comply with RoHS standards, meeting global market green compliance requirements.
Flexible and Easy Integration
Compact size and low power consumption, suitable for embedded devices and various intelligent terminal systems with high integration levels.
Application Scenarios
Wide application fields for CQDs CMOS SWIR cameras
Machine Vision and Industrial Inspection
Applied in semiconductor defect detection, plastic/food/pharmaceutical sorting, printing inspection, and other industrial scenarios, providing high-precision quality control solutions.
Complex Environment Imaging
Can still obtain clear images in scenarios where visible light is limited by haze, smoke, and dust, providing excellent environmental adaptability.
Material Sorting and Scientific Analysis
Suitable for precision material identification, scientific experiments, agricultural sorting, and other high-end applications, providing accurate spectral analysis capabilities.
Intelligent Sensing and Consumer Electronics
Suitable for embedding in intelligent terminals, expanding new applications such as night vision and non-invasive detection, promoting civilian adoption of SWIR technology.
Application Examples
Demonstration of CQDs CMOS SWIR camera applications in real-world scenarios
More Application Industry References
- Semiconductor Industry: Solar cell and chip inspection
- Agriculture: Spectral remote sensing applications via multirotor aircraft
- Recycling Industry: Material sorting of plastics, waste, and other materials
- Medical Imaging and Research: Hyperspectral and multispectral imaging
- Food Industry: Quality inspection and grading
- Beverage Industry: Liquid level detection in opaque containers
- Packaging: Seal inspection
- Glass Industry: High-temperature glass penetration defect detection
- Printing Industry: See-through hidden features
- Video Surveillance: Visual enhancement (e.g., smoke penetration)
- Security: Counterfeit detection, such as currency, wigs, or skin
