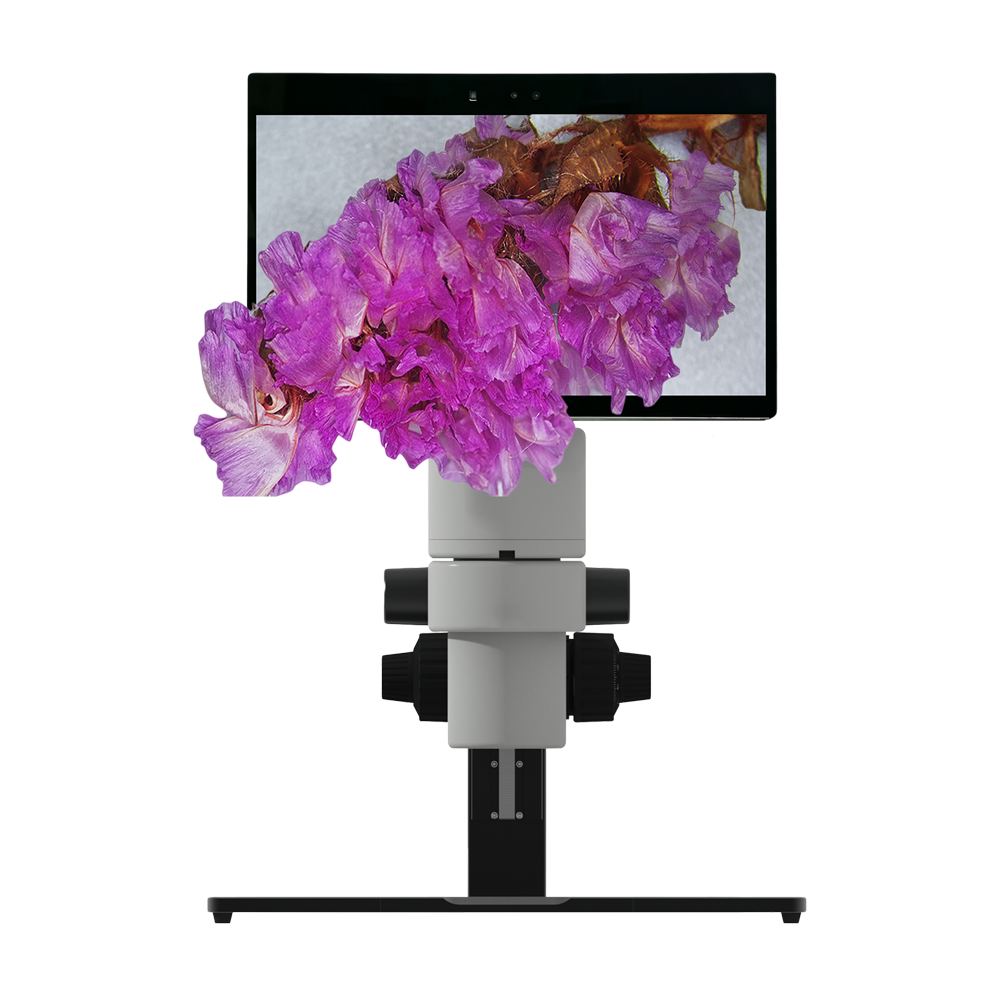

DSM711
Product Introduction

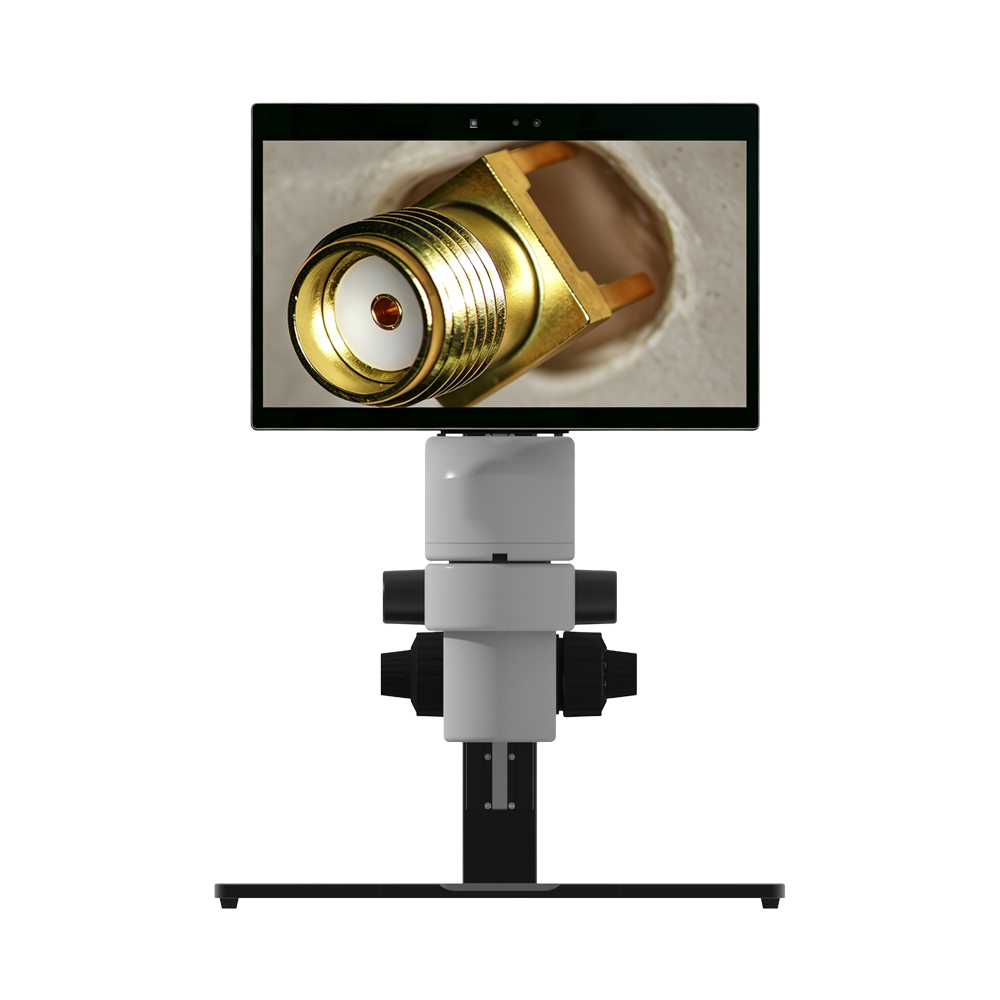

The DSM711 is an all-in-one digital 3D microscopic system newly developed by ToupTek Photonics. DSM is the abbreviation for Digital Stereo Microscope. The number 711 stands for: internal development platform No. 7, sensor specification No. 1 and lens specification No. 1. The complete system integrates a 4K ultra-high-definition imaging module, a continuous-zoom optical body, a naked-eye 3D monitor and a microscope stand. It adopts an integrated design combining optical imaging and real-time display.
This product is applicable to fields including microelectronics, industrial quality inspection and research laboratories. It supports the assembly, maintenance and performance testing of micro-components. Meanwhile, it is suitable for precision operations in dentistry, clinical medicine and other disciplines, facilitating scientific observation and modern hands-on practical teaching.
Product Features
- Equipped with a 14-inch 4K naked-eye 3D monitor; supports switchable output of 3D/2D video formats and 4K/1080P resolution switching
- Parallel optical path objective with 0.8X–5X continuous zoom; standard working distance reaches 186 mm
- Supports recording of 3D images and 3D videos, as well as local preview and playback of saved 3D pictures and videos
- Powerful built-in ISP functions delivering outstanding sharpening and noise reduction performance
- Embedded XCamView software provides a full suite of comprehensive image processing functions
- Supported module purchasing options are as follows: complete set; lens + camera module + monitor; lens + camera module; custom-built camera module
Specifications

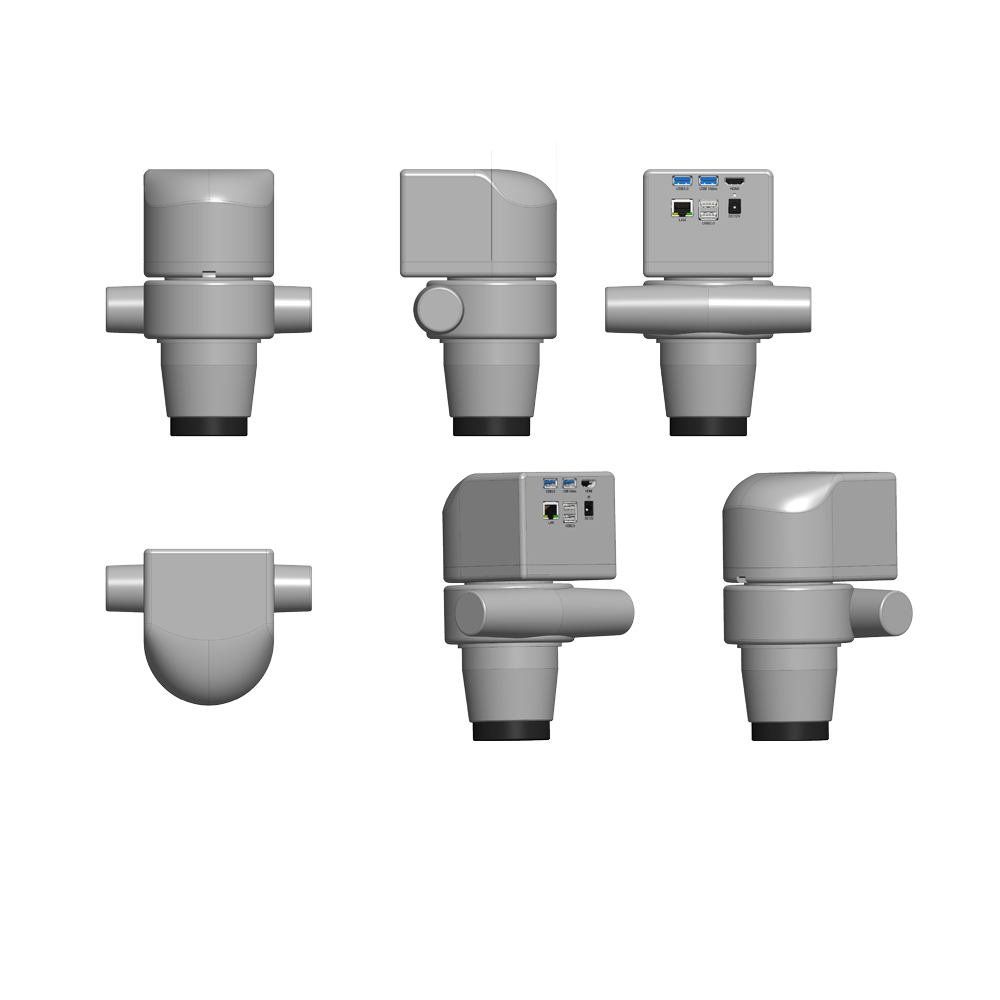

Camera module
| Mode | Sensor Model | Sensor Size | Sensor Count | Pixel Size | G Sensitivity | Dark Current | Sensor Output | Exposure Time |
|---|---|---|---|---|---|---|---|---|
| 2D | IMX678 (C) | 1/1.8" (7.68×4.32 mm) | 1 | 2.0 µm × 2.0 µm | 3541 mV @ 1/30 s | 0.15 mV @ 1/30 s | 60 fps @ 3840×2160 | 0.019 ms ~ 1000 ms |
| 3D 1080P | IMX678 (C) | 1/1.8" (7.68×4.32 mm) | 2 | 2.0 µm × 2.0 µm | 3541 mV @ 1/30 s | 0.15 mV @ 1/30 s | 60 fps @ 1920×1080 | 0.019 ms ~ 1000 ms |
| 3D 4K | IMX678 (C) | 1/1.8" (7.68×4.32 mm) | 2 | 2.0 µm × 2.0 µm | 3541 mV @ 1/30 s | 0.15 mV @ 1/30 s | 60 fps @ 3840×2160 | 0.019 ms ~ 1000 ms |
| Mode | HDMI Output | Photo Resolution | Video Recording |
|---|---|---|---|
| 2D | 60 fps @ 3840×2160 60 fps @ 1920×1080 | 3840×2160 | 60 fps @ 3840×2160 60 fps @ 1920×1080 60 fps @ 1280×720 |
| 3D 1080P | 60 fps @ 1920×1080 | 1920×1080 | 60 fps @ 1920×1080 |
| 3D 4K | 30 fps @ 3840×2160 | 3840×2160 | 30 fps @ 3840×2160 |
Sensor Count: 2D: 1 (left or right); 3D: 2
Camera Interfaces: USB3.0; USB Video; HDMI2.0; LAN; USB mouse; DC 12 V / 2 A
Storage: USB flash drive

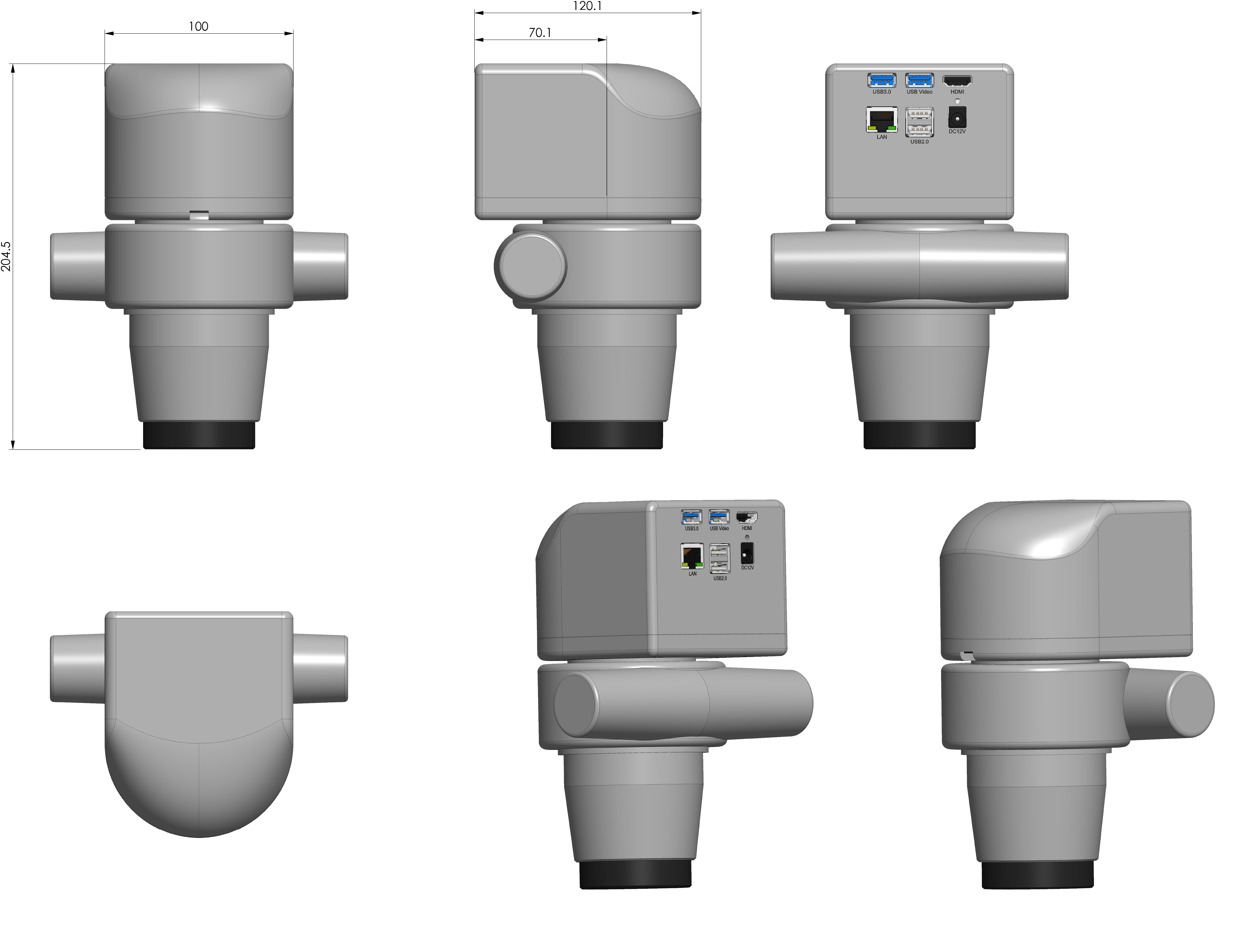

Continuous-zoom optical system
| Optical Body | System Magnification | Working Distance | Field of View |
|---|---|---|---|
| 0.8X–5X continuous zoom; 0.5X plan apochromatic objective | 0.2X–1.25X | 186 mm | 37 mm × 21 mm (max.); 6 mm × 3.2 mm (min.) |
Naked-eye 3D monitor
| Monitor | 14-inch (15.6-inch customizable); 2D 3840×2160; monocular 3D 1920×2160; 60 Hz |
|---|---|
| 3D Optical System | Liquid-crystal lenticular transmission grating; structured-light eye tracking |
| Viewing Distance | 45 cm; ±30° effective 3D range |
| Light Transmittance | 93% (typical) |
| Crosstalk | <2.5% |
| Response Time | 25 ms (30 ms max.) |
| Brightness | 350 cd/m² |
| Contrast | 1500:1 |
| Color Gamut | 99% (typical) |
| Viewing Angle | 178° / 178° |
| Monitor Interfaces | 1× HDMI; 1× Type-C 1.4; 1× 3.5 mm audio output |
| Monitor Power | 28 W typical; <5 W standby; DC 12 V / 3 A |
Microscope stand
| Stand Model | Base Dimensions | Center Distance | Fine Adjustment | Travel per Revolution | Aperture |
|---|---|---|---|---|---|

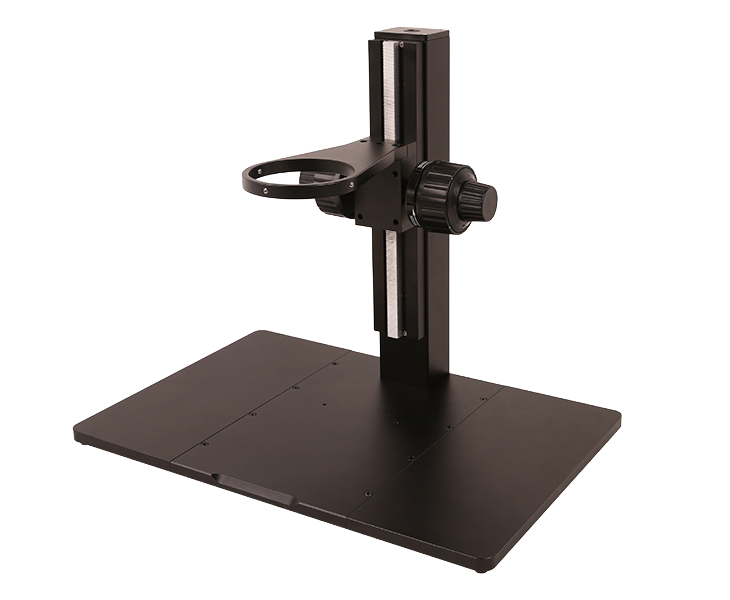

| TPS-600-CFA76 | 380 × 250 × 10 mm | 177 mm | 0.002 mm | 0.214 mm | 76 mm |
LED ring light
| Light Source Model | Outer Diameter | Mounting Diameter | Illumination | Illumination Range |
|---|---|---|---|---|

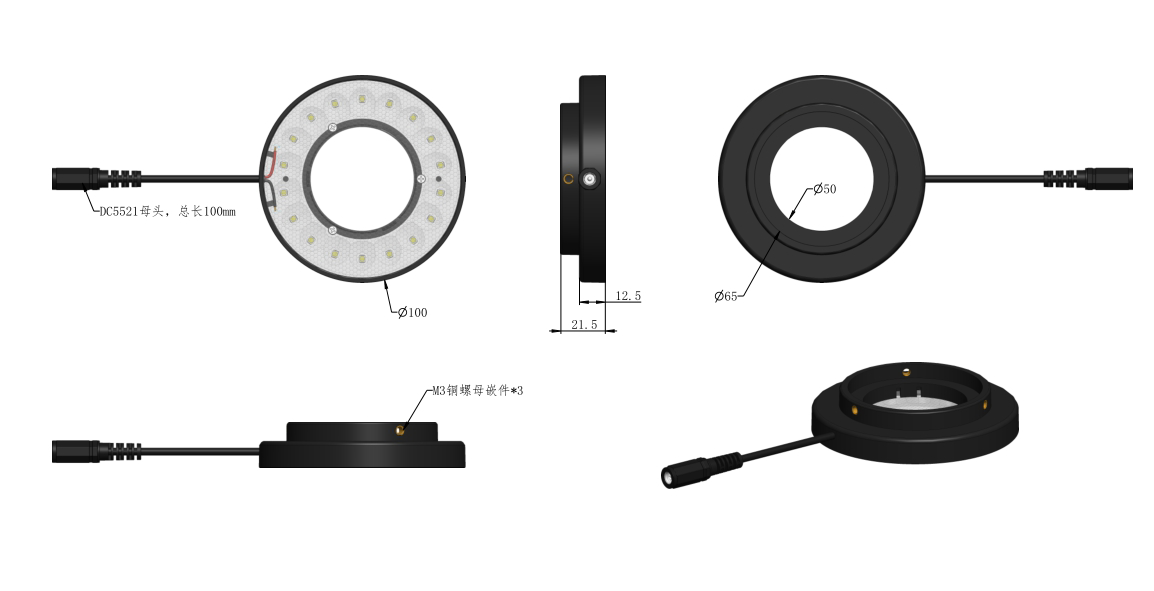

| DRL-10065 | 100 mm | 65 mm | 18 LEDs + diffusion lens | 80–130 mm |
Software and operating environment
| Software | XCamView; ToupView; ToupLite |
|---|---|
| Power Supply | Camera: DC 12 V / 2 A; monitor: DC 12 V / 3 A |
| Operating Temperature | -10 °C ~ +50 °C |
| Storage Temperature | -20 °C ~ +60 °C |
| Operating Humidity | 30%–80% RH |
| Storage Humidity | 10%–60% RH |
Models
| Model | Sensor | Resolution | Frame Rate | Interface | Sensor Size | Pixel Size | Lens Mount | Storage | Imaging Modes |
|---|---|---|---|---|---|---|---|---|---|
| DSM711 | Dual Sony IMX678 (C) | 8 MP (3840×2160) | 2D 4K: 60 fps; 3D 1080P: 60 fps; 3D 4K: 30 fps (HDMI) | HDMI2.0; USB3.0; USB Video; LAN | 1/1.8" (7.68×4.32 mm) | 2.0 µm × 2.0 µm | Integrated continuous-zoom optical body | USB flash drive | 2D / 3D 1080P / 3D 4K |
Detailed Introduction
2D and 3D imaging
The dual Sony IMX678 modules support 2D 4K at 60 fps, 3D 1080P at 60 fps and 3D 4K at 30 fps over HDMI. 3D images and H.264 MP4 videos can be stored on a USB flash drive and previewed or played back locally.

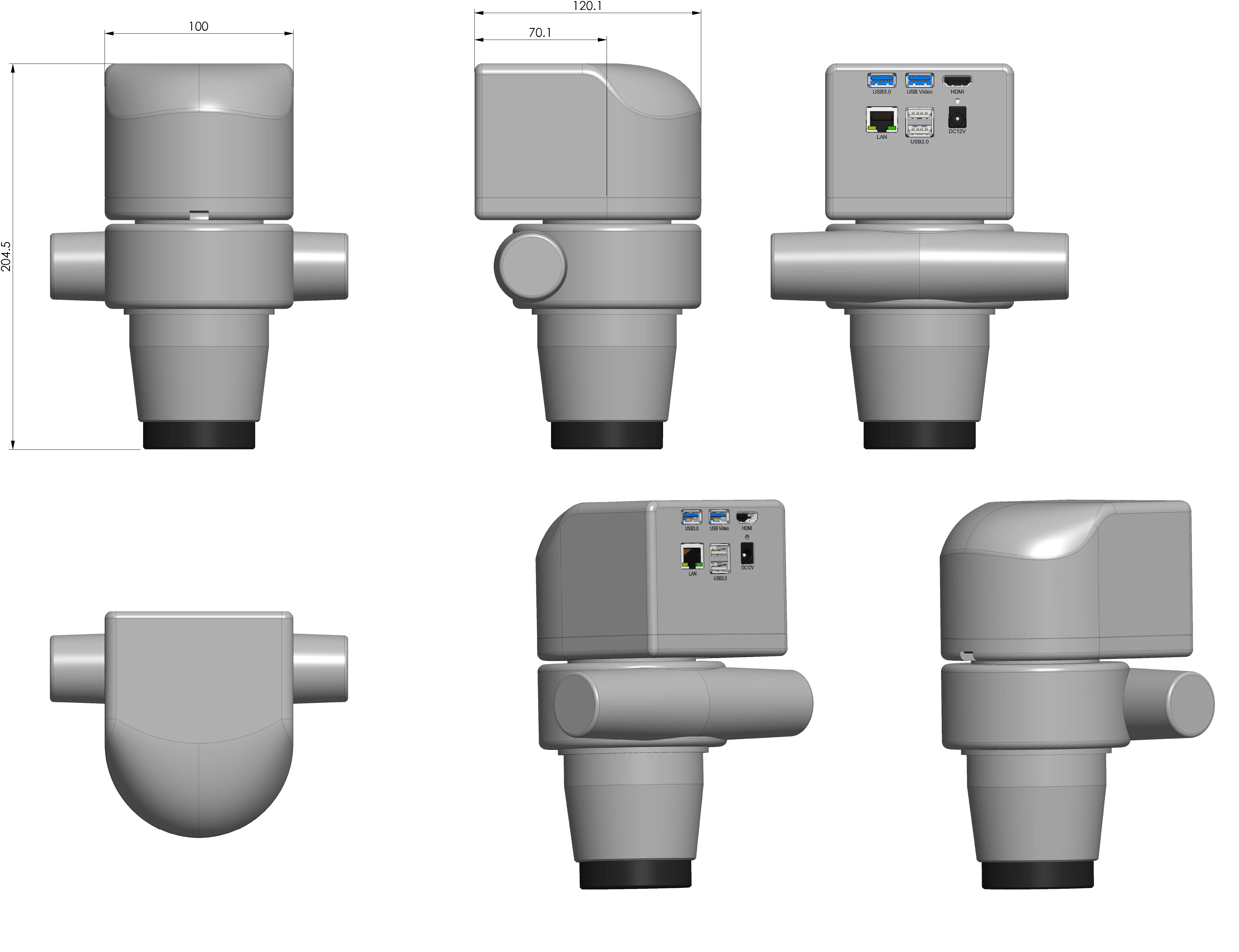

Continuous-zoom optical system
The parallel optical path uses a 0.8X–5X continuous-zoom body with a 0.5X plan apochromatic objective, 0.2X–1.25X system magnification and a 186 mm working distance. The field of view ranges from 37 mm × 21 mm to 6 mm × 3.2 mm.
Naked-eye 3D display and eye tracking
The 14-inch 4K monitor provides 1920×2160 monocular 3D resolution at 60 Hz through a liquid-crystal lenticular transmission grating. Structured-light eye tracking supports an optimum 45 cm viewing distance and a ±30° effective 3D viewing range.

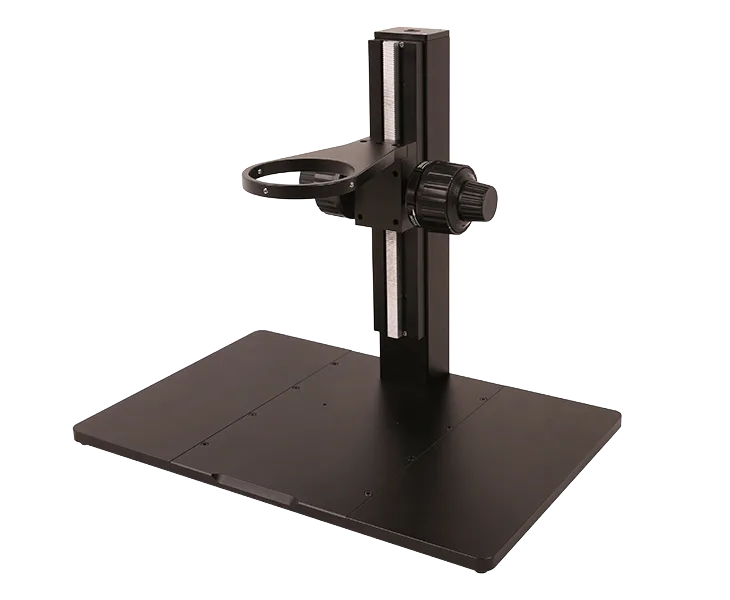

Stand and illumination
The TPS-600-CFA76 stand uses a 380 mm × 250 mm × 10 mm base, 177 mm center distance and 0.002 mm fine-adjustment precision. The DRL-10065 ring light uses 18 high-brightness LEDs with a diffusion lens over an 80–130 mm illumination range.
Interfaces and software
USB3.0 supports local storage and a 5G Wi-Fi module; USB Video and LAN provide video to ToupView/ToupLite; HDMI2.0 provides 4K/1080P output. Embedded XCamView provides camera controls, image processing, 2D/3D switching, capture, recording, browsing and playback.
3D output does not support measurement. ToupView/ToupLite over NETWORK/USB Video is supported only in single-channel output mode.
XCamView camera controls
XCamView is operated with a USB mouse. Camera controls include automatic/manual exposure and gain, white balance, sharpening, 3D noise reduction, saturation, gamma, contrast, brightness, 50/60 Hz anti-flicker, color-to-gray conversion, dark-area enhancement, clarity enhancement, purple-fringe removal and brightness enhancement. The control toolbar provides 2D/3D switching, mirror/flip, freeze, grid, image browsing and recorded-video playback.
Product Features
Equipped with a 14-inch 4K naked-eye 3D monitor; supports switchable output of 3D/2D video formats and 4K/1080P resolution switching
Parallel optical path objective with 0.8X–5X continuous zoom; standard working distance reaches 186 mm
Supports recording of 3D images and 3D videos, as well as local preview and playback of saved 3D pictures and videos
Powerful built-in ISP functions delivering outstanding sharpening and noise reduction performance
Embedded XCamView software provides a full suite of comprehensive image processing functions
Supported module purchasing options are as follows: complete set; lens + camera module + monitor; lens + camera module; custom-built camera module
