XCAMTOP4K_MINI Series
Product Introduction
Compact body design integrating HDMI 1.4, USB Video and WiFi multiple output interfaces. Enables direct 4K ultra-HD image capture and display for stereo microscopes or biological microscopes without a computer. Built-in XCamView software provides rich measurement and image processing functions, supporting voice control and microscopic interactive teaching system networking.
Product Features
- Sony Starvis 2 back-illuminated CMOS sensor
- 4K/1080P HDMI output adaptive switching
- WiFi AP/STA dual mode (requires USB adapter)
- USB Video interface supports MJPEG real-time transmission
- Built-in XCamView measurement software: auto edge detection, calibration, multiple measurement tools
- USB storage: MP4 (H.264 encoding) video and JPEG/TIFF images
- USB voice control module: photo/video/freeze operations
- Powerful ISP functions: ROI white balance, 3D noise reduction, sharpening, dark area enhancement
- Multi-language interface support (10 languages)
- Built-in RTC precise time control
Product Details
XCAMTOP4K8MPC_MINI Specifications
| Key Parameters | |
| Product Model | XCAMTOP4K8MPC_MINI |
| Product Series | HDMI/WiFi/USB Multi-Output C-Mount Camera |
| Sensor Parameters | |
| Sensor Model | Sony IMX678(C) |
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 8.81 mm |
| Pixel Size | 2.0 µm × 2.0 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Performance Parameters | |
| Frame Rate | HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 |

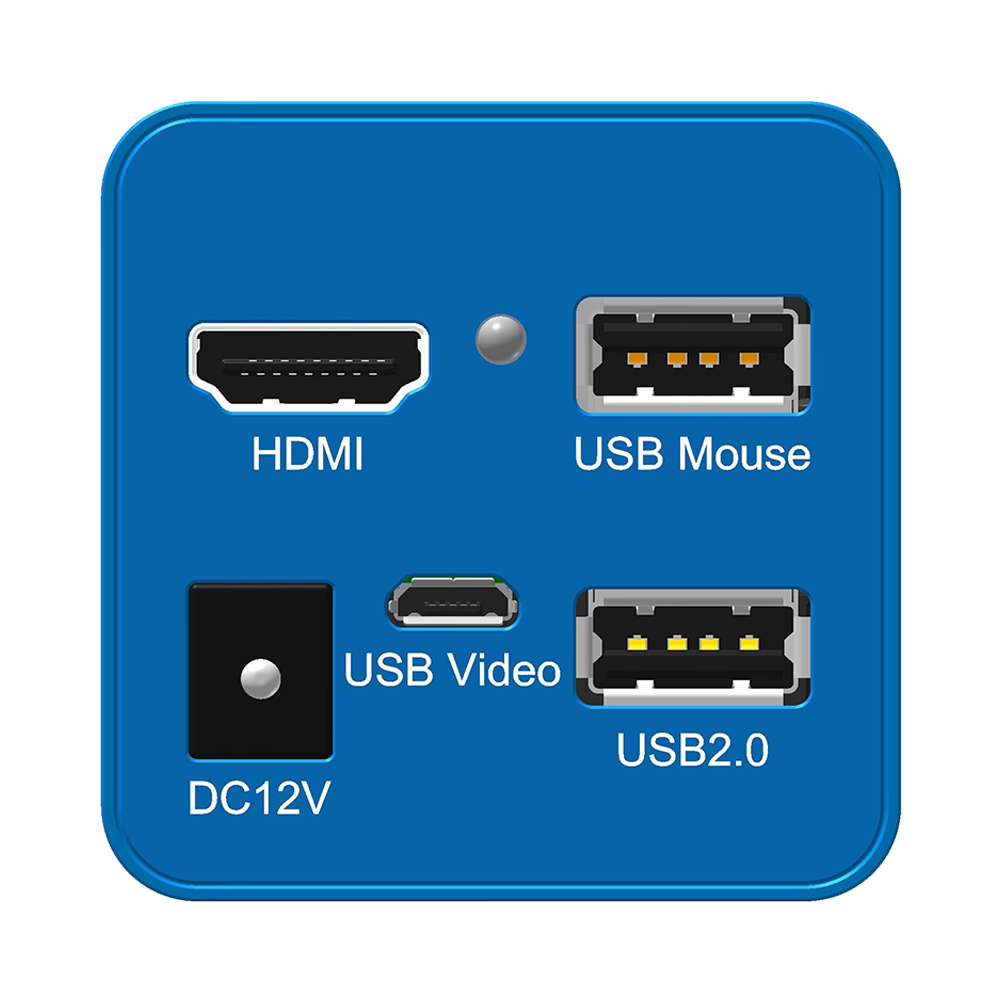

| Output Interfaces | HDMI 1.4, USB Video, WiFi |
| Lens Mount | C-mount |
| Storage Support | USB storage |
| Software Support | XCamView, ToupView, ToupLite |
| Physical Parameters | |
| Power Supply | DC 12 V/1 A |
| Dimensions | Compact design |
| Weight | Lightweight |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ +50 °C |
| Other Information | |
| OS Support | Windows, Linux, macOS, Android, iOS |
| Certification | CE, FCC, UL |
Product Overview

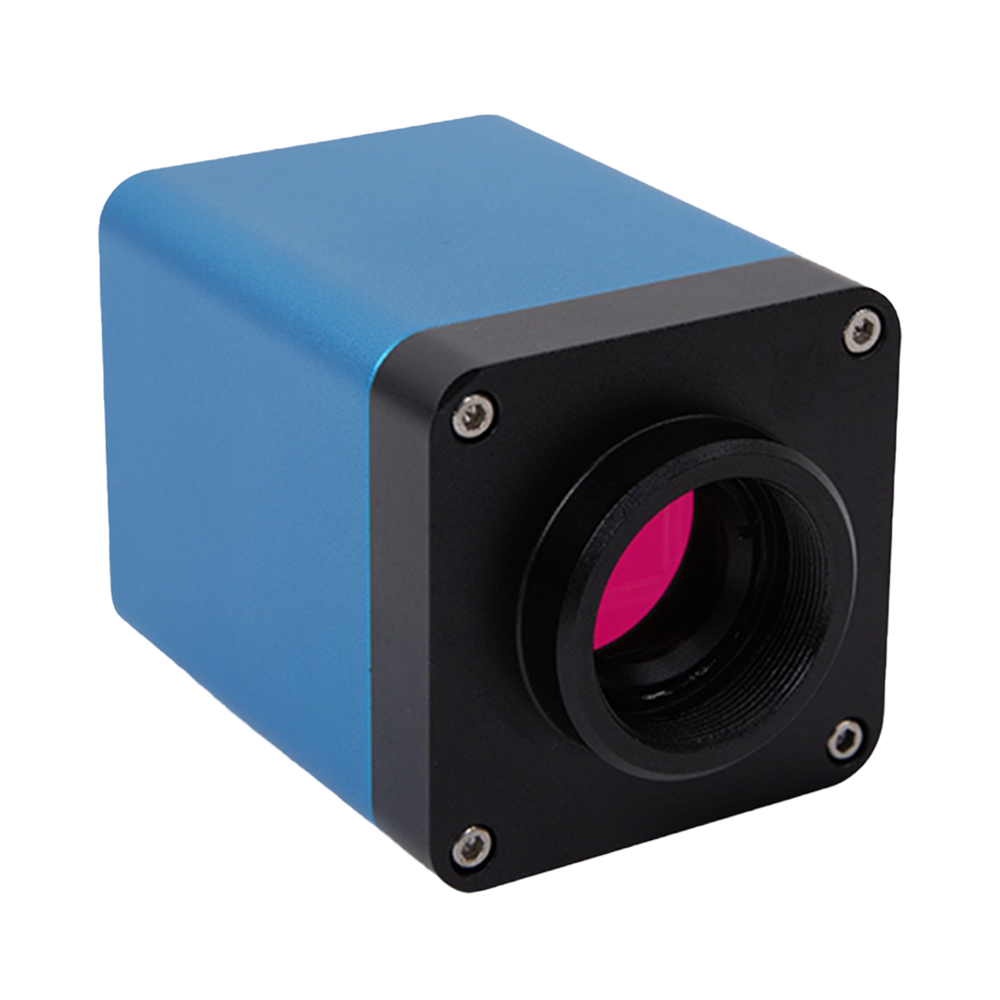

XCAMTOP4K8MPC_MINI is a compact 4K HDMI/WiFi/USB Multi-Output C-Mount CMOS Camera designed specifically for microscopy imaging, featuring the following core characteristics:
- Compact Design: Small form factor for easy integration into various microscope systems, suitable for space-constrained applications
- Sony Starvis 2 Sensor: Back-illuminated CMOS sensor technology provides excellent low-noise and high-sensitivity imaging performance
- Multi-Interface Output: Supports 4K HDMI, WiFi, and USB Video output modes to meet different usage requirements
- Built-in XCamView Software: Integrated professional measurement and image processing functions, supporting auto edge detection, calibration, and graphics overlay
- Voice Control Function: Voice command control via USB audio control module for capture, recording, and freeze operations
- Local Storage and Playback: Direct USB storage of images and videos with local preview and playback for convenient data management
- Powerful ISP Processing: ROI white balance, 3D noise reduction, sharpening and other image optimization functions significantly improve imaging quality
Core Performance Indicators
4K
Video Resolution
30 fps
Maximum Frame Rate
Multi-Interface
HDMI/WiFi/USB
8MP (3840×2160)
Sensor Resolution
Advanced Features
Voice Control
Voice commands via USB audio control module for hands-free operation convenience
Smart Measurement
Automatic edge detection and measurement functions improve measurement efficiency and accuracy
WiFi Connectivity
Supports AP/STA dual modes for easy networking and remote control
ISP Optimization
ROI white balance, 3D noise reduction and other professional image processing functions
Why Choose This Product
XCAMTOP4K8MPC_MINI with its compact body design, diverse output interfaces, and powerful built-in functions, is particularly suitable for microscopy observation scenarios requiring high-definition real-time display. The addition of voice control and WiFi connectivity greatly improves operational efficiency and convenience, making it an ideal choice for teaching demonstrations, industrial inspection, and research documentation.
Application Scenarios
Stereo microscope imaging
Stereo microscope imaging
Biological microscope observation
Biological microscope observation
Microscopic interactive teaching system
Microscopic interactive teaching system
Industrial inspection
Industrial inspection
Medical pathology observation
Medical pathology observation
Application Examples

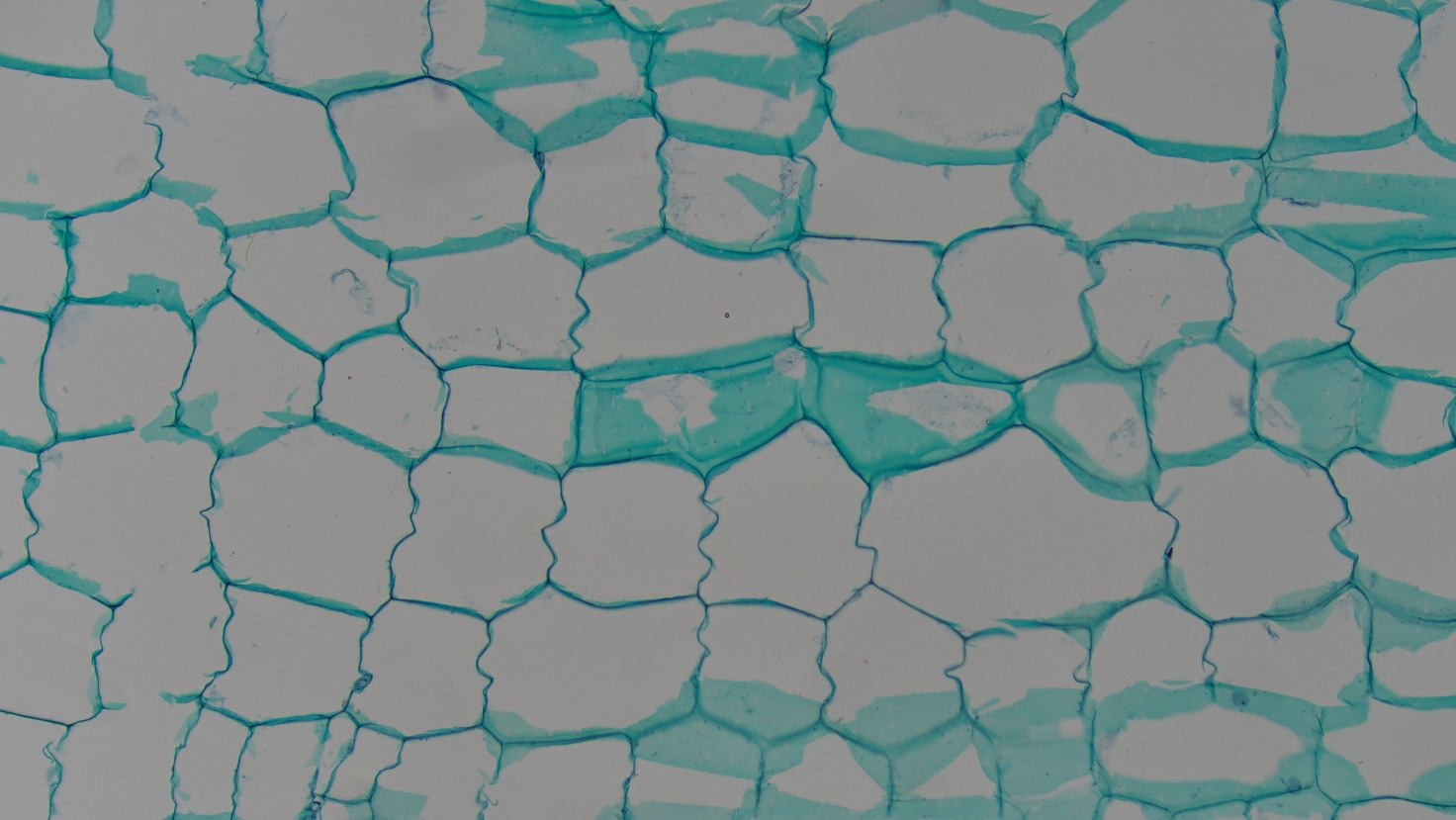

Cucurbitaceae plant stem longitudinal section

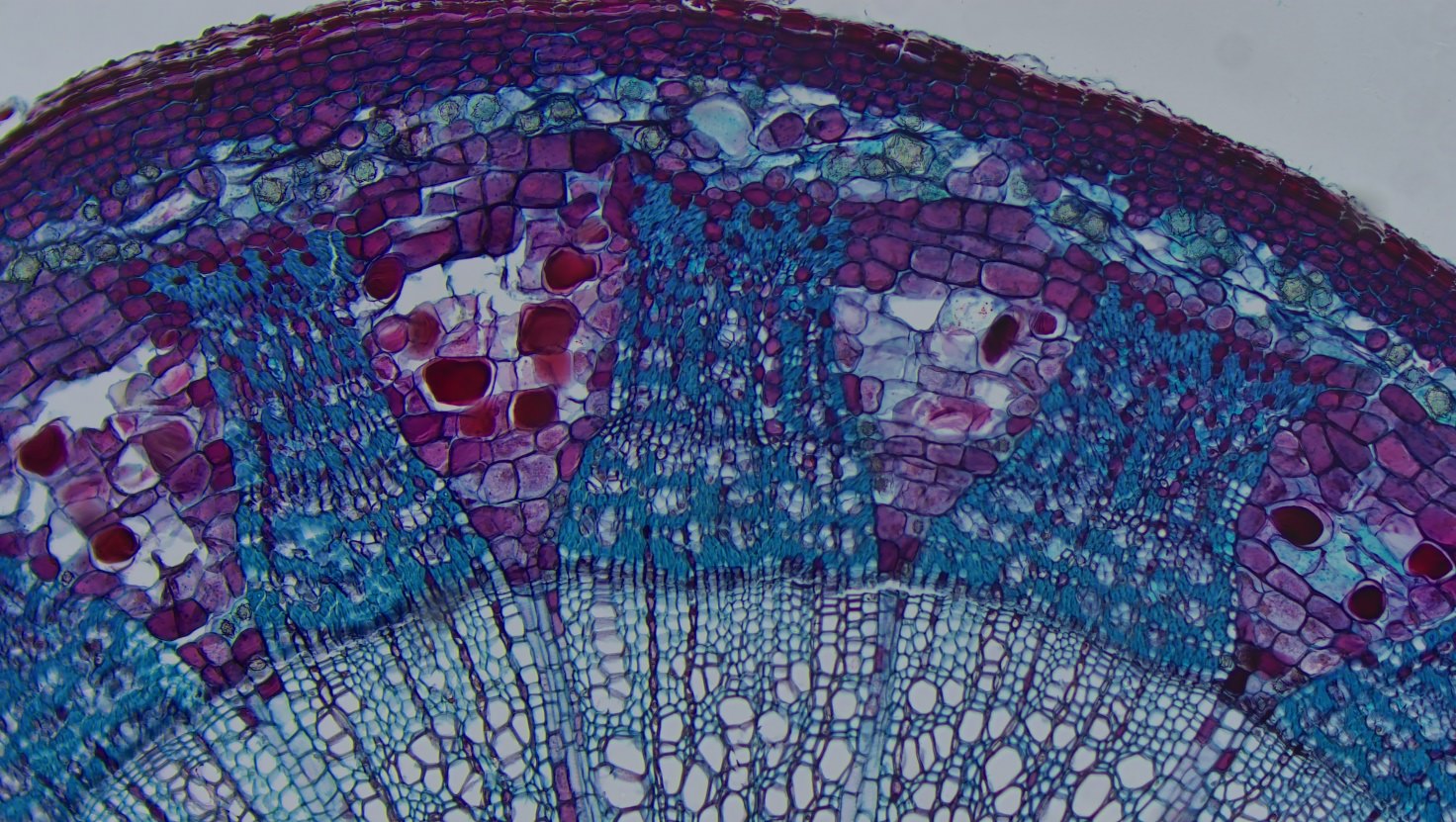

Two-year-old linden stem cross section

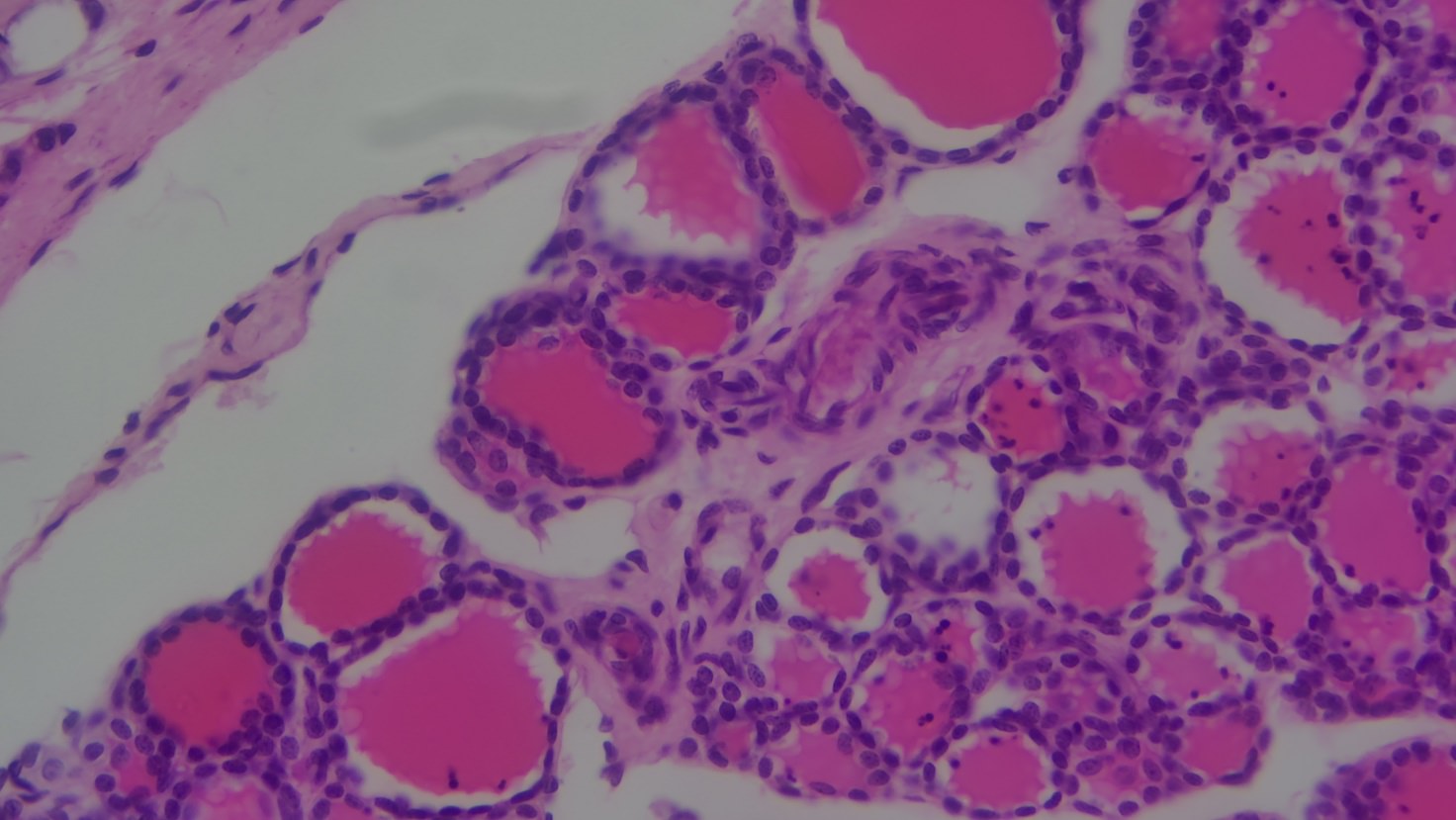

Simple cuboidal epithelium section

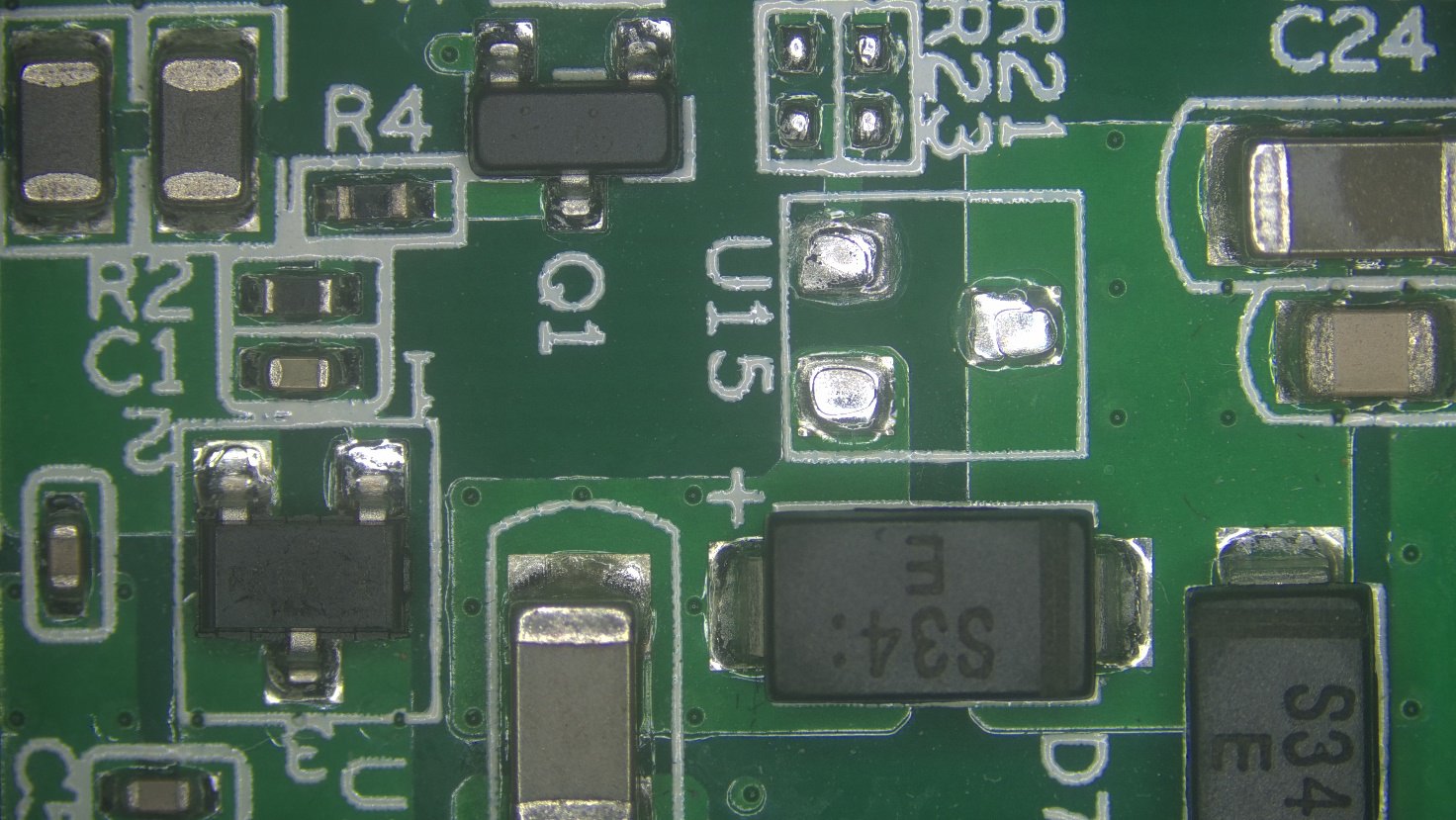

Circuit board
Selection Guide
- IMX678 Model: 1/1.8" sensor, 2.0 µm pixels, suitable for general microscopy imaging requirements
- IMX585 Model: 1/1.2" large sensor, high sensitivity, suitable for low-light environments
- IMX715 Model: 1/2.8" sensor, 1.45 µm small pixels, suitable for high-resolution requirements
- Teaching Applications: Recommend models with WiFi networking support for building interactive teaching systems
XCAMTOP4K8MPC_MINI Product Manual
PDF format, including detailed technical parameters, dimension drawings, and application guide
Software Download
XCamView / ToupView / ToupLite professional imaging software
3D Model Files
STEP format for system integration design
XFCAMTOP_MINI Multi-Interface Camera | Packing List #

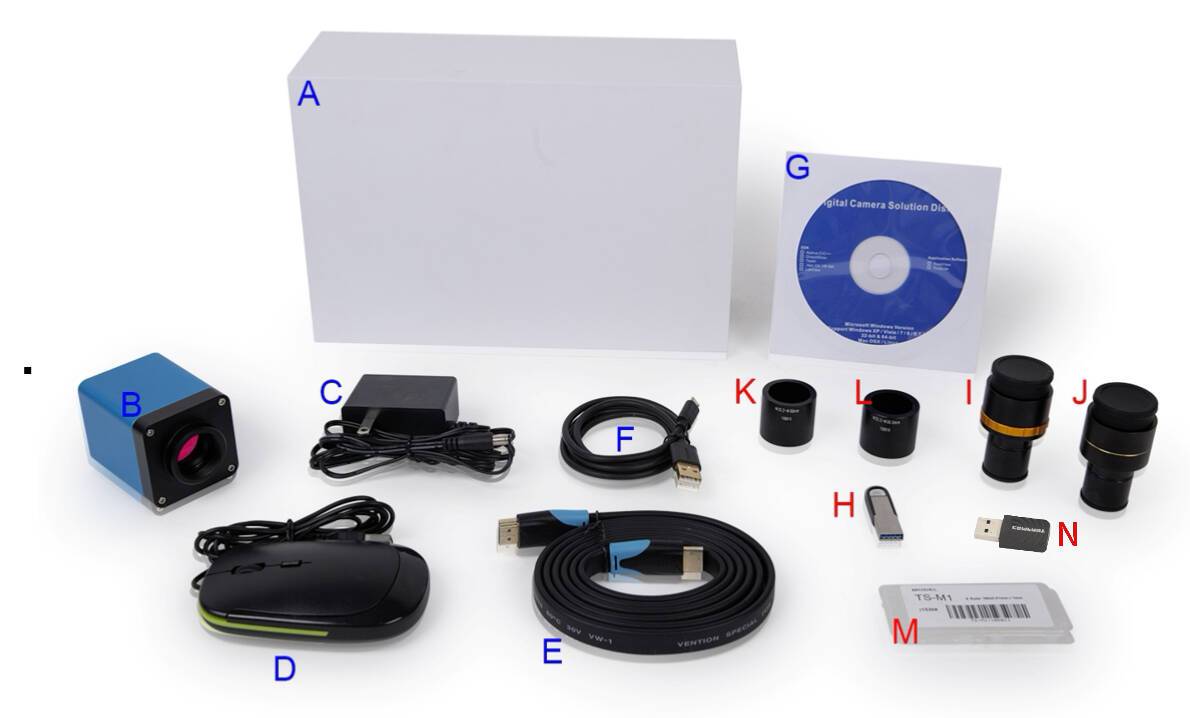

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm
- B XCAMTOP4K_MINI camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12W-US: UL/CE/FCC), EU POWER-E-12V1A (MSA-C10001C12.0-12W-DE: UL/CE/FCC)
- D USB mouse
- E HDMI cable
- F Micro USB cable
Optional Accessories
- G Voice control module
- H USB drive
-

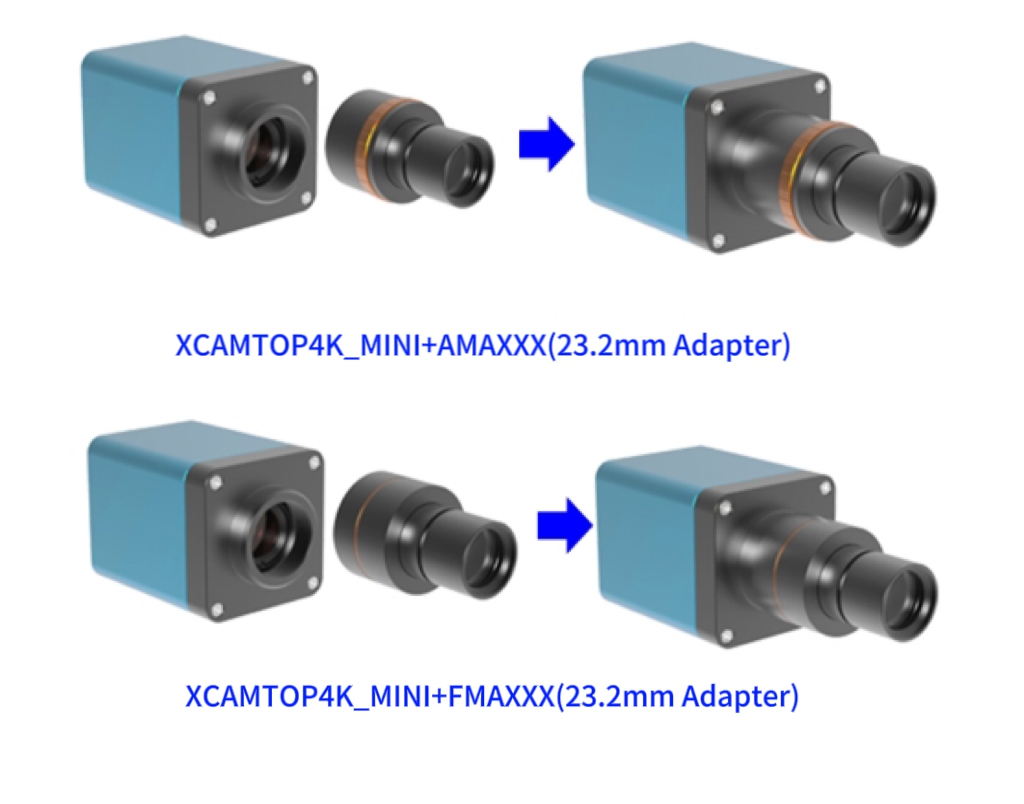

I Adjustable eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
J Fixed eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm the camera model and interface before choosing I or J; engineers can assist.
- K 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- L 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- M USB wireless network adapter (required for WiFi mode; appearance varies by model)
XFCAMTOP_MINI Multi-Interface Camera | Product Dimensions #
Body dimensions and environmental specifications
See manual Fig. 5-12
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive
The Touptek XCAMTOP4K_MINI series is a C-mount 4K multi-output microscopy camera. It works PC-free over HDMI for viewing, capture, recording, and measurement on a large display, or connects via Wi-Fi or USB Video to computers/tablets/phones for collaboration and sharing, fitting stereo microscopes, biological microscopes, and other C-mount optical systems.
The camera uses Sony Starvis 2 high-sensitivity CMOS (e.g., IMX678), supports 4K/1080p HDMI auto switching, and has the XCamView imaging and measurement platform built in, offering ROI white balance, 3D noise reduction, Gamma, and sharpness/contrast/saturation ISP tuning. It also supports voice control, USB drive storage (H.264/H.265), and on-device playback, enabling efficient deployment for teaching, research logging, and industrial inspection.
Technical Highlights
- Multi-interface output: 4K/1080p HDMI auto, Wi-Fi (AP/STA), and USB Video (MJPEG)
- High-performance imaging: Sony Starvis 2 sensor with low noise and high sensitivity plus 50/60 Hz anti-flicker
- Built-in XCamView: Calibration, measurement, auto edge finding, overlay, comparison, and playback all in one
- Smart control: Voice control (capture/record/freeze), USB mouse operation, and multi-language UI
- Easy storage: Save photos (JPEG/TIFF) and videos (MP4, H.264/H.265) directly to USB drives with on-device browsing and playback
- Broad compatibility: Works with ToupView/ToupLite (Windows/macOS/Linux/iOS/Android) for teaching networks and multi-camera setups
Core Benefits
-
1
Compact C-Mount Design Small footprint and easy mounting for stereo/biological microscopes
-
2
4K Clarity with Stable Output HDMI 4K/1080p auto switching for teaching displays and demos
-
3
Multi-Interface & Wireless HDMI + Wi-Fi + USB Video, supporting AP/STA networking and multi-end collaboration
-
4
Robust ISP & Measurement ROI white balance, 3D noise reduction, Gamma/sharpness/contrast/saturation plus calibration/measurement/overlay/playback
-
5
Plug-and-Play, Easy Upkeep USB recording and playback with multi-language UI for quick deployment and low training cost
