XCAM4K Series
Product Introduction
The XCAM4K series HDMI cameras are ToupTek's new generation HDMI cameras with frame rates reaching 60 fps at 4K resolution, currently among the highest frame rate HDMI cameras in China.
XCAM4K8MPA HDMI camera uses Sony IMX334LQR-C CMOS image sensor, which adopts Exmor technology with a chip size of 1/1.2" and individual pixel size of 2.0 µm x 2.0 µm. IMX334 features high sensitivity, low dark current, and small color dispersion (using R, G, and B primary color filters).
XCAM4K8MPB series HDMI camera uses Sony IMX485LQR-C CMOS image sensor, which adopts Exmor technology with a chip size of 1/1.8" and individual pixel size of 2.9 µm x 2.9 µm. IMX485 features extremely high sensitivity (G light sensitivity reaches 2188mv within 1/30s), low dark current, and small color dispersion (using R, G, and B primary color filters).
XCAM4K16MPA series HDMI camera uses Sony IMX183LQR-C CMOS image sensor, which adopts Exmor technology with a chip size of 1/1.06" and individual pixel size of 2.4 µm x 2.4 µm. IMX183 features high sensitivity, low dark current, and small color dispersion (using R, G, and B primary color filters).

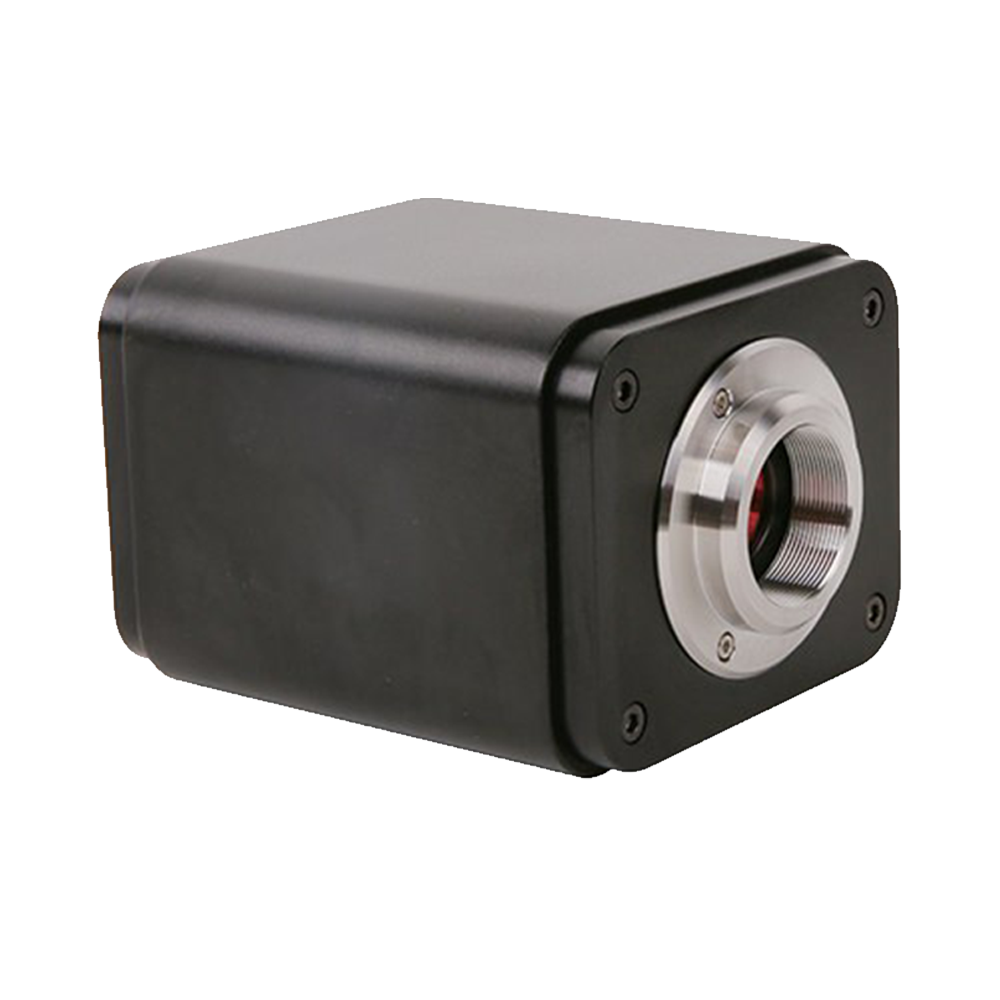

XCAM4K series HDMI cameras adopt standard C-type mounting interface for maximum compatibility with various microscope systems. When used with HDMI monitors or TVs, they can record videos. If connected to NETWORK/USB, they can also transmit video in real-time to computers for image capture and video recording.
Hardware 3D noise reduction, sharpness and local tone mapping algorithms significantly improve the image and video quality of XCAM4K series cameras.
The included Windows software provides image processing and measurement functions, as well as advanced composite functions such as image stitching and depth of field extension. The software has magnification calibration function at multiple magnifications for accurate size measurement at different magnifications. For Mac and Linux systems, simplified software can be used for capturing videos, static images, and simple image processing.
Product Features
- Sony Exmor/Starvis back-illuminated CMOS sensor
- 4K HDMI/NETWORK/USB multi-interface output C-mount CMOS camera
- 4K/1080P HDMI output adaptive switching
- SD card/USB flash drive saves captured images or videos, supports local preview and playback
- Built-in XCamView software for camera control
- Powerful ISP functions with significant sharpening and 3D noise reduction effects, more accurate ROI white balance
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
Product Details
XCAM4K8MPB Specifications
| Key Parameters | |
| Product Model | XCAM4K8MPB |
| Product Series | HDMI/NETWORK/USB Multi-Output C-Mount CMOS Camera |
| Sensor Parameters | |
| Sensor Model | Sony IMX485(C) |
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 12.8 mm |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Performance Parameters | |
| Frame Rate | HDMI: 60 fps@4K/1080P; NETWORK: 30 fps@4K/1080P; USB: 30 fps@3840×2160 |

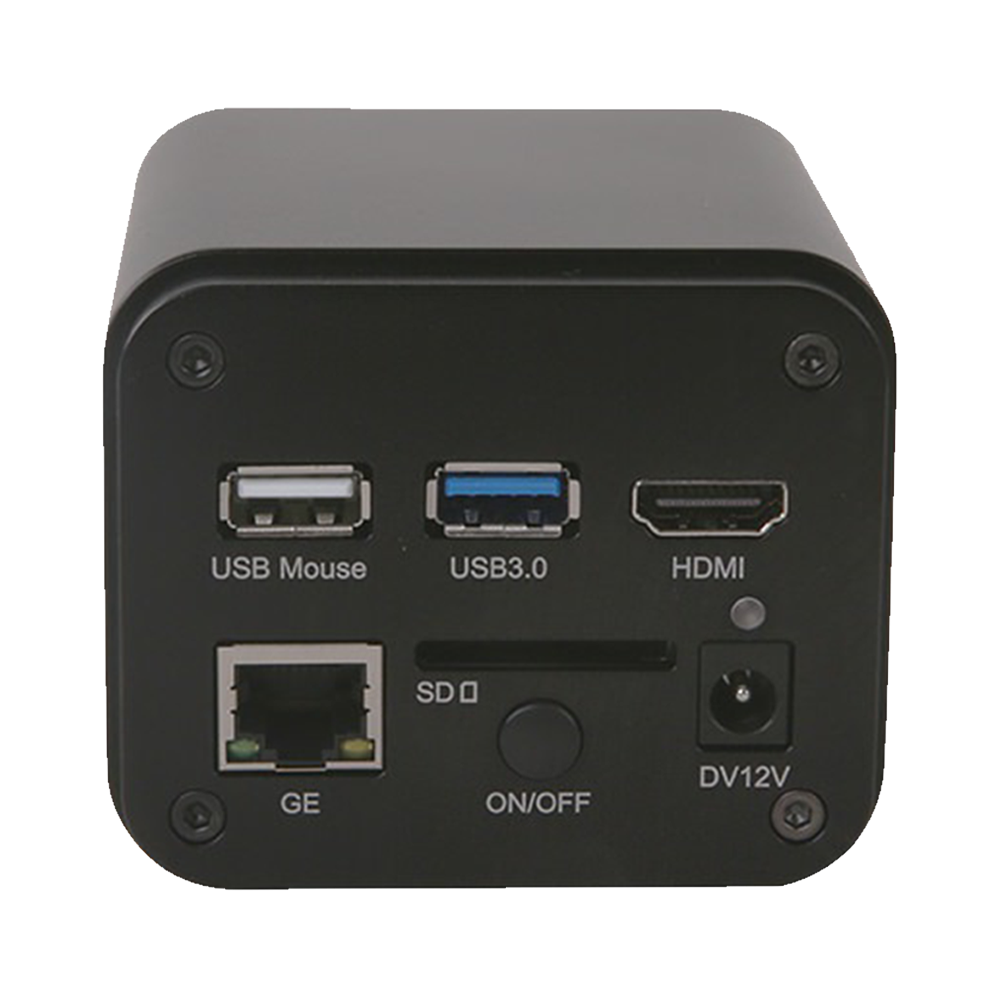

| Output Interfaces | HDMI2.0, USB3.0, Ethernet, Wi-Fi |
| Lens Mount | C mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| Physical Parameters | |
| Power Supply | DC 12 V/1A |

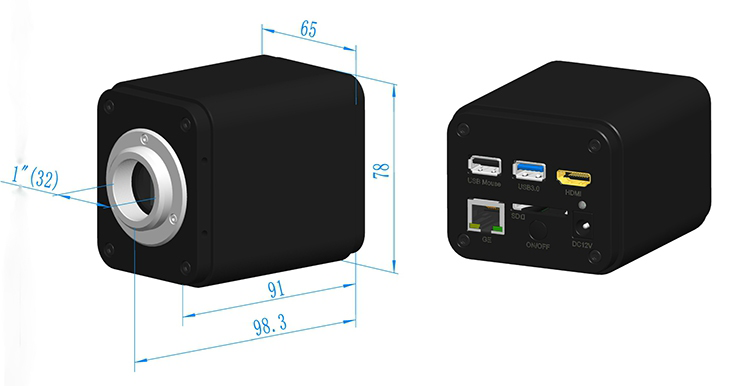

| Dimensions | 78 × 65 × 94.5 mm |
| Weight | 0.47 kg |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ +50 °C |
| Other Information | |
| OS Support | Windows, Linux, macOS |
| Certification | CE, FCC, RoHS |
Product Overview
XCAM4K8MPB is a 4K Multi-Interface C-Mount CMOS Camera, supports HDMI2.0, USB3.0, Ethernet, Wi-Fi and other interfaces, 4K high resolution, rich image processing functions, suitable for scientific research and digital laboratories. designed for high-definition real-time imaging with the following core features:
- Plug-and-Play Design: Direct HDMI HD video output without computer, works with display for microscopy observation and recording
- USB Voice Control Module: Supports voice command for real-time camera control including capture, recording, freeze operations, freeing up hands
- Barcode Scanner Capture: Supports barcode scanner triggered capture function, suitable for batch sample recording and traceability management
- Intelligent Measurement Functions: Built-in XCamView software supports auto edge detection, auto parallel line distance measurement, auto rectangle measurement and other intelligent measurement functions
- Local Storage and Comparison: Supports USB storage, local preview and playback, image comparison and video comparison functions for convenient sample analysis
- Powerful ISP Processing: Provides dark enhancement, sharpening and 3D noise reduction functions, significantly improving image quality
- Quick Scene Switching: Supports quick switching between biological microscope and stereo microscope default effects, adapting to multiple usage scenarios
Core Performance Indicators
4K
Video Resolution
60 fps
Maximum Frame Rate
Multi-Interface
HDMI/USB Output
8MP (3840×2160)
Sensor Resolution
Advanced Features
Voice Control
Voice control via USB audio module for improved operational convenience
Barcode Capture
Supports barcode scanner triggered photography, suitable for batch sample management
Intelligent Measurement
Auto edge detection and measurement functions improve measurement efficiency and accuracy
ISP Optimization
Powerful image processing capabilities optimize imaging quality
Why Choose This Product
XCAM4K8MPB stands out with its plug-and-play design philosophy, diverse control methods and powerful image processing capabilities, making it particularly suitable for microscopy observation scenarios requiring high-definition real-time display. The addition of voice control and barcode capture functions significantly improves operational efficiency, making it an ideal choice for educational demonstrations, industrial inspection, scientific research recording and other fields.
Application Scenarios
Stereomicroscope imaging
Stereomicroscope imaging
Biological microscope imaging
Biological microscope imaging
Industrial inspection
Industrial inspection
Teaching and research
Teaching and research
Digital laboratory
Digital laboratory
Application Case Display
Alfalfa stem
Broad bean root
Older Capsella embryo
Corn leaves
Selection Guide
- 4K HD Requirements: Choose XCAM4K4K8MPA or XCAM4K4K8MPB, supporting 3840×2160 resolution
- High Frame Rate Requirements: Choose XCAM4K1080P series, supporting 60 fps high-speed imaging
- Large Sensor Requirements: Choose IMX678 sensor model, 1/1.8" large sensor
- Economic Choice: Choose IMX415 or IMX462 sensor models for high cost-performance ratio
XCAM4K8MPB 产品手册
PDF format with dimensional drawings, specifications, and application guidance
In-Depth Overview
The Tupu Optoelectronics XCAM4K series is a standalone 4K HDMI CMOS camera with multi-interface output for high-resolution imaging and video capture on stereo and biological microscopes. It also supports networked deployments for interactive teaching and remote collaboration, covering classroom demonstrations, research documentation, and industrial inspection.
Equipped with a Sony Starvis 2 back-illuminated high-sensitivity sensor, the camera supports adaptive 4K/1080p HDMI output and delivers 4K 60 fps video with ~40 ms latency, combining outstanding image quality with real-time responsiveness.
Technical Highlights
- Multi-interface output and collaboration: HDMI 4K60, USB 3.0, and Gigabit Ethernet operate simultaneously to support local display, PC capture, and remote collaboration.
- High-performance imaging with hardware processing: Sony Starvis 2 sensor with built-in hardware 3D noise reduction, sharpening, color restoration, and gamma adjustment.
- Smart interaction and efficient operation: Optional voice control module triggers capture, recording, and freeze operations via USB audio, with automatic upload support.
- Comprehensive file management and advanced tools: Built-in interface enables video/image comparison, live vs. captured comparison, depth-of-field fusion, and multi-image stitching.
- Cross-platform compatibility and extensibility: Fully compatible with ToupView and ToupLite on Windows, macOS, and Linux, with SDKs for integration.
Core Advantages
-
1
Flexible multi-interface deployment Supports HDMI, USB, and LAN output for standalone use or integration with teaching and research systems.
-
2
4K 60 fps low-latency imaging Average latency of about 40 ms suits live presentations and recording.
-
3
Integrated smart features Voice control, automatic upload, and local management streamline daily workflows.
-
4
Professional image optimization Hardware 3D noise reduction, sharpening, gamma control, and accurate color reproduction maintain image fidelity.
-
5
Cross-platform support and scalability Supports major operating systems and SDK development for teaching, research, and industrial inspection.
