X5CAM4K8MPA_MR Modulare HDMI/NETWORK/USB-Mehrfachausgabekamera
Product Introduction
X5CAM4K8MPA_MR is a high-performance Modulare HDMI/NETWORK/USB-Mehrfachausgabekamera featuring Sony IMX678(C) sensor, with resolution up to 8MP (3840×2160), supporting HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video multiple output methods.
Product Features
- Modulare Langstreckenübertragung
- USB3.0-Verbindungskabel bis zu 10 Meter
- 4K 60 fps HDMI-Ausgabe mit niedriger Latenz (40 ms)
- RAW-Format-Bilderfassung
- Tiefenschärfensynthese-Funktion
- Stitching-Funktion
- WDR breiter Dynamikbereich
- Automatisches Hochladen auf Server
- Sprachsteuerung
Product Details
X5CAM4K8MPA_MR Specifications
| Key Parameters | |
| Product Model | X5CAM4K8MPA_MR |
| Product Series | Modulare HDMI/NETWORK/USB-Mehrfachausgabekamera |
| Sensor Parameters | |
| Sensor Model | Sony IMX678(C) |
| Sensor Size | 1/1.8" (7.68×4.32mm) |
| Diagonal | 1/1.8" |
| Pixel Size | 2.0μm × 2.0μm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Farbe |
| Performance Parameters | |
| Frame Rate | HDMI2.0: 60fps@3840×2160, USB3.0: 30fps@3840×2160, NETWORK: 30fps@3840×2160 |
| Output Interfaces | HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video |
| Lens Mount | C-Mount-Anschluss |
| Storage Support | SD-Karte, USB-Stick |
| Software Support | XCamView, ToupView, ToupLite |
| Physical Parameters | |
| Power Supply | DC 12V/1A |
| Design | Modulares Design mit Hauptgerät und Bilderfassungs-Untereinheit |
| Weight | 2KG |
| Environmental Parameters | |
| Operating/Storage Temperature | -10 °C ~ 50 °C, Lagertemperatur: -20 °C ~ 60 °C |
| Operating/Storage Humidity | Betriebsfeuchtigkeit: 30 ~ 80% RH, Lagerfeuchtigkeit: 10 ~ 60% RH |
| Other Information | |
| OS Support | Windows XP/7/8/10/11, Linux, macOS 10.10+, Android 5.1+, iOS 11+ |
| Certification | CE, FCC |
Product Overview
X5CAM4K8MPA_MR is a modular multi-interface ultra-high-definition camera designed specifically for system integration with the following core features:
- Modular Design: Main device and image acquisition module connected via USB 3.0 cable up to 10 m in length with screw locking, facilitating integration of the compact acquisition module into various equipment
- Multi-Interface Output: Supports 4K HDMI/Network/USB multi-interface simultaneous output, with HDMI supporting 4K/1080P adaptive switching
- Low Latency Transmission: 4K at 60 fps HDMI output with average latency of only 40 ms, meeting real-time display requirements
- Local Storage: Supports SD card and USB flash drive for video or image storage with local preview and playback capabilities
- RAW Format Support: Supports RAW format image capture and display to meet professional image processing requirements
- Network Upload Function: Supports automatic photo upload to server via network for convenient remote data management
- Voice Control: Supports USB audio control module for real-time camera control via voice commands including capture, recording, and freeze operations
- Advanced Image Processing: Depth of field synthesis, image stitching, real-time WDR wide dynamic range output, and powerful ISP functions
Core Performance Indicators
4K @ 60 fps
HDMI Output
10 m
Max Transmission Distance
40 ms
Average Latency
8MP
Resolution
Advanced Features
Real-Time Depth of Field Synthesis
Provides real-time video depth of field synthesis for higher quality images with greater depth of field
Real-Time Stitching
Real-time processing technology delivers higher quality stitched images
WDR Wide Dynamic
Real-time video WDR output for superior imaging in high contrast scenes
Intelligent Measurement
Built-in XCamView software provides rich image processing and measurement functions with automatic edge detection and automatic measurement
Why Choose This Product
X5CAM4K8MPA_MR stands out with its unique modular design, multi-interface output capability, and low-latency transmission characteristics, making it particularly suitable for applications requiring system integration. The 10 m long-distance transmission capability combined with the compact acquisition module makes it an ideal choice for microscopy imaging systems, industrial inspection equipment, and medical instruments. Powerful image processing functions and flexible control methods provide users with comprehensive imaging solutions.
Application Scenarios
Mikroskopbildgebung
Mikroskopbildgebung
Industrielle Inspektionen
Industrielle Inspektionen
Netzwerkübertragungsanwendungen
Netzwerkübertragungsanwendungen
Fernüberwachung
Fernüberwachung
Application Case Display
Menschliche Haut- und Haarfollikel-Schnitt
Menschliche Haut- und Haarfollikel-Schnitt
Pantoffeltierchen WM
Magenschnitt/Magengewebe
Selection Guide
- Standard Applications: Choose X5CAM4K8MPA_MR featuring Sony IMX678 sensor with high cost-performance ratio
- High-End Applications: Choose X5CAM4K8MPB_MR featuring Sony IMX585 sensor with larger sensor and superior image quality
- System Integration: Modular design particularly suitable for embedded integration with externally mountable main device
- Remote Applications: Supports network transmission and remote control for scenarios requiring remote operation
Model Comparison
| Parameter | X5CAM4K8MPA_MR | X5CAM4K8MPB_MR |
|---|---|---|
| Sensor | Sony IMX678(C) | Sony IMX585(C) |
| Sensor Size | 1/1.8" | 1/1.2" |
| Pixel Size | 2.0 µm × 2.0 µm | 2.9 µm × 2.9 µm |
| Main Advantages | High cost-performance ratio, standard applications | Large sensor area, high image quality |
X5CAM4K8MPA_MR Product Manual
PDF format, includes detailed technical specifications, dimension drawings, and application guide
Software Downloads
XCamView / ToupView / ToupLite professional imaging software
3D Model Files
STEP format for system integration design
X5CAM4K_MR Multi-Module Camera Kit | Packing List #
Standard Items in the Box
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B X5CAM4K_MR host with image acquisition submodule ×1 set (including connection cables)
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
- G Driver and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K 30 mm eyepiece conversion ring 108015
- L 30.5 mm eyepiece conversion ring 108016
- M Micrometer 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)

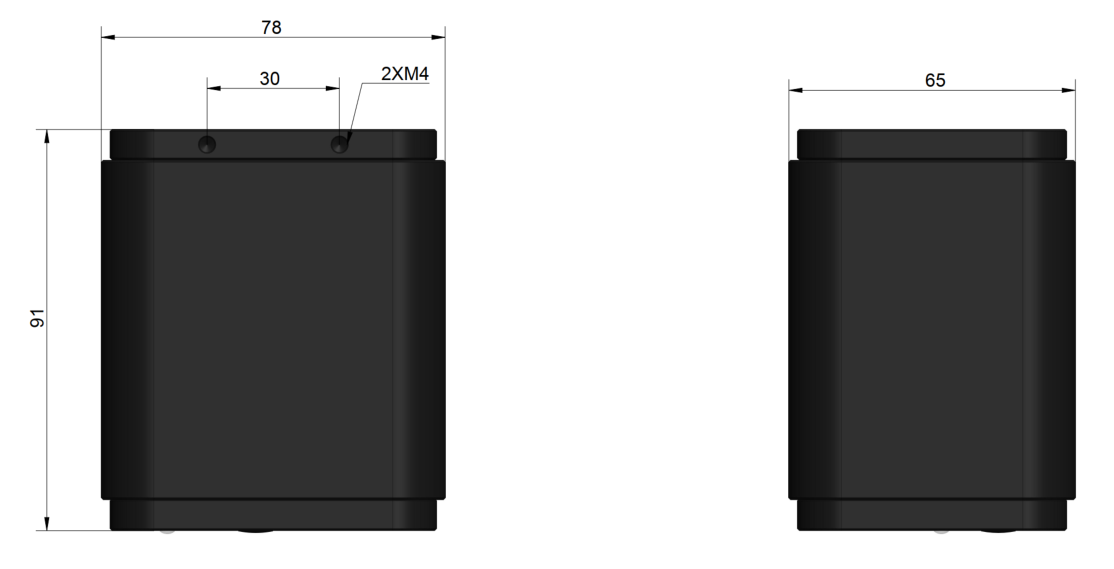

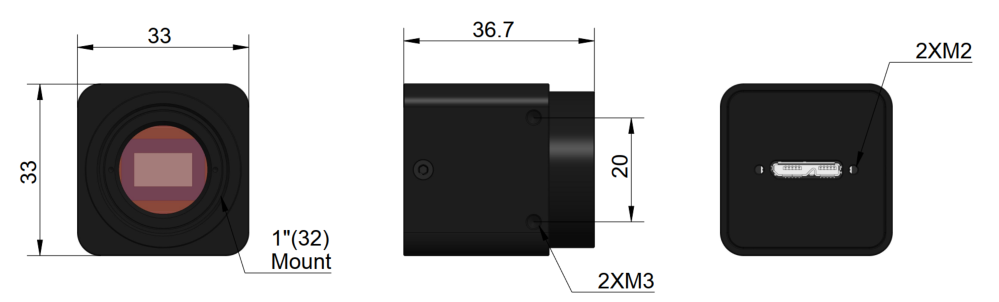

X5CAM4K_MR Multi-Module Camera Kit | Dimensions #
Dimensions of the host and acquisition submodule
Refer to manual Figures 5-3 to 5-4 for module orientation
Review the dimension drawings to align mounting holes and module orientation before installation.
In-Depth Overview
The X5CAM4K_MR multi-module kit combines an independent imaging host with a dedicated acquisition submodule to create a flexible microscopy and inspection platform. It is built for multi-device collaboration in teaching, research, and industrial quality control, offering powerful image processing and networking features in a single system.
Centered on a Sony Starvis 2 back-illuminated CMOS sensor, the host delivers 4K 60 fps HDMI output with ~40 ms average latency, supports RAW capture and MP4 recording, and provides rich measurement, stitching, and depth-fusion tools through the embedded XCamView software.
Technical Highlights
- Modular architecture: The imaging host pairs with replaceable acquisition submodules, connected via a dedicated industrial interface for stable, low-latency transmission.
- Flexible deployment: Supports HDMI, USB 3.0, Gigabit LAN, and optional Wi-Fi modules for local preview, remote control, and network streaming.
-
Powerful feature integration:
- • RAW image capture and MP4 recording (H.264/H.265), saved directly to SD cards or USB flash drives.
- • Embedded XCamView software handles depth-of-field fusion, live stitching, image measurement, and auto edge detection.
- • Optional USB voice control module enables hands-free capture, recording, and freeze-frame commands.
- Extensive compatibility: Works with Windows, macOS, and Linux systems plus iOS/Android mobile apps, and includes a standard SDK for secondary development.
- Industrial-grade reliability: Operates from -10 to 50 °C with a metal chassis designed for long-term stability.
Key Advantages
One system, many outputs
HDMI, network, and USB 3.0 outputs run in parallel, covering local preview, remote control, and PC acquisition.
High image quality with low latency
4K 60 fps HDMI output with roughly 40 ms latency balances detail and real-time performance.
Intelligent imaging workflow
Depth-of-field fusion, live stitching, and WDR enhance contrast and dimensionality.
Rich expansion capability
Supports Wi-Fi modules, voice modules, and multilingual UIs for teaching, demonstrations, and OEM/ODM projects.
Broad applicability
Suitable for biological and stereo microscopes, industrial quality inspection, research documentation, and classroom demonstrations.
