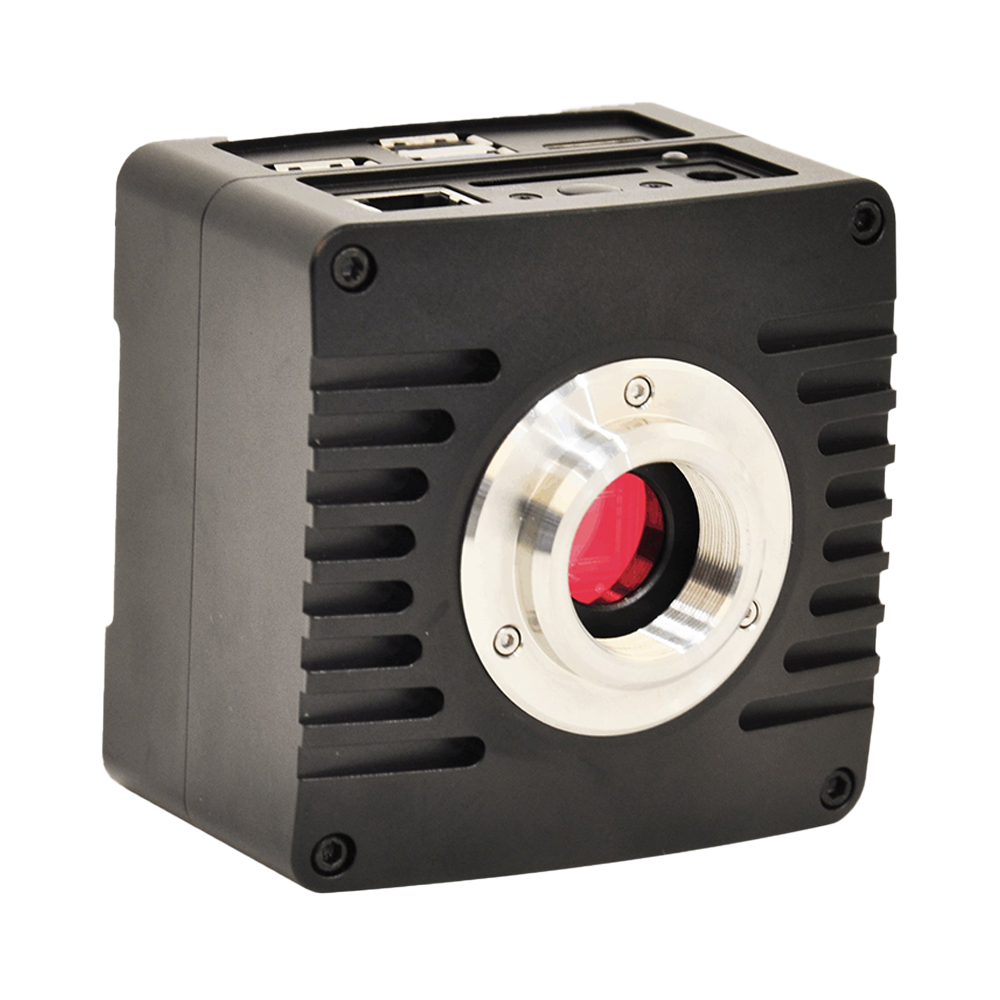

X5CAM4K8MPB For microscope interactive teaching systems
Product Introduction
X5CAM4K8MPB is a high-performance For microscope interactive teaching systems featuring Sony IMX585(C) sensor, with resolution up to 8MP, supporting HDMI, NETWORK, USB3, SD multiple output methods.
Product Features
- 4K output
- Network transmission
- Teaching interaction
- Large-format sensor
Product Details
X5CAM4K8MPB Specifications
| Key Parameters | |
| Product Model | X5CAM4K8MPB |
| Product Series | For microscope interactive teaching systems |
| Sensor Parameters | |
| Sensor Model | Sony IMX585(C) |
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 1/1.2" |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8MP |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Performance Parameters | |
| Frame Rate | 60 fps@3840×2160 |
| Output Interfaces | HDMI, NETWORK, USB3, SD |
| Lens Mount | C mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView |
| Physical Parameters | |
| Power Supply | DC 12 V/1A |
| Dimensions | Unknown |
| Weight | Unknown |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ 50 °C |
| Other Information | |
| OS Support | Windows, Linux, macOS |
| Certification | CE, FCC |
Product Overview
X5CAM4K8MPB is a Multi-Interface Interactive Teaching Camera designed for high-definition real-time imaging with the following core features:
- Plug-and-Play Design: Direct HDMI HD video output without computer, works with display for microscopy observation and recording
- USB Voice Control Module: Supports voice command for real-time camera control including capture, recording, freeze operations, freeing up hands
- Barcode Scanner Capture: Supports barcode scanner triggered capture function, suitable for batch sample recording and traceability management
- Intelligent Measurement Functions: Built-in XCamView software supports auto edge detection, auto parallel line distance measurement, auto rectangle measurement and other intelligent measurement functions
- Local Storage and Comparison: Supports USB storage, local preview and playback, image comparison and video comparison functions for convenient sample analysis
- Powerful ISP Processing: Provides dark enhancement, sharpening and 3D noise reduction functions, significantly improving image quality
- Quick Scene Switching: Supports quick switching between biological microscope and stereo microscope default effects, adapting to multiple usage scenarios
Core Performance Indicators
4K
Video Resolution
60 fps
Maximum Frame Rate
Multi-Interface
HDMI/USB Output
8MP
Sensor Resolution
Advanced Features
Voice Control
Voice control via USB audio module for improved operational convenience
Barcode Capture
Supports barcode scanner triggered photography, suitable for batch sample management
Intelligent Measurement
Auto edge detection and measurement functions improve measurement efficiency and accuracy
ISP Optimization
Powerful image processing capabilities optimize imaging quality
Why Choose This Product
X5CAM4K8MPB stands out with its plug-and-play design philosophy, diverse control methods and powerful image processing capabilities, making it particularly suitable for microscopy observation scenarios requiring high-definition real-time display. The addition of voice control and barcode capture functions significantly improves operational efficiency, making it an ideal choice for educational demonstrations, industrial inspection, scientific research recording and other fields.
Application Scenarios
Microscope interactive teaching
Microscope interactive teaching
Microscope imaging
Microscope imaging
Application Case Display
Human skin and hair follicle section
Human skin and hair follicle section
Paramecium WM
Stomach section/gastric tissue
Selection Guide
- 4K HD Requirements: Choose X5CAM4K4K8MPA or X5CAM4K4K8MPB, supporting 3840×2160 resolution
- High Frame Rate Requirements: Choose X5CAM4K1080P series, supporting 60 fps high-speed imaging
- Large Sensor Requirements: Choose IMX678 sensor model, 1/1.8" large sensor
- Budget-Friendly Choice: Choose IMX415 or IMX462 sensor models for high cost-performance ratio
X5CAM4K8MPB Product Manual
PDF format, includes detailed technical parameters, dimension drawings and application guide
Software Downloads
XCamView / ToupView / ToupLite professional imaging software
3D Model Files
STEP format for system integration design

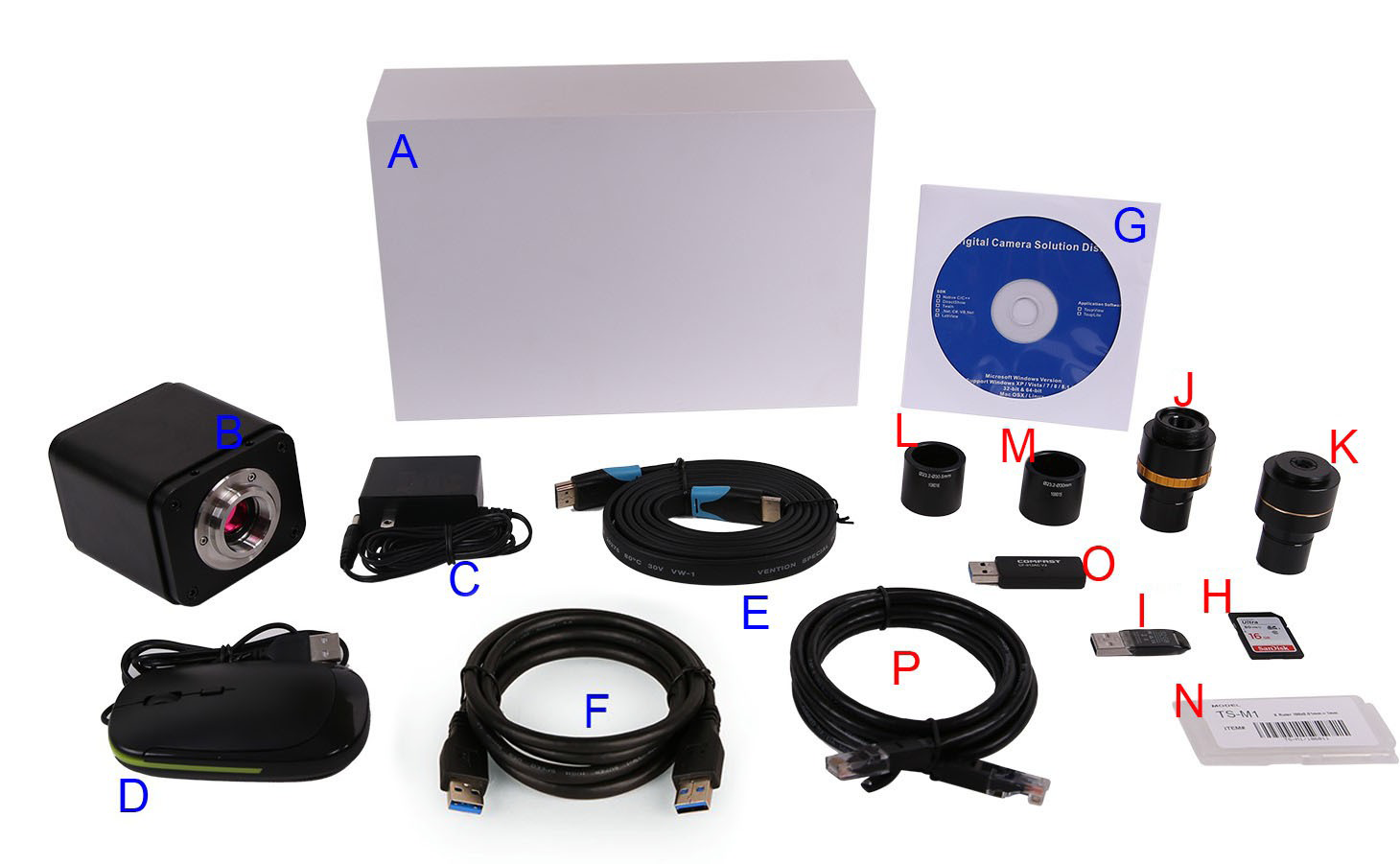

X5CAM4K Multi-Interface Camera | Packing List #
Standard Items in the Box
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B X5CAM4K camera ×1
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
- G Driver and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K 30 mm eyepiece conversion ring 108015
- L 30.5 mm eyepiece conversion ring 108016
- M Micrometer 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)

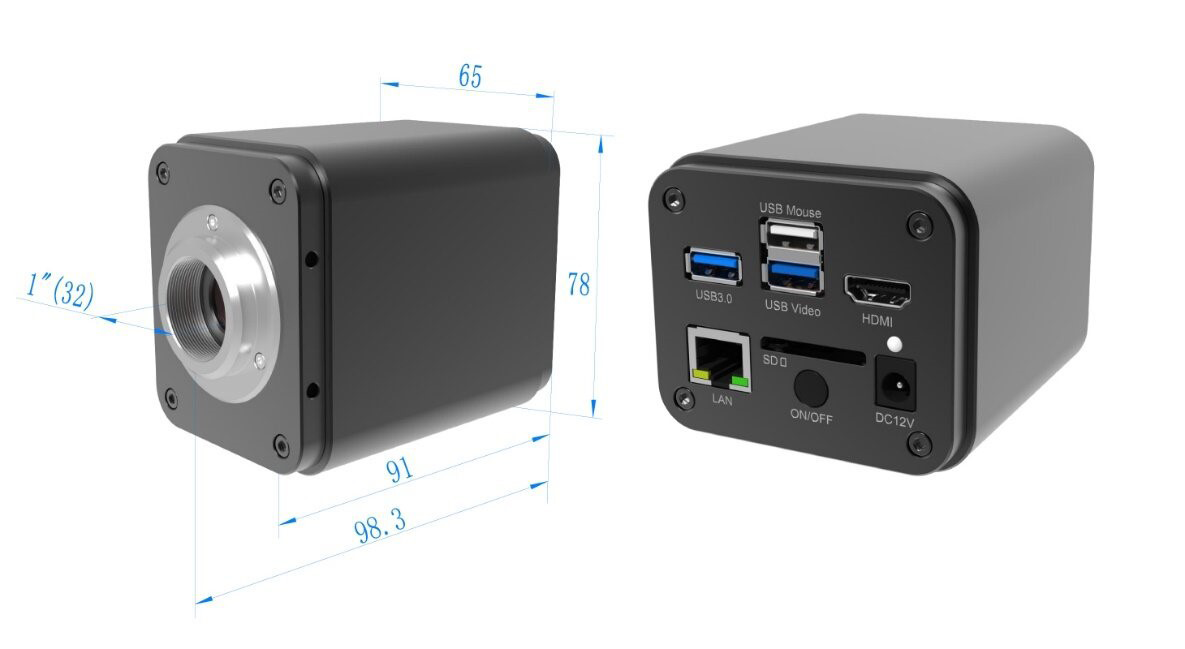

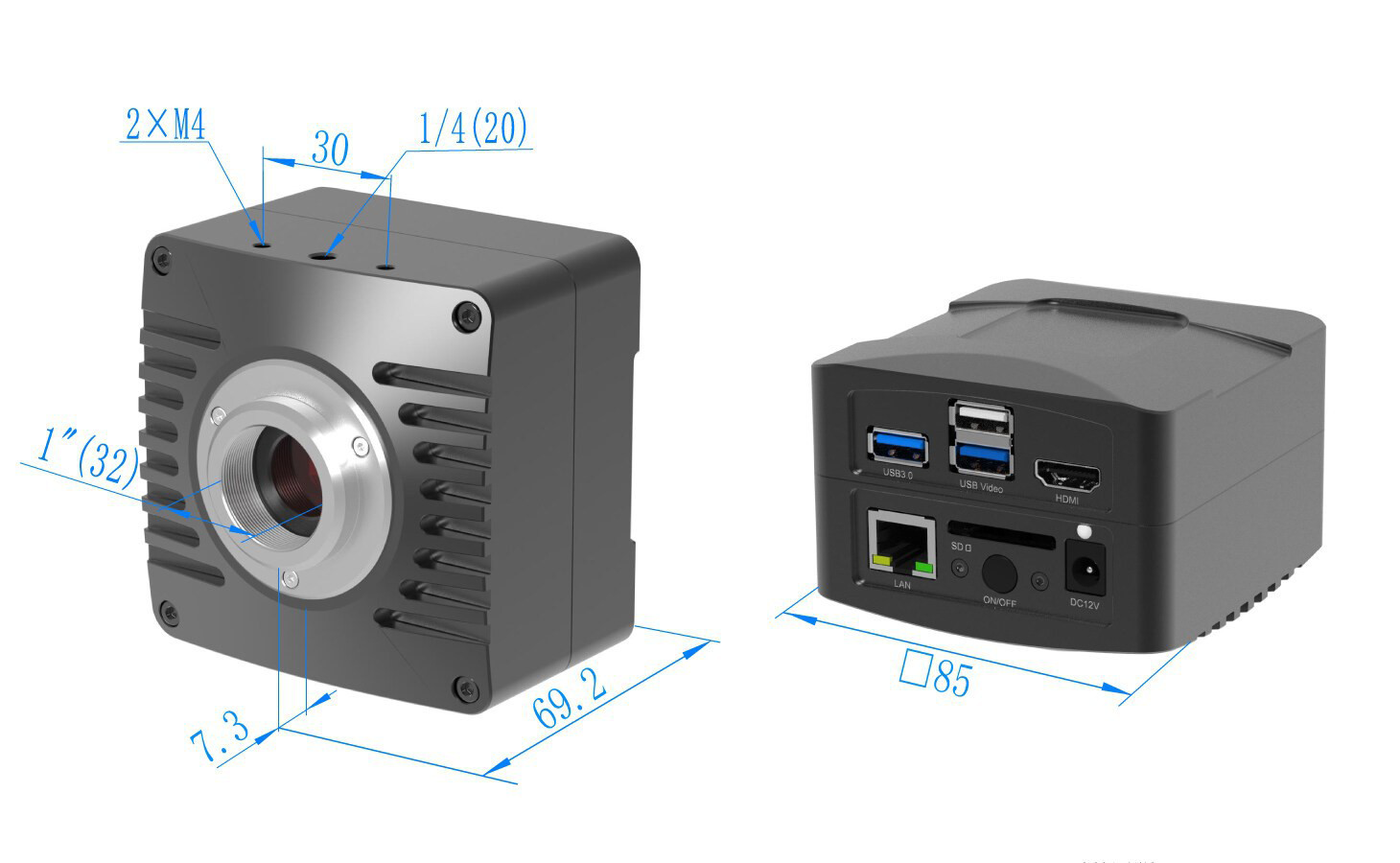

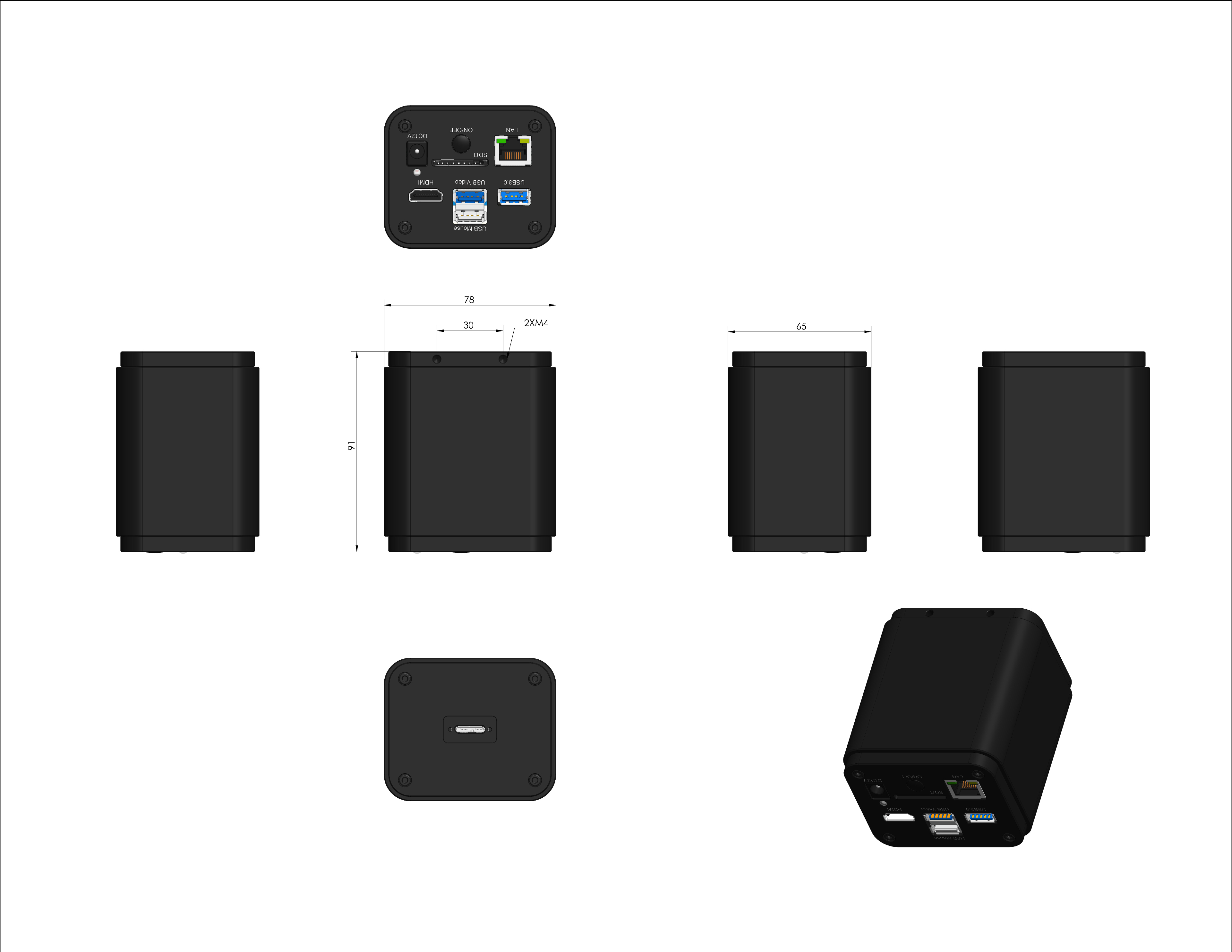

X5CAM4K Multi-Interface Camera | Dimensions #

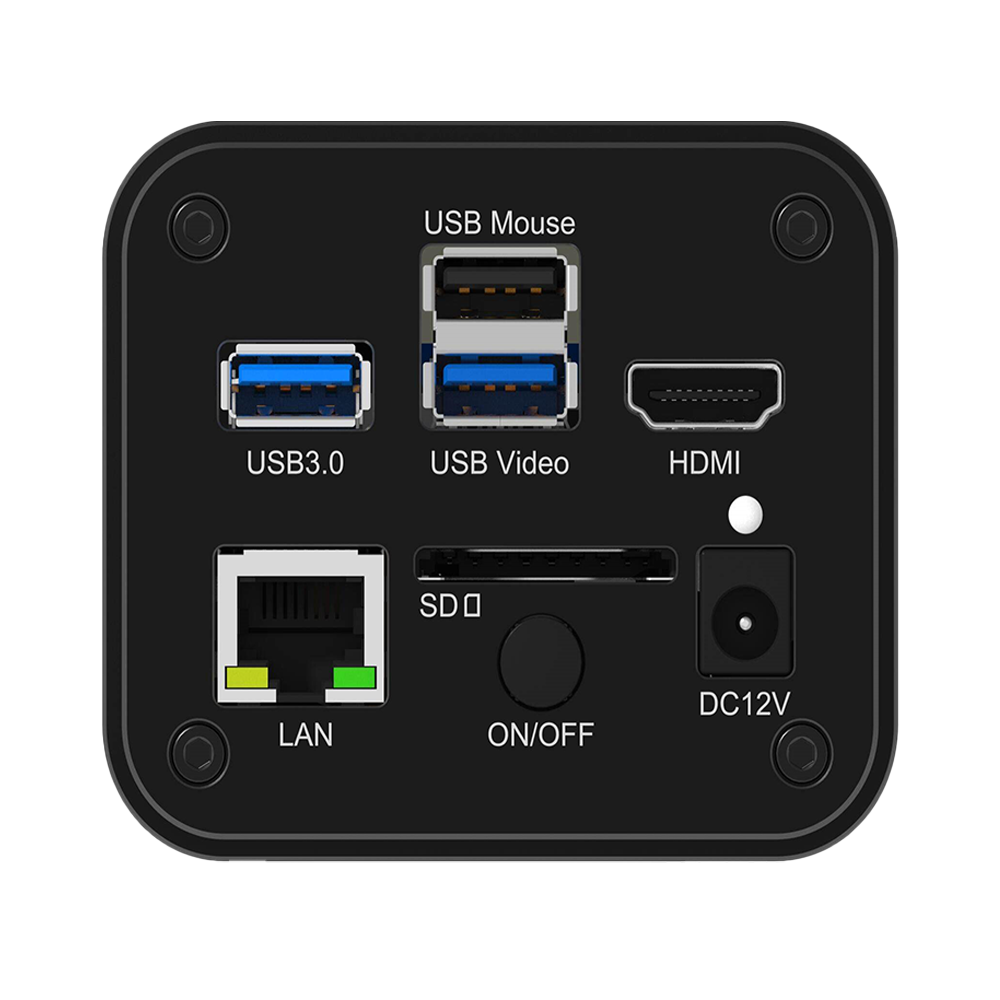

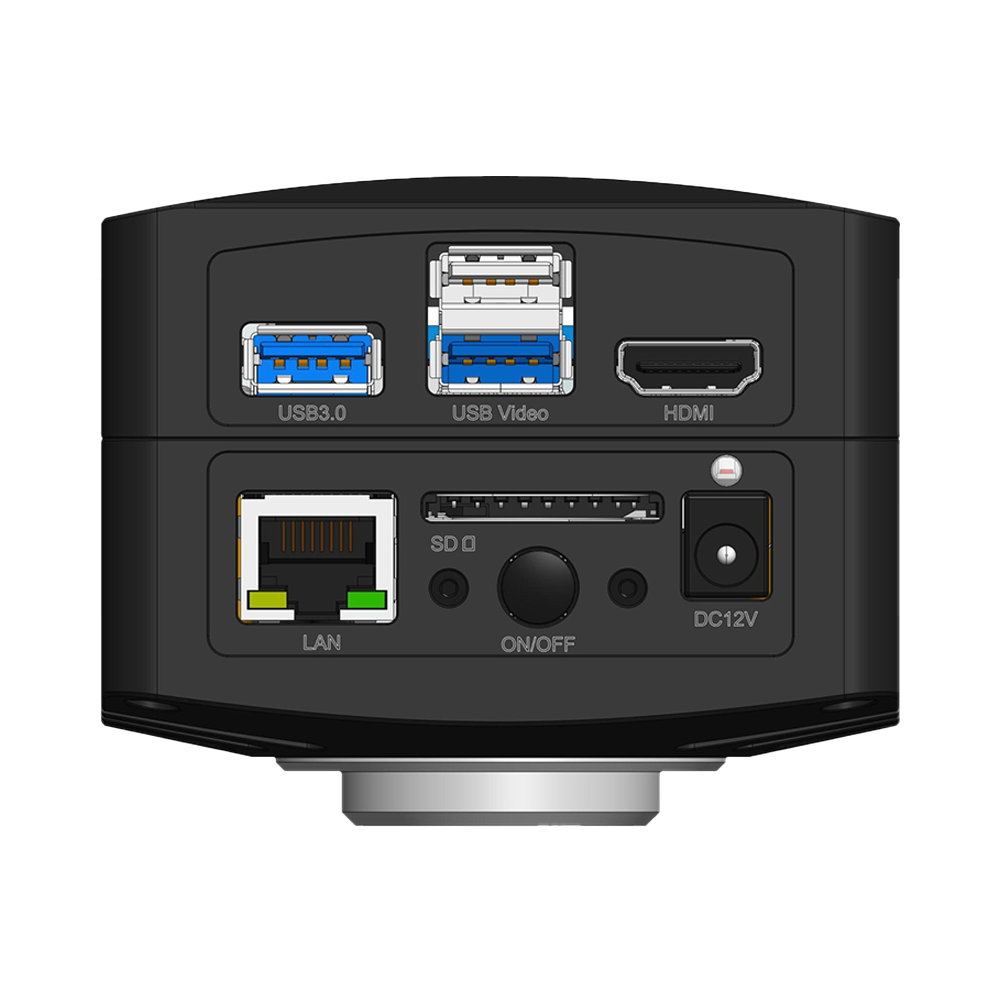

Chassis dimensions and interface arrangement
Refer to manual Figures 3-46 and 3-47
Confirm the mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The X5CAM4K series is a multi-interface microscope camera that combines HDMI, Wi-Fi, USB, and LAN connectivity for classroom instruction, scientific research, and industrial inspection. It operates independently without a computer while providing rich interaction features for collaborative setups.
Powered by a Sony Starvis 2 back-illuminated CMOS high-sensitivity sensor, the camera outputs 4K 60 fps low-latency video (40 ms typical latency), supports local storage, and integrates XCamView software for direct on-device control.
Technical Highlights
- Versatile multi-interface output: HDMI, USB 3.0, Wi-Fi, and LAN operate together, enabling real-time preview, remote streaming, and networked teaching.
- High-performance imaging hardware: Sony Starvis 2 back-illuminated CMOS with built-in 3D noise reduction, sharpening, color restoration, and gamma tuning modules.
- Intelligent control, efficient workflow: Optional USB voice control triggers photo capture, video recording, and freeze-frame, and captured media can be uploaded automatically to a server.
- Flexible file management and advanced tools: On-device browsing supports image/video comparison, still vs. live view comparison, real-time depth-of-field fusion, and image stitching.
- Cross-platform ecosystem: Works seamlessly with ToupView and ToupLite on Windows, macOS, and Linux, and offers a standard SDK for integration.
Core Advantages
-
1
Plug-and-play for every scenario Runs without a computer and supports simultaneous multi-interface output for classrooms, labs, and industrial lines.
-
2
High resolution with ultra-low latency 4K 60 fps output with ~40 ms latency meets live presentation, recording, and streaming demands.
-
3
Smart interaction and automation Voice control and automated uploads streamline workflows and boost efficiency.
-
4
Professional image optimization Hardware 3D noise reduction, sharpening, and color tuning preserve detail and fidelity.
-
5
Robust cross-platform support Broad software compatibility and SDK access simplify system integration and multi-device collaboration.
