WUCAM8MPA USB-C + Wi-Fi C-mount CMOS Camera
Product Introduction
WUCAM8MPA is a high-performance USB-C + Wi-Fi C-mount CMOS Camera featuring Sony IMX678(C) Starvis 2 sensor, with resolution up to 8MP (3840×2160), supporting USB-C, Wi-Fi 802.11ac multiple output methods.
Product Features
- 4K ultra-high-definition output
- Starvis 2 back-illuminated sensor
- Dual-interface output mode
- Wi-Fi AP/STA mode switching
- ROI white balance
- Ultra-Fine color engine
- 3D noise reduction
- Local dynamic range adjustment
- Anti-flicker function
- Multi-client simultaneous connection
Product Details
WUCAM8MPA Specifications
| Key Parameters | |
| Product Model | WUCAM8MPA |
| Product Series | USB-C + Wi-Fi C-mount CMOS Camera |
| Sensor Parameters | |
| Sensor Model | Sony IMX678(C) Starvis 2 |
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Diagonal | 8.8 mm |
| Pixel Size | 2.0 µm × 2.0 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Performance Parameters | |
| Frame Rate | USB-C: 30 fps@3840×2160, 30 fps@2688×1512, 30 fps@1920×1080; Wi-Fi: 30 fps@3840×2160, 30 fps@1920×1080, 30 fps@1280×720 |
| Exposure Time | 0.04 ms ~ 1000 ms |
| Sensitivity (Gain) | 1364 mV with 1/30s |
| Dark Current | 0.15 mV with 1/30s |
| Output Interfaces | USB-C, Wi-Fi 802.11ac |
| Lens Mount | C-mount |
| Storage Support | No local storage |
| Software Support | ToupView, ToupLite, iOS App, Android App |
| Physical Parameters | |
| Power Supply | USB-C DC 5 V/2 A |
| Dimensions | 50 × 50 × 112 mm |
| Weight | 0.5 kg |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ +50 °C |
| Storage Temperature | -20 °C ~ +60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Other Information | |
| OS Support | Windows XP/Vista/7/8/8.1/10/11 (32 & 64 bit), macOS 10.10+, Linux (kernel 2.6.27+), iOS 11+, Android 5.1+ |
| Certification | CE, FCC, RoHS, UL |
Product Overview
WUCAM8MPA represents the highest technical standard of the WUCAM series, specifically designed for professional applications requiring ultra-high resolution imaging.
Core Technical Advantages
- 4K Ultra HD Imaging: 3840×2160 resolution, revealing more details to meet professional research recording and analysis needs
- Sony IMX678 Starvis 2 Sensor: Latest generation backside-illuminated CMOS technology, 2.0 µm pixel size, excellent quantum efficiency and low noise performance
- Dual Interface Flexible Output: USB Type-C provides stable high-speed transmission, Wi-Fi 802.11ac supports wireless convenient connection
- Professional ISP Processing: Ultra-Fine color engine, 3D noise reduction, local dynamic range adjustment, ensuring image quality
Performance Comparison
4K
Maximum Resolution
60 fps
Maximum Frame Rate
802.11n
Wi-Fi Standard
2.0 µm × 2.0 µm
Pixel Size
Shared Technical Features
AP/STA Dual Mode
Supports hotspot and station modes, flexible networking, multi-device collaboration
Ultra-Fine Color Engine
Professional color reproduction, precise white balance, true sample color representation
3D Noise Reduction
Intelligent noise reduction algorithm, improved SNR, enhanced low-light imaging
ROI White Balance
Region-selective white balance, adapts to complex lighting environments
Selection Recommendations
WUCAM8MPA is suitable for professional users requiring the highest image quality and resolution, including research institutions, quality inspection departments, and high-end teaching facilities. Its 4K resolution can capture more details, particularly suitable for applications requiring image analysis, measurement, and long-term archival.
Application Scenarios
4K microscopy imaging
4K microscopy imaging
Biomedical research
Biomedical research
Materials science analysis
Materials science analysis
Interactive teaching systems
Interactive teaching systems
Remote observation and diagnosis
Remote observation and diagnosis
Multi-device collaborative observation
Multi-device collaborative observation
High-precision measurement
High-precision measurement
Application Case Display
Simple ciliated epithelium
Simple cuboidal epithelium section
Loose connective tissue slide
Fibrous connective tissue section
Model Selection Guide
WUCAM8MPA
Suitable Scenarios:
- • Requires 4K ultra HD recording
- • Research-grade image analysis
- • Precision measurement applications
- • Professional image archival
WUCAM1080PB
Suitable Scenarios:
- • High-speed dynamic processes
- • Live cell imaging
- • Microfluidics observation
- • Requires 60 fps smoothness
WUCAM1080PA
Suitable Scenarios:
- • Teaching demonstration systems
- • Routine quality inspection
- • Budget-sensitive projects
- • Entry-level research
WUCAM8MPA Product Manual
PDF format, includes detailed technical specifications, dimension drawings, installation guide and application instructions
Software Download
ToupView / ToupLite professional imaging software, supports Windows/macOS/Linux
SDK Development Kit
Windows/Linux/macOS SDK, supports secondary development integration

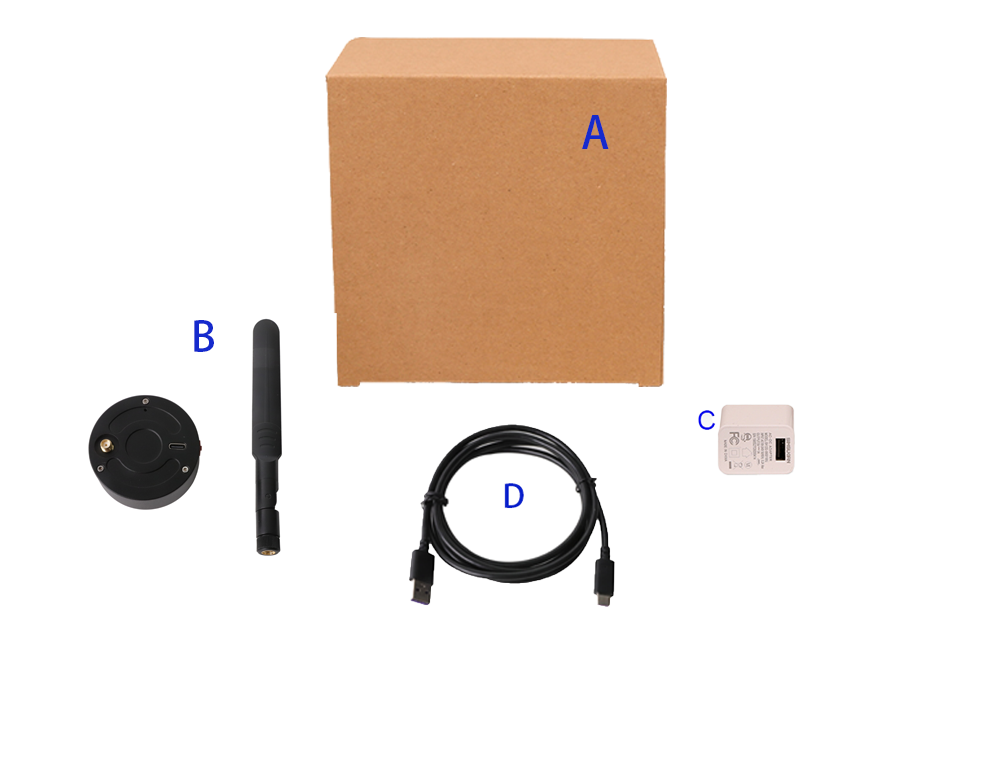

WUCAM8MPA / WUCAM1080PB WiFi Camera | Packing List #
Standard Packing List
- A Camera box size: 17.0 cm × 15.0 cm × 6.0 cm (1 pcs, 0.5 kg per box)
- B WUCAM8MPA / WUCAM1080PB camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 5 V 2 A; US POWER-U-5V2A (SK12G-0500100U: UL/CE/FCC), EU POWER-E-5V2A (SK12G-0500100V: UL/CE/FCC)
- D USB Type-C to Type-A cable 1.5 m
Optional Accessories
- F Gigabit Ethernet cable
-
G Adjustable eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
H Fixed eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm camera interface and scenario before choosing G or H; engineers can assist.
- I 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- J 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- K Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
- L SD card (16 GB+)
WUCAM1080PA WiFi Camera | Packing List #
Standard Packing List
- A Camera box size: 17.4 cm × 17.4 cm × 7.6 cm (1 pcs, 0.54 kg per box)
- B WUCAM1080PA camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 5 V 1 A; US POWER-U-5V1A (SK12G-0500100U: UL/CE/FCC), EU POWER-E-5V1A (SK12G-0500100V: UL/CE/FCC)
- D Micro USB data cable 1.5 m
Optional Accessories
-
E Adjustable eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
F Fixed eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm camera interface and scenario before choosing E or F; engineers can assist.
- G 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- H 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- I Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
- K SD card (16 GB+)

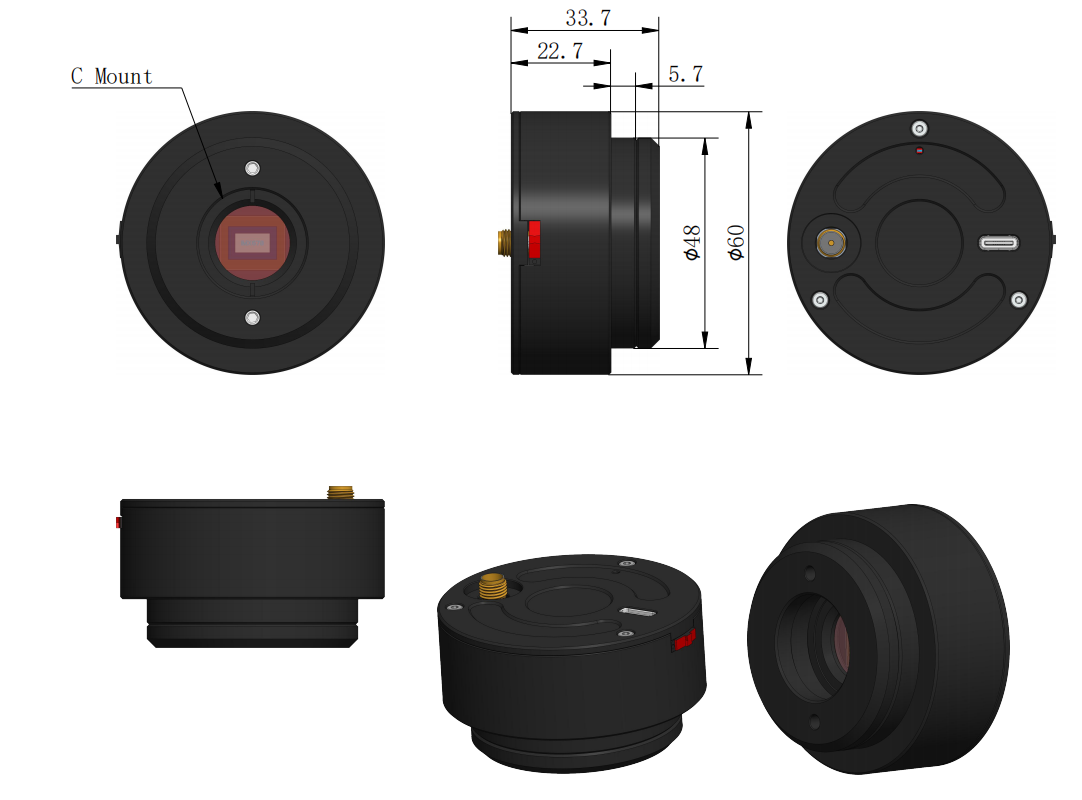

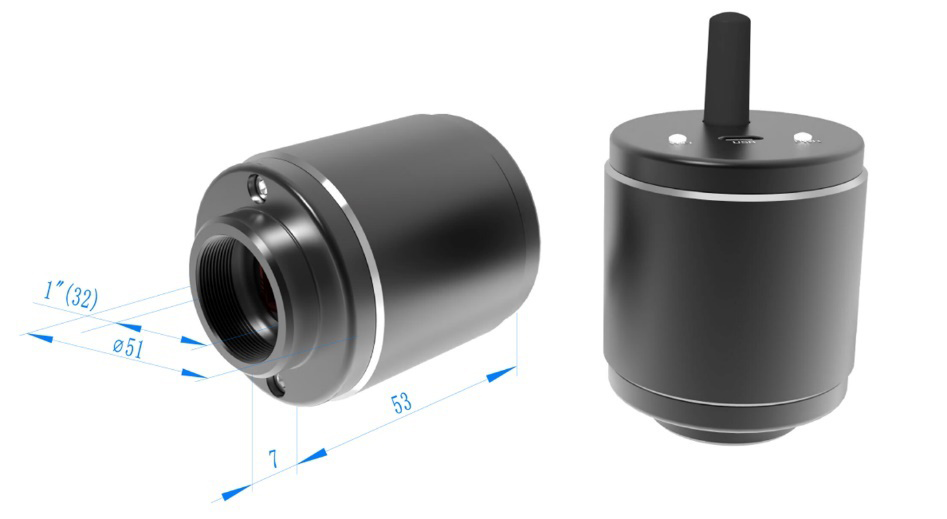

WUCAM8MPA / WUCAM1080PB WiFi Camera | Product Dimensions #

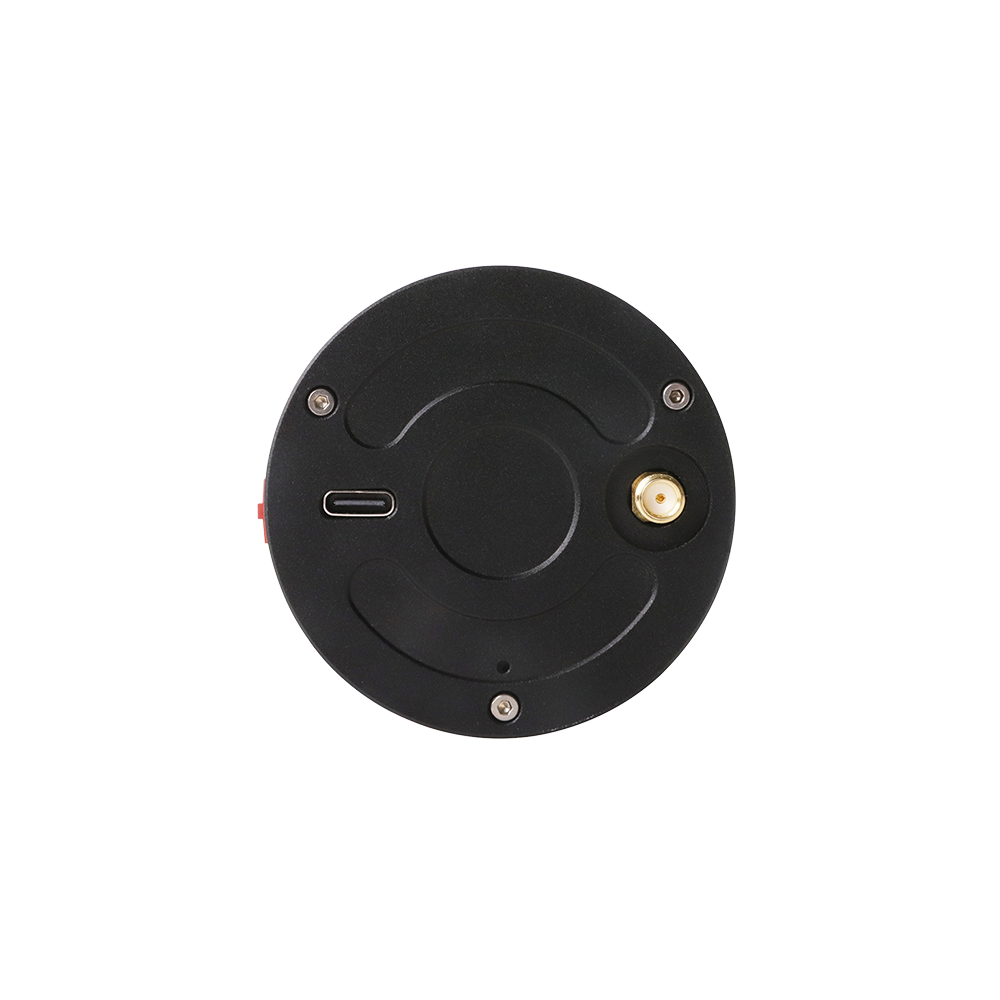

Interface panel and power module dimensions
See manual interface panel and dimension drawing (Fig. 4-3)
See manual Fig. 4-7 (Micro USB power version)
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive
The Touptek WUCAM series is a complete USB + Wi-Fi dual-interface microscopy solution built for high-quality video and image capture on stereo and biological microscopes. Flexible connectivity and a broad product lineup cover needs from classroom demos to professional research.
The lineup includes three models: WUCAM8MPA with Sony IMX678 Starvis 2 delivering 4K ultra HD (3840×2160); WUCAM1080PB using the same sensor tuned for 60 fps high-frame-rate 1080p; and WUCAM1080PA with Sony IMX307 providing an economical 50 fps 1080p option.
All models support Wi-Fi AP/STA modes with 802.11ac/n plus high-gain antennas for stable wireless transmission. Paired with ToupView/ToupLite software, users can leverage the Ultra-Fine color engine, 3D noise reduction, ROI white balance, image stitching, multifocus fusion, and more.
Technical Highlights
- Advanced sensor tech: Sony IMX678 Starvis 2 and IMX307 BSI CMOS deliver excellent low-light performance and low noise with 1364 mV G sensitivity and 0.15 mV dark current
- Flexible resolution choices: From 1080p to 4K UHD, 30 fps to 60 fps; USB Type-C supports 30 fps@3840×2160, 30 fps@2688×1512, 60 fps@1920×1080, and more
- Dual-interface, dual-mode design: USB Type-C/USB 2.0 plus Wi-Fi 802.11ac/n outputs; Wi-Fi supports AP hotspot and STA networking for multi-device collaboration
- Professional ISP processing: Ultra-Fine color engine with exposure (0.04 ms–1000 ms), gain, ROI white balance, 3D noise reduction, local dynamic range tuning, and 50/60 Hz anti-flicker
- Full-platform software support: Compatible with Windows XP/7/8/10/11, macOS 10.10+, Linux 2.6.27+, plus iOS 11+ and Android 5.1+ apps for seamless cross-platform use
Core Benefits
-
1
Comprehensive Lineup From 4K UHD to high-frame-rate 1080p, from premium research to budget teaching, three models cover all needs
-
2
Sony Starvis 2 Strength Latest BSI CMOS tech with 2.0 µm pixels for excellent sensitivity and image quality
-
3
Smart Networking AP/STA dual modes enable interactive teaching networks that link instructors and students
-
4
Professional Software Ecosystem ToupView/ToupLite deliver layer management, precision measurement, stitching, overlay denoise, and multifocus fusion
-
5
Wide Applications Fits biomedical research, materials analysis, quality control, interactive teaching, remote diagnostics, and more
