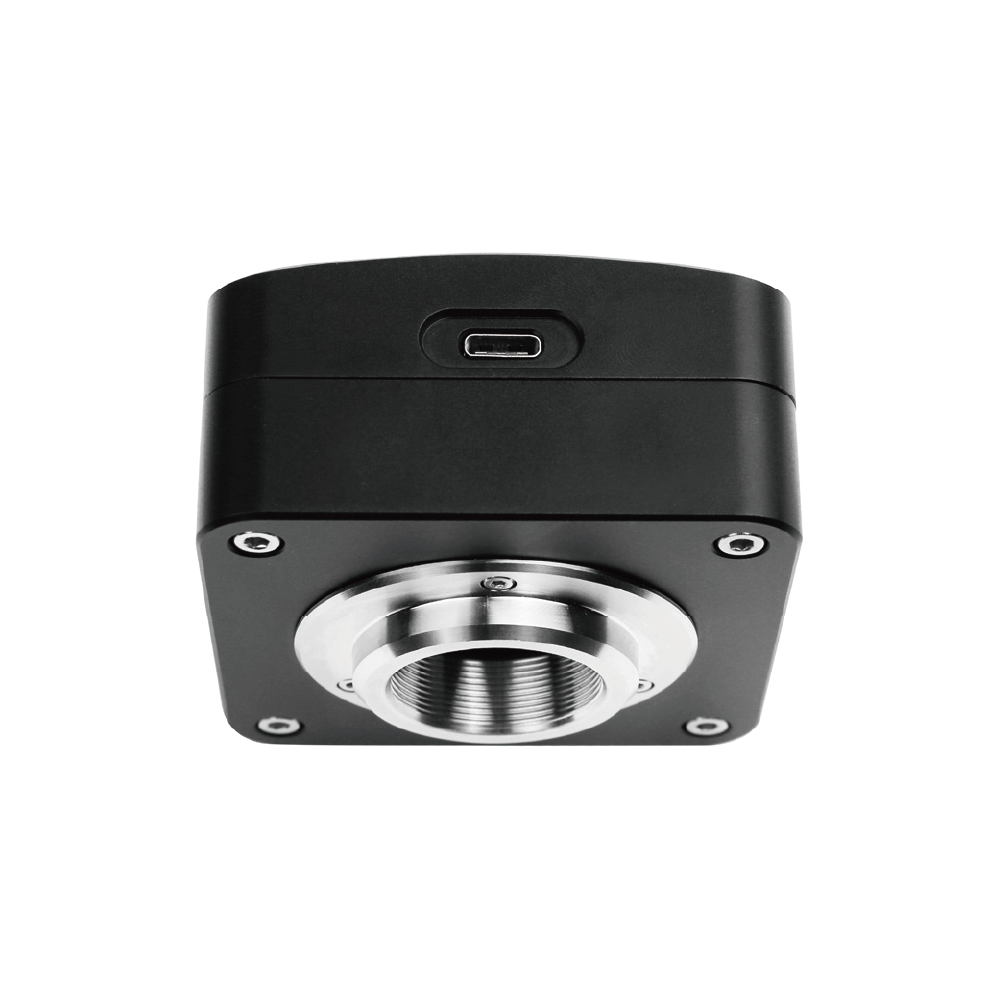

E10ISPM08300KPA Microscopy Camera
Product Introduction
Touptek's new E10ISPM series cameras feature cutting-edge USB3.2 Gen2 technology, breaking through transmission bottlenecks with 10 Gbps high bandwidth, achieving speeds 2-3 times faster than traditional USB3.0 cameras, supporting microscopy imaging, industrial inspection, scientific research and other scenarios. The USB Type-C interface supports reversible insertion, combining convenience with stability to meet multi-device connection requirements.
The series adopts Sony IMX high-performance CMOS sensors, providing excellent low-noise performance and high dynamic range. Supports 8/12-bit data switching to meet diverse needs from rapid preview to precision measurement.
Typical applications: High-speed microscopy imaging, fluorescence imaging, biomedical research, semiconductor inspection, industrial quality control, scientific experiments.
Key Features
- USB3.2 Gen2 interface with 10 Gbps ultra-high bandwidth, transmission speed 2-3 times faster than USB3.0
- USB Type-C interface supporting reversible insertion for convenient and stable connection
- Sony IMX high-performance CMOS sensors (IMX472/IMX383/IMX585) with low noise and high sensitivity
- Flexible switching between 8/12-bit data formats
- High frame rate acquisition up to 240 fps@1760×1318 (8-bit)
- Low readout noise as low as 1.07 e- (HCG mode)
- High dynamic range up to 72 dB
- Resolution coverage from 8.3–21 MP meeting diverse application requirements
- Support for hardware and software binning (2×2, 3×3, 4×4)
- C-mount standard lens interface compatible with various microscopes and industrial lenses
- Support for external trigger and GPIO control
- Bundled ToupView software with Windows/Linux/macOS/Android multi-platform SDK
- Compliant with CE/FCC certification standards
Product Details
| Key Parameters | |
| Model | E10ISPM08300KPA |
| Sensor | IMX585 (C,RS) |
| Effective Pixels / Resolution | 8.3M (3840×2160) |
| Frame Rate (Full Resolution) | 88 fps@3840×2160(8-bit); 60 fps@3840×2160(12-bit); 60 fps@1920×1080(8-bit); 60 fps@1920×1080(12-bit) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Imaging Performance | |
| Pixel Size | 2.9 µm × 2.9 µm |
| Sensor Size | 11.13 mm × 6.26 mm |
| Diagonal | 1/1.2" |
| Dynamic Range | 71.6 dB(HCG); 72.0 dB(LCG) |
| Bit Depth | 10/12-bit |
| Sensitivity | 5970 (mV/lx/s); 0.13 mV with 1/30s |
| Read Noise | 1.07 e-(HCG); 6.69 e-(LCG) |
| Full Well Capacity | 4,061 e-(HCG); 39,162 e-(LCG) |
| Signal-to-Noise Ratio | 36.1 dB(HCG); 45.9 dB(LCG) |
| Conversion Gain | 0.994 e-/ADU(HCG); 9.582 e-/ADU(LCG) |
| Interface & Mechanical | |
| Data Interface | USB3.2 Gen2 (Type-C) |
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports |
| Lens Mount | C-mount |
| Binning Mode | Hardware 2×2, 3×3, 4×4; Software 2×2, 3×3, 4×4 |
| Dimensions | TBD |
| Weight | TBD |
| Power Supply | USB Type-C interface power |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 20%~80%RH |
| Storage Temperature / Humidity | -30 °C ~ +70 °C / 10%~60%RH |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
Product Overview
E10ISPM08300KPA is a professional microscopy camera featuring USB3.2 Gen2 high-speed transmission technology, equipped with the high-performance IMX585 (C,RS) image sensor with the following characteristics:
- 10 Gbps Ultra-High Bandwidth: USB3.2 Gen2 interface provides 10 Gbps transmission bandwidth, 2-3 times faster than traditional USB3.0, breaking through data transmission bottlenecks and achieving high-speed imaging at 8.3M (3840×2160) resolution
- Type-C Convenient Connection: USB Type-C interface supports reversible insertion, more convenient and stable connection, adapts to multi-device connectivity requirements, compatible with modern laboratories and industrial environments
- Outstanding Image Quality: 8.3M (3840×2160) resolution, 2.9 µm × 2.9 µm pixel size, sensor size of 11.13 mm × 6.26 mm , ensuring clear detail presentation
- High-Speed Data Transmission: Maximum frame rate up to 88 fps@3840×2160(8-bit); 60 fps@3840×2160(12-bit); 60 fps@1920×1080(8-bit); 60 fps@1920×1080(12-bit) , fully leveraging the 10 Gbps bandwidth advantage, supporting real-time preview and rapid capture
- Ultra-Low Noise Performance: Read noise as low as 1.07 e-(HCG); 6.69 e-(LCG), full well capacity 4,061 e-(HCG); 39,162 e-(LCG) , signal-to-noise ratio up to 36.1 dB(HCG); 45.9 dB(LCG), suitable for low-light and fluorescence imaging
- Flexible Imaging Modes: 10/12-bit bit depth switching, dynamic range up to 71.6 dB(HCG); 72.0 dB(LCG) , supports hardware and software binning (2×2, 3×3, 4×4)
- Optical Compatibility: Standard C-mount interface, compatible with various microscope brands, optional 0.5X/0.63X/1X adapters available
- Compact Design: Dimensions only TBD , weight TBD , powered by USB Type-C interface power , no external power supply required
- Software Support: Includes professional microscopy imaging software ToupView, supports Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) systems, provides measurement, annotation, stitching, focus stacking and other functions, supports C/C++, C#, Python, ImageJ, μManager and other development environments
Core Performance Indicators
Resolution
8.3M (3840×2160)
Frame Rate
88 fps@3840×2160(8-bit)
Transmission Bandwidth
10 Gbps
Data Interface
USB3.2 Gen2 (Type-C)
Professional Microscopy Imaging Features
High-Speed Transmission Advantage
USB3.2 Gen2 technology provides 10 Gbps bandwidth, enabling smooth preview and rapid data transmission at high resolution, particularly suitable for dynamic observation and large-scale data collection
Research-Grade Image Quality
Low read noise and high dynamic range design ensure clear, accurate microscopy images under various lighting conditions, meeting research-level application requirements
Type-C Convenient Connection
USB Type-C interface supports reversible insertion, stable and reliable connection, compatible with modern laboratory equipment, simplifying system integration
Flexible Imaging Control
Supports various binning modes and ROI selection, 8/12-bit data switching, meeting diverse needs from rapid preview to precise measurement
Recommendation
The E10ISPM08300KPA microscopy camera, with its USB3.2 Gen2 10 Gbps ultra-high bandwidth, outstanding image quality, and convenient Type-C connection, is the ideal choice for high-speed microscopy imaging. Whether for biomedical research, material analysis, or industrial inspection, it provides fast, clear, and reliable microscopy image recording and analysis solutions, particularly suitable for professional applications requiring high-speed data transmission and real-time observation.
E10ISPM08300KPA Product Manual
PDF format, including detailed technical parameters and dimensional drawings
SDK Development Kit
Supporting Windows, Linux, macOS and other platforms
3D Model Files
STEP format for mechanical design integration
