MTR3CCD09000KMA Low Light Imaging/Semiconductor Cooled Camera
Product Introduction
The MTR3CCD series features integrated multi-channel beam-splitting optics in USB3.0 CCD cameras designed for simultaneous multi-color fluorescence and multi-band imaging. Internal optical beam splitting (depending on model) separates different spectral bands/color channels from samples and acquires them synchronously, significantly improving imaging efficiency while avoiding timing errors and registration deviations from sequential filter switching. Equipped with high-sensitivity, low-noise CCD sensors, global exposure benefits data consistency for moving samples and live experiments. The built-in Ultra-Fine image processing engine ensures color reproduction and stable real-time preview.
The complete system features dual-stage thermoelectric cooling with closed-loop temperature control, allowing sensor operating temperature to be reduced approximately ΔT≈50 °C below ambient (depending on model), combined with anti-condensation structures to effectively suppress dark current and condensation, suitable for low-light and long exposure times (typically up to 3600 s, depending on model). USB3.0 (5 Gbit/s) high-speed link with (optional) built-in buffering ensures stable transmission of multi-channel large data volumes. Each channel supports independent exposure/gain/ROI/bit depth settings, facilitating fine optimization based on spectral line brightness differences. CNC aluminum alloy housing emphasizes long-term stable operation. Includes ToupView/ToupLite software and cross-platform SDK (Windows/Linux/macOS/Android), facilitating system integration and secondary development.
Key Features
- Integrated multi-channel beam-splitting optics (depending on model): Multi-band/multi-color synchronous acquisition, reducing registration and timing errors from sequential switching
- High-sensitivity low-noise CCD with Global Exposure, suitable for live/moving samples and low-light imaging
- Dual-stage TEC deep cooling, typical ΔT≈50 °C (below ambient, depending on model), significantly reducing dark current; anti-condensation optical structure suppresses condensation
- Optional protective windows: IR-CUT/dual AR coating (depending on model and application)
- USB3.0 (5 Gbit/s) high-speed transmission; (optional) built-in buffering ensures stable throughput of multi-channel large data volumes
- Long exposure: Typically up to 3600 s (depending on model), suitable for extremely weak fluorescence/chemiluminescence scenarios
- Independent channel parameters: Each channel can independently set exposure, gain, ROI, bit depth (12/16-bit depending on model) and readout mode
- Trigger and synchronization: Free-running, software/hardware trigger; supports multi-camera/light source/motion platform timing coordination
- Software functions: Channel registration, false color synthesis and overlay display (depending on software/model); Ultra-Fine color/gamma/contrast/LUT real-time processing
- Structure and interface: C-mount primary interface, CNC aluminum alloy housing, stable and durable, suitable for long-term continuous operation
- Software and ecosystem: Includes ToupView/ToupLite; provides Windows/Linux/macOS/Android SDK (compatible with DirectShow/TWAIN)
- Typical applications: Multi-color fluorescence microscopy, FISH/FRET, multi-band observation, biomedical imaging, materials and semiconductor multi-channel analysis
Product Details

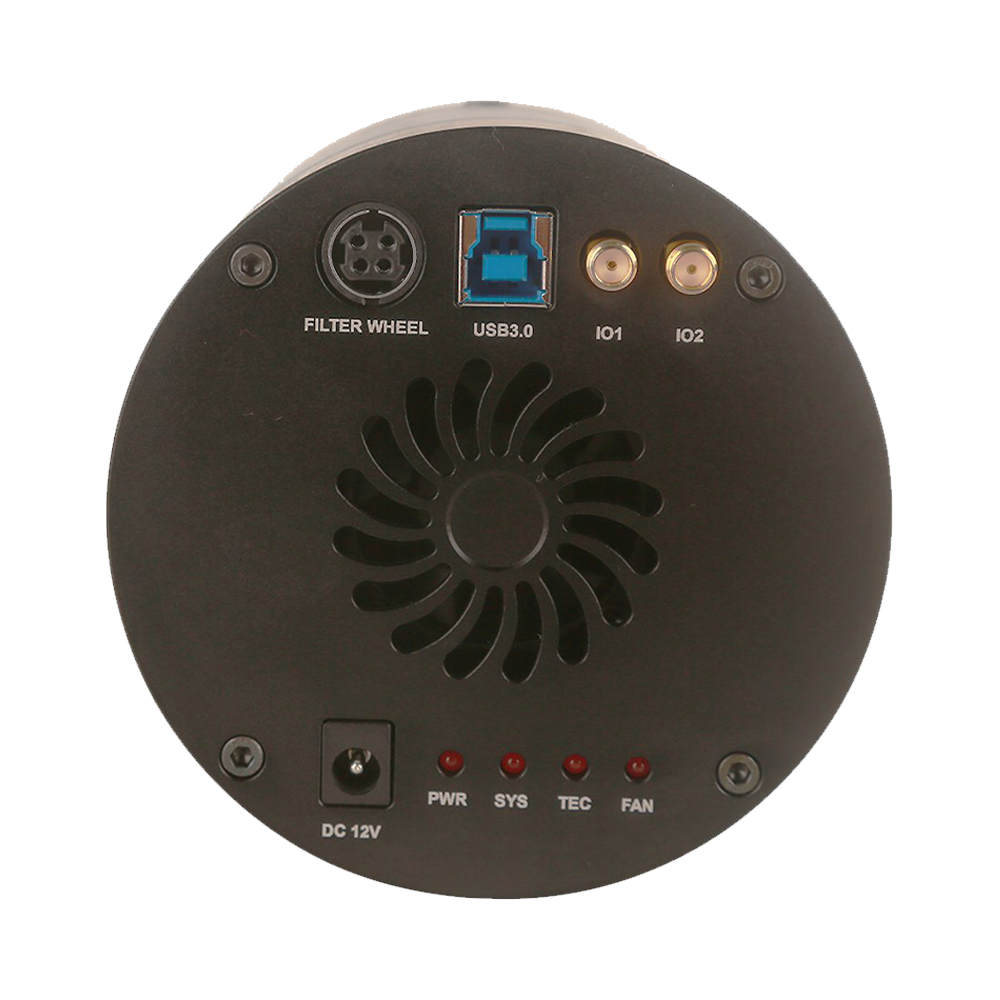

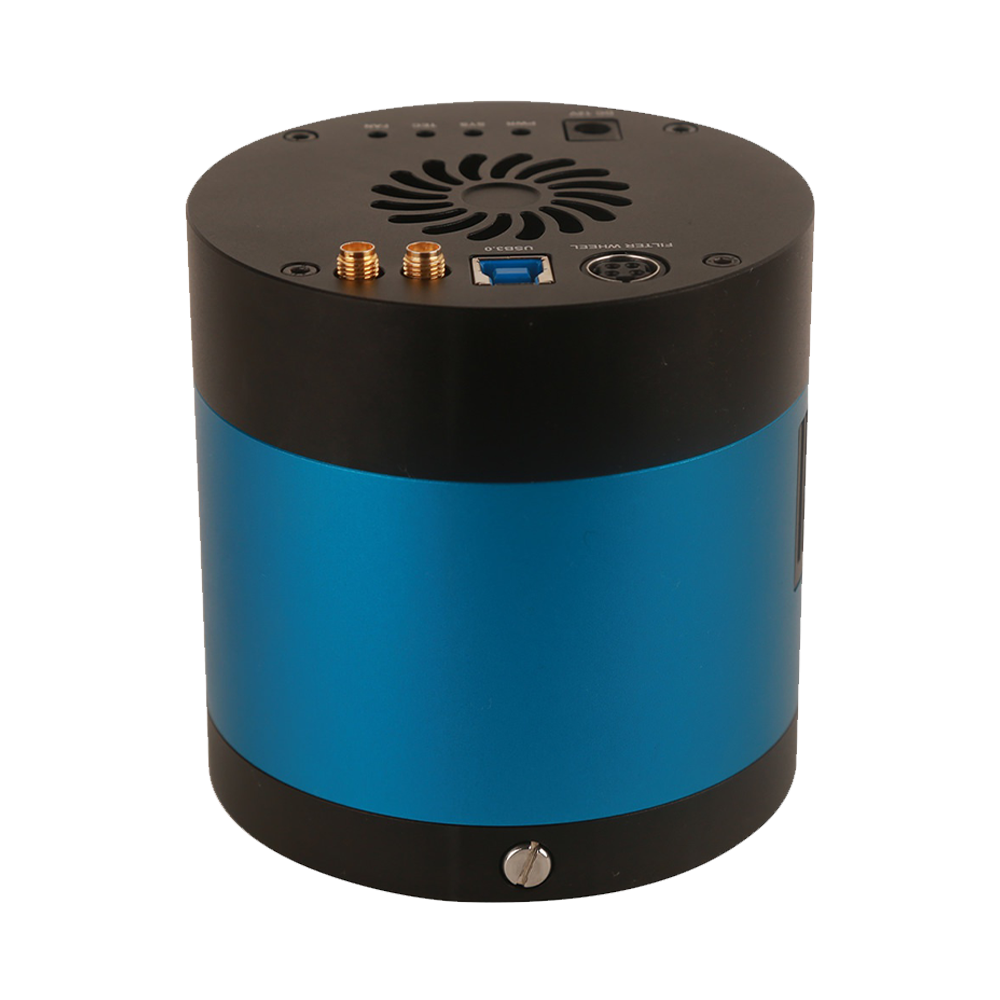

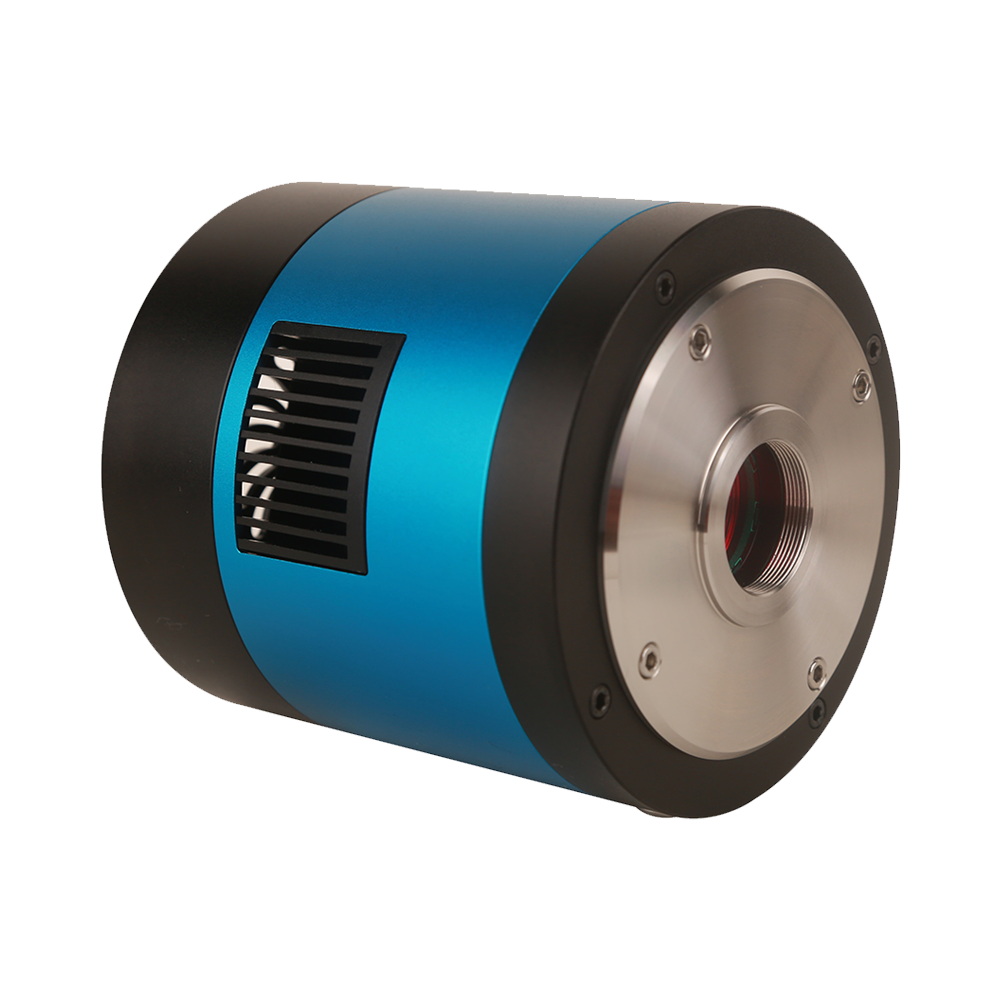

| Key Parameters | |
| Model | MTR3CCD09000KMA |
| Sensor | ICX814ALG (M) |
| Effective Pixels / Resolution | 9.0MP (3388×2712) |
| Frame Rate (Full Resolution and Key Resolution Modes) | 4.4 fps@3388×2712; 4.4 fps@1694×1356 |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Imaging Performance | |
| Pixel Size | 3.69 µm × 3.69 µm |
| Sensor Size | 12.47 mm × 9.98 mm |
| Diagonal | 1" (15.96 mm) |
| Dynamic Range | TBD |
| Bit Depth | 8/14-bit |
| Sensitivity | 660 mV (1/30s), 12 mV dark current (F8.0) |
| Interface & Mechanical | |
| Data Interface | USB3.0 |
| GPIO | TBD |
| Lens Mount | C-mount |

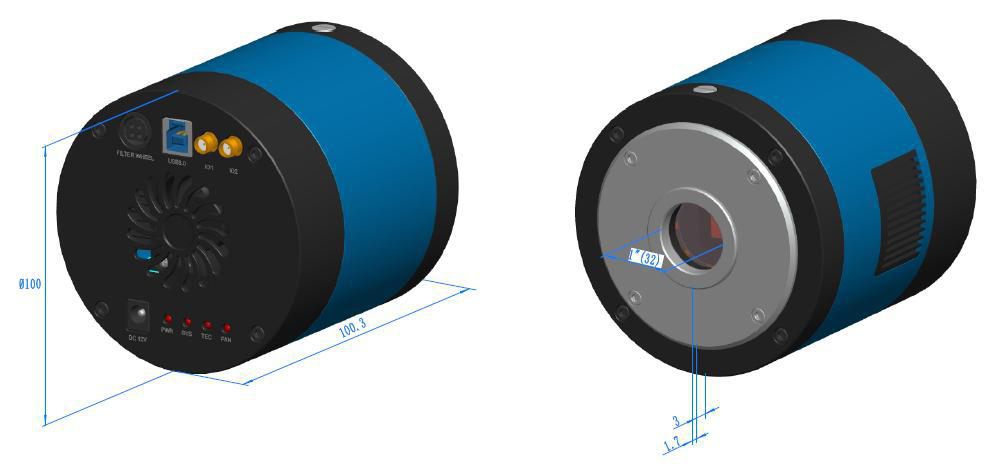

| Dimensions | See dimensional drawings |
| Weight | TBD |
| Power Supply | USB3.0 interface power + external DC12V 3A cooling power |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 30%~80%RH |
| Storage Temperature / Humidity | -20 °C ~ +60 °C / 10%~60%RH |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
Product Overview
MTR3CCD09000KMA is a scientific-grade cooled camera designed for low-light imaging and long exposure applications. It features the high-performance ICX814ALG (M) image sensor with the following characteristics:
Core Performance Indicators
Cooling Capability
42 °C below ambient temperature
Maximum Exposure Time
Up to 1 hour
Typical Dark Current
0.07 mV @ -20 °C
Resolution
9.0MP (3388×2712)
Scientific Application Features
Astronomical Observation
Ultra-low noise and long exposure capability suitable for capturing dim targets such as deep-sky objects, comets, and nebulae.
Spectral Analysis
High dynamic range and linear response for precise spectral information recording, suitable for Raman spectroscopy and fluorescence spectroscopy applications.
Bioluminescence Imaging
Extremely high sensitivity for capturing weak signals from bioluminescence and chemiluminescence, supporting in vivo imaging research.
Long-Term Monitoring
Stable cooling system and anti-condensation design support long-term unattended scientific observation.
Recommendation
The MTR3CCD09000KMA cooled camera, with its exceptional low-light detection capability, ultra-long exposure time, and scientific-grade image quality, is the ideal choice for astronomical observation, spectral analysis, bioluminescence imaging, and other low-light applications. Deep cooling technology effectively suppresses noise, while anti-condensation design ensures long-term stable operation, providing reliable imaging solutions for scientific research.
