IUA6300KMA Industrial Camera/Analytical Imaging
Product Introduction
The IUA series is designed for general industrial inspection and scientific imaging, with resolution coverage from 0.39MP to 45MP. It provides multiple models from small to large sensor formats, offering global shutter (GS) or rolling shutter (RS) solutions by application, as well as visible light, Near-Infrared (NIR) and ultraviolet (UV) specialized wavelength models (depending on model).
For transmission and synchronization, IUA primarily uses USB3.0 for real-time acquisition, with some models providing 10GigE for long-distance and high-bandwidth transmission. The camera body is equipped with 7-Pin I/O (optically isolated input/output + configurable GPIO), facilitating coordination with trigger sources, light sources, motion control and other peripherals.
The software ecosystem is comprehensive, including ToupView software and cross-platform SDK (Windows / Linux / macOS), compatible with DirectShow / TWAIN and other third-party interfaces for secondary development and system integration.
Key Features
- Resolution coverage 0.39–45MP, suitable for multiple scenarios (depending on model)
- Wavelength coverage includes visible light / NIR / UV, with specialized wavelength models (depending on model)
- Shutter types: Global shutter (GS) or rolling shutter (RS) (depending on model)
- Data interface: USB3.0; some models support 10GigE for long-distance high-speed transmission
- Rich I/O: 7-Pin industrial-grade interface, OPTO_IN/OPTO_OUT optical isolation + configurable GPIO
- Supports hardware trigger / software trigger / free-running acquisition modes
- Supports ROI, digital binning (2×2/3×3/4×4 depending on model), precise bandwidth and frame rate control
- Some models feature built-in buffer memory to improve high-speed transmission stability
- Naming convention includes C (color) / M (monochrome) identification for quick model selection
- Provides ToupView imaging software and cross-platform SDK, supports Windows / Linux / macOS and DirectShow / TWAIN
- Available in complete camera and bare board (OEM) structural sizes for easy embedded and system integration
- Complies with CE / FCC / RoHS certification requirements
Product Details
| Key Parameters | |
| Model | IUA6300KMA |
| Sensor | Sony IMX178LLJ |
| Effective Pixels / Resolution | 6.3MP (3072×2048) |
| Frame Rate (Full Resolution) | 59.9 fps@3072×2048; 59.9 fps@1536×1024 |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Imaging Performance | |
| Pixel Size | 2.4 µm × 2.4 µm |
| Sensor Size | 7.37 mm × 4.92 mm |
| Diagonal | 1/1.8" (8.86 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 760 mV |
| Interface & Mechanical | |
| Data Interface | USB3.0 (USB3.1 GEN1) |
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports |
| Lens Mount | C-mount |
| Dimensions | 68 mm × 68 mm × 28.1 mm |
| Weight | 217g |
| Power Supply | USB3.0 bus power / DC 12 V power |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 20%~80% non-condensing |
| Storage Temperature / Humidity | -30 °C ~ +70 °C / TBD |
| Operating System | Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |
Product Overview
The IUA6300KMA represents an advanced industrial camera platform engineered for demanding applications requiring exceptional spectral versatility and high-performance imaging capabilities. Featuring a Sony IMX178LLJ high-performance image sensor, this platform delivers comprehensive imaging solutions across extended spectral ranges from visible through ultraviolet and near-infrared wavelengths.
Extended Spectral Imaging Capabilities
The IUA Series establishes new standards for spectral versatility through advanced sensor technologies that extend imaging capabilities beyond conventional visible light applications. The 6.3MP (3072×2048) resolution architecture combined with 2.4 µm × 2.4 µm pixel design across a 7.37 mm × 4.92 mm sensor format delivers exceptional performance across ultraviolet, visible, and near-infrared spectral ranges. This capability addresses specialized applications including fluorescence detection, material analysis, and scientific research where standard visible light imaging cannot provide adequate spectral information.
The implementation of Rolling Shutter technology ensures precise temporal control essential for spectral imaging applications where timing accuracy directly impacts measurement reliability. This design approach supports both high-speed dynamic imaging and long-exposure scientific documentation across diverse spectral conditions while maintaining consistent performance characteristics.
Advanced Connectivity and Performance
The sophisticated dual-interface architecture featuring USB3.0 (USB3.1 GEN1) connectivity provides unprecedented deployment flexibility for diverse system requirements. This comprehensive approach enables maximum frame rates reaching 59.9 fps@3072×2048; 59.9 fps@1536×1024 while supporting both compact USB installations and high-bandwidth Gigabit Ethernet deployments in enterprise-scale systems. The advanced interface design ensures consistent data throughput regardless of spectral configuration or imaging requirements.
Professional image processing capabilities incorporate 8/12-bit color depth processing with dynamic range specifications exceeding 72 dB . These parameters ensure exceptional spectral accuracy and contrast resolution essential for applications requiring precise color discrimination and spectral analysis across diverse materials and illumination conditions.
Scientific and Industrial Integration
The optimized sensitivity specifications of 760 mV enable reliable performance across challenging spectral conditions typical in both scientific research and industrial applications. This capability ensures consistent imaging quality whether deployed in controlled laboratory environments or variable production settings where spectral characteristics may vary significantly. The platform addresses the growing demand for spectral imaging capabilities in quality control processes, materials analysis, and research applications.
The standard C-mount interface provides universal compatibility with both industrial lens systems and specialized scientific optics. Optional 0.5×/0.63×/1× relay adapters enable integration with microscopy systems and specialized optical configurations that support ultraviolet and near-infrared imaging requirements while maintaining optimal performance characteristics.
Compact Design and Development Support
The compact mechanical design measuring 68 mm × 68 mm × 28.1 mm with system weight of 217g addresses space constraints in both laboratory and industrial environments while maintaining professional-grade spectral imaging performance. The USB3.0 bus power / DC 12 V power power architecture simplifies installation requirements and reduces system complexity in multi-spectral imaging configurations.
Comprehensive software development support includes professional SDK compatibility across C/C++, C#, Python, DirectShow, GenICam development environments and Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 operating system platforms. This extensive compatibility ensures seamless integration with existing automation infrastructure while enabling custom application development that leverages the unique spectral capabilities for specialized research and industrial requirements.
Core Performance Specifications
Resolution
6.3MP (3072×2048)
Frame Rate
Up to 59.9 fps@3072×2048; 59.9 fps@1536×1024
Pixel Size
2.4 µm × 2.4 µm
Data Interface
USB3.0 (USB3.1 GEN1)
Advanced Application Capabilities
Multi-Spectral Imaging
Advanced sensor technology enables imaging across ultraviolet, visible, and near-infrared spectral ranges, supporting specialized applications in fluorescence detection, materials analysis, and scientific research requiring extended spectral coverage
Dual Interface Flexibility
Comprehensive connectivity options through USB 3.0 and Gigabit Ethernet interfaces provide deployment flexibility for diverse system architectures, from compact research setups to enterprise-scale industrial installations
High-Speed Precision
Global shutter architecture ensures precise temporal control essential for spectral imaging applications, supporting both high-speed dynamic imaging and long-exposure scientific documentation across diverse spectral conditions
Scientific Integration
Comprehensive software development kit enables seamless integration with scientific instrumentation and industrial automation systems, supporting custom applications that leverage unique spectral imaging capabilities
Technical Excellence
The IUA6300KMA industrial camera delivers exceptional performance through its advanced spectral imaging capabilities, comprehensive connectivity options, and professional-grade engineering. This platform represents the optimal solution for demanding applications requiring reliable imaging performance across extended spectral ranges, whether in scientific research environments or specialized industrial applications where conventional visible light imaging cannot provide adequate analytical information.
IUA6300KMA Technical Documentation
Comprehensive PDF documentation including detailed spectral specifications and integration guidelines
Professional SDK Suite
Multi-platform development resources supporting Windows, Linux, macOS with spectral imaging examples
3D CAD Models
Precision STEP format files for mechanical design integration and optical system planning
Package List #
Standard configuration and packing details for IUA Series compact industrial cameras (USB 3 / GigE)
Recommended Accessories
- Camera body – IUA Series model
- I/O cable – 7-pin cable or extension
- Signal cable – Micro USB 3.0 cable
- Lens (optional) – C-mount lens
Recommended Accessories
- Camera body – IUA Series model
- I/O cable – GigE cable
- Power supply – 12 V / 3 A aviation power adapter
- Lens (optional) – C-mount lens

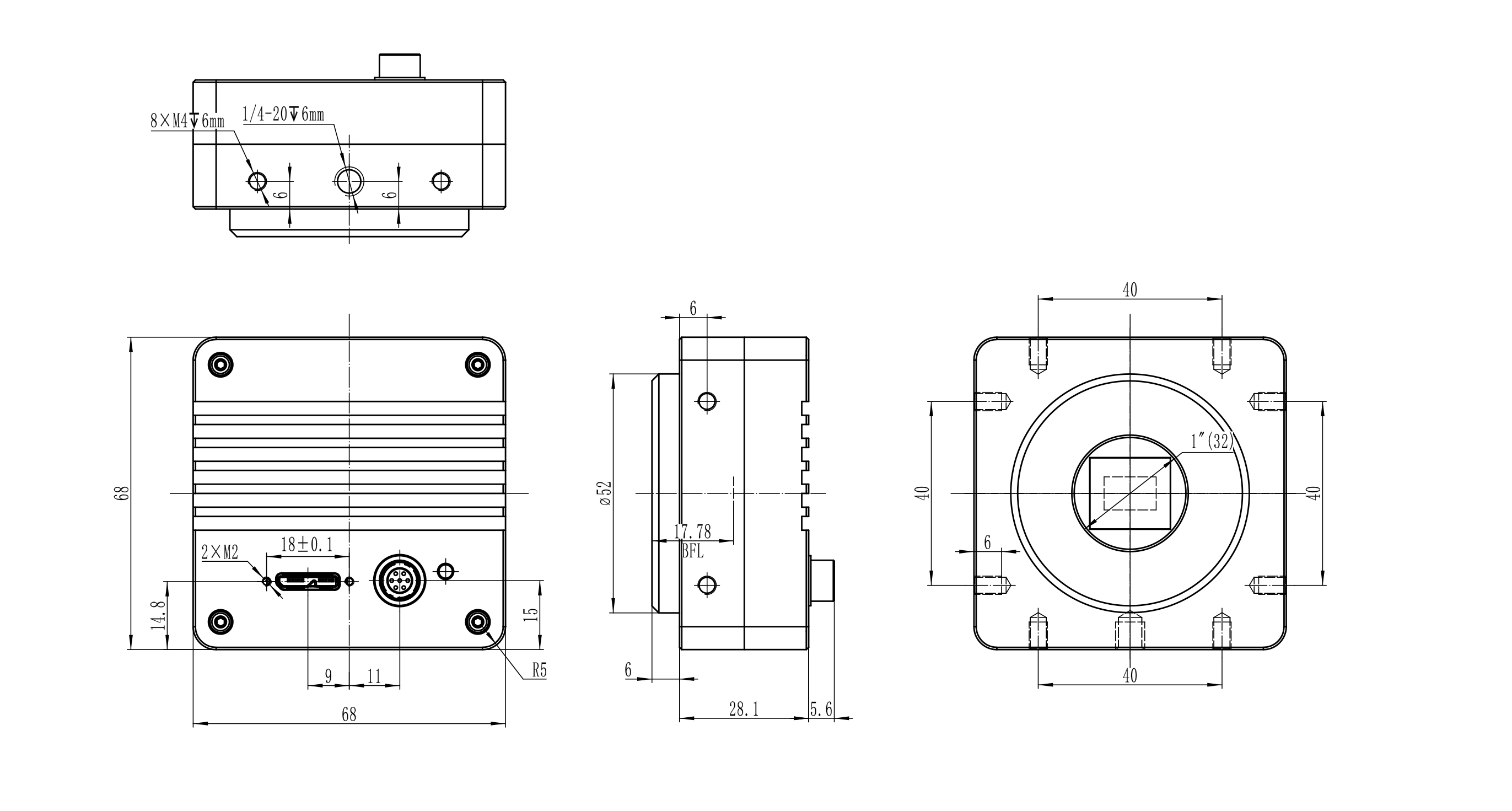

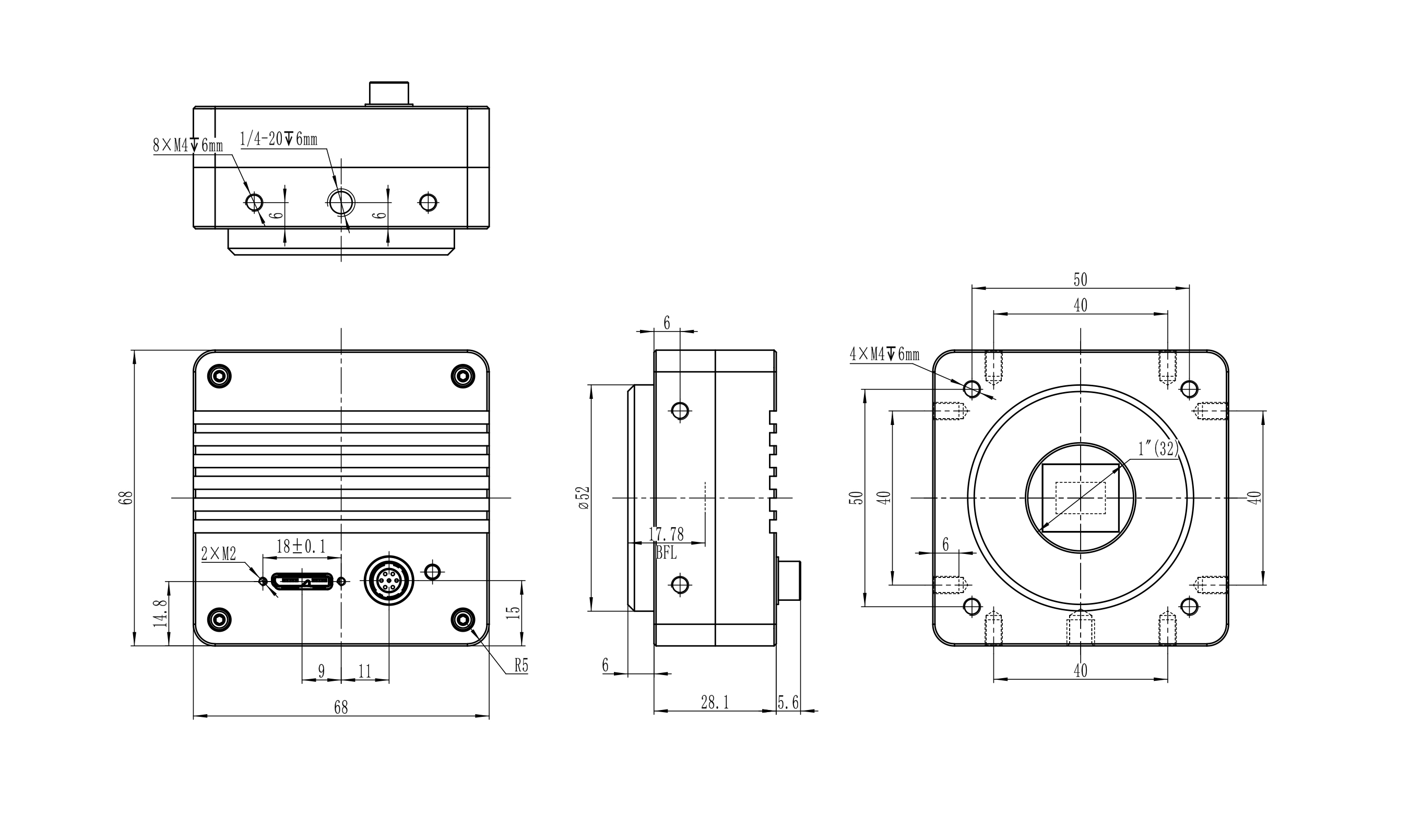

Product Dimensions #
Outline reference for IUA Series compact industrial cameras
The IUA Series from Tupu Photonics delivers compact, fast-response USB 3.0 and GigE industrial cameras that cover visible and specialty spectral imaging (UV and NIR). Equipped with advanced CMOS/BSI sensors from Sony and Gpixel, selected models include global shutter options plus UV and NIR-enhanced designs for high frame rates, low-light sensitivity, and specialty wavelength capture. A rugged metal chassis and industrial interfaces ensure long-term stability and seamless system integration.
Key Features
High-performance sensor portfolio
Sony Pregius / Gpixel BSI covering UV through NIR
Global shutter support
Smear-free imaging for fast motion
Specialty spectral imaging
UV window removal and NIR QE boosted to 90%+
Industrial-grade I/O
Opto-isolated I/O with 7-pin aviation connectors
Performance Highlights
Resolution range
0.39–45 MP
Multiple configurationsFrame rate
100+ fps
Lower-resolution modelsExposure time
6 µs–60 s
Ultra-wide controlCompact size
38×38×33 mm
Bare-camera configurationIn-depth Product Overview
Advanced sensor technology platform
Powered by industry-leading Sony Pregius/Pregius S and Gpixel BSI sensors, the IUA Series spans visible through ultraviolet and near-infrared wavelengths. The back-illuminated architecture maximizes photon collection, keeping dark current as low as 0.03–0.3 e-/s/pix for clean low-light imaging. From high-speed low-resolution models to ultra-high-resolution 45 MP variants, the sensor portfolio meets precise imaging needs across diverse applications.
Global shutter high-speed imaging
Selected models feature global shutter technology that eliminates smear and distortion during fast motion, ideal for industrial inspection and motion analysis. Resolutions from 2 MP to 8 MP deliver triple-digit frame rates, while ROI and binning modes push performance even further. Minimum 6 µs exposures capture split-second dynamics, supporting high-throughput production lines and motion tracking.
Specialty spectral imaging solutions
Purpose-built optical designs make the IUA Series exceptional for specialty wavelength detection. UV models remove protective glass to boost ultraviolet response, while NIR versions leverage sensor optimization and coatings to raise near-infrared quantum efficiency beyond 90%. This broad spectral coverage supports semiconductor defect inspection, biomedical fluorescence imaging, security monitoring, and more—reducing system complexity with a single versatile platform.
Industrial interfaces and reliability
Comprehensive industrial I/O includes opto-isolated trigger inputs/outputs, strobe outputs, and programmable GPIO via robust 7-pin aviation connectors. USB 3.0 models support bus power; GigE configurations add dedicated 12 V inputs for flexible installation. Anodized metal housings, vibration-resistant connectors, and rigorous environmental validation ensure dependable long-term operation in harsh industrial environments.
Complete software ecosystem
The series integrates with ToupView software and SDKs across Windows, Linux, macOS, and Android, offering APIs for C/C++, C#/VB.NET, Python, DirectShow, and TWAIN. Developers gain access to real-time control of exposure, gain, white balance, HDR, LUT, and event triggers, enabling rapid integration into vision systems, automation platforms, and research instrumentation.
Applications
Showcasing IUA Series applications across industrial imaging
IUA Series Key Advantages
Broad spectral coverage
UV to NIR
Global shutter
High-speed, smear-free
High-speed imaging
100+ fps capture
Compact design
38×38×33 mm
Industrial I/O
Opto-isolated interfaces
BSI sensors
Ultra-low dark current
Dual interfaces
USB 3.0 / 10GigE
Low power
<3 W stable operation
