I3ISPM20000KPA Industrial Camera/Analytical Imaging
Product Introduction
Sony IMX283CQJ sensor, 20.0 MP (5440×3648), 2.4 µm × 2.4 µm pixel, rolling shutter; typical frame rates: 19 fps @ 5440×3648; 50 fps @ 2736×1824; 60 fps @ 1824×1216. Interface: USB3.0 (USB3.1 Gen1); mount: C-mount; output format: RAW8/RAW12; sensor format: 1" (15.73 mm); dimensions: 38 mm × 38 mm × 38 mm. Designed for compact industrial integration, it combines 72 dB dynamic range, 923 mV sensitivity, flexible exposure and gain control, and opto-isolated I/O with ToupView and a full SDK package.
Key Features
- Sony IMX283CQJ color CMOS sensor with 20.0 MP resolution
- 1" optical format with 2.4 µm × 2.4 µm pixels
- Rolling shutter architecture for high-resolution imaging tasks
- Frame rates up to 19 fps at 5440×3648, 50 fps at 2736×1824, and 60 fps at 1824×1216
- 72 dB dynamic range with 41.7 dB SNR and 923 mV sensitivity
- Read noise of 2.96e- and full well capacity of 14.78 ke-
- Gain range from 1× to 50× and exposure time from 67 µs to 15 s
- USB3.0 (USB3.1 Gen1) high-speed data interface
- 1 opto-isolated input, 1 opto-isolated output, and 1 non-isolated I/O port
- RAW8/RAW12 data output with binning mode reserved as TBD
- Compact 38 mm × 38 mm × 38 mm cube housing with C-mount lens interface
- Powered directly through the USB3.0 interface for simplified integration
- Full SDK package and ToupView software for secondary development and deployment
- Supports Win32/WinRT/Linux/macOS/Android on x86/x64/ARM HF/ARM EL/ARM64 platforms
Product Details
| Key Parameters | |
| Model | I3ISPM20000KPA |
| Sensor | Sony IMX283CQJ |
| Effective Pixels / Resolution | 20.0 MP (5440×3648) |
| Frame Rate (Full Resolution) | 19 fps @ 5440×3648; 50 fps @ 2736×1824; 60 fps @ 1824×1216 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Imaging Performance | |
| Pixel Size | 2.4 µm × 2.4 µm |
| Sensor Size | 13.06 mm × 8.76 mm |
| Diagonal | 1" (15.73 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | RAW8/RAW12 |
| Sensitivity | 923 mV |
| Read Noise | 2.96e- |
| Full Well Capacity | 14.78 ke- |
| SNR | 41.7 dB |
| Dark Current | 0.21 mV |
| Gain Range | 1× to 50× |
| Exposure Time | 67 µs to 15 s |
| Interface & Mechanical | |
| Data Interface | USB3.0 (USB3.1 Gen1) |
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port |
| Lens Mount | C-mount |
| Dimensions | 38 mm × 38 mm × 38 mm |
| Weight | TBD |
| Power Supply | Powered via USB3.0 interface |
| Data Format | RAW8/RAW12 |
| Binning Mode | TBD |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C to +50 °C / 20% to 80% non-condensing |
| Storage Temperature / Humidity | -30 °C to +70 °C / TBD |
| Operating System | Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Software | Full SDK package / ToupView |
| Certification | CE/FCC |
Product Overview
The I3ISPM20000KPA represents the pinnacle of ultra-compact industrial camera engineering, specifically designed for demanding space-constrained applications requiring exceptional performance. Featuring a Sony IMX283CQJ high-performance image sensor within an extraordinarily compact form factor, this platform delivers professional-grade capabilities that establish new standards for space-efficient industrial imaging solutions.
Ultra-Compact Engineering Excellence
The I3ISPM Series achieves remarkable performance density through advanced miniaturization technologies that deliver 20.0 MP (5440×3648) resolution within a compact cube housing measured at 38 mm × 38 mm × 38 mm. This engineering achievement addresses the critical requirements of modern automation systems where space represents the ultimate constraint while performance cannot be compromised. The 2.4 µm × 2.4 µm pixel architecture across a 13.06 mm × 8.76 mm sensor format ensures exceptional detail resolution despite the extremely compact physical implementation.
The Rolling Shutter architecture is matched to application requirements, helping the platform balance motion capture, image fidelity, and integration efficiency across inspection, analysis, and embedded vision tasks. Combined with the series' compact mechanical design, this approach gives system builders the flexibility to deploy the right sensor and shutter combination without sacrificing installation constraints.
Exceptional Speed and Connectivity
The advanced USB3.0 (USB3.1 Gen1) interface architecture enables extraordinary frame rates reaching 19 fps @ 5440×3648; 50 fps @ 2736×1824; 60 fps @ 1824×1216 , establishing new performance benchmarks for ultra-compact industrial cameras. This capability supports the most demanding high-speed inspection applications while maintaining the space-efficient design that enables deployment in previously impossible installation scenarios. The high-bandwidth connectivity ensures that data throughput never becomes a limiting factor in automated manufacturing environments.
Professional image processing capabilities include RAW8/RAW12 color depth processing with dynamic range specifications exceeding 72 dB . These parameters ensure exceptional image quality and measurement accuracy essential for precision manufacturing applications where defect detection and dimensional analysis require the highest levels of reliability and repeatability across diverse materials and lighting conditions.
Advanced Integration Capabilities
The sophisticated GPIO architecture provides comprehensive connectivity for external devices and sensor integration, enabling complex automation systems to coordinate multiple devices through centralized control interfaces. This capability addresses the growing complexity of modern manufacturing systems where cameras must integrate seamlessly with lighting controllers, motion systems, and quality control databases to deliver comprehensive inspection solutions.
Optimized sensitivity specifications of 923 mV ensure consistent performance across varying illumination conditions typical in industrial environments. The standard C-mount interface provides universal compatibility with industrial lens systems, while optional 0.5×/0.63×/1× relay adapters enable integration with specialized optical configurations that address unique application requirements.
Operational Excellence and Development Support
The ultra-compact cubic design measuring precisely 38 mm × 38 mm × 38 mm with minimal system weight of TBD revolutionizes installation possibilities in space-critical automation environments. The Powered via USB3.0 interface power architecture eliminates additional power infrastructure requirements, significantly reducing system complexity and installation costs while ensuring reliable operation in demanding industrial conditions.
Comprehensive software development support includes professional SDK compatibility across C/C++, C#, Python, DirectShow, GenICam development environments and Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 operating system platforms. This extensive compatibility ensures seamless integration with existing automation infrastructure while enabling custom application development that leverages the unique capabilities of this ultra-compact platform for specialized manufacturing requirements.
Critical Performance Metrics
Resolution
20.0 MP (5440×3648)
Frame Rate
Up to 19 fps @ 5440×3648; 50 fps @ 2736×1824; 60 fps @ 1824×1216
Pixel Size
2.4 µm × 2.4 µm
Data Interface
USB3.0 (USB3.1 Gen1)
Advanced Application Capabilities
Ultra-Compact Integration
Compact cube housing at 38 mm × 38 mm × 38 mm simplifies embedded deployment while maintaining professional-grade imaging performance for demanding automation applications
Extreme Speed Performance
Frame rate support of 19 fps @ 5440×3648; 50 fps @ 2736×1824; 60 fps @ 1824×1216 provides the throughput needed for inspection, alignment, and dynamic event capture in modern production lines
Adaptive Shutter Technology
This model uses Rolling Shutter to align image acquisition behavior with the target inspection workflow, whether the priority is motion control, throughput, or fine-detail imaging
Comprehensive I/O Integration
Advanced GPIO architecture supports complex automation system integration with extensive connectivity options for external devices, sensors, and control systems coordination
Engineering Excellence
The I3ISPM20000KPA compact industrial camera combines high-resolution imaging, robust I/O, and efficient data transfer in a deployment-friendly housing. This platform is designed for modern automation environments that demand reliable image quality, flexible integration, and efficient use of installation space without forcing a one-size-fits-all shutter or mechanical architecture.
I3ISPM20000KPA Technical Specifications
Complete technical documentation including detailed specifications, performance characteristics, and integration guidelines
Advanced SDK Package
Professional development kit supporting Windows, Linux, macOS with comprehensive API documentation and integration examples
Precision CAD Models
Ultra-precise STEP format models optimized for space-critical mechanical design integration and system planning
Package Contents #
Standard contents for I3 industrial machine vision cameras (USB3 / GigE / 10GigE)
Recommended kit (USB3)
- Camera body - USB3.0 interface
- I/O cable - 6-pin cable or extension cable
- USB3.0 cable - Micro USB3.0 cable
- Lens (optional)
Recommended kit (GigE)
- Camera body - GigE interface
- Power adapter - 12 V/36 W aviation power supply
- I/O cable - 7-pin cable or extension cable
- GigE cable
- Lens (optional)
Recommended kit (10GigE)
- Camera body - 10GigE interface
- Power adapter - 12 V/36 W aviation power supply
- I/O cable - 7-pin cable or extension cable
- 10GigE cable
- Lens (optional) - M42 or F-mount lens

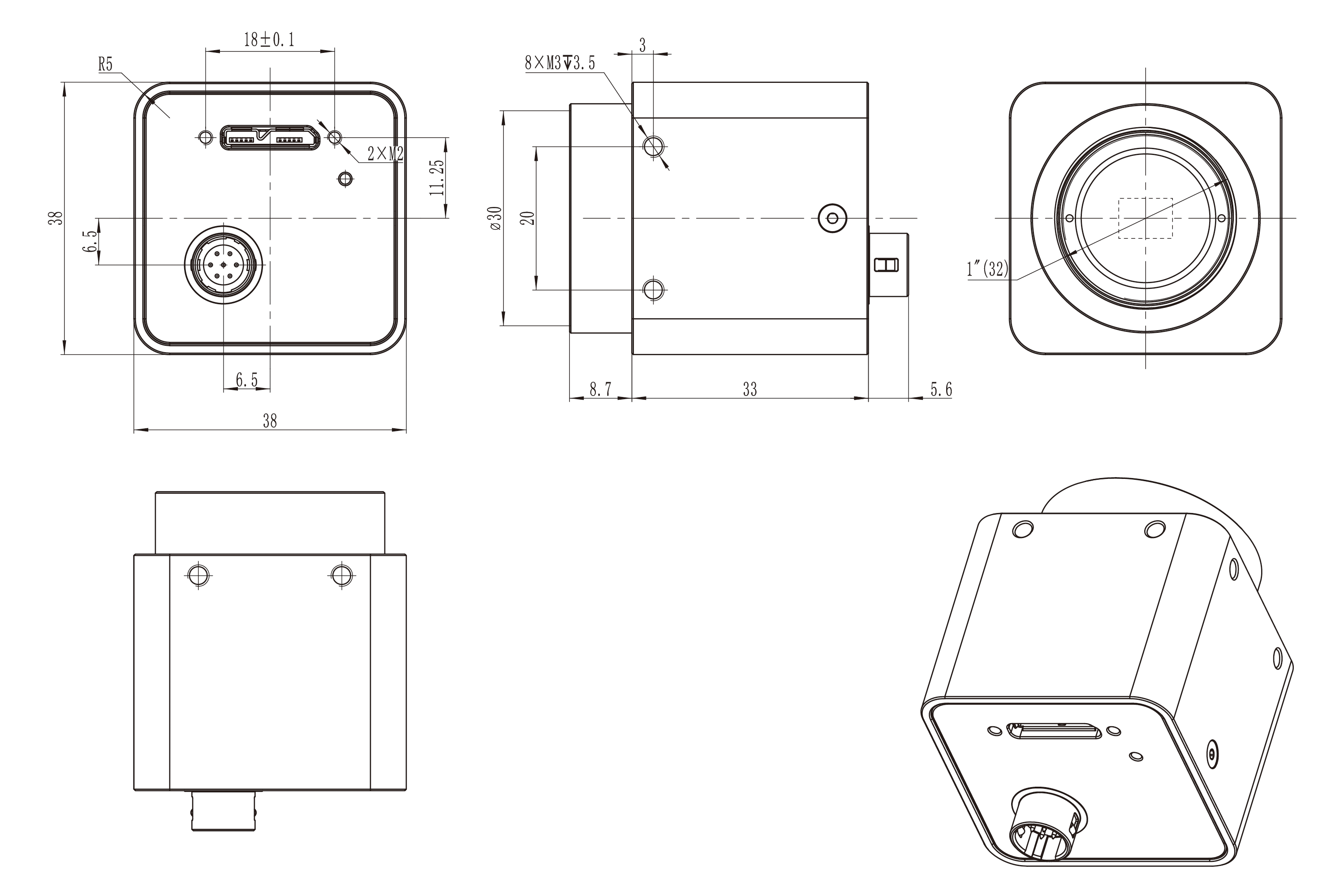

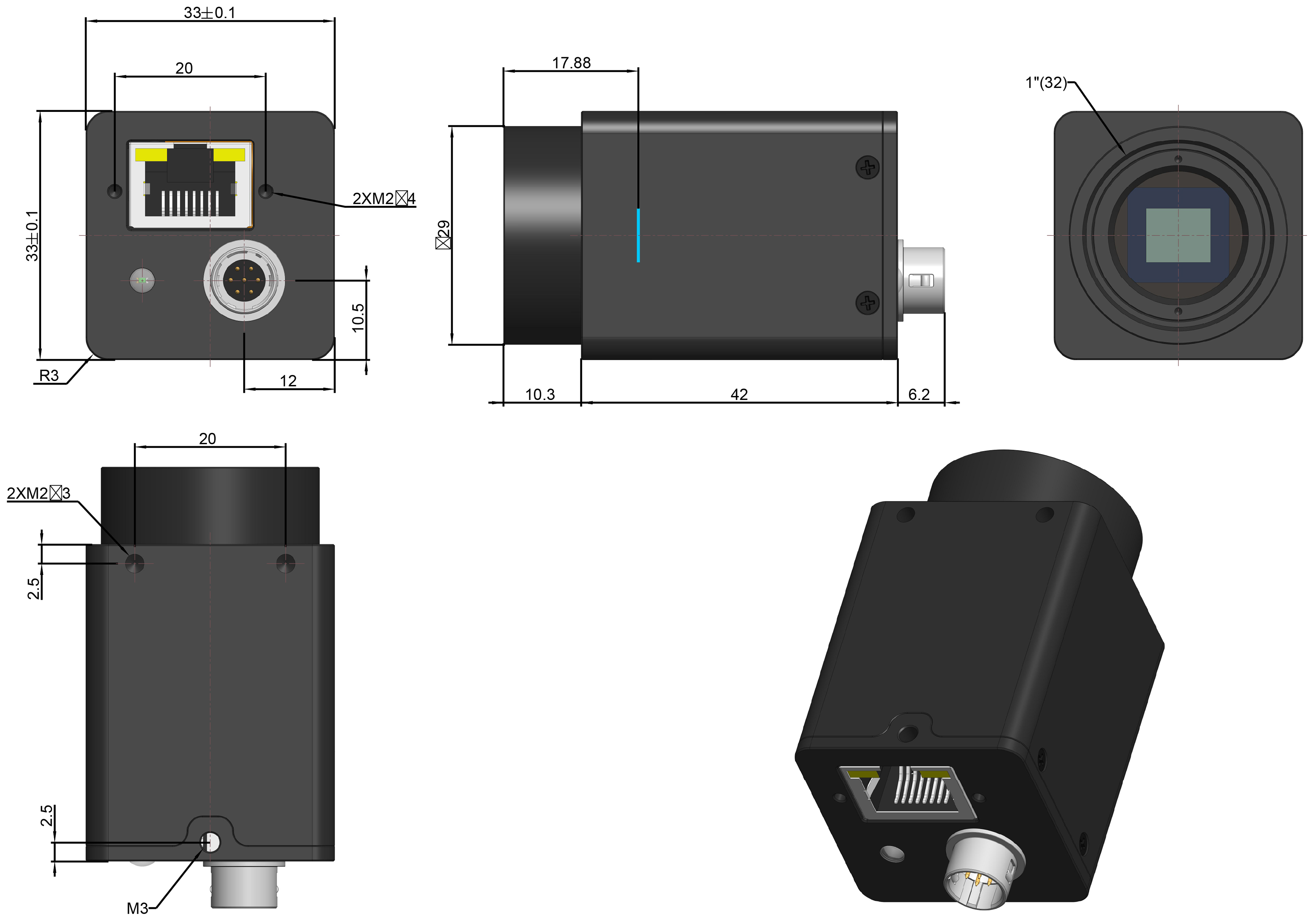

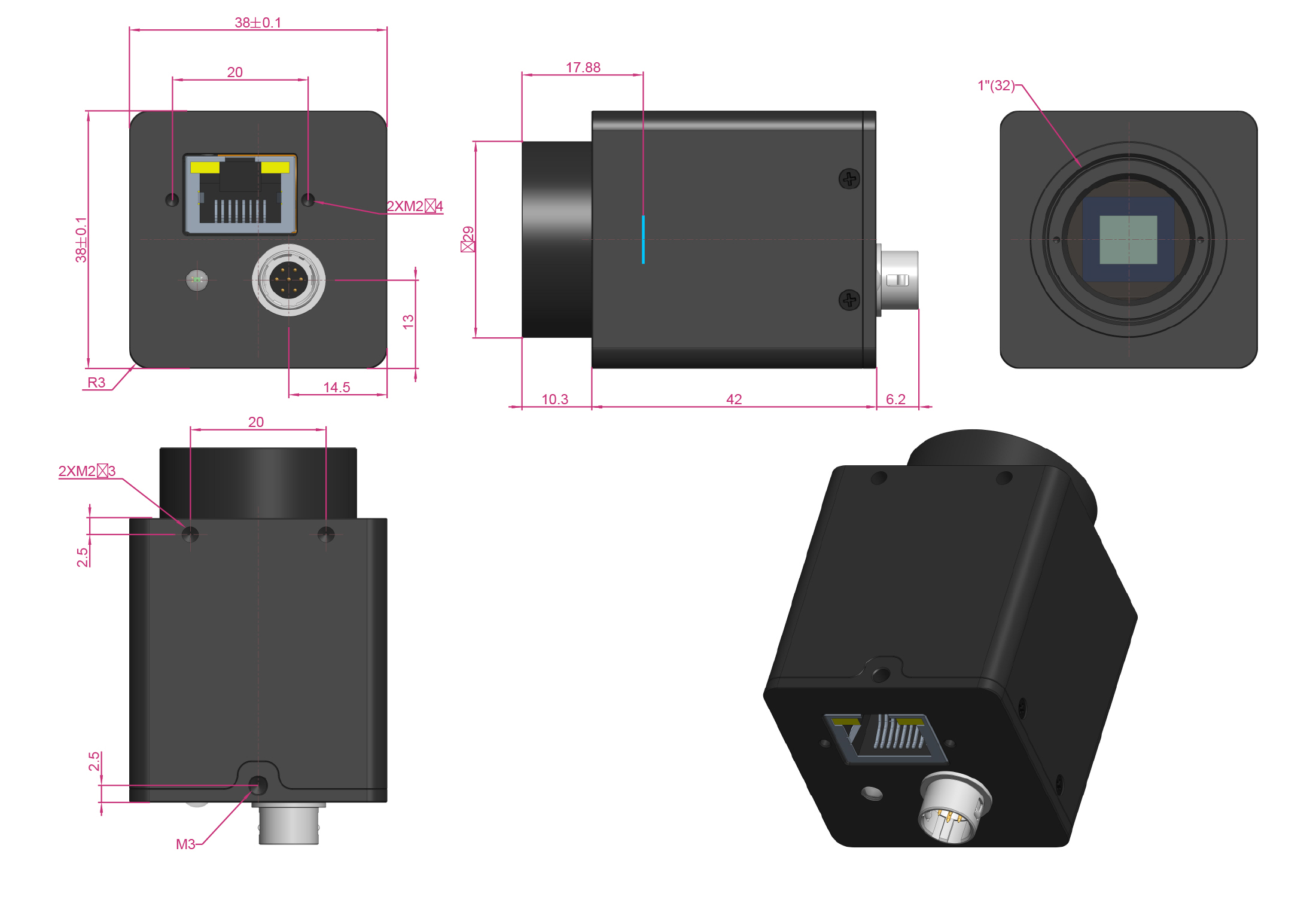

Product Dimensions #
Outline dimensions for I3 industrial machine vision cameras
The I3ISPM Series is ToupTek’s compact, high-speed USB3.0 industrial camera line, spanning 0.5–20.4 MP with Sony and Gpixel high-performance CMOS sensors from 1/2.9" to 1.1" formats. With a 33×33×33 mm cube body, it offers both global and rolling shutter options to balance high frame rates and image quality—ideal for automation, machine vision, and scientific imaging.
Key Features
Ultra-compact design
33×33×33 mm cube body
Global shutter options
Most models; smear-free imaging
Ultra-high speed
Up to 600 fps capability
Multi-resolution coverage
0.5 MP to 20.4 MP range
Performance highlights
Peak frame rate
600 fps
Low-resolution modeResolution range
0.5-20.4 MP
Multiple optionsBody size
33 mm cube
Only 70 gDynamic range
73 dB
High contrastIn-Depth Overview
Wide sensor platform
Built on sensors such as Sony IMX433, IMX273, IMX252, IMX541, and Gpixel GMAX4002, covering needs from low-resolution high-speed to high-pixel precision imaging. Pixel sizes from 2.74 µm to 9.0 µm balance sensitivity and detail. Typical models reach up to 73 dB dynamic range and 50 dB SNR for accurate imaging in high-contrast environments.
Excellent high-speed performance
Frame rates up to 600 fps (low-resolution mode); high-pixel models like 20.4 MP still achieve 17.5 fps at 4496×4496. 0.5 MP models reach 166.5 fps @ 812×620, 2.4 MP models reach 620 fps @ 1024×600. Supports 1×1, 2×2, 3×3, 4×4 hardware/software binning to balance speed and sensitivity.
Advanced shutter options
Most models offer global shutter for fast motion without smearing; rolling shutter options support high dynamic range needs. Wide exposure from 6 µs to 15 s with 8-bit/10-bit/12-bit outputs provides flexibility for varied inspection and analysis.
Ultra-compact industrial design
33×33×33 mm cube, only 70 g, full metal housing. Power below 3.5 W; operating range -10 to +50 °C, humidity 20%–80% (non-condensing) for long-term stability. Opto-isolated and non-isolated I/O enable line integration and external triggering.
Complete software ecosystem
Supports Windows, Linux, macOS, Android with APIs for C/C++, C#/VB.NET, Python, DirectShow, and TWAIN to simplify secondary development. Rich SDK functions and full documentation make system integration straightforward for automation, machine vision, and research deployment.
Applications
I3ISPM Series use cases across industrial imaging
I3ISPM Series Key Advantages
Ultra-compact
33 mm cube form factor
Ultra-high speed
600 fps capture
Global shutter
Ghost-free imaging
Multi-resolution
0.5–20.4 MP options
Ultra-lightweight
Only 70 g
Flexible binning
4 modes
Low power
<3.5 W
Rich I/O
Opto-isolated
