X8FCAM4K_EFL Series
Product Introduction

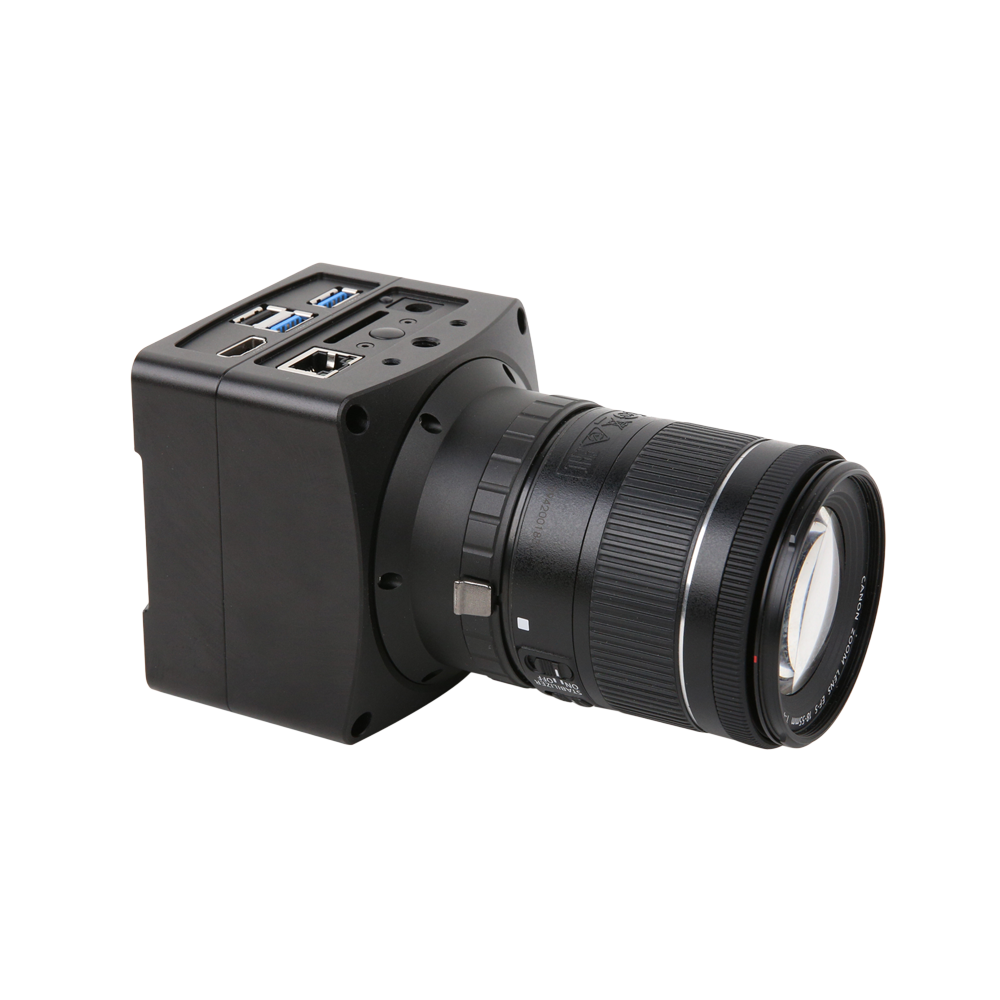

X8FCAM4K_EFL is a 4K multi-interface autofocus camera for Canon EF lenses, with electronic lens control and HDMI2.0, USB3.0 and network output.
Product Features
- Canon EF lens autofocus
- Lens aperture control
- Real-time depth-of-field stacking
- Lens distortion correction
- 10-bit ISP processing
- RAW format support
- Automatic image upload
- Voice control
- Real-time stitching
- Automatic edge detection and measurement
- Multi-language menu
- Image comparison analysis
Models
| Model | Sensor | Resolution | Frame Rate | Interface | Sensor Size | Pixel Size | Lens Mount | Storage |
|---|---|---|---|---|---|---|---|---|
| X8FCAM4K22MPA_EFL | Sony IMX571 (C) | 22 MP (6240×3512) | HDMI: 37 fps @ 3840×2160, 37 fps @ 1920×1080; USB: 15 fps @ 6240×3512, 37 fps @ 2688×1512, 37 fps @ 1920×1080; NETWORK: 30 fps @ 3840×2160, 37 fps @ 1920×1080, 37 fps @ 1280×720 | HDMI2.0; USB3.0; Ethernet; Wi-Fi | 1.7" (23.46 × 13.21 mm) | 3.76 µm × 3.76 µm | Canon EF Mount | SD Card; USB Flash Drive |

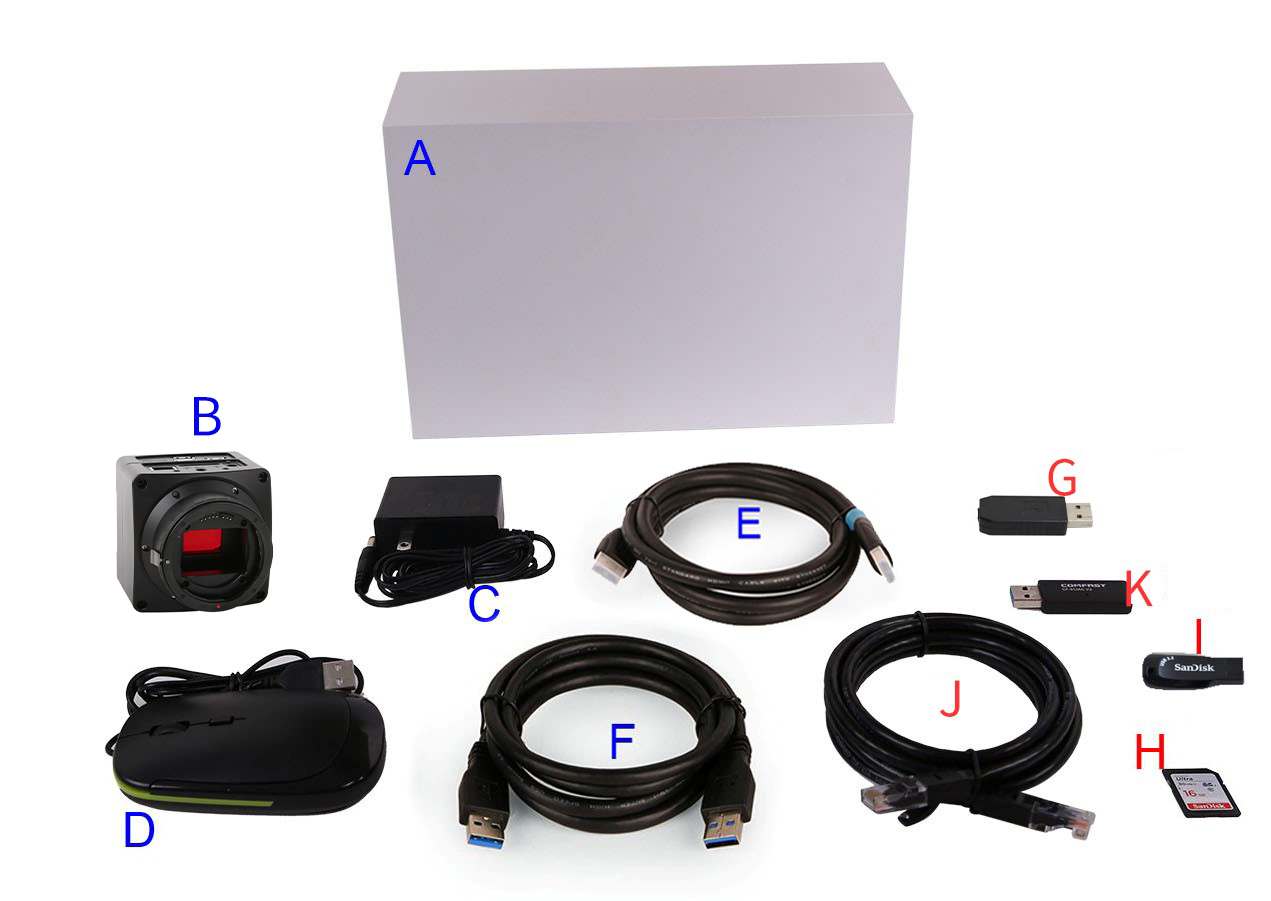

Package Contents#
Standard Package
- AGift box: 25.5 cm × 17.0 cm × 9.0 cm (1 piece; approximately 1.7 kg per box)
- BX8FCAM4K camera
- CDC 12 V / 2 A power adapter
- DUSB mouse
- EHDMI2.0 cable
- F1.5 m USB3.0 Type-A male to Type-A male gold-plated cable
Optional Accessories
- G Voice control module
- H SD card (32 GB or above, Class 10)
- I USB3.0 flash drive
- J Ethernet cable
- K USB Wi-Fi adapter

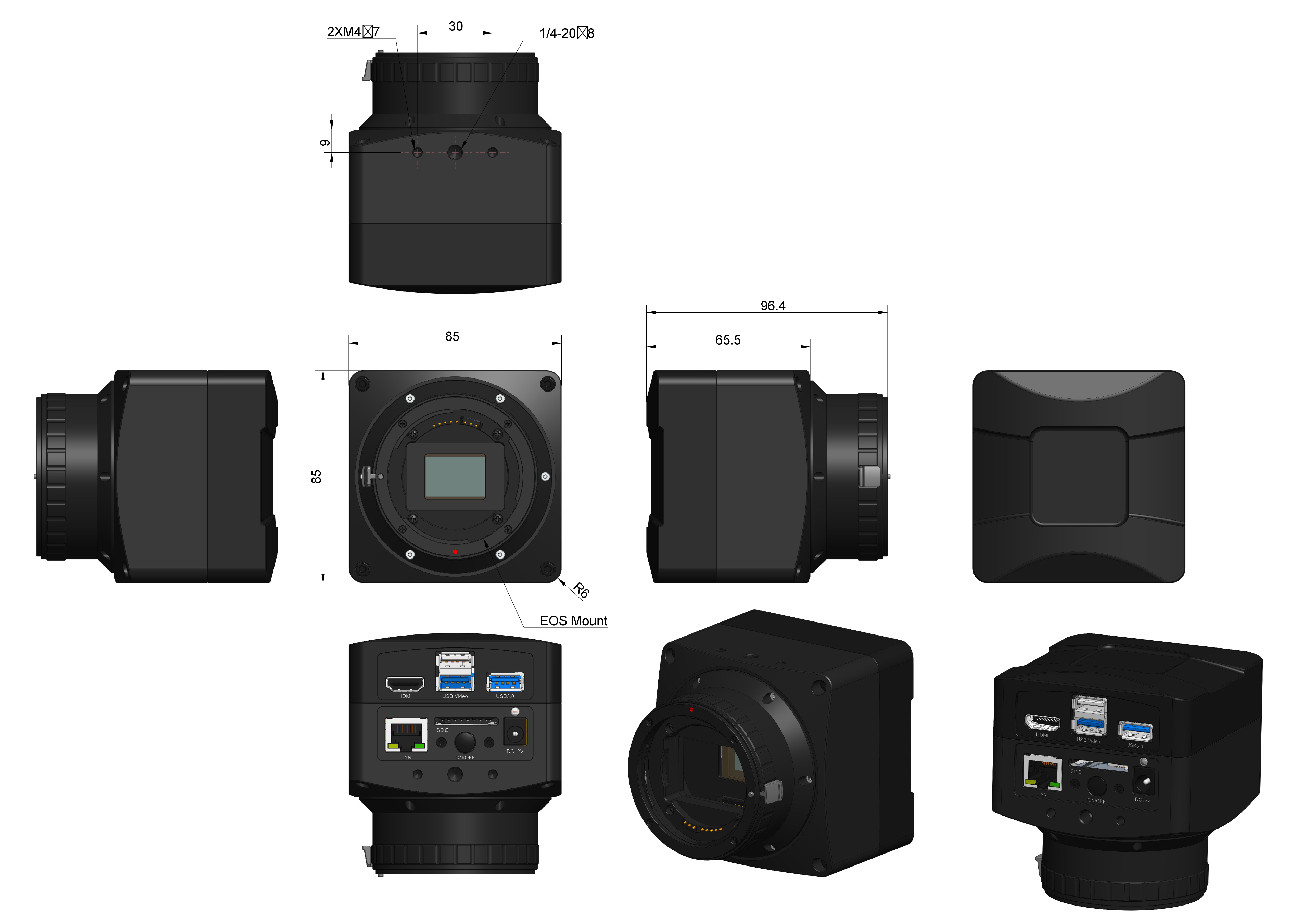

Dimensions
Dimensions
Detailed Introduction

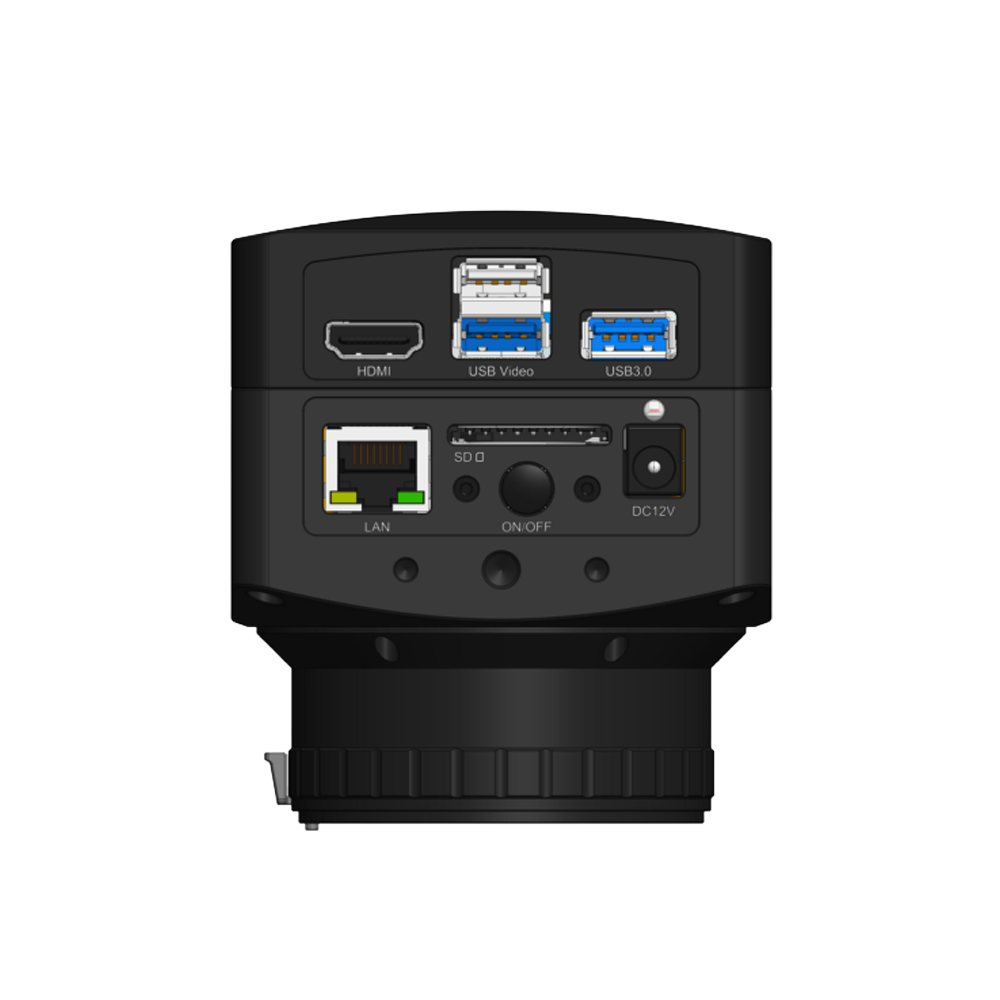

Connections and storage
The camera connects directly to an HDMI monitor or to a computer through NETWORK/USB. Images and videos can be saved to an SD card or USB flash drive for on-site analysis and subsequent study.
Applications
The camera can be used for medical inspection, including ophthalmology and dentistry, and for ultra-high-definition industrial inspection. EF-mount lenses with different focal lengths can be selected according to customer requirements.
Product Features
Canon EF lens autofocus
Lens aperture control
Real-time depth-of-field stacking
Lens distortion correction
10-bit ISP processing
RAW format support
Automatic image upload
Voice control
Real-time stitching
Automatic edge detection and measurement
Multi-language menu
Image comparison analysis

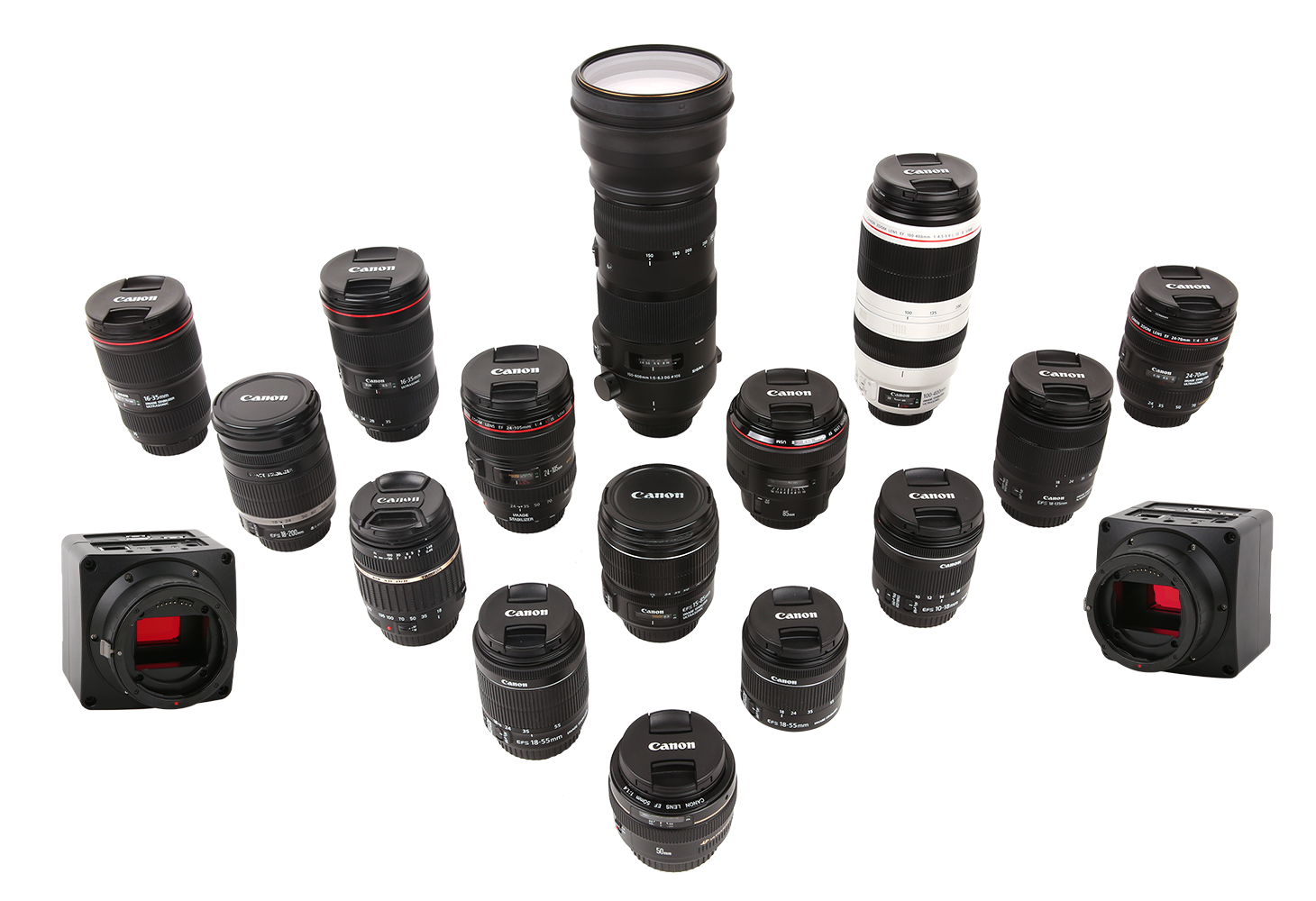

Compatible EF Lenses
