Zeiss 60N-C Brand-Specific Interface Adapter
Product Introduction
Zeiss 60N-C interface adapter series is custom-designed for Zeiss 60N-C microscopes, offering various magnification options and interface types to ensure perfect matching with various camera sensors. This series features precision optical design and CNC machining technology, ensuring superior imaging quality and long-term stability.
Zeiss 60N-C Product Features
- Converts the Zeiss trinocular microscope photo tube (standard M52×1 mm outer diameter) to C-mount (thread outer diameter 25.4 mm, 32 TPI), T2-mount (thread outer diameter 42 mm, pitch 0.75 mm), or M52 mount (thread outer diameter 52 mm, pitch 0.75 mm)
- Integrates reduction optics in multiple magnifications (2.25X, 1.5X, 1.2X, 1X, 0.80X, 0.63X, 0.5X, 0.35X) to deliver the optimal field of view from the trinocular head
- Supports sensor formats including 2.7 in, 1.8 in, 4/3 in, 1 in, 2/3 in, 1/1.8 in, 1/2 in, 1/2.5 in, 1/3 in, or 1/4 in CCD/CMOS sensors
- Compatible with Zeiss Axio series UIS trinocular microscopes
- CNC-machined housing for high precision and durability
- Maintains parfocality between captured images and the eyepiece across magnifications
- Delivers diffraction-limited contrast transfer to ensure image clarity
- Matches the adapter entrance pupil to the UIS microscope exit pupil for consistent image quality
- Provides outline drawings to guarantee a precise fit with microscope photo tubes and heads
Product Details
Product Overview
Zeiss 60N-C interface adapter series is custom-designed for Zeiss 60N-C brand microscopes, achieving perfect matching between microscopes and various cameras through precision optical design and mechanical engineering.
Core Advantages
- Precision Optical Design: Optimized using professional optical design software to ensure optimal light path transmission from microscope to camera, achieving diffraction-limited imaging quality
- Parfocal Design: Adapter and eyepiece observation achieve complete parfocality, enabling seamless switching between eyepiece observation and camera imaging
- Multiple Magnification Options: Offering various magnification choices from 0.35X to 2.25X, compatible with different sensor sizes for optimal field of view coverage
- CNC Precision Machining: Manufactured using high-precision CNC machines to ensure mechanical dimensional accuracy and assembly reliability for long-term stable use
- Multi-Interface Compatibility: Supporting C-Mount, T2-Mount, M52, and other standard interfaces, compatible with most industrial and scientific cameras on the market
Application Scenarios
Research Laboratories
Providing high-quality microscopy imaging solutions for research institutes and university laboratories, supporting various scientific research and teaching needs
Industrial Inspection
Applied in quality inspection and failure analysis in semiconductor, electronics, materials, and other industries, providing reliable imaging support
Medical Diagnostics
Providing high-resolution imaging for hospital pathology and laboratory departments, supporting disease diagnosis and medical research
Education and Training
Providing modern microscopy teaching equipment for educational institutions, enhancing teaching effectiveness and student learning experience
Zeiss 60N-C Adapter Series Comparison
| Model | Magnification | Interface | Sensor Compatibility |
|---|---|---|---|

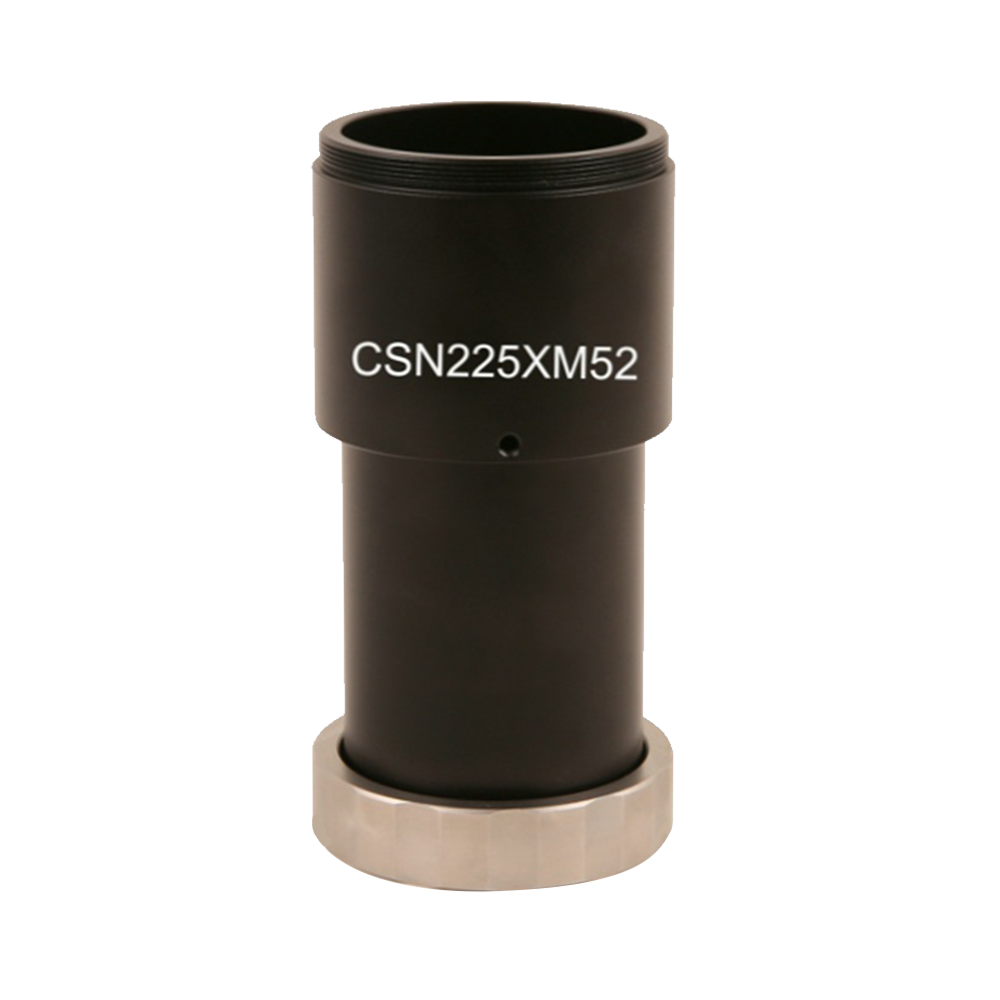

| CSN225XM52 | 2.25X | M52 | 2.7 in, 1.8 in, 4/3 in, 1 in |

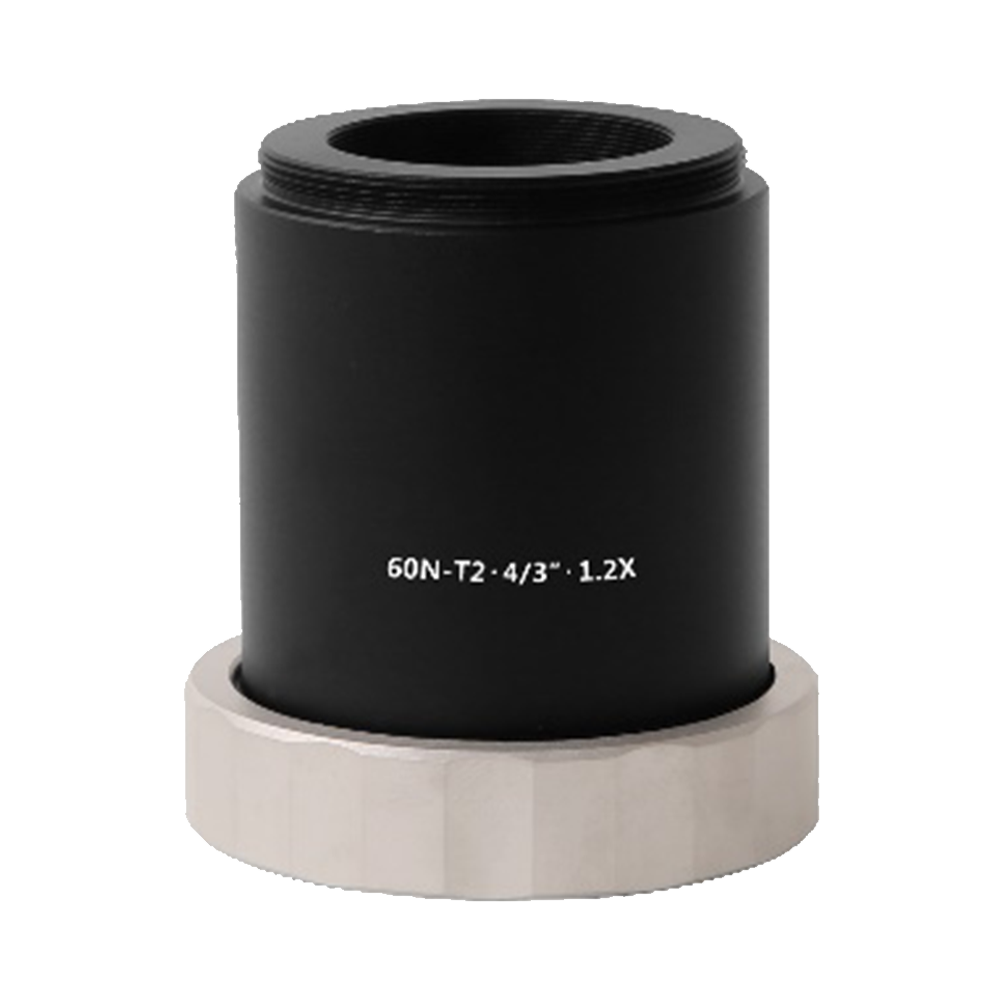

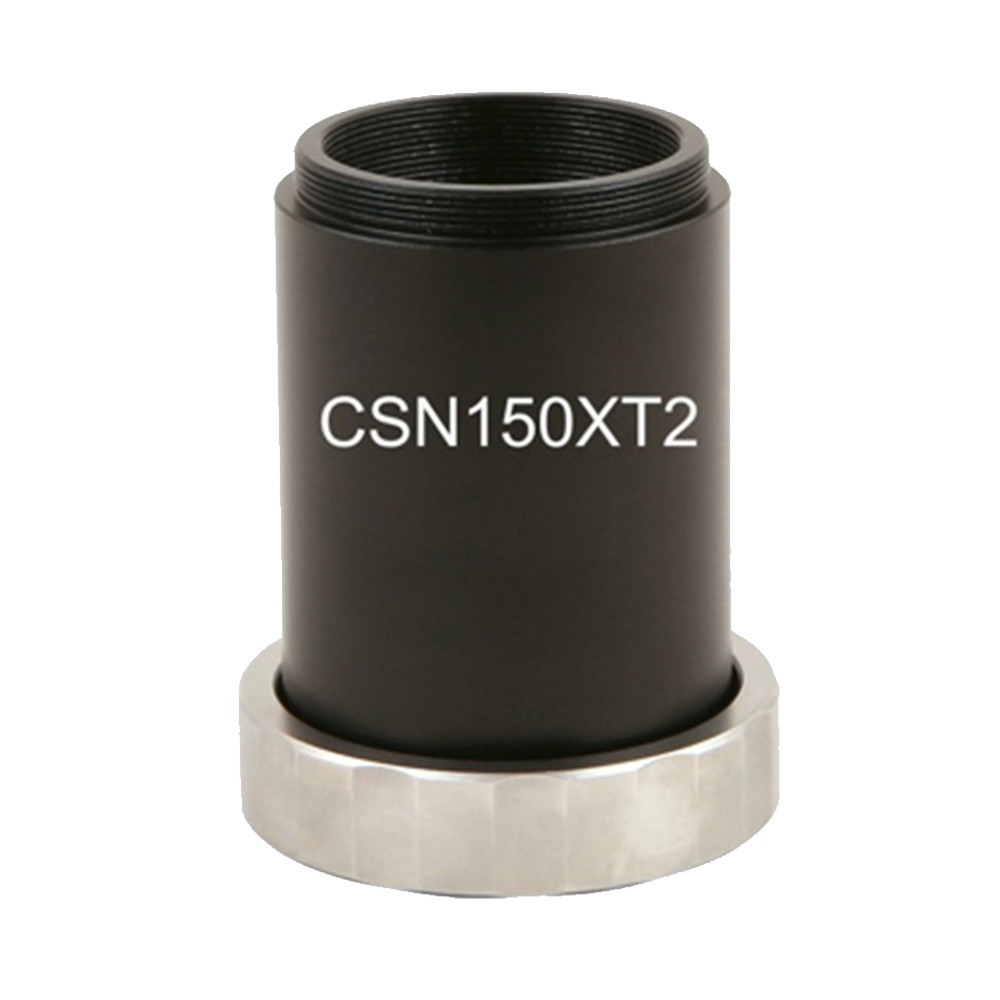

| CSN150XT2 | 1.5X | T2-Mount | 1.8 in, 4/3 in, 1 in, 2/3 in |
| CSN120XT2 | 1.2X | T2-Mount | 1 in, 4/3 in |

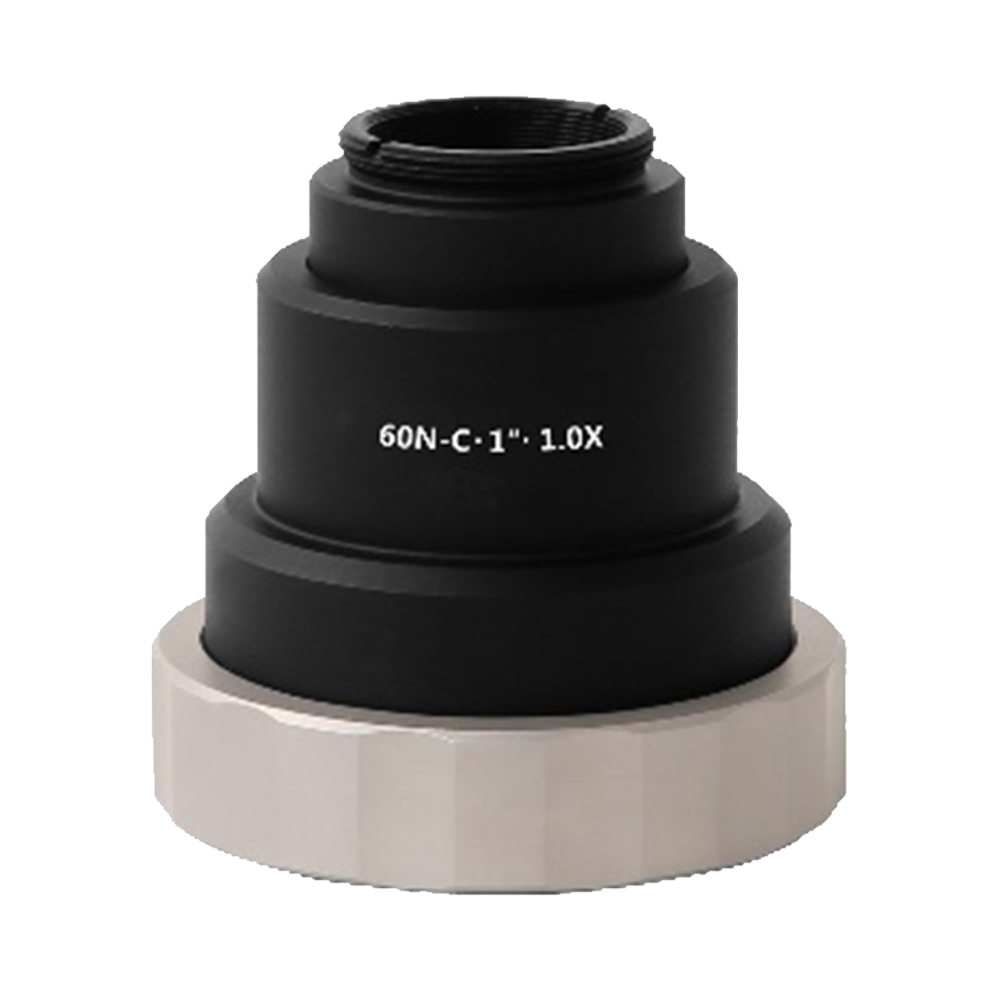

| CSN100XC | 0.35X | C-Mount | 1 in, 2/3 in |

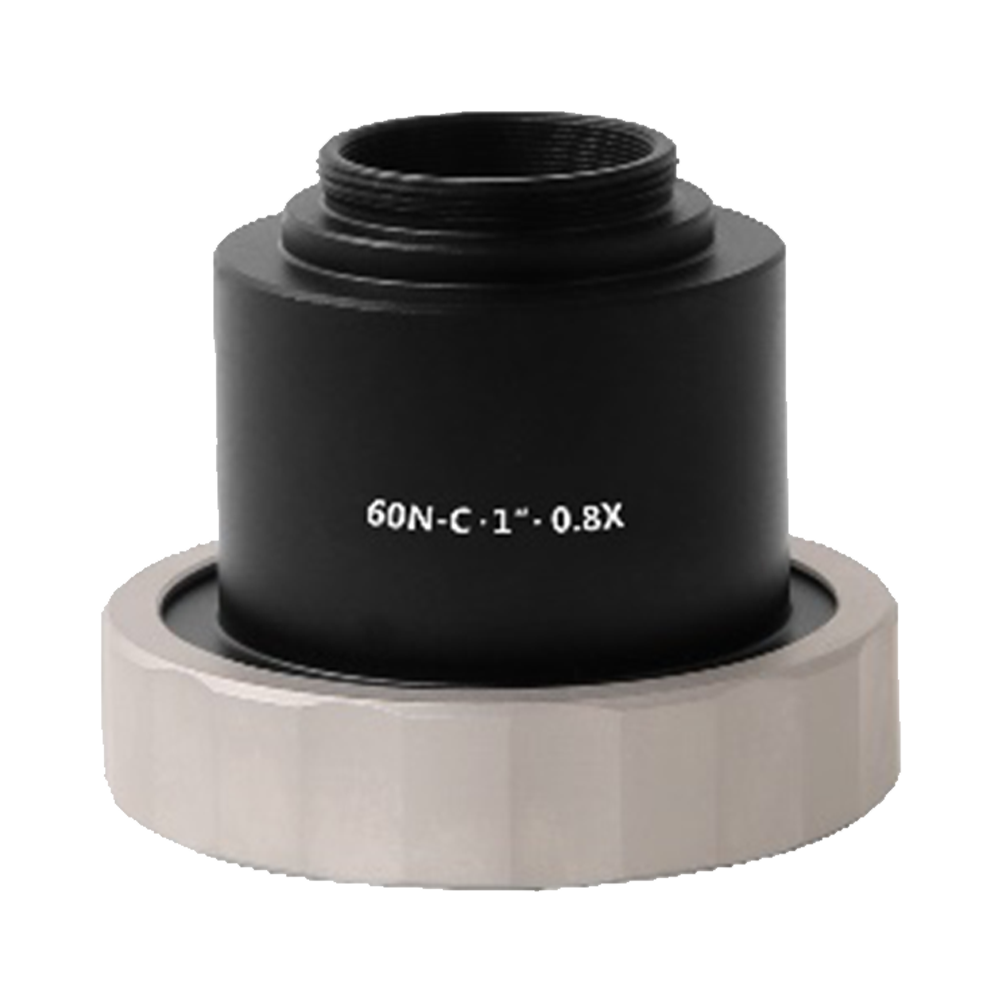

| CSN080XC | 0.80X | C-Mount | 1 in, 2/3 in |

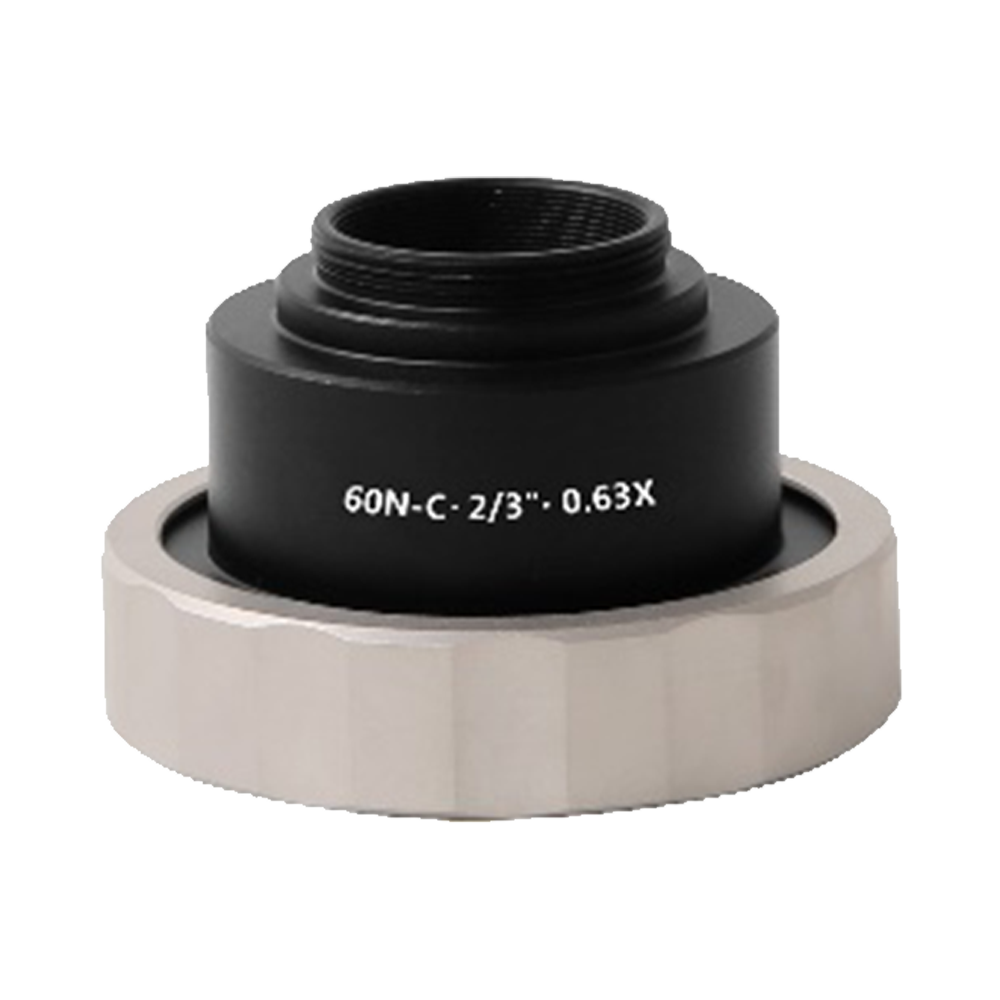

| CSN063XC | 0.63X | C-Mount | 2/3 in, 1/1.8 in, 1/2 in |

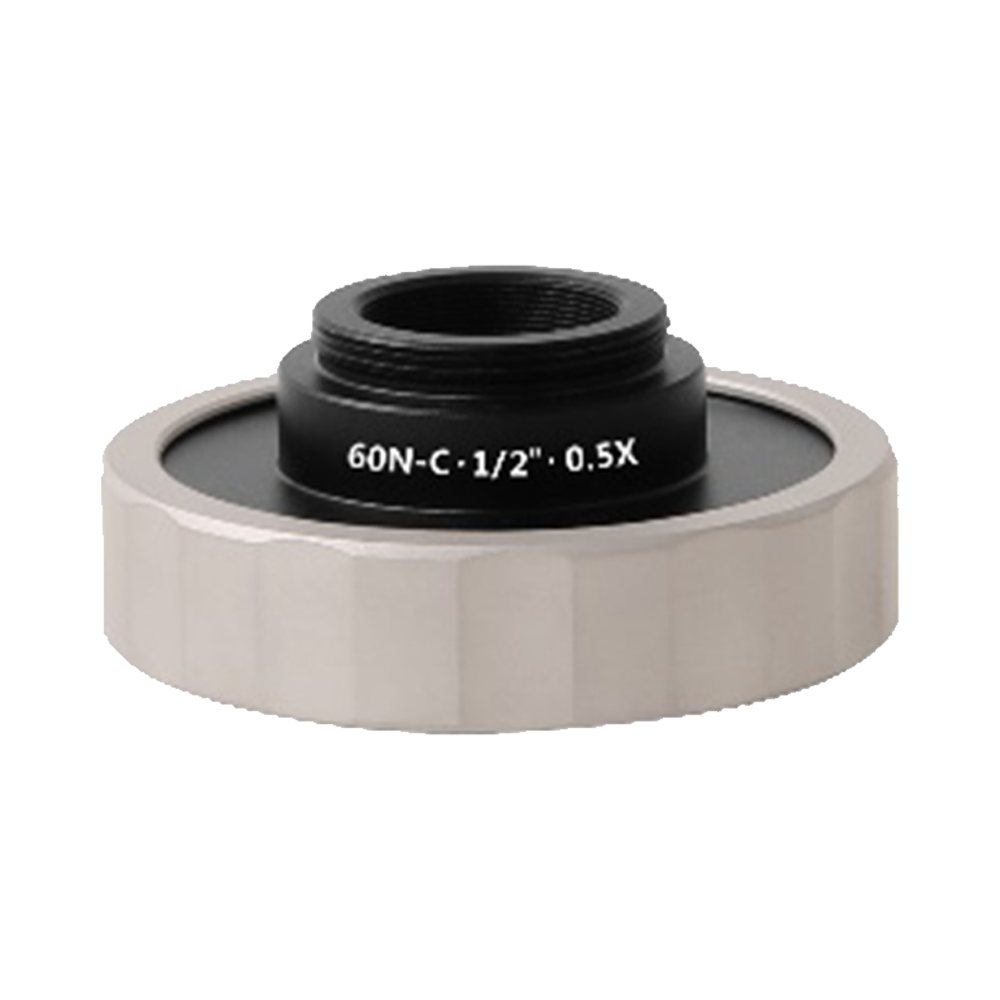

| CSN050XC | 1.0X | C-Mount | 1/1.8 in, 1/2 in, 1/2.5 in |
Compatibility Guide
Important Notice
Please select the appropriate adapter model based on your microscope model, camera sensor size, and imaging requirements. If you have any questions, please contact our technical support team.
Sensor Size Reference
| Sensor Size | Diagonal Length (mm) | Typical Resolution | Recommended Magnification |
|---|---|---|---|
| 1/4" | 4.5 | 640×480 | 0.35X |
| 1/3" | 6.0 | 800×600 | 0.35X - 0.5X |
| 1/2.5" | 7.2 | 1280×960 | 0.5X |
| 1/2" | 8.0 | 1600×1200 | 0.5X - 0.65X |
| 1/1.8" | 8.9 | 1920×1080 | 0.65X |
| 2/3" | 11.0 | 2048×1536 | 0.65X - 1.0X |
| 1" | 16.0 | 2592×1944 | 1.0X - 1.2X |
| 4/3" | 22.5 | 4096×3072 | 1.2X - 1.5X |
| 1.8" | 28.8 | 4000×3000 | 1.5X |
Selection Guide
- Small Sensors (1/4" - 1/3"): Recommend 0.35X magnification for maximum field of view coverage
- Medium Sensors (1/2" - 2/3"): Recommend 0.5X - 0.65X magnification to balance field of view and resolution
- Large Sensors (1" - 4/3"): Recommend 1.0X - 1.5X magnification for higher spatial resolution
- Extra Large Sensors (1.8"): Recommend 2.25X magnification for high-resolution imaging requirements
